6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

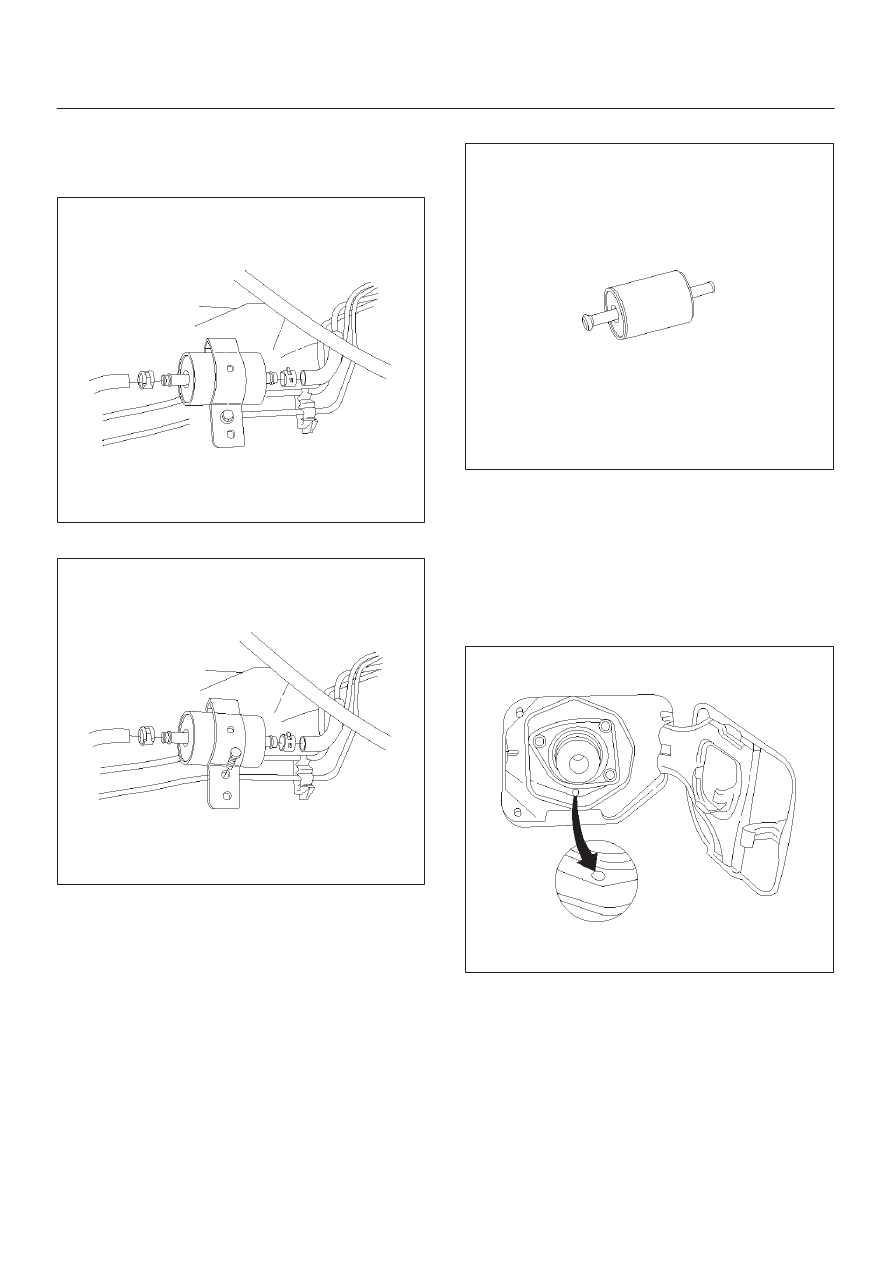

3. Disconnect the fuel line from the fuel filter on the

engine side.

4. Disconnect the fuel line from the fuel filter on the fuel

tank side.

041RW006

5. Remove the bolt on the fuel filter holder.

041RW007

6. Remove the fuel filter.

041RW008

Inspection Procedure

1. Replace the fuel filter when the following occur:

D

Fuel leaks from the fuel filter body.

D

The fuel filter body is damaged.

D

The fuel filter is clogged with dirt or sediment.

2. If the drain hole is clogged, clean the drain.

041RW009

6E2–299

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

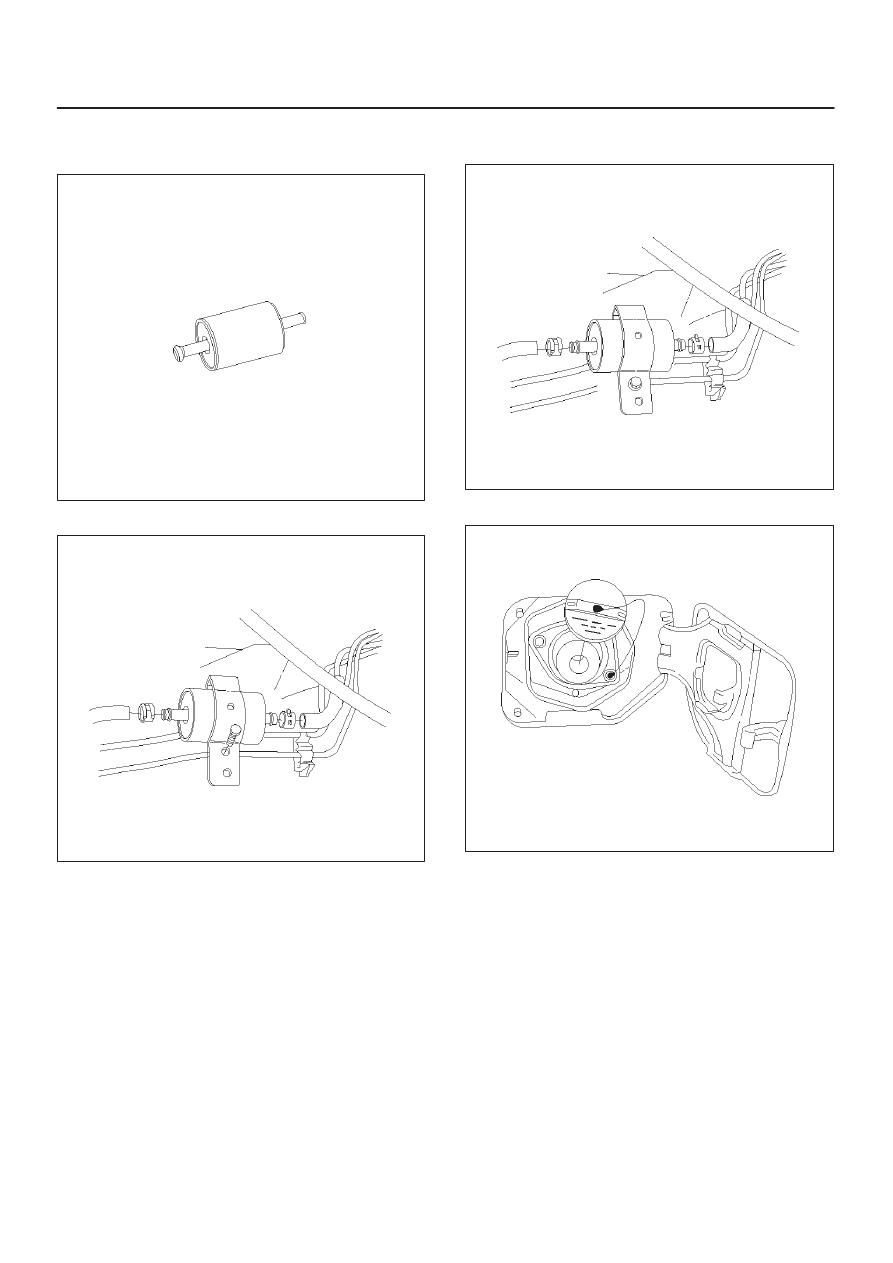

Installation Procedure

1. Install the fuel filter in the correct direction.

041RW008

2. Install the bolt on the fuel filter holder.

041RW007

3. Connect the fuel line on the engine side.
4. Connect the fuel line on the fuel tank side.

041RW006

5. Install the fuel filler cap.

041RW005

6. Connect the negative battery cable.

6E2–300

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

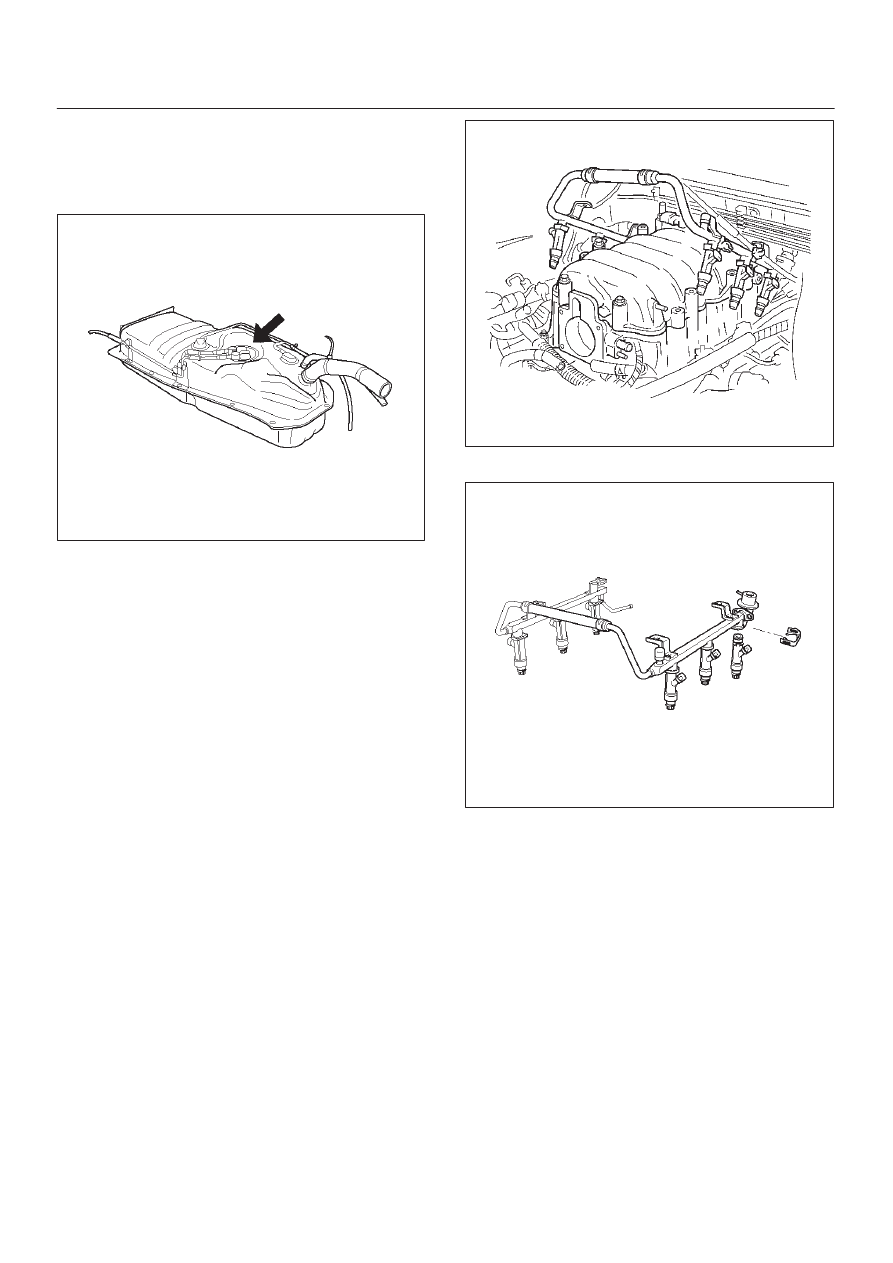

Fuel Gauge Unit

Removal Procedure

Refer to

Fuel Gauge Unit In Engine Fuel.

014RW133

Fuel Injectors

Removal Procedure

NOTE: If the fuel injectors are leaking, the engine oil may
be contaminated with fuel.  Check the oil for signs of
contamination and change the oil and the filter if
necessary.

NOTE: Use care in removing the fuel injectors in order to
prevent damage to the fuel injector electrical connector
pins or the fuel injector nozzles.  The fuel injector is an
electrical component and should not be immersed in any
type of cleaner as this may damage the fuel injector.

IMPORTANT:

Fuel injectors are serviced as a complete

assembly only.

1. Disconnect the negative battery cable.
2. Remove the upper intake manifold.  Refer to

Common Chamber in Engine Mechanical..

3. Remove the fuel rail.  Refer to

Fuel Rail.

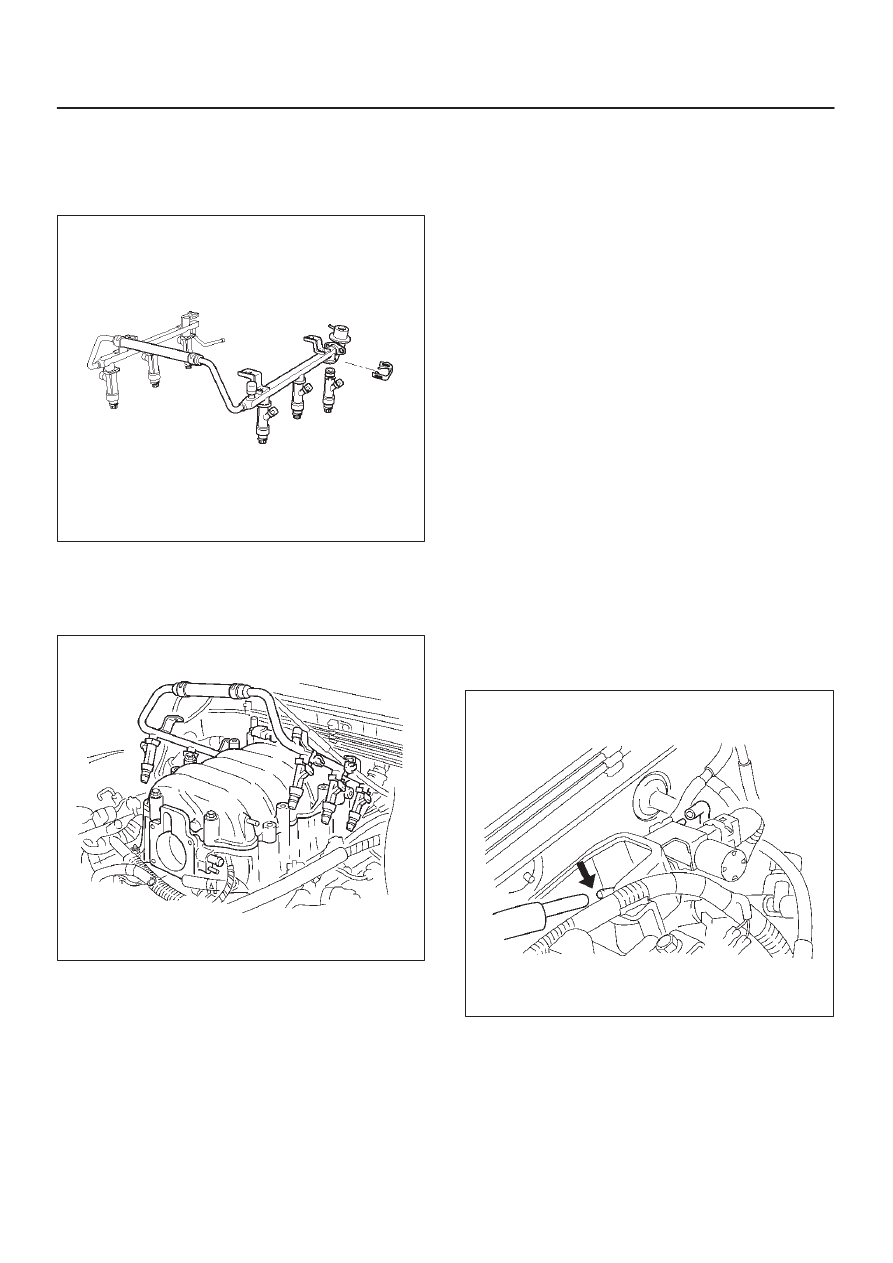

014RW106

4. Remove the injector retainer clip.

F06RW017

5. Remove the fuel injector assembly.
6. Remove the O-ring from the fuel injector.
7. Remove the O-ring backup from the fuel injector .

Inspection Procedure

1. Inspect the O-rings for cracks or leaks.
2. Replace worn or damaged O-rings.
3. Lubricate the new O-rings with engine oil before

installation.

6E2–301

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

Installation Procedure

1. Install the O-ring backup on the fuel injector.
2. Install the new O-ring on the fuel injector.
3. Install the fuel injector on the fuel rail.

F06RW017

4. Use new fuel injector retainer clips to retain the fuel

injector to the fuel rail.

5. Coat the end of the fuel injector with engine oil.
6. Install the fuel rail.  Refer to

Fuel Rail.

014RW106

7. Install the upper intake manifold.  Refer to

Common

Chamber in Engine Mechanical.

8. Install the engine cover.

9. Connect the negative battery cable.

Fuel Pressure Regulator

Removal Procedure

CAUTION: To reduce the risk of fire and personal
injury, it is necessary to relieve the fuel system
pressure before servicing the fuel system
components.

CAUTION: After relieving the system pressure, a
small amount of fuel may be released when servicing
fuel lines or connections.  Reduce the chance of
personal injury by covering the fuel line fittings with
a shop towel before disconnecting the fittings.  The
towels will absorb any fuel that may leak out.  When
the disconnect is completed, place the towel in an
approved container.

NOTE: Compressed air must never be used to test or
clean a fuel pressure regulator, as damage to the fuel
pressure regulator may result.

NOTE: To prevent damage to the fuel pressure regulator,
do not immerse the pressure regulator in solvent.

1. Depressurize the fuel system.  Refer to

Fuel Pressure

Relief Procedure.

2. Disconnect the negative battery cable.
3. Remove the fuel pump relay.  Refer to

Fuel Pump

Relay.

4. Remove the pressure regulator hose from the fuel

pressure regulator.

014RW110
