Air Cleaner/Air Filter

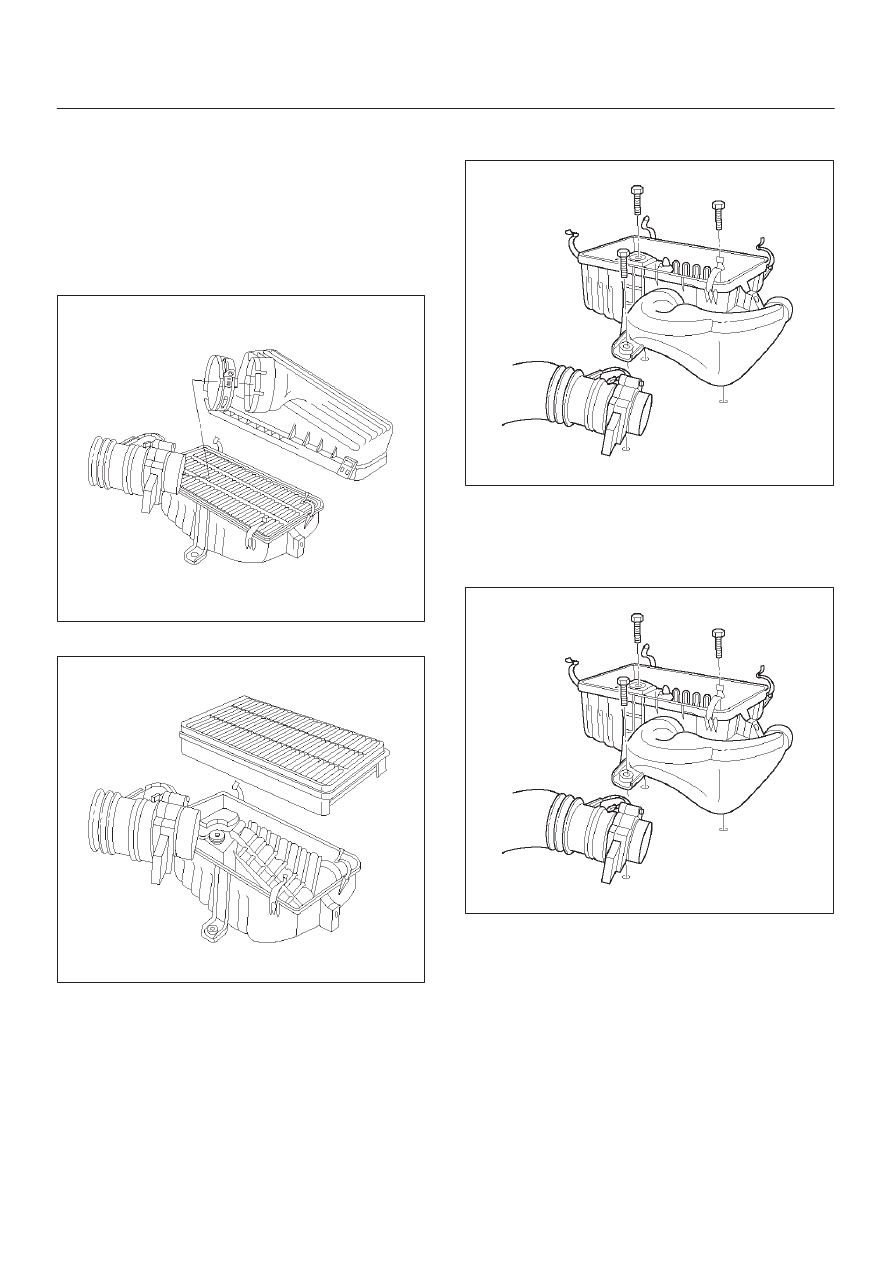

Removal Procedure

1. Loosen the clamp between the air cleaner lid and the

mass air flow sensor.

2. Release the four latches securing the lid to the air

cleaner housing.

3. Remove the air cleaner lid.

TS23973

4. Remove the air filter element.

TS23794

5. Remove the retaining bolts and the air cleaner

housing from the vehicle.

130RT002

Installation Procedure

1. Install the air cleaner housing in the vehicle with the

retaining bolts.

130RT002

6E2–291

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

2. Install the air filter element in the air cleaner housing.

TS23794

3. Install the air cleaner lid on the MAF sensor and the air

cleaner housing.

TS23973

4. Tighten the clamp and secure the four latches

between the lid and the air cleaner housing.

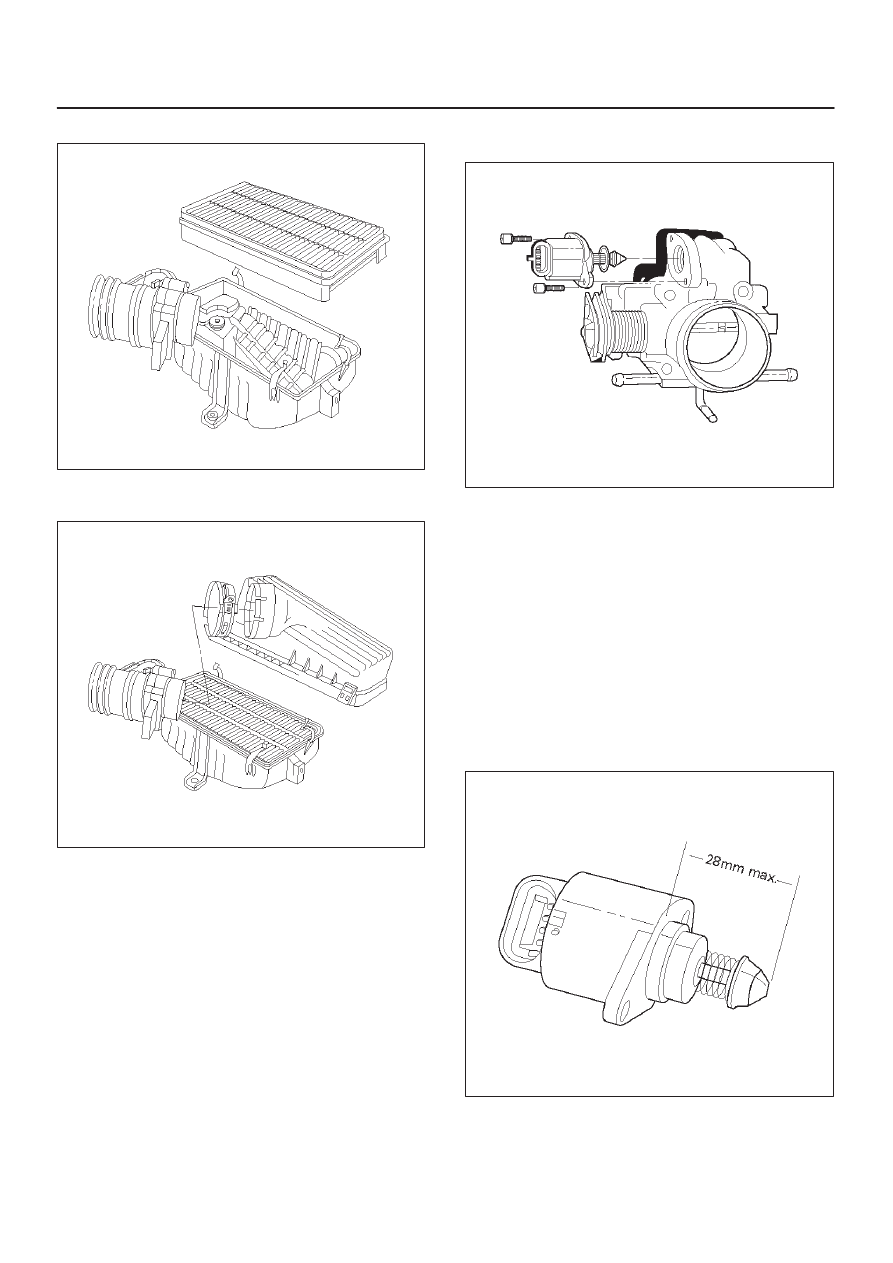

Idle Air Control (IAC) Valve

Removal Procedure

1. Disconnect the negative battery cable.
2. Disconnect the IAC electrical connector.
3. Remove the bolts and the IAC valve from the throttle

body.

NOTE: Do not clean the IAC valve by soaking it in
solvent.  The valve will be damaged as a result.

TS23745

Cleaning, Inspection, and
Measurement Procedure

D

Clean the IAC valve O-ring sealing surface, pintle
valve seat and air passage.
– Use carburetor cleaner and a parts cleaning brush

to remove carbon deposits.  Do not use a cleaner
that contains methyl ethyl ketone.  This is an
extremely strong solvent and not necessary for this
type of deposit.

– Shiny spots on the pintle are normal and do not

indicate misalignment or a bent pintle shaft.

– If the air passage has heavy deposits, remove the

throttle body for complete cleaning.

TS23746

6E2–292

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

D

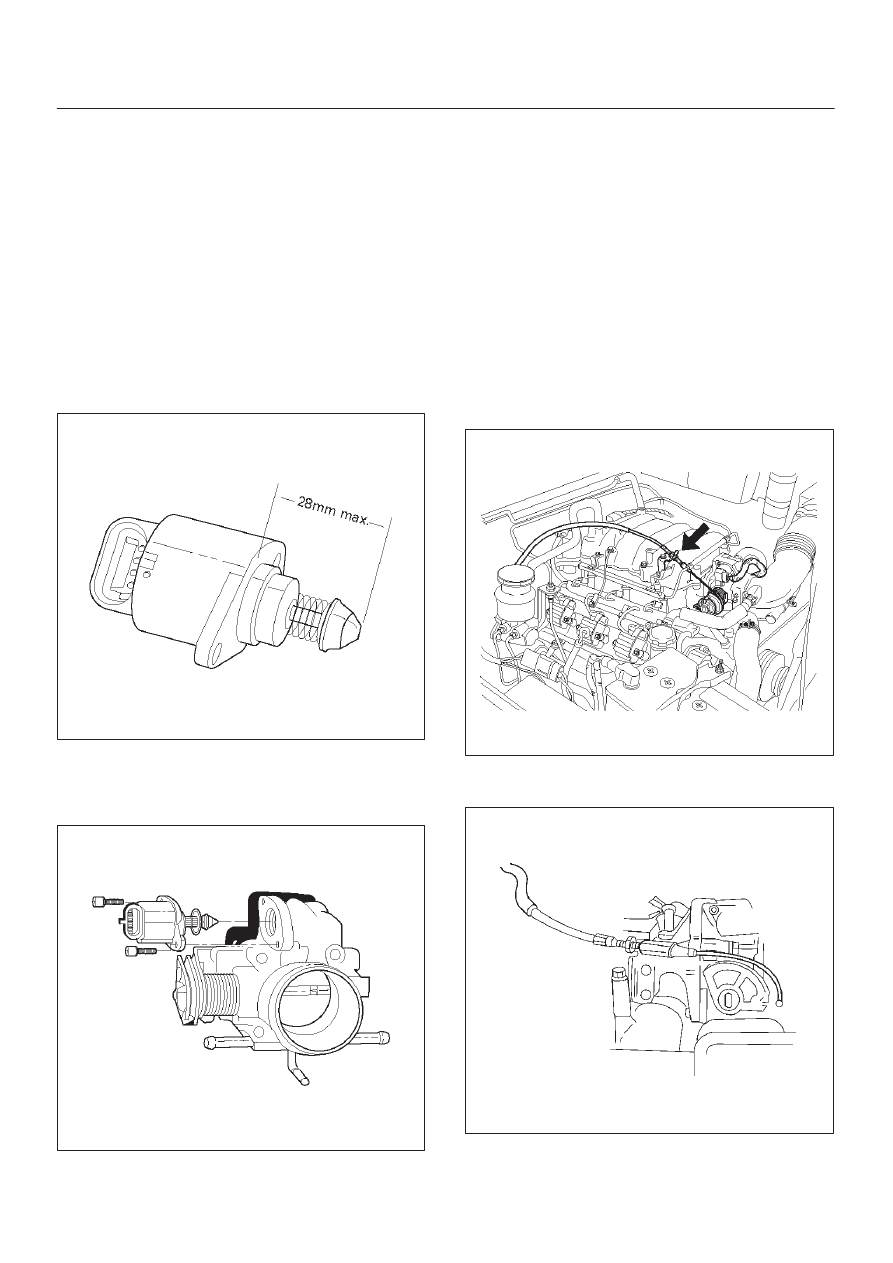

Inspect the IAC valve O-ring for cuts, cracks, or
distortion.  Replace the O-ring if damaged.

D

In order to install a new IAC valve, measure the
distance between the tip of the pintle and the
mounting flange.  If that measurement is 28 mm (1.1
in.) or less, the valve needs no adjustment.  If the
measurement is greater than 28 mm (1.1 in.), apply
finger pressure and retract the valve.  The force
required to retract the pintle on a new valve will not
damage the valve, shaft, or pintle.

NOTE: Do not push or pull on the IAC valve pintle on IAC
valves that have been in service.  The force required to
move the pintle may damage it.

IMPORTANT:

Use an identical replacement part in

order to replace a valve.  IAC valve pintle shape and
diameter are designed for the specific application.

TS23746

Installation Procedure

1. Install the IAC valve on the throttle body with the bolts.

TS23745

2. Connect the IAC valve electrical connector.
3. Install the negative battery cable.

Common Chamber

Removal and Installation Prodedure

Refer to Common Chamber in Engine Mechanical.

Accelerator Cable Assembly

Removal Procedure

1. Remove the engine cover.
2. Loosen the adjusting nut on the cable bracket

mounting on the common chamber.

101RW005

3. Remove the accelerator control cable (on the throttle

valve end).

101RW006

6E2–293

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

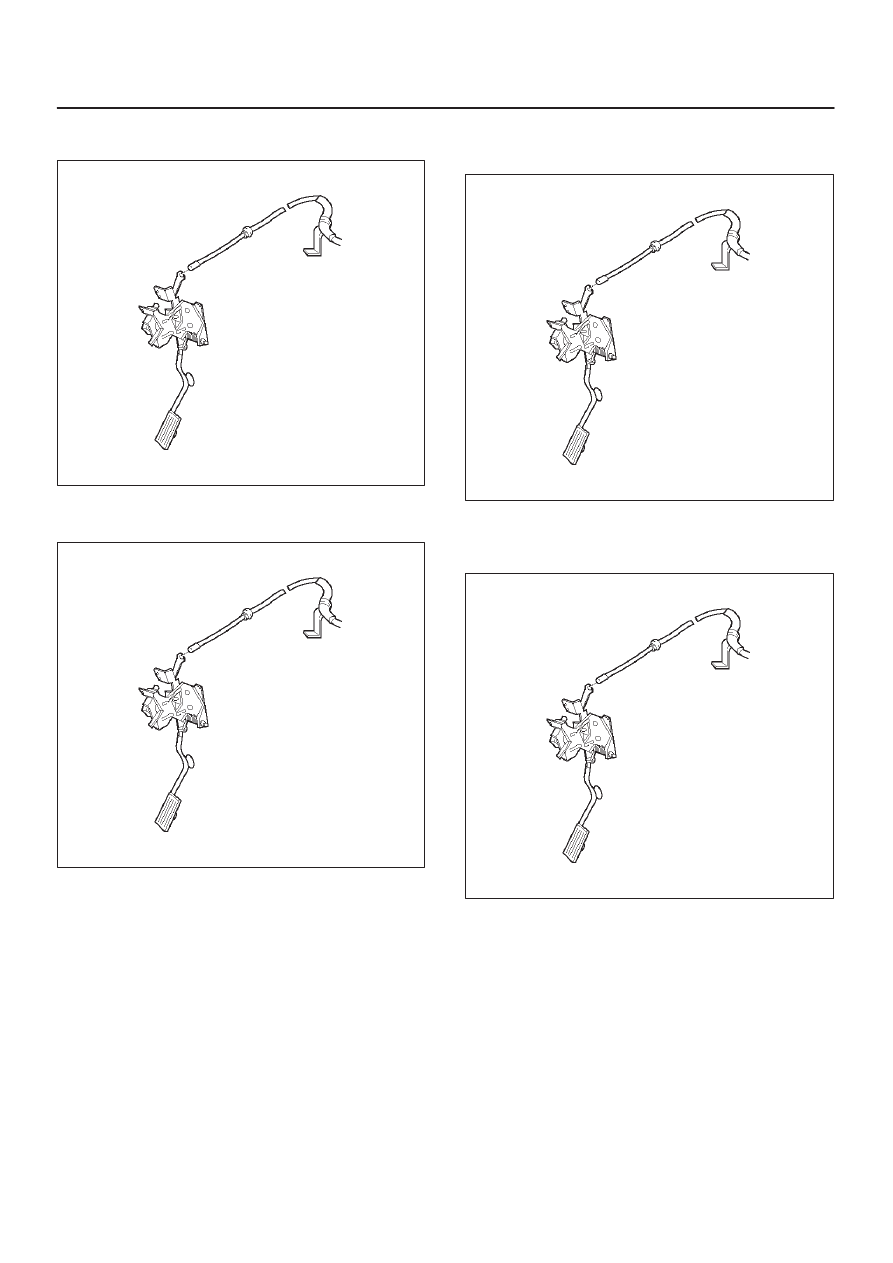

4. Remove the accelerator control cable (on the

accelerator pedal end).

TS23982

5. Remove the grommet.
6. Remove the accelerator control cable.

TS23983

Inspection Procedure

Check the following items, and replace the control cable if
any abnormality is found:

D

The control cable should move smoothly.

D

The control cable should not be bent or kinked.

D

The control cable should be free of damage and
corrosion.

Installation Procedure

1. Install the accelerator control cable.

TS23983

2. Install the grommet.
3. Install the accelerator control cable (on the

accelerator pedal end).

TS23982
