ENGINE MECHANICAL (X22SE 2.2L)

6A–25

17. Disconnect connector for evaporation valve.

18. Remove canister hose.

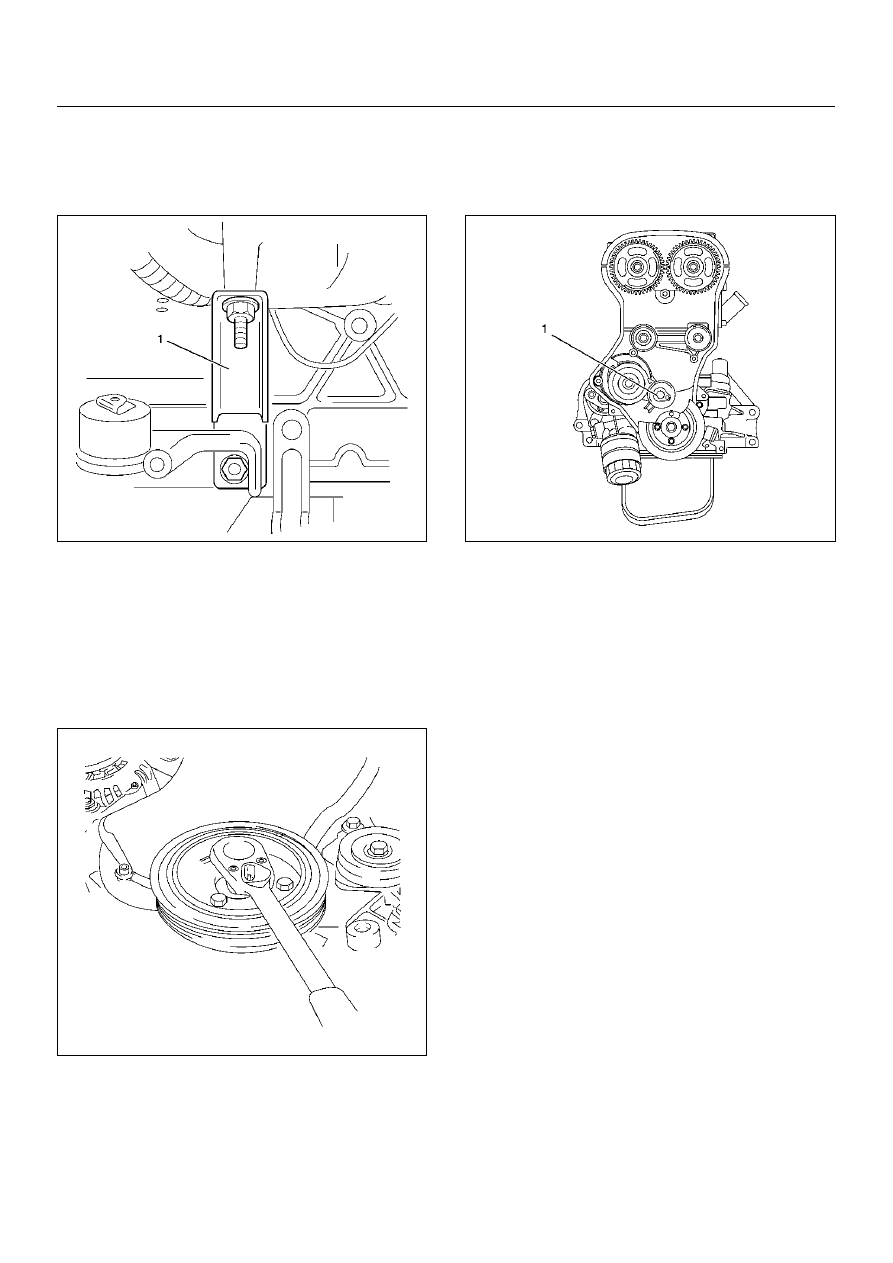

19. Remove fixing nut of intake manifold stay from

cylinder block side.

025RW002

20. Remove two bolts from intake manifold for water

pipe support and remove cylinder head assembly.

21. Remove engine harness cover and disconnect three

connectors from chassis harness on left rear side
engine compartment.

22. Disconnect connector for power steering pump

pressure switch.

23. Remove four bolts and remove crankshaft pulley.

020RW014

24. Remove two bolts and nut then remove timing belt

front cover.

25. Remove ventilation hose from cylinder block side

and from cylinder head side.

26. Remove two bolts, ignition cable cover and remove

ignition cables from spark plug.

27. Disconnect camshaft angle sensor connector.

28. Remove ten bolts and remove cylinder head cover.

29. Remove fixing bolt of timing belt tensioner then

remove timing belt tensioner.

020RW010

30. Remove timing belt.

CAUTION:

• Do not bend or twist belt, otherwise its core could

be damaged.  The belt should not be bent at a
radius less than 30 mm.

• Timing belt drive gear counterhold with 5–8840–

2598–0.

• Do not allow oil or other chemical substances to

come in contact  with the belt. They will shorten
the life.

• Do not attempt to pry or stretch the belt with a

screw driver or any  other tool during installation.

• Store timing belt in cool and dark place. Never

expose the belt direct  sunlight or heat.

31. Remove two idle pulleys, the left side with idle pulley

bracket.

32. Remove two bolts and stud bolt and remove timing

belt rear cover.

33. Remove camshaft angle sensor

6A–26

ENGINE MECHANICAL (X22SE 2.2L)

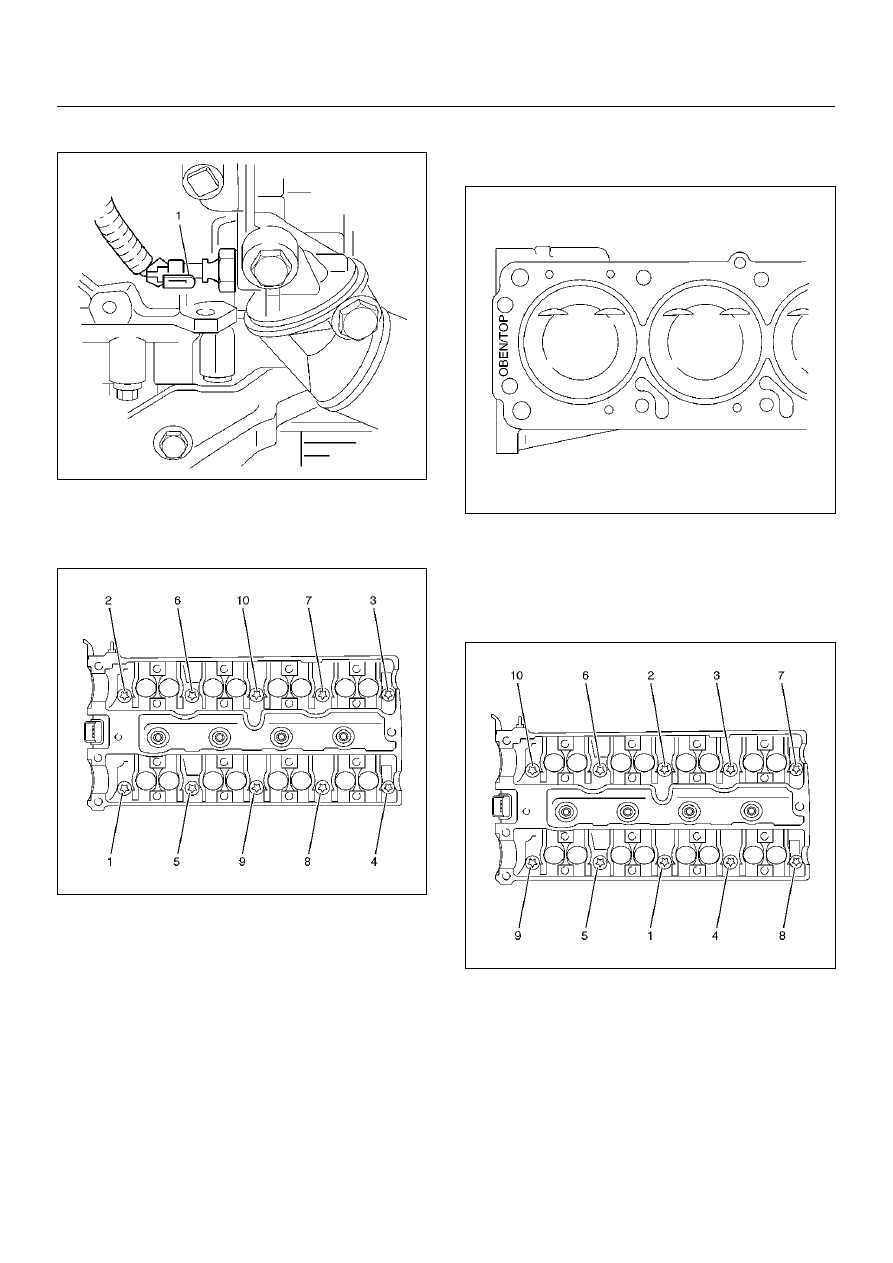

34. Disconnect engine oil pressure switch connector.

050RW005

35. Remove camshaft assembly exhaust side.

36. Use 5–8840–2600–0 to remove ten cylinder head

fixing bolts

012RW007

Installation

1. Put cylinder head gasket on the cylinder block.

012RW011

2. Install the cylinder head assembly, tighten cylinder

head bolts by four steps tightening method in the
following  sequence to the specified torque.(use 5–
8840–2600–0)

Torque: 25 N·m (2.5Kg·m/18lbft) + 90

°°°°

 + 90

°°°°

 + 90

°°°°

012RW006

ENGINE MECHANICAL (X22SE 2.2L)

6A–27

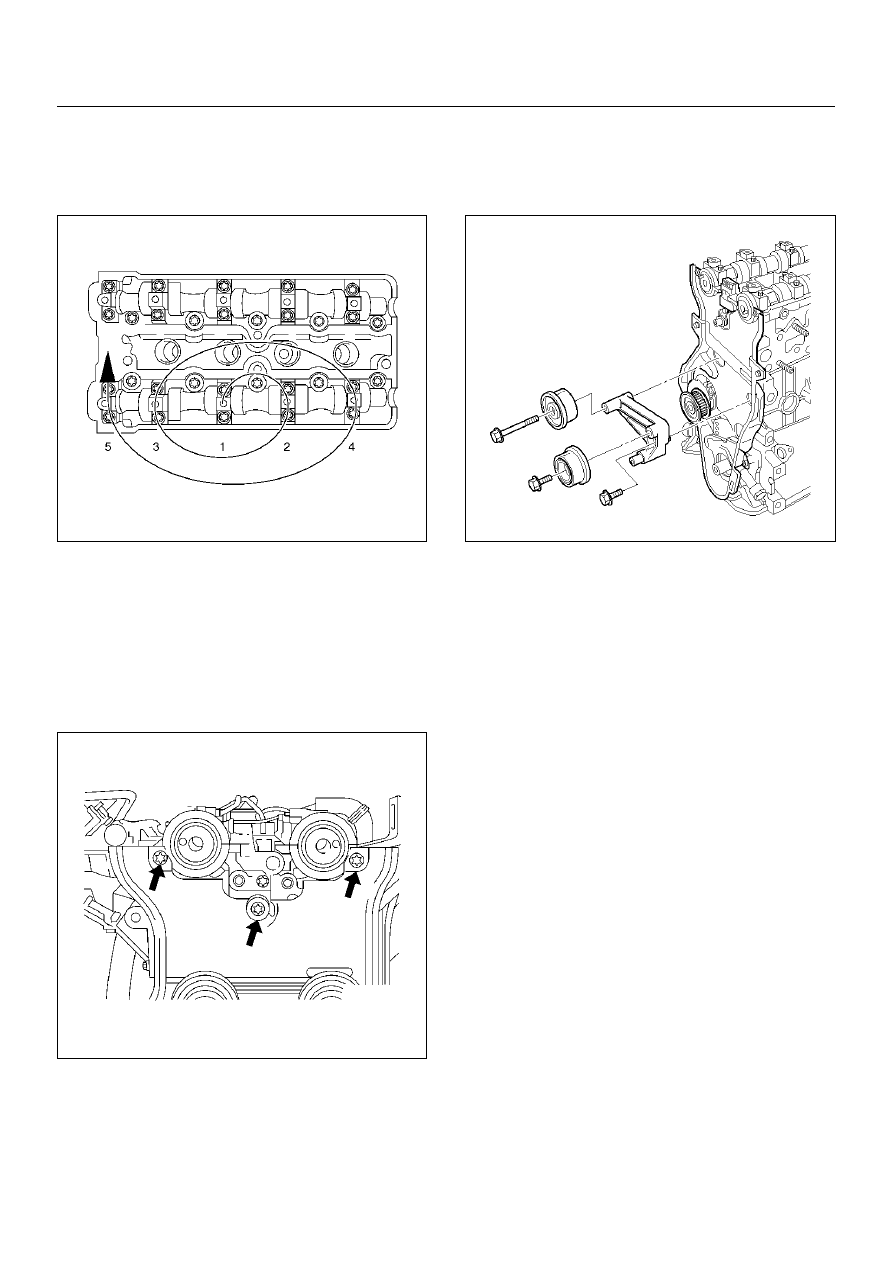

3. Install camshaft assembly exhaust side and tighten

camshaft bracket bolts in the sequence to the
specified torque.

Torque: 8 N·m (0.8Kg·m/5.9lbft)

015RW014

4. Connect engine oil pressure switch connector.

5. Install camshaft angle sensor.

6. Install the timing belt rear cover and tighten three

bolts to the specified torque.

Torque

M6 bolt: 6 N·m (0.6Kg·m/4.4lbft)

M8 bolt: 8 N·m (0.8Kg·m/5.8lbft)

020RW012

7. Install left side idle pulley with idle pulley bracket,

tighten to the specified torque and install right side
idle pulley and tighten to the specified torque.

Torque: 25 N·m (2.5Kg·m/18lbft)

020RW016

8. Install timing belt tensioner then tighten it

temporarily until make alignment timing belt.

9. Install the cylinder head cover and tighten fixing bolt

temporally.

10. Install the timing belt and perform timing belt setting

procedure as follows.

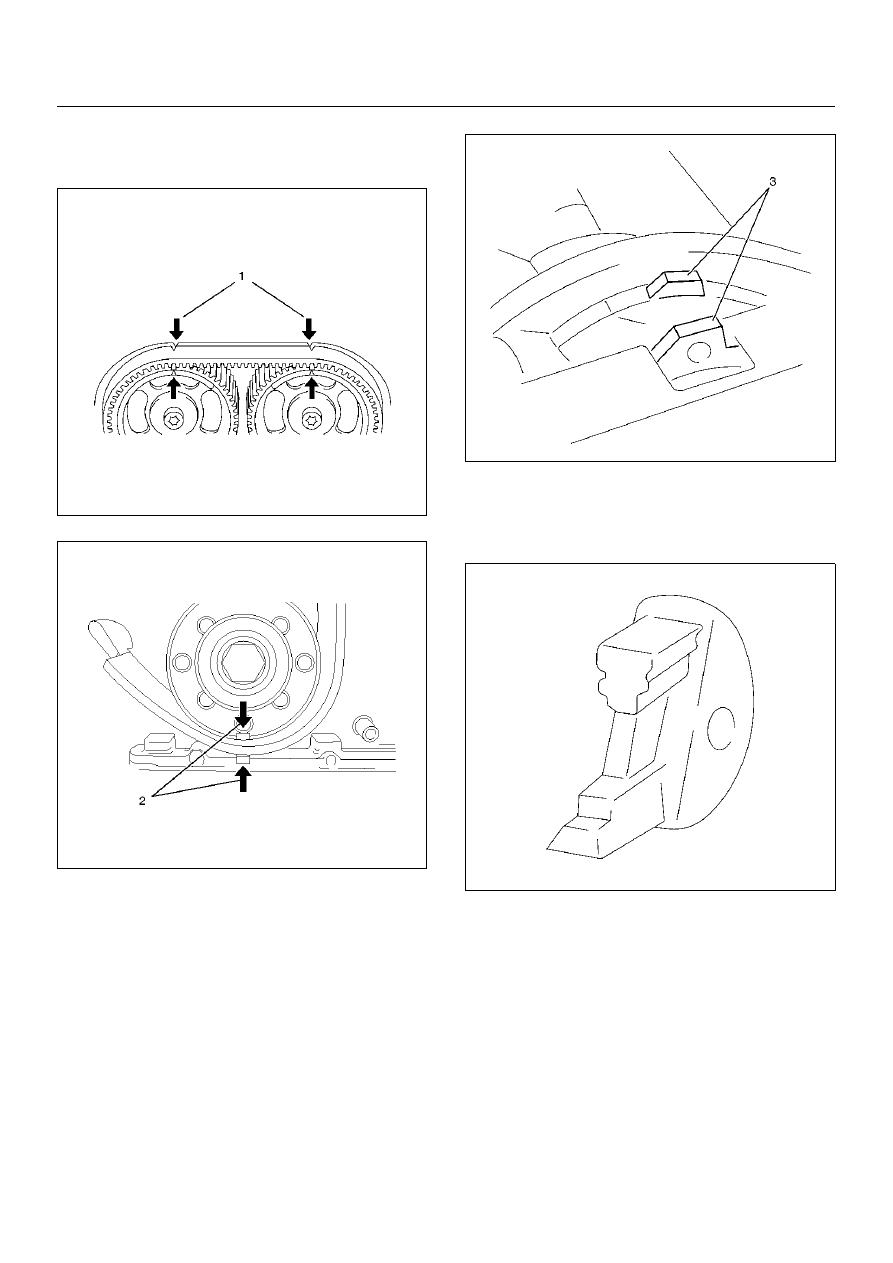

1. Bring the engine top dead center No.1 cylinder

compression stroke by rotating the engine in the
direction of normal operation.
The engine is in this position when the notches
on the camshaft pulleys align with the marks on
the cylinder head cover(1),  Check the
crankshaft pulley timing mark is aligned (2) also
check for water pump positioning ensure tabs
are aligned (3).

• Rotate the engine two full turns in the

direction of normal operation until the engine
is again at top dead centre, No.1 cylinder
firing being careful that all movement is in a
clockwise direction.

6A–28

ENGINE MECHANICAL (X22SE 2.2L)

• If the engine is turned too far, do not turn

backwards, but continue to turn in the same
direction until the marks are again in line.

014RW067

014RW066

014RW063

2. Place 5–8840–2659–0 to between intake and

exhaust of camshaft drive gear to prevent
camshaft drive gear movement during timing
belt setting.

014RW065
