ENGINE MECHANICAL (X22SE 2.2L)

6A–17

Cylinder Head Cover

Removal

1. Disconnect battery ground cable.

2. Disconnect PCV hose from cylinder head cover.

3. Remove intake duct.

4. Remove left side ground cable from cylinder head

cover and disconnect ground cable connector on the
left  side wheel arch. Remove right side ground
cable from generator stay and disconnect ground
cable connector on the right side wheel arch.

5. Disconnect three(black, green and blue colors)

engine wire harness connectors from chassis
harness of left rear side of compartment.

6. Disconnect cooling fan wire harness connector from

cooling fan on left side top of fan shroud.

7. Move drive belt tensioner to loose side using wrench

then remove drive belt.

033RW001

8. Remove PCV hose from cylinder block.

9. Remove intake duct stay from cylinder head.

10. Remove two bolts for remove ignition cable cover

from cylinder head cover.

11. Disconnect ignition cable from ignition plug.

12. Disconnect camshaft position sensor harness and

crankshaft angle sensor harness from behind
generator.

13. Remove four bolts and remove the crankshaft pulley

020RW014

14. Remove timing belt front cover.

15. Loose fixing bolt of timing belt rear cover then

remove the camshaft angle sensor.

020RW012

16. Remove ten cylinder head cover fixing bolts and

remove the cylinder head cover.

6A–18

ENGINE MECHANICAL (X22SE 2.2L)

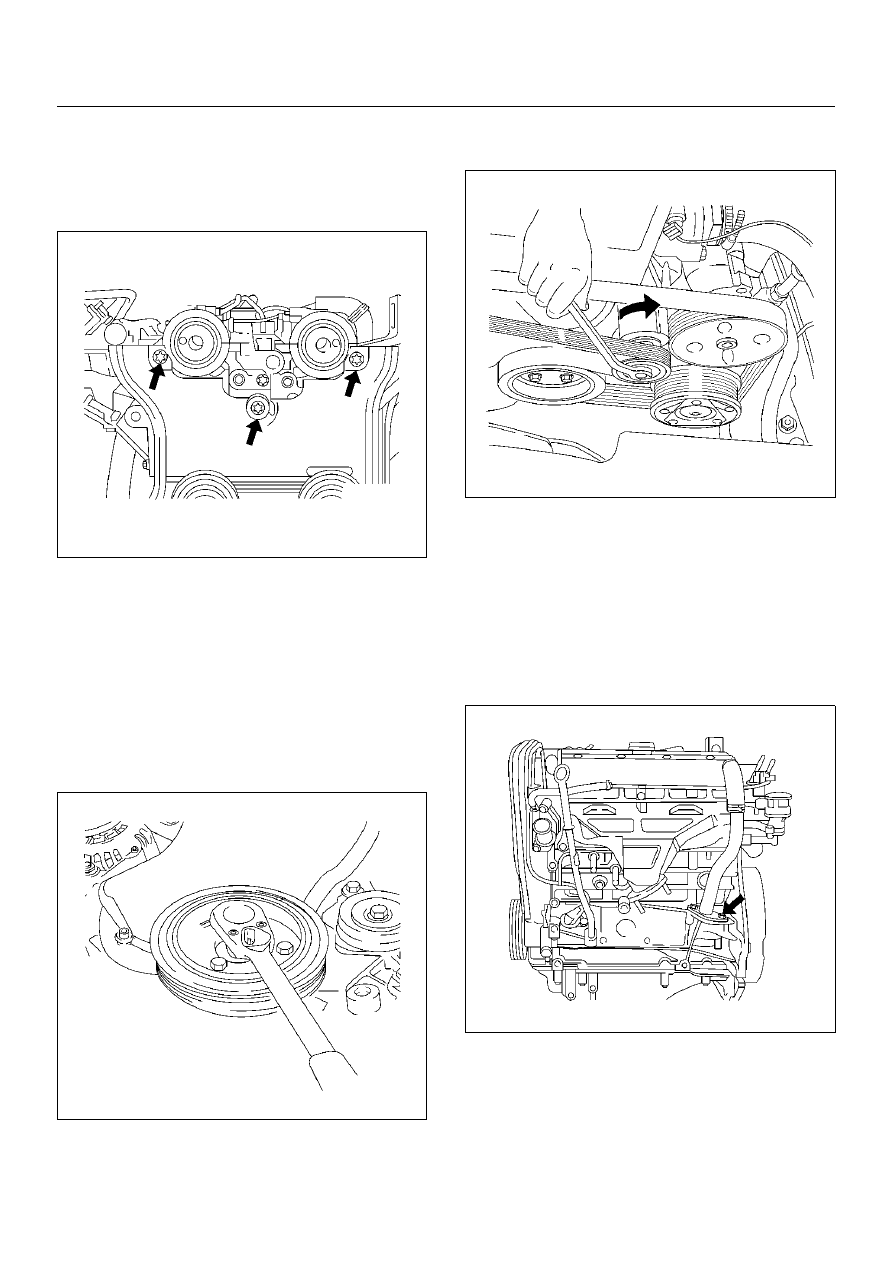

Installation

1. Install the camshaft position sensor and tighten

timing rear cover bolt.

Torque: 8 N·m (0.8Kg·m/5.9 lbft)

020RW012

2. Install the cylinder head cover and tighten bolts to

the specified torque.

Torque: 8 N·m (0.8Kg·m/5.9lbft)

3. Install the timing belt front cover then tighten fixing

bolts to the specified torque.

Torque: 6 N·m (0.6Kg·m/4.4lbft)

4. Install the crankshaft pulley, tighten fixing bolts to

the specified torque.

Torque: 20 N·m (1.4Kg·m/14lbft)

020RW014

5. Move drive belt tensioner to loose side using wrench

then install the drive belt to normal position.

033RW001

6. Connect ignition cable to ignition plug.

7. Install ignition cable cover to cylinder head cover

and tighten two bolt to the specified torque.

Torque: 3 N·m (0.3Kg·m/2lbft)

8. Install intake duct bracket to cylinder block.

9. Install PCV hose flange to cylinder block to the

specified torque.

Torque: 25 N·m (2.5Kg·m/18lbft)

020RW015

10. Connect cooling fan wire harness connector to

cooling fan  on left side top of fan shroud.

11. Connect left side ground cable to cylinder head

cover and connect other side connector to left side
wheel arch terminal.
Connect right side ground cable to generator stay
and connect other side connector to right side wheel
arch terminal.

ENGINE MECHANICAL (X22SE 2.2L)

6A–19

12. Connect three(black, green and blue colors) engine

wire harness connector to chassis harness of left
rear side of engine compartment.

13. Install intake duct.

14. Connect PCV hose to cylinder head cover.

15. Connect battery ground cable.

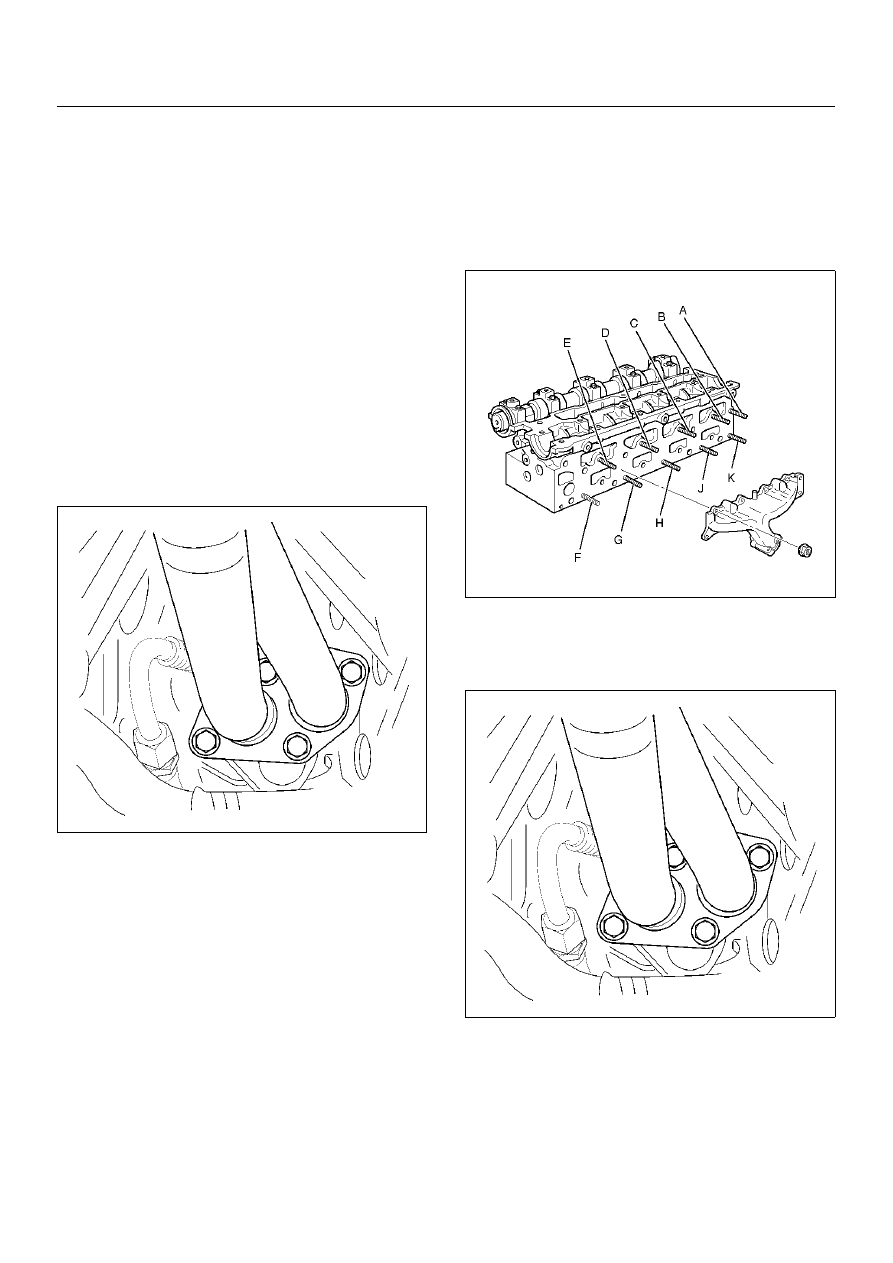

Exhaust Manifold

Removal

1. Disconnect battery ground cable.

2. Disconnect PCV hose from air intake duct.

3. Remove a nut from air intake duct bracket and

loosen hose clamp on throttle body. Remove air
intake duct assembly with air cleaner cover.

4. Remove air intake duct bracket with ground cable.

5. Remove four fixing bolts on exhaust manifold heat

protector.

6. Remove fixing four nuts from flange of front exhaust

pipe and remove fixing bolts from silencer side.

027RW005

7. Remove ten exhaust manifold fixing nuts then

remove exhaust manifold.

Installation

1. Install exhaust manifold and tighten fixing nuts to be

tightened in three steps.

• Tightening sequence:

Step1: J G H B D C J G B D

Step2: A B C D E F G H J K

Step3: A B C D E F G H J K

• Tightening torque:

Step1: 14 N·m (10 Ibft)

Step2: 20 N·m (14 Ibft)

Step3: 20 N·m (14 Ibft)

011RW029

2. Install front exhaust pipe to exhaust manifold and

tighten fixing nut to the specified torque.

Torque: 25 N·m (2.6Kg·m/18 lbft)

027RW005

3. Tighten silencer side bolt to the specified torque.

Torque: 68 N·m (6.9Kg·m/50lbft)

4. Install exhaust manifold heat protector and tighten

bolt.

Torque: 8 N·m (0.8Kg·m/5.9lbft)

5. Install intake duct bracket with ground cable.

6. Install intake duct assembly to throttle body and air

6A–20

ENGINE MECHANICAL (X22SE 2.2L)

cleaner then tighten nut to the intake duct bracket
and clamp on the throttle body side, also clamp air
cleaner cover.

7. Connect PCV hose to air intake duct.

8. Connect battery ground cable.

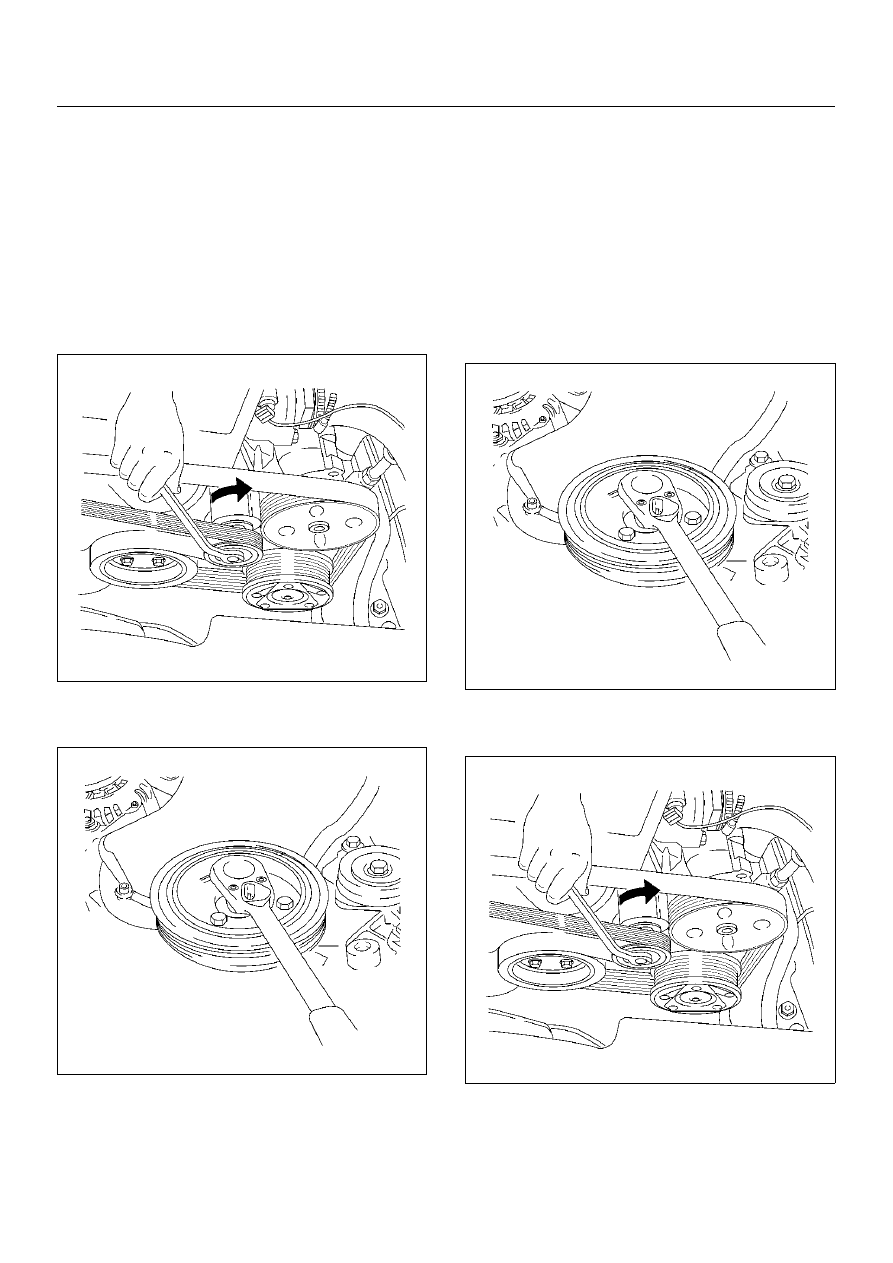

Crankshaft Pulley

Removal

1. Disconnect battery ground cable.

2. Move drive belt tensioner to loose side by using

wrench then remove drive belt.

033RW001

3. Remove four crankshaft pulley fixing bolts, remove

crankshaft pulley.

020RW014

Installation

1. Install the crankshaft pulley to crankshaft flange.

2. Tighten four bolt to the specified torque.

Torque: 20 N·m (2.0Kg·m/14lbft)

020RW014

3. Move drive belt tensioner to loose side by using

wrench, then install drive belt to normal position.

033RW001

4. Connect battery ground cable.
