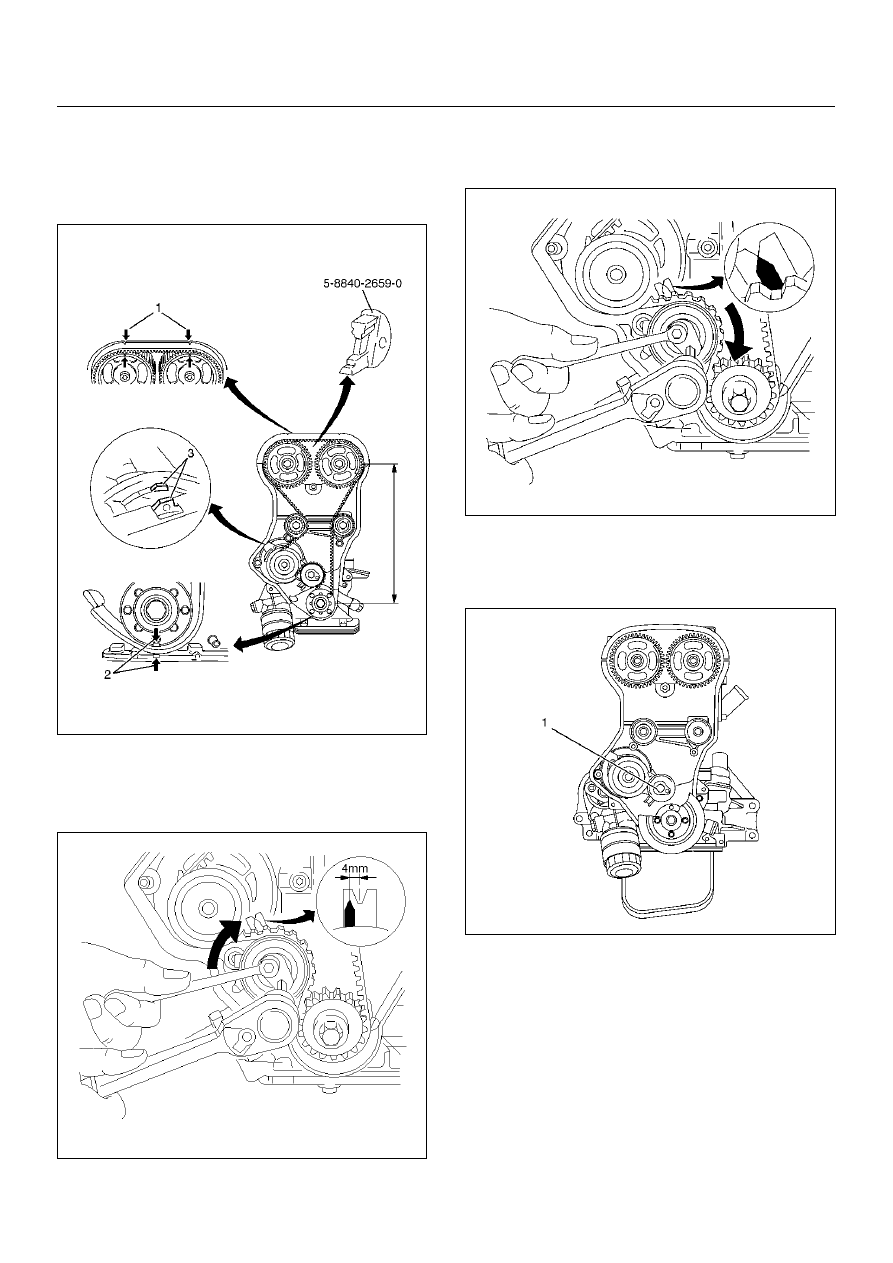

ENGINE MECHANICAL (X22SE 2.2L) 6A–29 3. Set the timing belt shown in the illustration, ensure that tension side of the timing belt is taut 014RX061 For used timing belt(over 60 minutes from new): 014RW069 For new timing belt: The pointer must be at the 014RW062 4. Tighten fixing bolt of timing belt tensioner to the specified torque. Torque: 25 N·m (2.5Kg·m/18lbft) 020RW010 11. Tighten cylinder head cover to the specified torque. Torque: 8 N·m (0.8Kg·m/5.9lbft) 12. Connect camshaft angle sensor connector. 13. Install the ignition cable to spark plug. 14. Install ignition cable cover and tighten two bolts. Torque: 3 N·m (0.3Kg·m/2lbft) 15. Install ventilation hoses to cylinder block side and cylinder head side. 16. Install timing belt front cover and tighten two bolts to the specified torque. Torque: 6 N·m (0.6Kg·m/4.4lbft) |
