9J–16

SUPPLEMENTAL RESTRAINT SYSTEM

Deployment Outside Vehicle (Passenger
Air Bag Assembly)

WARNING:  FAILURE TO FOLLOW PROPER SRS
AIR BAG ASSEMBLY DISPOSAL PROCEDURES
CAN RESULT IN AIR BAG DEPLOYMENT WHICH
MAY CAUSE PERSONAL INJURY.  UNDEPLOYED
AIR BAG ASSEMBLIES MUST NOT BE DISPOSED
OF THROUGH NORMAL REFUSE CHANNELS.  THE
UNDEPLOYED AIR BAG ASSEMBLY CONTAINS
SUBSTANCES THAT CAN CAUSE SEVERE ILLNESS
OR PERSONAL INJURY IF THE SEALED
CONTAINER IS DAMAGED DURING DISPOSAL.
DISPOSAL IN ANY MANNER INCONSISTENT WITH
PROPER PROCEDURES MAY BE A VIOLATION OF
FEDERAL, STATE AND/OR LOCAL LAWS.
Deployment out of the vehicle is proper when the
vehicle is to be returned to service.  This includes, for
example, situations in which a functionally or
cosmetically deficient air bag assembly is replaced.
Deployment and disposal of an air bag assembly is, of
course, subject to any required retention period.
For deployment of a live air bag assembly out of the
vehicle, the deployment procedure must be followed
exactly.  Always wear safety glasses during this
deployment procedure until the deployed air bag
assembly is scrapped.  Before performing the
procedures, you should be familiar with servicing the
SRS system and with proper handling of the air bag
assembly.  Procedures should be read fully before they
are performed.
The following procedure requires use of 5–8840–2468–
0 SRS Deployment Harness with the appropriate pigtail
adapter.  The procedure also requires the use of 5–
8840–2420–0 Passenger Side Supplemental Restraint
System (SRS) Deployment Fixture.  Do not attempt this
procedure without 5–8840–2468–0 and fixture 5–8840–
2420–0.

901RX046

901RW088

WARNING:  FAILURE TO FOLLOW PROCEDURES IN
THE ORDER LISTED MAY RESULT IN PERSONAL
INJURY.  NEVER CONNECT DEPLOYMENT
HARNESS TO ANY POWER SOURCE BEFORE
CONNECTING DEPLOYMENT HARNESS TO THE
AIR BAG ASSEMBLY.  DEPLOYMENT HARNESS
SHALL REMAIN SHORTED AND NOT BE
CONNECTED TO A POWER SOURCE UNTIL THE
AIR BAG IS TO BE DEPLOYED.  THE AIR BAG
ASSEMBLY WILL IMMEDIATELY DEPLOY THE AIR
BAG WHEN A POWER SOURCE IS CONNECTED TO
IT.  WEAR SAFETY GLASSES THROUGHOUT THIS
ENTIRE DEPLOYMENT AND DISPOSAL
PROCEDURE.

NOTE:  This information applies only to passenger air
bag assembly.  Information for disposing of a live driver
air bag assembly can be found in “Deployment Outside
Vehicle" (Driver Air Bag Assembly) in this section.

43. Turn ignition switch to “LOCK" remove key, and put

on safety glasses.

44. Inspect 5–8840–2419–0 SRS Deployment Harness

and appropriate pigtail adapter for damage.  If
harness or pigtail is damaged, discard and obtain a
replacement.

45. Short the two SRS Deployment Harness leads

together by fully seating one banana plug into the
other.  The SRS Deployment Harness shall remain
shorted and not be connected to a power source
until the air bag is to be deployed.

SUPPLEMENTAL RESTRAINT SYSTEM

9J–17

827RS003

46. Connect the appropriate pigtail adapter to the

Supplemental Restraint System (SRS) Deployment
Harness

827RS004

47. Remove passenger air bag assembly from vehicle.

Refer to “Passenger Air Bag Assembly Removal " in
this Section.

48. Clear a space on the ground approximately 183 cm

(6 feet) in clearance where the fixture with attached
air bag assembly is to be placed for deployment.  A
paved outdoor location where there is no activity is
preferred.  If an outdoor location is not available, a
space on the shop floor where is no activity and
sufficient ventilation is recommended.  Ensure that
no loose or flammable objects are within the
deployment area.

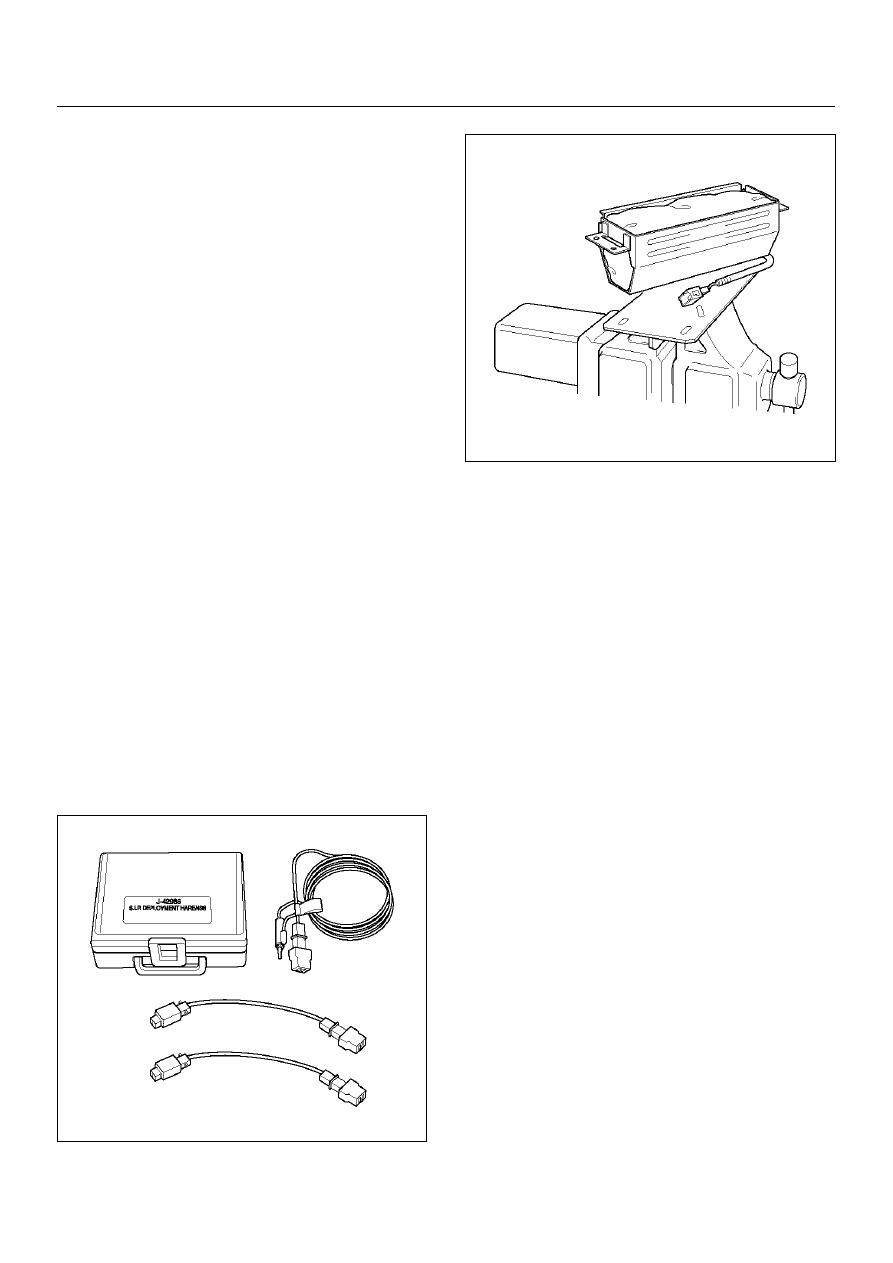

49. Place the 5–8840–2420–0 on the bench vice.  This

is necessary to provide sufficient stabilization of the
fixture during deployment.

50. Attach the passenger air bag assembly in the 5–

8840–2420–0. Air bag assembly must be mounted
such that the bag will deploy upward.  SECURELY
HAND–TIGHTEN ALL FASTENERS PRIOR TO
DEPLOYMENT.

51. Extend double pole extension cord to a position for

away 10 m (33 feet) from the air bag assembly.

52. Place a power source near the shorted end of the

SRS deployment harness.  (Recommended
application: 12 volts minimum, 2 amps minimum.  A
vehicle battery is suggested.)

827RX043

53. Connect the air bag assembly to the pigtail adapter

on the SRS deployment harness.  The SRS
Deployment Harness shall remain shorted and not
be connected to a power source until the air bag is
to be deployed.  The air bag assembly will
immediately deploy the air bag when a power
source is connected to it.

NOTE:  Ensure that the pigtail adapter is firmly seated
into the air bag assembly connector.  Failure to fully seat
the connectors may leave the shorting bar located in the
air bag assembly connector functioning (shorting the
deployment circuit) and may result in non deployment of
the air bag assembly.

54. Verify that the area around the passenger air bag

assembly is clear of all people and loose or
flammable objects.

55. Verify that the passenger air bag assembly is firmly

and properly in 5–8840–2420–0.

9J–18

SUPPLEMENTAL RESTRAINT SYSTEM

56. Notify all people in the immediate area of your

intention to deploy the passenger air bag assembly.
The deployment will be accompanied by a
substantial noise which may startle the uninformed.

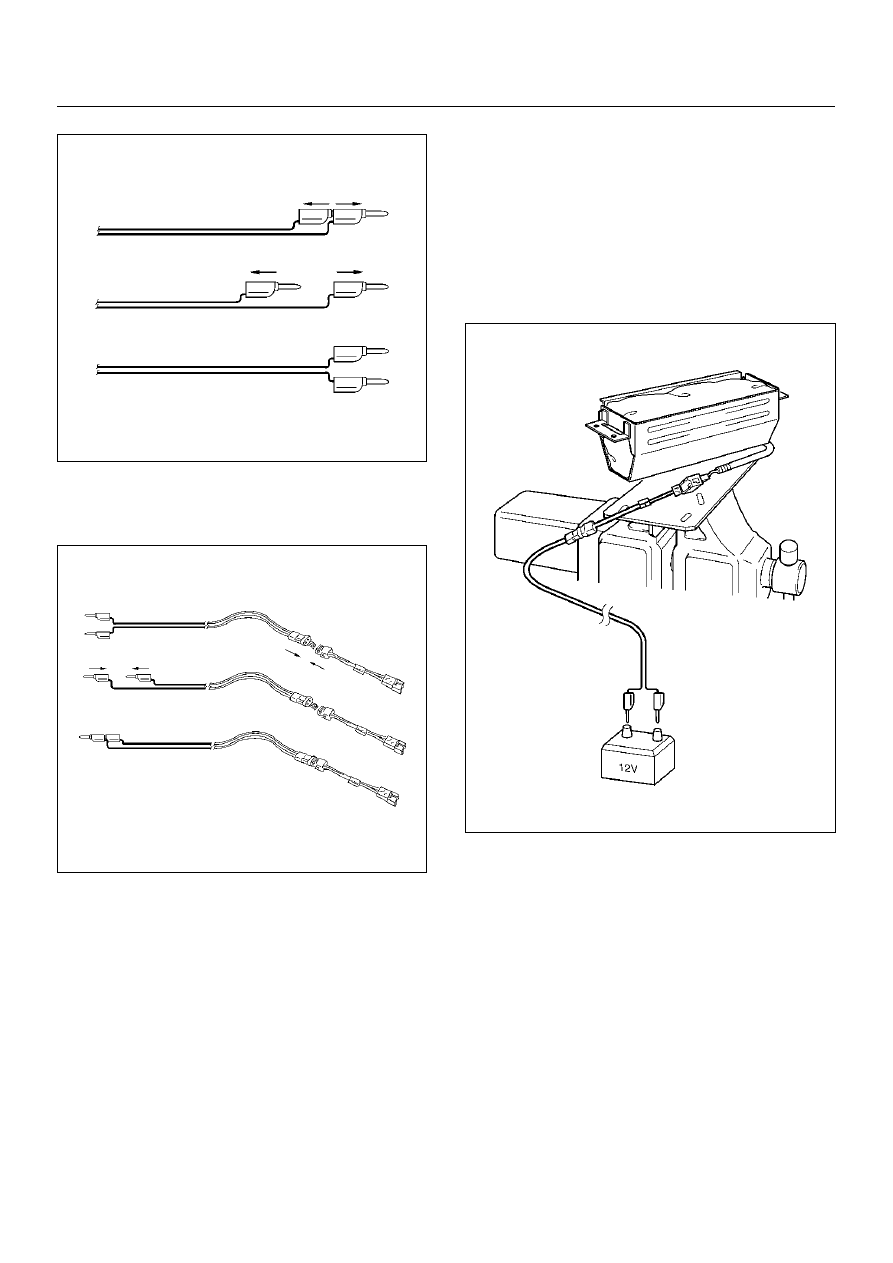

57. Separate the two banana plugs on the

Supplemental Restraint System (SRS) deployment
harness.

NOTE:  When air bag deploys, the rapid gas expansion
will create a substantial noise.  Notify all people in the
immediate area that you intend to deploy the air bag
assembly.

WARNING:  DEPLOYMENT HARNESS SHALL
REMAIN SHORTED AND NOT BE CONNECTED TO A
POWER SOURCE UNTIL THE AIR BAG IS TO BE
DEPLOYED.  THE AIR BAG ASSEMBLY WILL
IMMEDIATELY DEPLOY THE AIR BAG WHEN A
POWER SOURCE IS CONNECTED TO IT.
CONNECTING THE DEPLOYMENT HARNESS TO
THE POWER SOURCE SHOULD ALWAYS BE THE
LAST STEP IN THE AIR BAG ASSEMBLY
DEPLOYMENT PROCEDURE.  FAILURE TO FOLLOW
PROCEDURES IN THE ORDER LISTED MAY
RESULT IN PERSONAL INJURY.

58. Connect the SRS deployment harness wires to the

power source to immediately deploy the air bag
assembly.  Recommended application : 12 volts
minimum, 2 amps minimum.  A vehicle battery is
suggested.

59. Disconnect the SRS deployment harness from the

power source.

60. Short the two SRS deployment harness leads

together by fully seating one banana plug into the
other.

61. In the unlikely event that the passenger air bag

assembly did not deploy after following these
procedures, proceed immediately with Steps 24
through 26.  If the passenger air bag assembly
deployed as intended, proceed with Steps 20
through 23.

62. Put on a pair of shop gloves and safety glasses to

protect your hands and eyes from possible irritation
and heat when handling the deployed air bag
assembly.  After the air bag assembly has been
deployed, the surface of the air bag may contain a
powdery residue.  This powder consists primarily of
cornstarch (used to lubricate the bag as it inflates)
and by products of the chemical reaction.  Sodium
hydroxide dust (similar to lye soap) is produced as a
by product of the deployment reaction.  The sodium
hydroxide quickly reacts with the atmospheric
moisture and is converted to sodium carbonate and
sodium bicarbonate (baking soda).  Therefore, it is
unlikely that sodium hydroxide will be present for
very long after deployment.

WARNING:  SAFETY PRECAUTIONS MUST BE
OBSERVED WHEN HANDLING A DEPLOYED AIR
BAG ASSEMBLY.  AFTER DEPLOYMENT, THE

METAL SURFACES OF THE AIR BAG ASSEMBLY
WILL BE HOT.  ALLOW THE AIR BAG ASSEMBLY TO
COOL BEFORE HANDLING ANY METAL PORTION
OF IT.  DO NOT PLACE THE DEPLOYED INFLATOR
MODULE NEAR ANY FLAMMABLE OBJECTS.
FAILURE TO FOLLOW PROCEDURES MAY RESULT
IN FIRE OR PERSONAL INJURY. AFTER AN AIR
BAG ASSEMBLY HAS BEEN DEPLOYED, THE
METAL CANISTER AND SURROUNDING AREAS OF
THE AIR BAG ASSEMBLY WILL BE HOT.  DO NOT
TOUCH THE METAL AREAS OF THE AIR BAG
ASSEMBLY FOR ABOUT THIRTY MINUTES AFTER
DEPLOYMENT.  IF THE DEPLOYED AIR BAG
ASSEMBLY MUST BE MOVED BEFORE IT IS COOL,
WEAR GLOVES AND HANDLE BY THE AIR BAG
ITSELF.

63. Disconnect the pigtail adapter from the air bag

assembly as soon after deployment as possible to
avoid damage to the pigtail adapter or SRS
deployment harness from contacting the hot air bag
assembly canister.  The pigtail adapter and SRS
deployment harness are designed to be reused.
They should, however, be inspected for damage
after each deployment and replaced if necessary.

64. Dispose of the deployed air bag assembly through

normal refuse channels after it has cooled for at
least 30 minutes.

65. Wash your hands with mild soap and water

afterward.

NOTE:  The remaining steps are to be followed in the
unlikely event that the air bag assembly did not deploy
after following the above procedures.

66. Ensure that the SRS deployment harness has been

disconnected from the the power source and that its
two banana plugs have been shorted together by
fully seating one banana plug into the other.

827RW055

67. Disconnect the pigtail adapter from the air bag

assembly.

SUPPLEMENTAL RESTRAINT SYSTEM

9J–19

WARNING:  WHEN STORING A LIVE AIR BAG
ASSEMBLY OR WHEN LEAVING A LIVE AIR BAG
ASSEMBLY UNATTENDED ON A BENCH OR OTHER
SURFACE, ALWAYS FACE THE BAG UP AND AWAY
FROM THE SURFACE.  THIS IS NECESSARY SO
THAT A FREE SPACE IS PROVIDED TO ALLOW THE
AIR BAG TO EXPAND IN THE UNLIKELY EVENT OF
ACCIDENTAL DEPLOYMENT.  FAILURE TO FOLLOW
PROCEDURES MAY RESULT IN PERSONAL INJURY.

68. Temporarily store the air bag assembly with the bag

facing up, away from the surface upon which it rests.

Deployment Outside Vehicle (Fixing Air
Bag on Tire)

Read and understand the items of “CAUTIONS ABOUT
AIR BAG DEPLOYMENT AND DISPOSAL
PROCEDURES” and “Usage of Deployment Tool” for
safe deployment of air bag.

1. Remove air bag assembly from vehicle. Refer to air

bag assembly Removal “in this section”.

2. Inspect 5–8840–2419–0 Supplemental Restraint

System (SRS) Deployment Harness and
appropriate pigtail adapter for damage. If harness or
pigtail is damaged, discard and obtain a
replacement.

3. Extend double pole extension cord to a position far

away 10 m (33 feet) from the air bag assembly.

4. Place a power source near the extended end of

SRS air bag deployment harness. (Use of 12V
battery is recommended).

827RX040

Legend

EndOFCallout

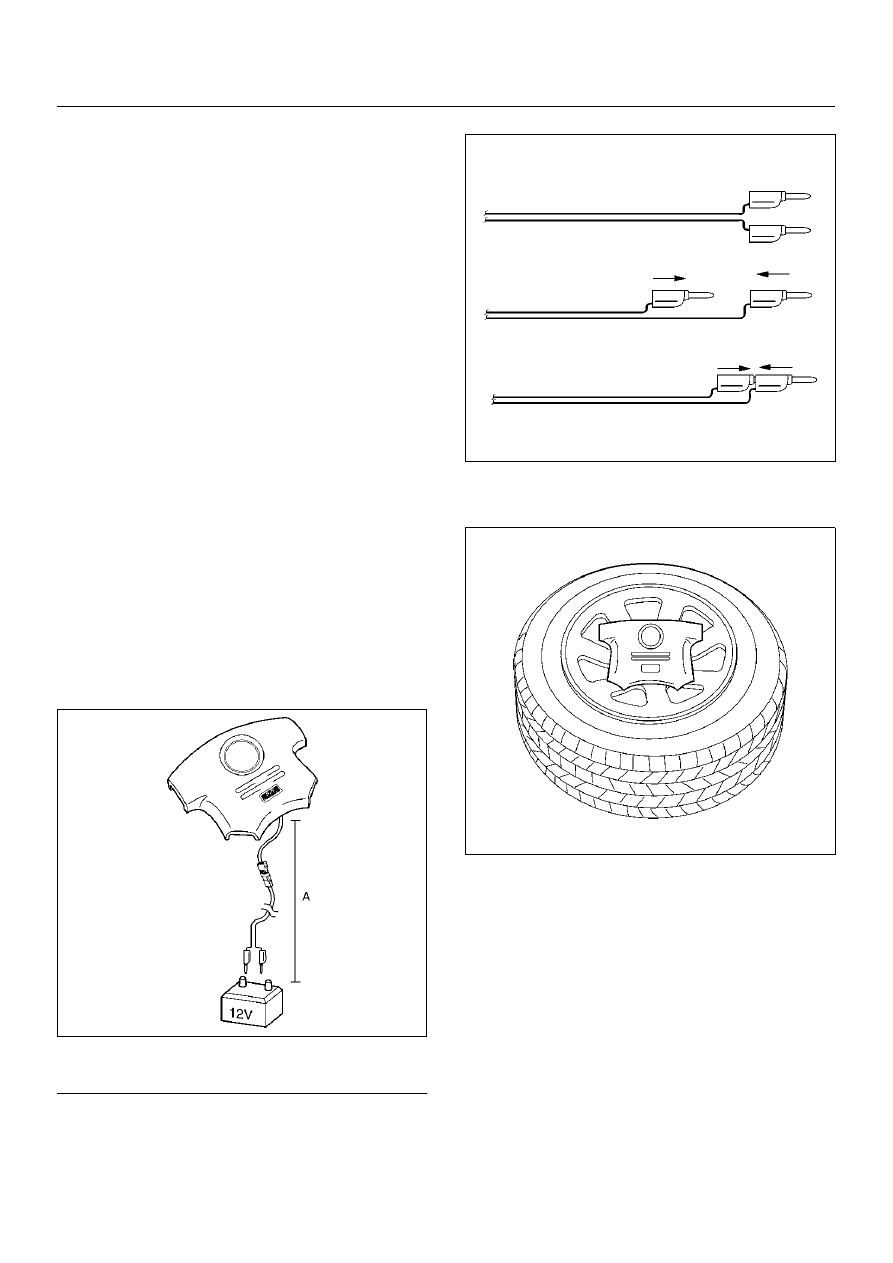

5. Insert one of the banana plugs into the other

banana plug to short the two SRS air bag
deployment harness. Do not the harness to a power
source until deployment.

827RW055

6. Prepare four 15 inch or larger tires without wheel

and two same size tires with wheels.

827RX041

7. How to fix Driver air bag.

1. Fix the air bag with its trim cover up on a tire

with a wheel using an automobile use wire
harness, (core size: 1.3 mm

2

(0.05 inch)) or a

wire trebly at two or more points.

2. Connect SRS air bag assembly to the double

pole extension cord of the air bag deployment
harness.
Do not connect the deployment harness to a
power source until air bag deployment.
(If connected the SRS air bag assembly deploys
immediately)

NOTE:  Ensure that the pigtail adapter is firmly seated
into the air bag assembly connector. Failure to fully seat
the connectors may leave the shorting bar located in the
air bag assembly connector functioning (shorting the
deployment circuit) and may result in non deployment of

(A) 10 m (33 feet) or more
