9J–20
SUPPLEMENTAL RESTRAINT SYSTEM
the air bag assembly.
827RW054
3. Place three tires without wheel on the tire on
which air bag is fixed and a tire with a wheel on
top.
Bind the five tires with a rope so that the tires
may not collapse.
827RW053
Legend
EndOFCallout

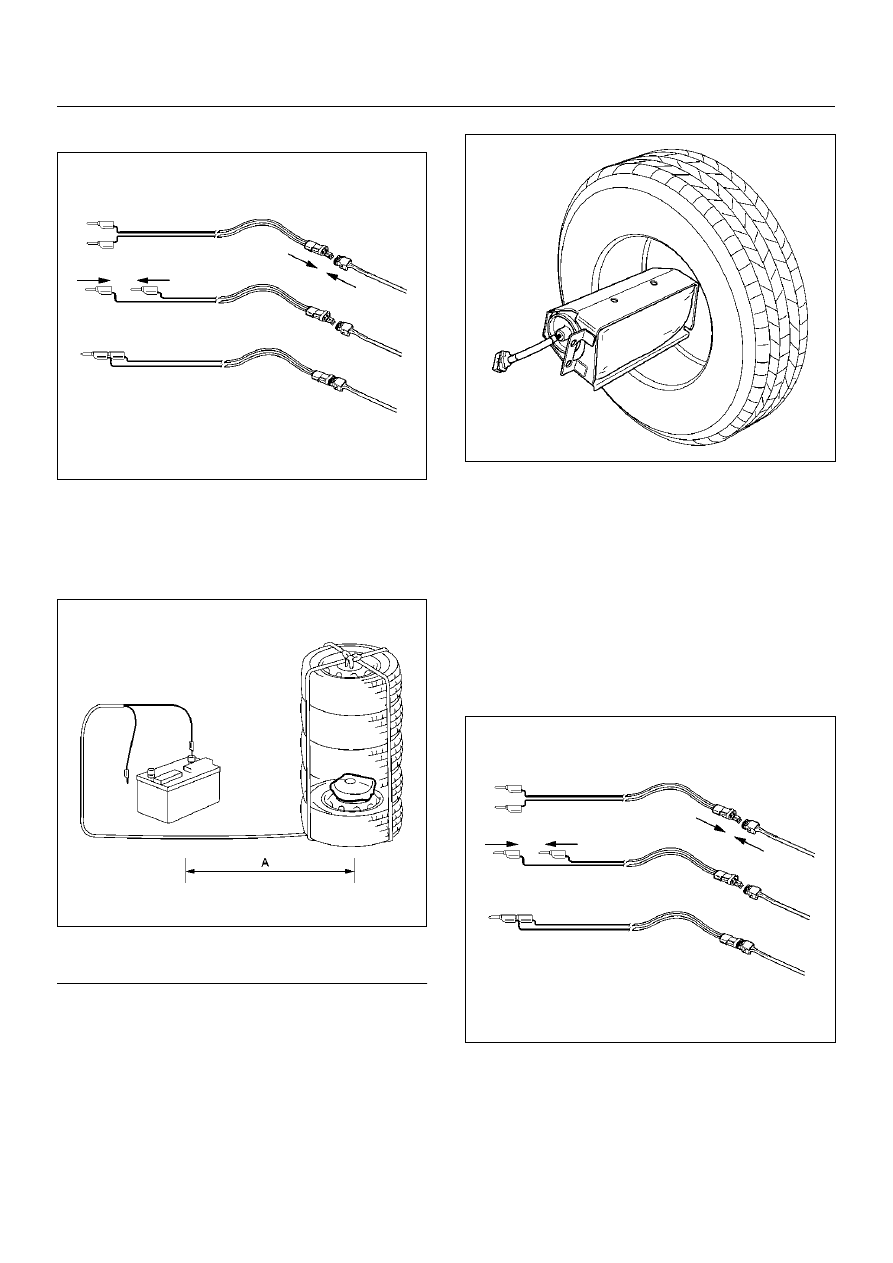

8. How to fix Passenger air bag.
1. Fix the air bag with its trim cover side fixing the
center of a tire without a wheel using an
automobile use wire harness, (core size: 1.3
mm (0.05 inch)) or a wire trebly at two or more
points.
827RW058

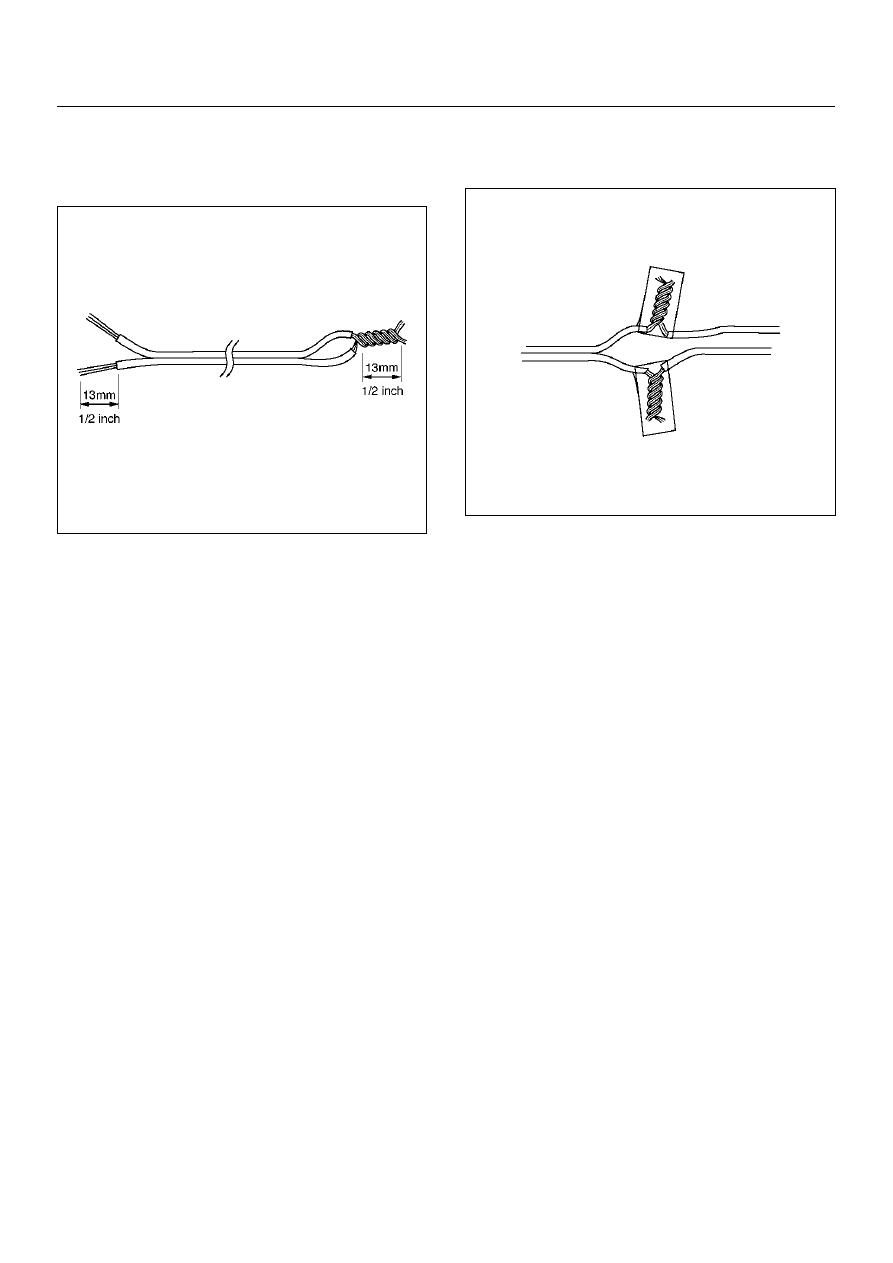

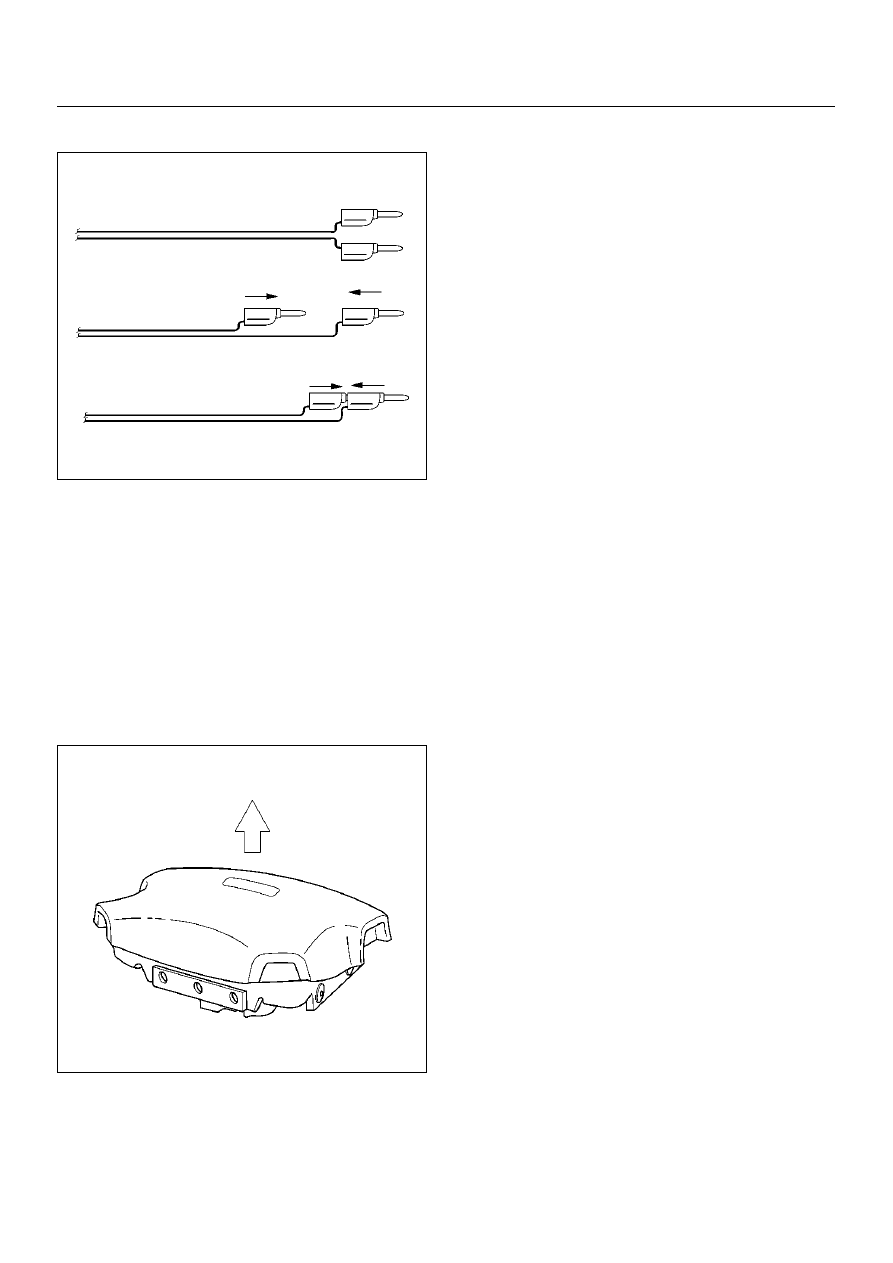

2. Connect Supplemental Restraint System (SRS)
air bag assembly to the deployment harness
double pole extension cord end. Be sure not to
connect the deployment harness to a power
source. (If connected the SRS air bag assembly
deploys immediately).
NOTE: Ensure that the pigtail adapter is firmly seated
into the air bag assembly connector. Failure to fully seat
the connectors may leave the shorting bar located in the
air bag assembly connector functioning (shorting the
deployment circuit) and may result in non deployment of
the air bag assembly.
827RW054

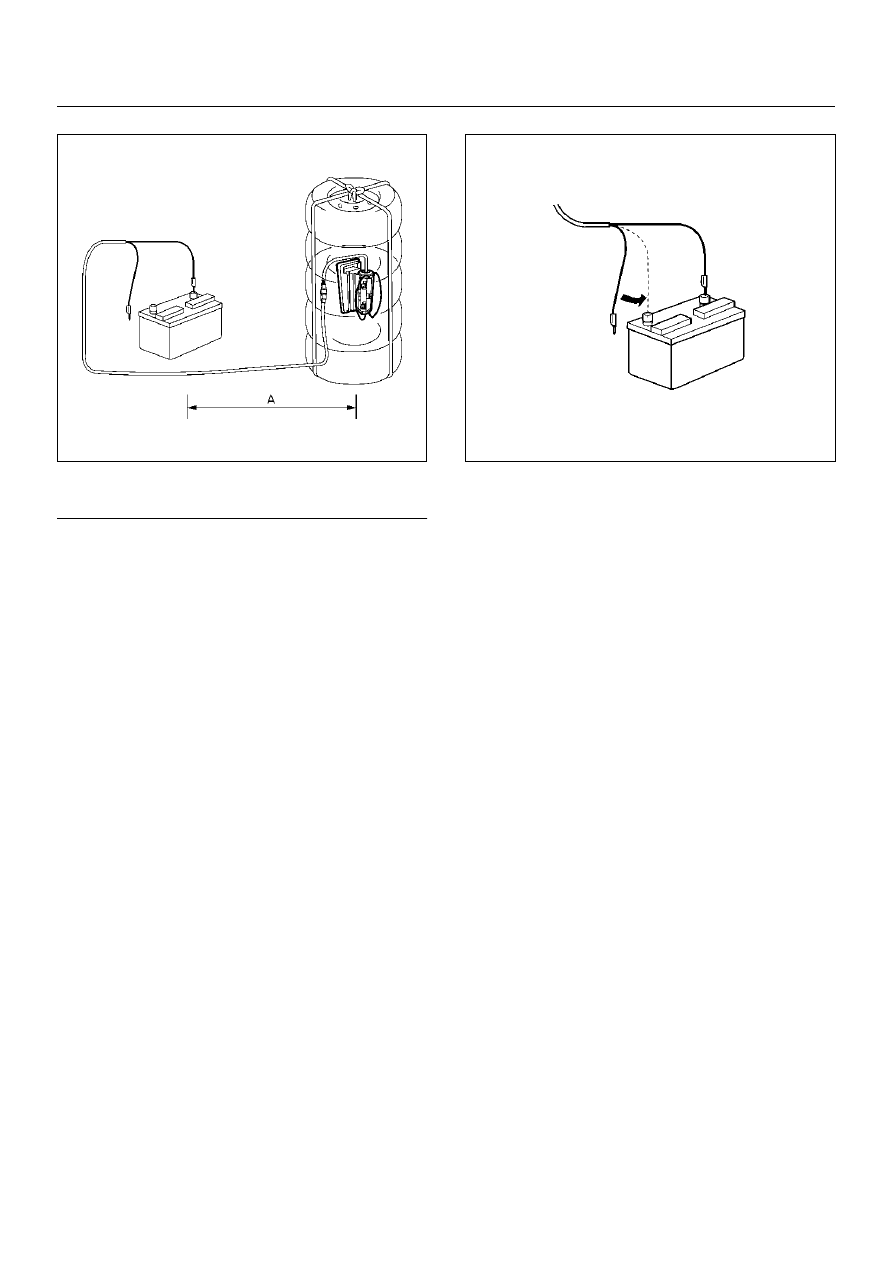

3. Put a tire without wheel on another, put the tire
on which the air bag is fixing, put a tire without a
wheel, and finally put a tire with a wheel on top.
Bind the tires with a rope so that the tires pile
may not collapse.
(A) 10 m (33 feet) or more
