9J–8

SUPPLEMENTAL RESTRAINT SYSTEM

Scan Tool
An external computer used to read diagnostic
information from onboard computers via the data link
connector.

SDM
Sensing and Diagnostic Module which provides reserve
energy to the deployment loops, deploys the air bags
when required and performs diagnostic monitoring of all
SRS components.

Serial Data
Information representing the status of the SRS.

SRS
Supplemental Restraint System.

SRS Coil Assembly
An assembly of two current–carrying coils in the driver
deployment loop that allows the rotation of the steering
wheel while maintaining the continuous contact of the
driver deployment loop to the driver air bag assembly.

SRS Wiring Harness
The wires and connectors that electrically connect the
components in the Supplemental Restraint System
(SRS).

“Turn–ON"
Test which the Sensing and Diagnostic Module (SDM)
performs on the SRS once during each ignition cycle
immediately after “Ignition 1" voltage is applied to the
SDM and before “Continuous Monitoring".

Diagnosis

WARNING:  TO AVOID DEPLOYMENT WHEN
TROUBLESHOOTING THE SRS, DO NOT USE
ELECTRICAL TEST EQUIPMENT SUCH AS A
BATTERY–POWERED OR AC–POWERED
VOLTMETER, OHMMETER, ETC., OR ANY TYPE OF
ELECTRICAL EQUIPMENT OTHER THAN THAT
SPECIFIED IN THIS MANUAL.  DO NOT USE A NON–
POWERED PROVE–TYPE TESTER. INSTRUCTIONS
IN THIS MANUAL MUST BE FOLLOWED
CAREFULLY, OTHERWISE PERSONAL INJURY MAY
RESULT.

Diagnostic Trouble Codes

The “SRS Diagnostic System Check" must always be
the starting point of any SRS diagnosis.   The “SRS
Diagnostic System Check" checks for proper “AIR BAG"
warning lamp operation and checks for SRS diagnostic
trouble codes using the scan tool.

1. Current diagnostic trouble codes – Malfunctions that

are presently being detected.  Current diagnostic
trouble codes are stored in Random Access
Memory (RAM).

2. History diagnostic trouble codes – All malfunctions

detected since the last time the history memory was
cleared.   History diagnostic trouble codes are
stored in Electronically Erasable Programmable

Read Only Memory (EEPROM).

Scan Tool Diagnostics

A scan tool is used to read current and history
diagnostic trouble codes and to clear all diagnostic
trouble codes after a repair is completed.   The scan tool
must be updated to communicate with the SRS through
a replaceable cartridge before it can be used for SRS
diagnostics.   To use the scan tool, connect it to the data
link connector and turn the ignition switch “ON".  The
scan tool reads serial data from the SDM “Serial Data"
line terminal “24" to the data link connector terminal “9".

Use of Special Tools

WARNING:  TO AVOID DEPLOYMENT WHEN
TROUBLESHOOTING THE SRS, DO NOT USE
ELECTRICAL TEST EQUIPMENT SUCH AS A
BATTERY–POWERED OR AC–POWERED
VOLTMETER, OHMMETER, ETC, OR ANY TYPE OF
ELECTRICAL EQUIPMENT OTHER THAN THAT
SPECIFIED IN THIS MANUAL.  DO NOT USE A NON
POWERED PROVE–TYPE TESTER. INSTRUCTIONS
IN THIS MANUAL MUST BE FOLLOWED
CAREFULLY, OTHERWISE PERSONAL INJURY MAY
RESULT. YOU SHOULD BE FAMILIAR WITH THE
TOOLS LISTED IN THIS SECTION UNDER THE
HANDLING SRS SPECIAL TOOLS.
You should be able to measure voltage and resistance.
You should be familiar with proper use of a scan tool
such as the Tech 2 Diagnostic Computer, SRS Driver/
Passenger Load Tool 5–8840–2421–0, Connector Test
Adapter Kit 5–8840–0385–0, and the DVM (Digital
Multimeter) 5–8840–0285–0.

SUPPLEMENTAL RESTRAINT SYSTEM

9J–9

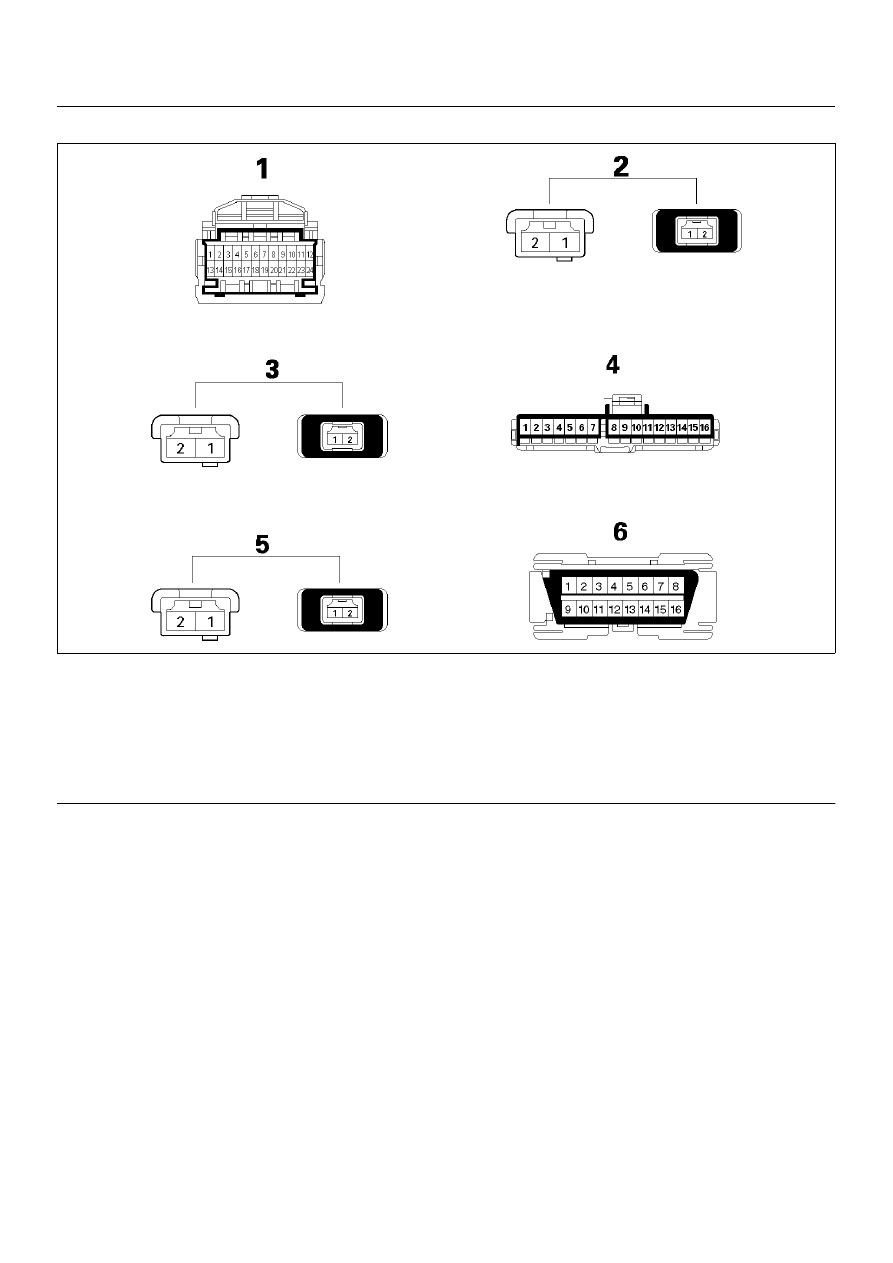

SRS Connector Body Face Views

D09RW003

Legend

EndOFCallout

Repairs and Inspections Required
After an Accident

NOTE:  If any SRS components are damaged, they
must be replaced.  If SRS component mounting points
are damaged, they must be replaced.

• Never use SRS parts from another vehicle.  This

does not include remanufactured parts purchased
from an authorized dealer; they may be used for SRS
repairs.

• Do not attempt to service the SDM, the SRS coil

assembly, or the air bag assembly.  Service of these
items is by replacement only.

• Verify the part number of replacement air bag

assembly.

CAUTION:  Never use the air bag assembly from
another vehicle.
Use only the air bag assembly for UE models.

CAUTION:  Proper operation of the sensors and

Supplemental Restraint System (SRS) requires that
any repairs to the vehicle structure return it to the
original production configuration.  Deployment
requires, at a minimum, replacement of the SDM, air
bag assembly and dimensional inspection of the
steering column.  Any visible damage to the SDM
mounting bracket (s) requires replacement, and the
steering column must be dimensionally inspected,
whether deployment occurred or not.

Accident With Deployment – Component
Replacement and Inspections

Certain SRS components must be replaced or
inspected for damage after a frontal crash involving air
bag deployment.  Those components are:

• Air bag assembly

• SDM

CAUTION:  Refer to “SDM Replacement Guidelines"
below for important information on Sensing and

(1) Sensing and Diagnostic Module (SDM)
(2) Driver Air Bag Assembly
(3) Passenger Air Bag Assembly
(4) “Air Bag" Warning Lamp

(5) Supplemental Restraint System (SRS) Coil

Assembly

(6) Data Link Connector (DLC)

9J–10

SUPPLEMENTAL RESTRAINT SYSTEM

Diagnostic Module (SDM) replacement in both
deployment and non deployment crashes.

• Supplemental Restraint System (SRS) coil

assembly—Inspect wiring and connector for any
signs of scorching, melting, or damage due to
excessive heat.   Replace if damaged.  Refer to SRS
coil assembly in this section.

Accident With or Without Deployment—
Component Inspection

Certain SRS and restraint system components must be
inspected after any crash, whether the air bag deployed
or not.  Those components are:

• Steering column—Dimensionally inspect per

“Checking Steering Column for Accident Damage" in
3 of this workshop manual.

• Knee bolsters and mounting points— Inspect for any

distortion, bending, cracking, or other damage.

• Instrument panel steering column reinforcement

plate— Inspect for any distortion, bending, cracking,
or other damage.

• Instrument panel braces—Inspect for any distortion,

bending, cracking, or other damage.

• Seat belts and mounting points—Refer to “Seat

Belts" in 10 of this workshop manual.

SDM Replacement Guidelines

SDM replacement policy requires replacement of SDM,
after crash involving air bag deployment when “SRS
Warning Lamp" turn “ON", “SRS Diagnosis" should be
done according to “Section".

Wiring Damage

If any SRS wire harness is damaged, it should be
replaced. Don't repair SRS. It is replace only.

SRS Connector (Plastic Body And Terminal
Metal Pin) Damage

If any connector or terminal in the SRS wire harness
(except pigtails) is damaged, it should be replaced.

SRS Wire Pigtail Damage

If the wiring pigtail (a wire or wires attached directly to
the device, not by a connector) is damaged, the entire
component (with pigtail) must be replaced.  Examples of
“pigtail" components are the driver air bag assembly, the
passenger air bag assembly, and the SRS coil
assembly.

On–Vehicle Service

Service Precautions

WARNING:  WHEN PERFORMING SERVICE ON OR
AROUND SRS COMPONENTS OR SRS WIRING,
FOLLOW THE PROCEDURES LISTED BELOW TO
TEMPORARILY DISABLE THE SRS.  FAILURE TO
FOLLOW PROCEDURES COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY OR OTHERWISE UNNEEDED SRS REPAIRS.
The SDM in Driver—Passenger SRS can maintain
sufficient voltage to cause a deployment for up to 15
seconds after the ignition switch is turned “OFF", the
battery is disconnected, or the fuse powering the SDM
is removed.
Many of the service procedures require removal of the
“SRS" fuse, and disconnection of the air bag assembly
from the deployment loop to avoid an accidental
deployment.  If the air bag assembly is disconnected
from the deployment loop as noted in the “Disabling the
SRS" procedure that follows, service can begin
immediately without waiting for the 15 second time
period to expire.

Disabling The SRS

Removal

Turn the ignition switch to “lock" and remove key.

1. Remove SRS fuse “METER” and “SRS”, from left

dash side lower fuse block or disconnect battery.

2. Disconnect yellow 2–pin connector at the base of

steering column.

3. Remove glove box assembly, Refer to “Passenger

Air Bag Assembly Replacement" in section.

4. Disconnect yellow 2–pin connector behind the glove

box assembly.

CAUTION:  With the “SRS" fuse removed and
ignition switch “ON", “AIR BAG" warning lamp will
be “ON". This is normal operation and does not
indicate an SRS malfunction.

Enabling The SRS

Installation

CAUTION:  Never use the air bag assembly from
another vehicle. Use only the air bag assembly for
UE models.
Turn ignition switch to “LOCK" and remove key.

1. Connect yellow 2–pin connector passenger air bag

assembly.

2. Install glove box assembly, refer to “Passenger Air

Bag Assembly Replacement" in section.

3. Connect yellow 2–pin connector at the base of

steering column.

4. Install “AIR BAG" fuse “METER” and “SRS” to left

dash side lower fuse block or connect battery.

Turn ignition switch to “ON" and verify that the “AIR

SUPPLEMENTAL RESTRAINT SYSTEM

9J–11

BAG" warning lamp flashes seven times and then turns
“OFF" If it does not operate as described, perform the
“Supplemental Restraint System (SRS) Diagnostic
System Check" in section.

Handling / Installation / Diagnosis

1. Air bag assembly should not be subjected to

temperatures above 93

°

C (200

°

F

).

2. Air bag assembly, and Sensing and Diagnostic

Module (SDM) should not be used if they have been
dropped from a height of 100 centimeters (3.28
feet).

3. When a SDM is replaced, it must be oriented with

the arrow on the sensor pointing toward the front of
the vehicle.  It is very important for the SDM to be
located flat on the mounting surface, parallel to the
vehicle datum line.  It is important that the SDM
mounting surface is free of any dirt or other foreign
material.

4. Do not apply power to the SRS unless all

components are connected or a diagnostic chart
requests it, as this will set a diagnostic trouble code.

5. The “SRS Diagnostic System Check" must be the

starting point of any SRS diagnostics.  The “SRS
Diagnostic System Check" will verify proper “AIR
BAG" warning lamp operation and will lead you to
the correct chart to diagnose any SRS malfunctions.
Bypassing these procedures may result in extended
diagnostic time, incorrect diagnosis, and incorrect
parts replacement.

Air Bag Assembly Handling /
Shipping / Scrapping

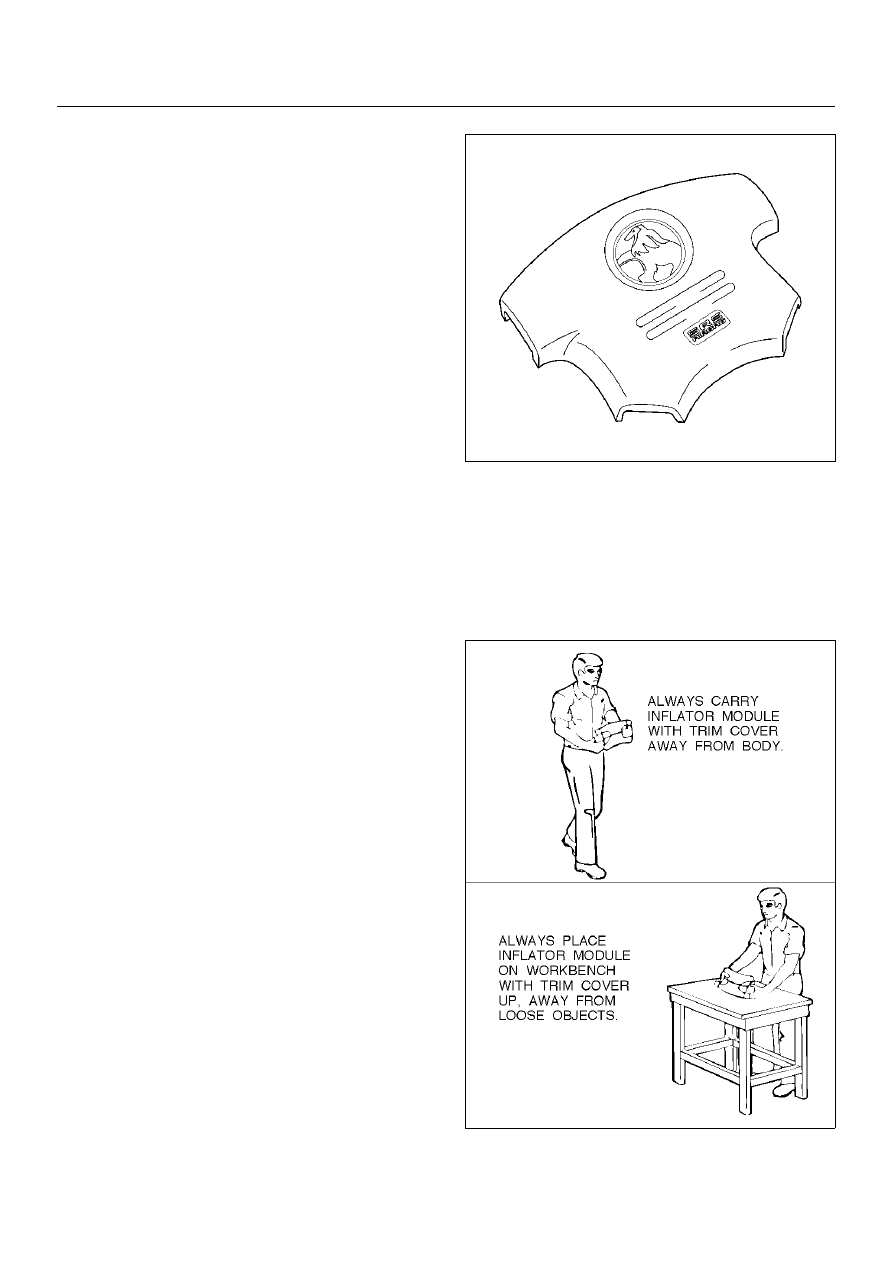

Live (Undeployed) Air Bag Assembly

Special care is necessary when handling and storing a
live (undeployed) air bag assembly.   The rapid gas
generation produced during deployment of the air bag
could cause the air bag assembly, or an object in front of
the air bag assembly, to be thrown through the air in the
unlikely event of an accidental deployment.

827RX037

WARNING:  WHEN CARRYING A LIVE AIR BAG
ASSEMBLY, MAKE SURE THE BAG OPENING IS
POINTED AWAY FROM YOU.   IN CASE OF AN
ACCIDENTAL DEPLOYMENT, THE BAG WILL THEN
DEPLOY WITH MINIMAL CHANCE OF INJURY.
NEVER CARRY THE AIR BAG ASSEMBLY BY THE
WIRES OR CONNECTOR ON THE UNDERSIDE OF
THE MODULE.

827RS044
