SUNROOF/CONVERTIBLE TOP

8I–17

Main Data and Specifications

Torque Specification

Application

N·m

kg·m

lb ft

lb in

Sunroof Glass Fixing Screws (LWB)

4

0.4

—

35

Sunroof Handle Plate Fixing Nuts (SWB)

8

0.8

—

69

Resin Top Assembly Fixing Bolts and Nuts

15

1.5

11

—

Rear Seat Belt Anchor Bolts

39

4.0

29

—

Seat Belt Cross Bar Assembly Fixing Bolts

19

1.9

14

—

EXTERIOR/INTERIOR TRIM

8J–1

BODY AND ACCESSORIES

EXTERIOR / INTERIOR TRIM

CONTENTS

Service Precaution......................................... 8J - 1

Consoles ....................................................... 8J - 2

Consoles and Associated Parts.................. 8J - 2
Removal ..................................................... 8J - 2
Installation .................................................. 8J - 2

Front Door Trim Panel................................... 8J - 3

Front Door Trim Panel and

Associated Parts ....................................... 8J - 3

Removal ..................................................... 8J - 4
Installation .................................................. 8J - 4

Rear Door Trim Panel ................................... 8J - 5

Rear Door Trim Panel and

Associated Parts ....................................... 8J - 5

Removal ..................................................... 8J - 6
Installation .................................................. 8J - 6

Interior Trim Panels (LWB)............................ 8J - 7

Interior Trim Panels and

Associated Parts ....................................... 8J - 7

Removal ..................................................... 8J - 7
Installation .................................................. 8J - 8

Interior Trim Panels (SWB) ........................... 8J - 9

Interior Trim Panels and

Associated Parts ....................................... 8J - 9

Removal ..................................................... 8J - 9
Installation .................................................. 8J - 10

Headlining (LWB) .......................................... 8J - 11

Parts Location............................................. 8J - 11
Removal ..................................................... 8J - 11
Installation .................................................. 8J - 12

Headlining (SWB).......................................... 8J - 13

Parts Location............................................. 8J - 13
Removal ..................................................... 8J - 14

Installation................................................... 8J - 14

Wheel Arch Protector (LWB) ......................... 8J - 15

Wheel Arch Protector and

Associated Parts ....................................... 8J - 15

Removal...................................................... 8J - 15
Installation................................................... 8J - 15

Wheel Arch Protector (SWB)......................... 8J - 16

Wheel Arch Protector and

Associated Parts ....................................... 8J - 16

Removal...................................................... 8J - 16
Installation................................................... 8J - 16

Wheel Arch Moulding (SWB)......................... 8J - 17

Wheel Arch Moulding and

Associated Parts ....................................... 8J - 17

Removal...................................................... 8J - 17
Installation................................................... 8J - 18

Fuel Filler Door.............................................. 8J - 19

Parts Location............................................. 8J - 19
Removal...................................................... 8J - 19
Installation................................................... 8J - 19

Roof Rail ....................................................... 8J - 20

Parts Location............................................. 8J - 20
Removal...................................................... 8J - 20
Installation................................................... 8J - 20

Power Door Mirror System ............................ 8J - 21

General Description ....................................... 8J - 21

Door Mirror Switch ...................................... 8J - 21

Power Window System ................................. 8J - 22

General Description .................................... 8J - 22
Power Window Switch Driver Seat Side ..... 8J - 22
Power Window Motor.................................. 8J - 23

Main Data and Specifications ........................ 8J - 25

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).   REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER  YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING.  WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING,  REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT  IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location.  When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will  call out those fasteners that require a
replacement after removal. ISUZU will also call out
the  fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do  not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded  fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener  torque and the joint
clamping force, and may damage the fastener. When
you install fasteners,  use the correct tightening
sequence and specifications. Following these
instructions can help you  avoid damage to parts
and systems.

SECTION

8J–2

EXTERIOR/INTERIOR TRIM

Consoles

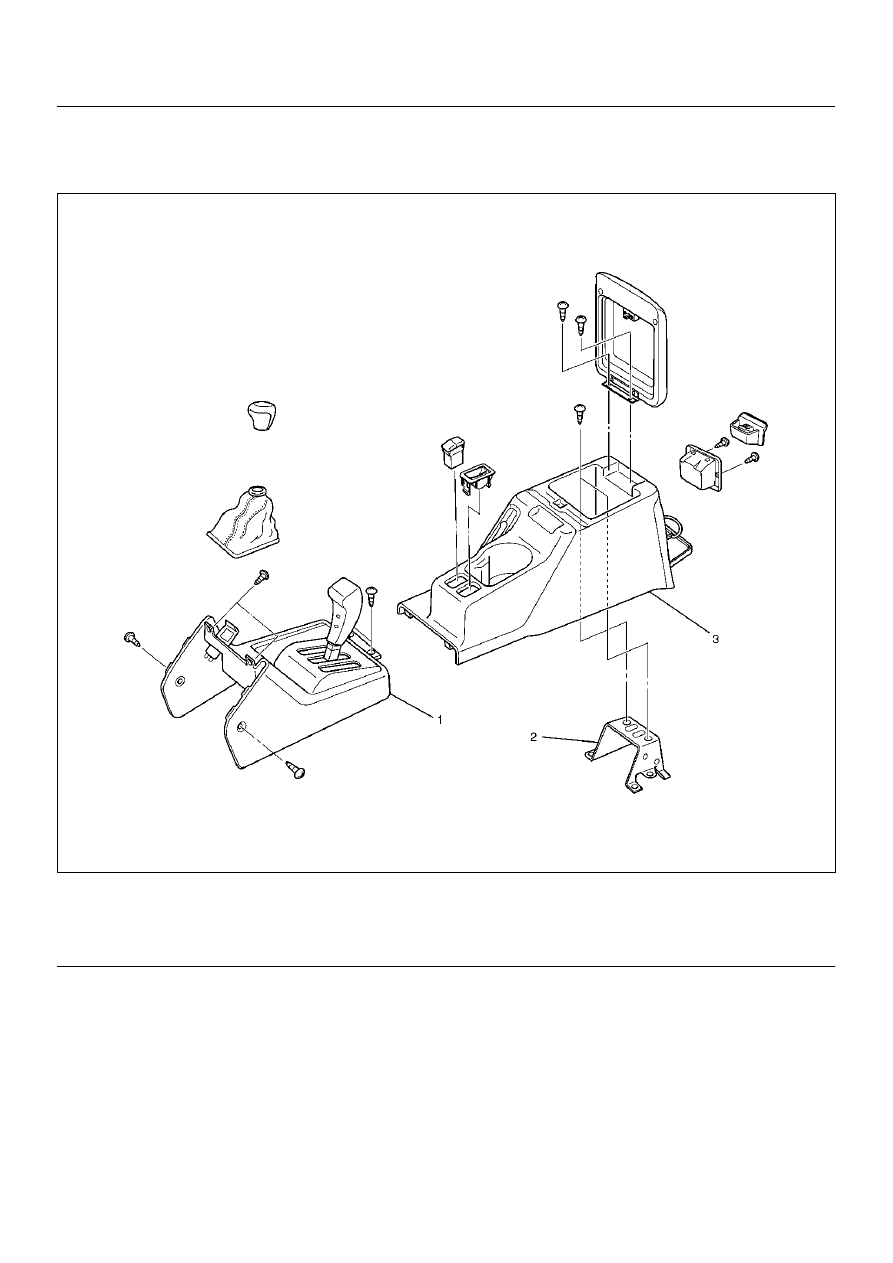

Consoles and Associated Parts

745RX004

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the shift knob (M/T) / transfer knob (A/T).

3. Remove the rear console assembly.

• Open the rear console lid and remove two

screws.

• Disconnect the switch connector.

4. Remove the front console assembly.

• Remove six fixing screws and disconnect the

accessory socket  connector.

Installation

To install, follow the removal steps in the reverse order.

(1) Front Console
(2) Console Brackets

(3) Rear Console Assembly

EXTERIOR/INTERIOR TRIM

8J–3

Front Door Trim Panel

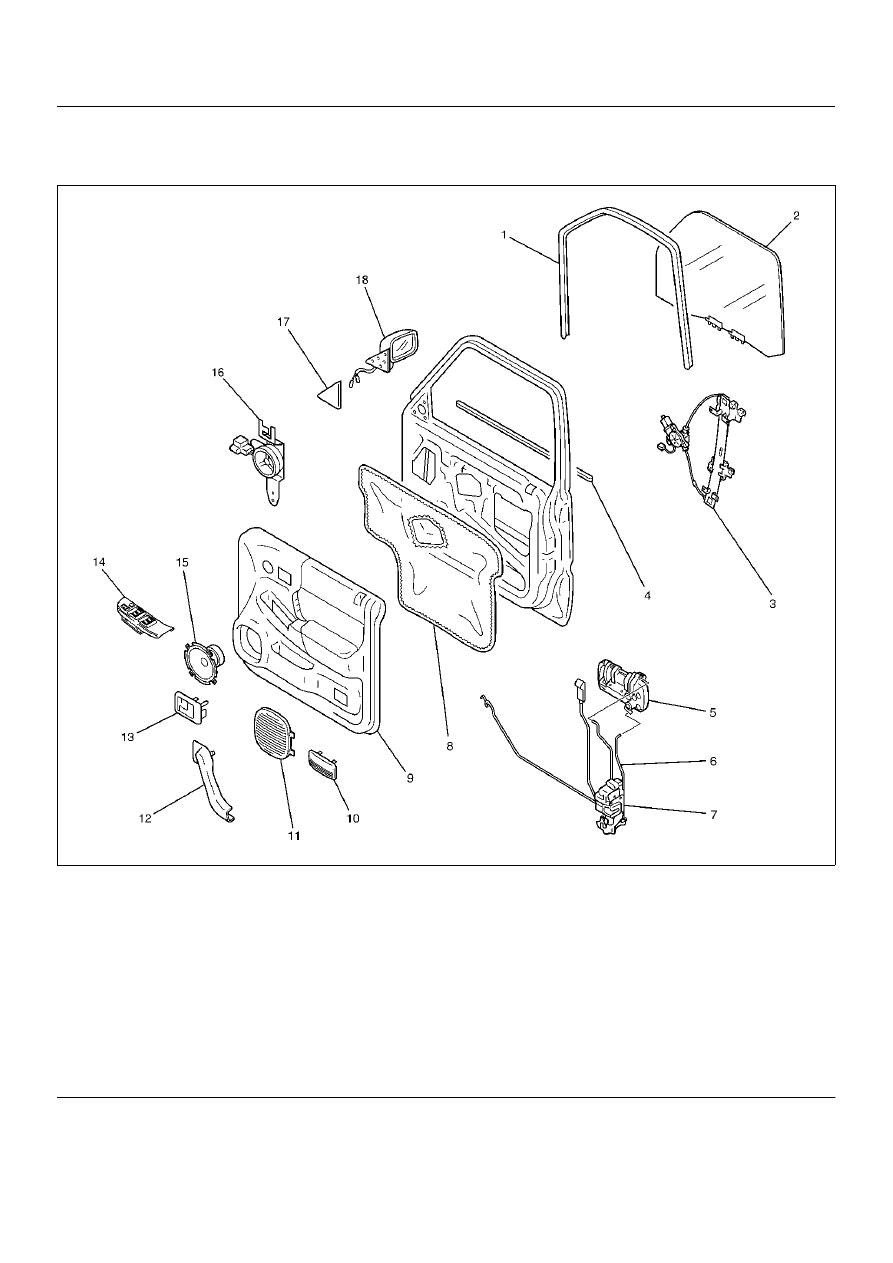

Front Door Trim Panel and Associated Parts

635RW015

Legend

EndOFCallout

(1) Glass Run
(2) Glass
(3) Power Window Regulator
(4) Outer Waste Seal
(5) Outside Handle
(6) Locking Link
(7) Door Lock Assembly/Door Lock Actuator
(8) Waterproof Sheet
(9) Door Trim Panel

(10) Courtesy Light Lens
(11) Speaker Grill
(12) Grip Cover
(13) Inside Handle
(14) Power Window Switch
(15) Speaker Assembly
(16) Tweeter
(17) Door Mirror Cover
(18) Door Mirror Assembly
