8F–48

BODY STRUCTURE

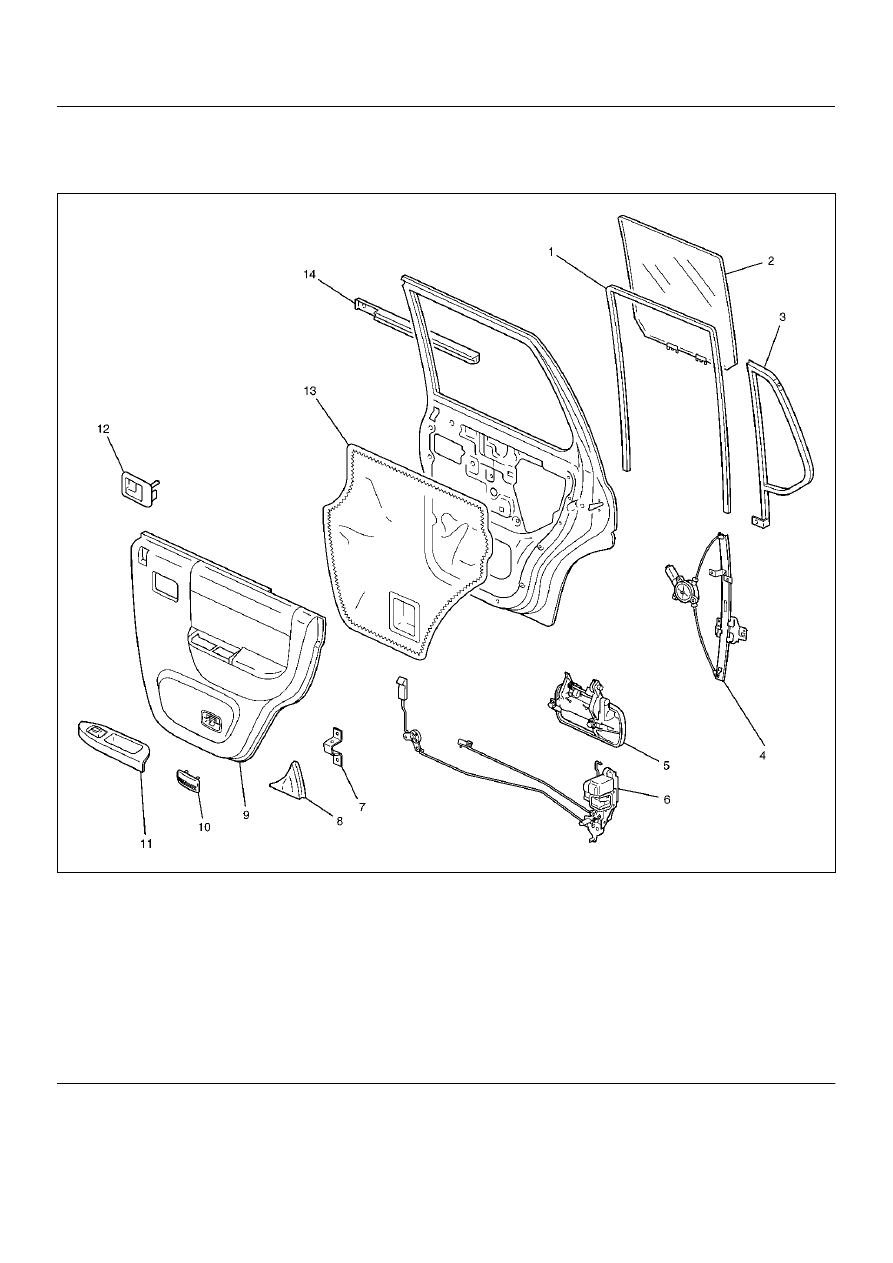

Rear Window Regulator, Glass and Glass Run

Parts Location

655RW011

Legend

EndOFCallout

(1) Glass Run
(2) Glass
(3) Fixed Glass
(4) Window Regulator
(5) Outside Handle
(6) Door Lock Assembly
(7) Bracket
(8) Rear Corner Garnish

(9) Door Trim Panel

(10) Courtesy Light Lens
(11) Power Window Switch
(12) Inside Handle
(13) Waterproof Sheet
(14) Waist Seal

BODY STRUCTURE

8F–49

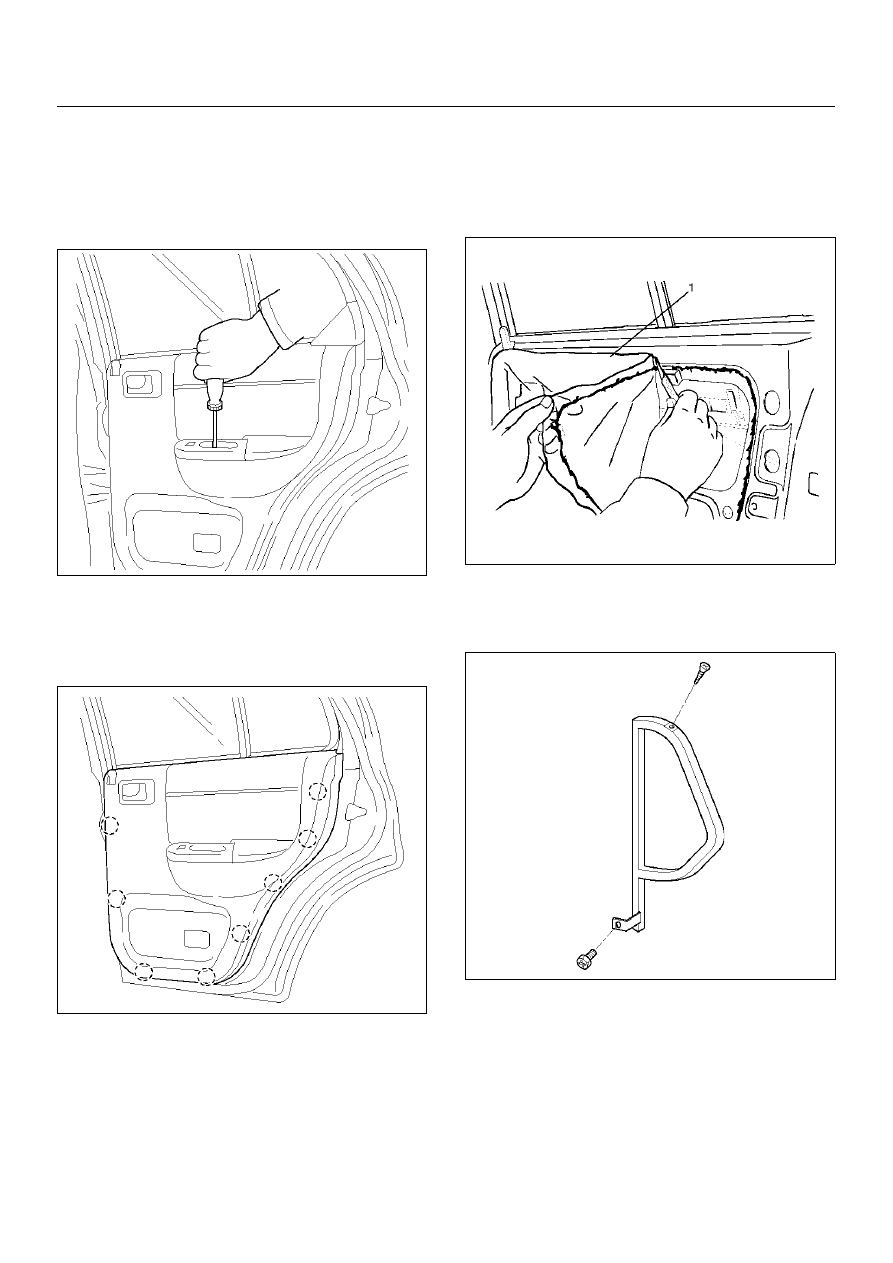

Removal

1. Disconnect the battery ground cable.

2. Remove the screw while pulling the inside lever

toward you and then remove the inside handle.

3. Remove the one screw at the pull case.

655RW003

4. Remove the rear corner garnish.

5. Pull out the trim panel at the eight clip positions.

• Disconnect the power window switch connector

and courtesy light connector.

655RW002

6. Remove the power window switch.

7. Remove the bracket.

8. Remove the waterproof sheet (1).

• Taking notice of the door harness, peel the

waterproof sheet off the door panel carefully.

651RS002

9. Remove the fixed glass.

• Remove one bolt and screw as shown in the

figure, then pull it upward.

651RW002

8F–50

BODY STRUCTURE

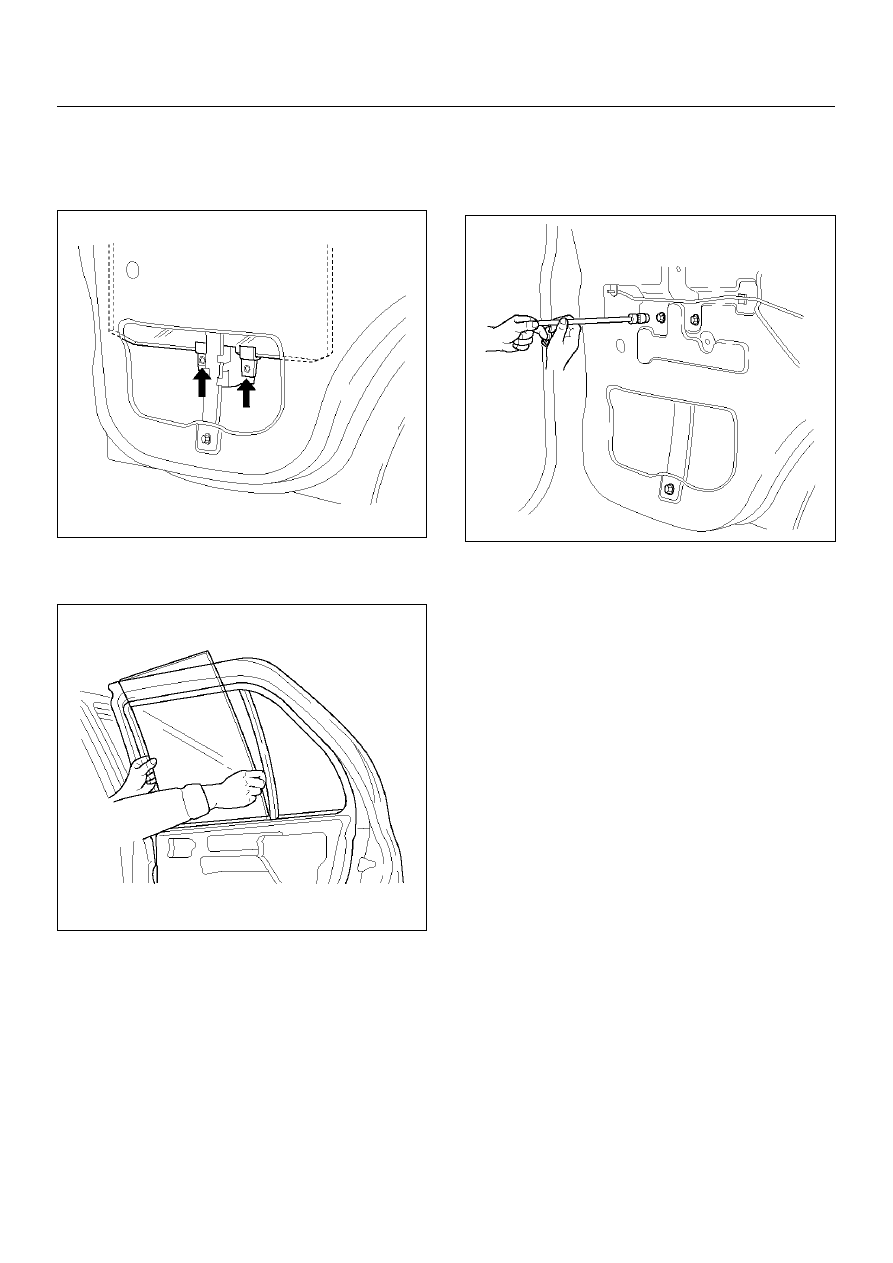

10. Remove the glass.

• First, align the height of regulator to the access

hole. Remove two screws attaching bottom
channel and regulator, then remove the glass.

651RW006

• Remove the window glass by tilting it as

necessary.

651RW007

11. Remove the window regulator.

• Remove the six fixing bolts and pull the regulator

out from the lower hole of the door panel.

• Disconnect the connector.

651RW005

12. Remove the glass run.

• Pull the glass run out from the door frame.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Check to see that the window regulator operates

smoothly and the glass opens and closes properly.

2. Install the waterproof sheet with no clearance

between the door panel and the waterproof sheet.

BODY STRUCTURE

8F–51

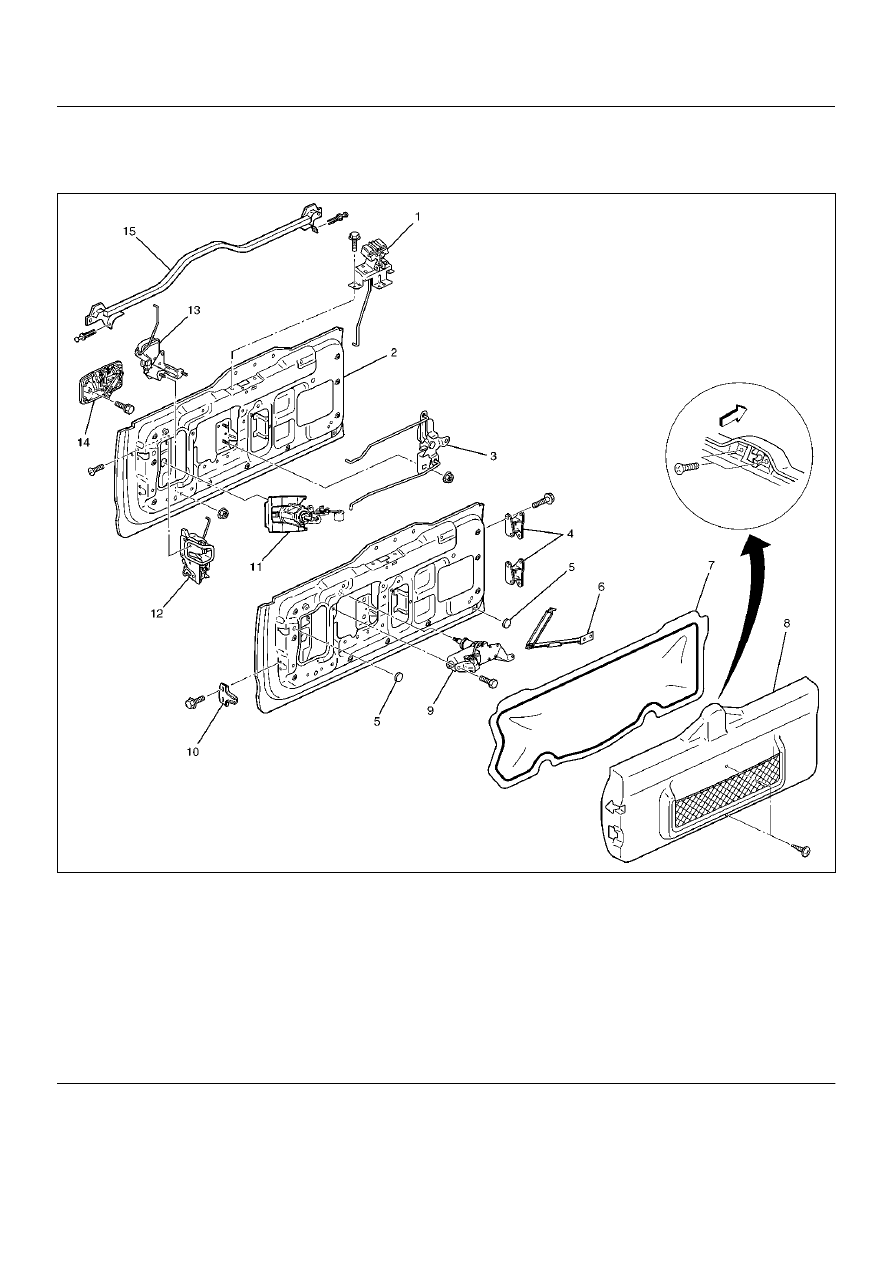

Rear Tailgate (LWB)

Parts Location

681RW010

Legend

EndOFCallout

(1) Hatchgate Lock Assembly
(2) Tailgate Assembly
(3) Tailgate Bell Crank
(4) Hinges
(5) Plug
(6) Tailgate Stopper Link
(7) Waterproof Sheet
(8) Trim Cover Assembly

(9) Rear Wiper Motor

(10) Dove Tail
(11) Key Cylinder
(12) Tailgate Lock Assembly
(13) Hatchgate Lock Actuator Assembly
(14) Outside Handle
(15) Tailgate Waist Seal
