8D–24

WIRING SYSTEM

Harness Connector Faces

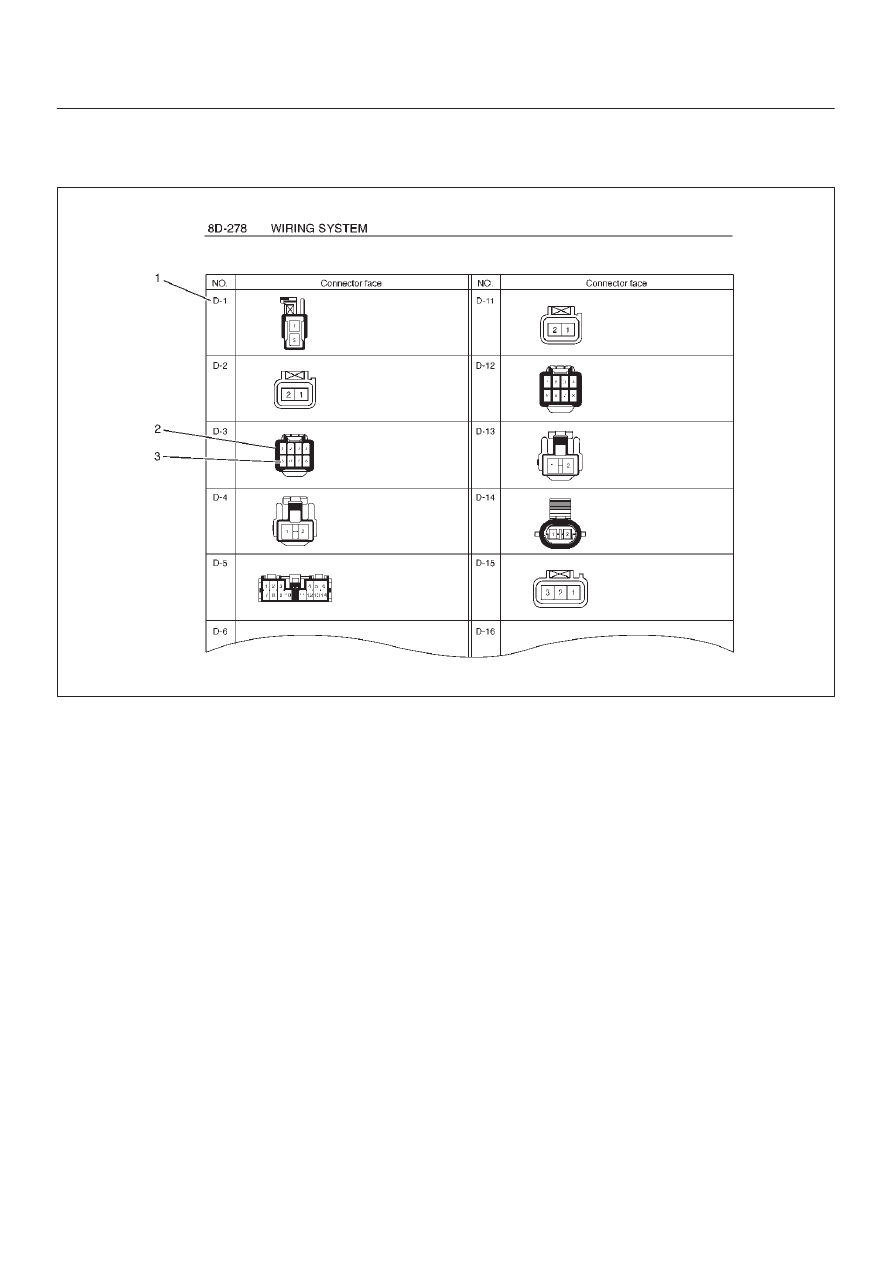

The harness connector faces show each connector’s
number (1), configuration (2) and the pin number (3).

F00RX011

8D–25

WIRING SYSTEM

Main Data and Specifications

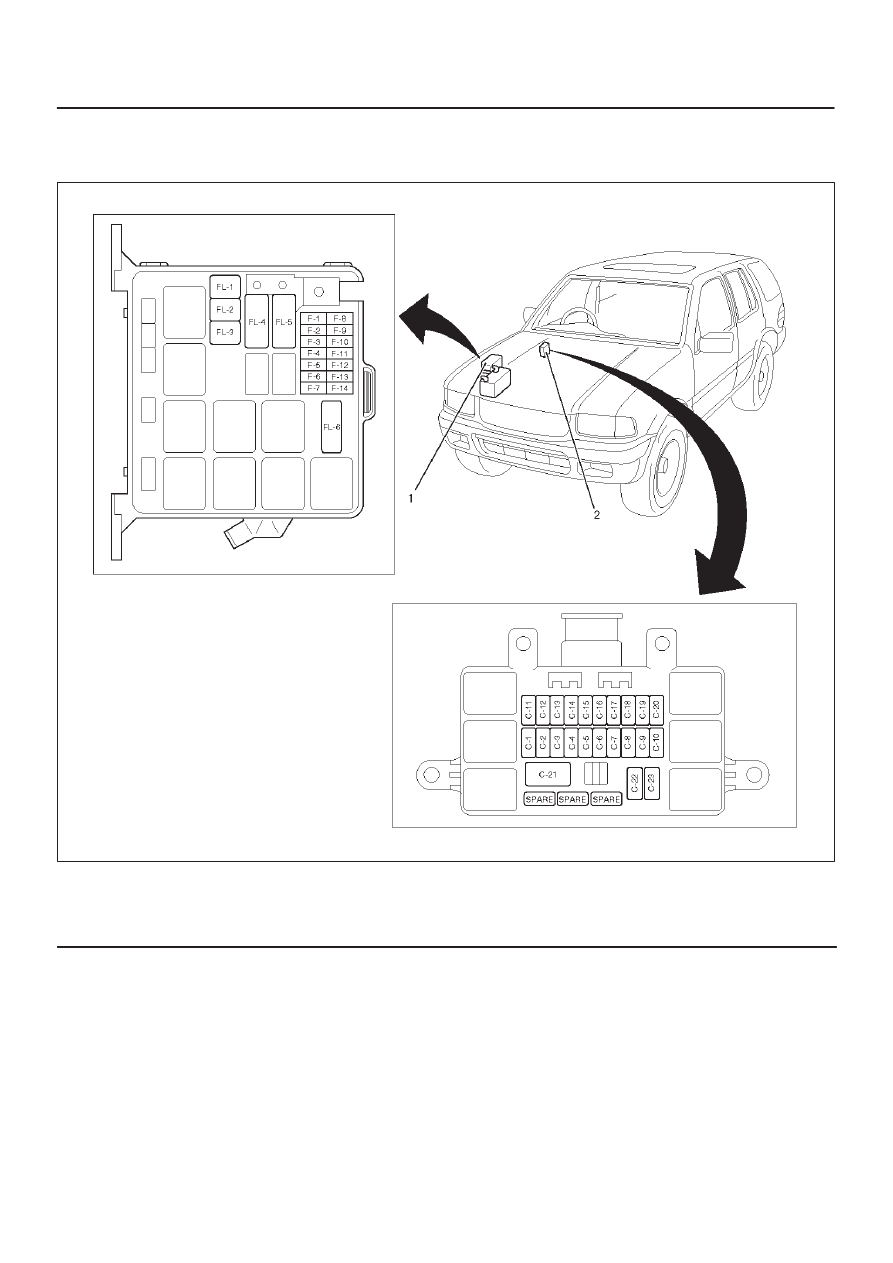

Fuse, Fusible Link and Circuit Breaker Location

810RX013

Legend

(1) Relay & Fuse Box (Engine Room)
(2) Relay & Fuse Box (Instrument panel)

8D–26

WIRING SYSTEM

Relay & Fuse Box (Engine Room)

Fuse

No.

Capacity

Indication on label

F-1

15A

HAZARD

F-2

10A

HORN

F-3

–

–

F-4

20A

BLOWER

F-5

10A

A/C

F-6

–

–

F-7

–

–

F-8

10A

H/L LIGHT-LH

F-9

10A

H/L LIGHT-RH

F-10

15A

FOG LIGHT

F-11

20A

O2 SENSOR

F-12

20A

FUEL PUMP

F-13

15A

ECM

F-14

–

–

FL-1

60A

ABS

FL-2

30A

(COND.FAN)

FL-3

–

–

FL-4

100A

MAIN

FL-5

60A

IGN.

FL-6

30A

ELEC. FAN

Relay & Fuse Box (Instrument panel)

Fuse

No.

Capacity

Indication on label

C-1

20A

ACC. SOCKET

C-2

10A

(AUDIO)

C-3

15A

CIGAR LIGHTER

C-4

15A

TAIL/ILLUMI. LIGHT

C-5

10A

DOME LIGHT

C-6

15A

STOP LIGHT

C-7

20A

(POWER DOOR LOCK)

C-8

10A

(MIRROR DEFOG)

C-9

15A

(REAR DEFOG)

C-10

15A

(REAR DEFOG)

C-11

15A

METER

C-12

15A

ENGINE IG.

C-13

15A

IG. COIL

C-14

15A

BACK UP/TURN LIGHT

C-15

15A

ELEC. IG.

C-16

20A

FRONT WIPER & WASHER

C-17

10A

(REAR WIPER & WASHER)

C-18

–

–

C-19

15A

(AUDIO)

C-20

10A

STARTER

C-21

30A

(POWER WINDOW)

C-22

10A

SRS

C-23

–

–

8D–27

WIRING SYSTEM

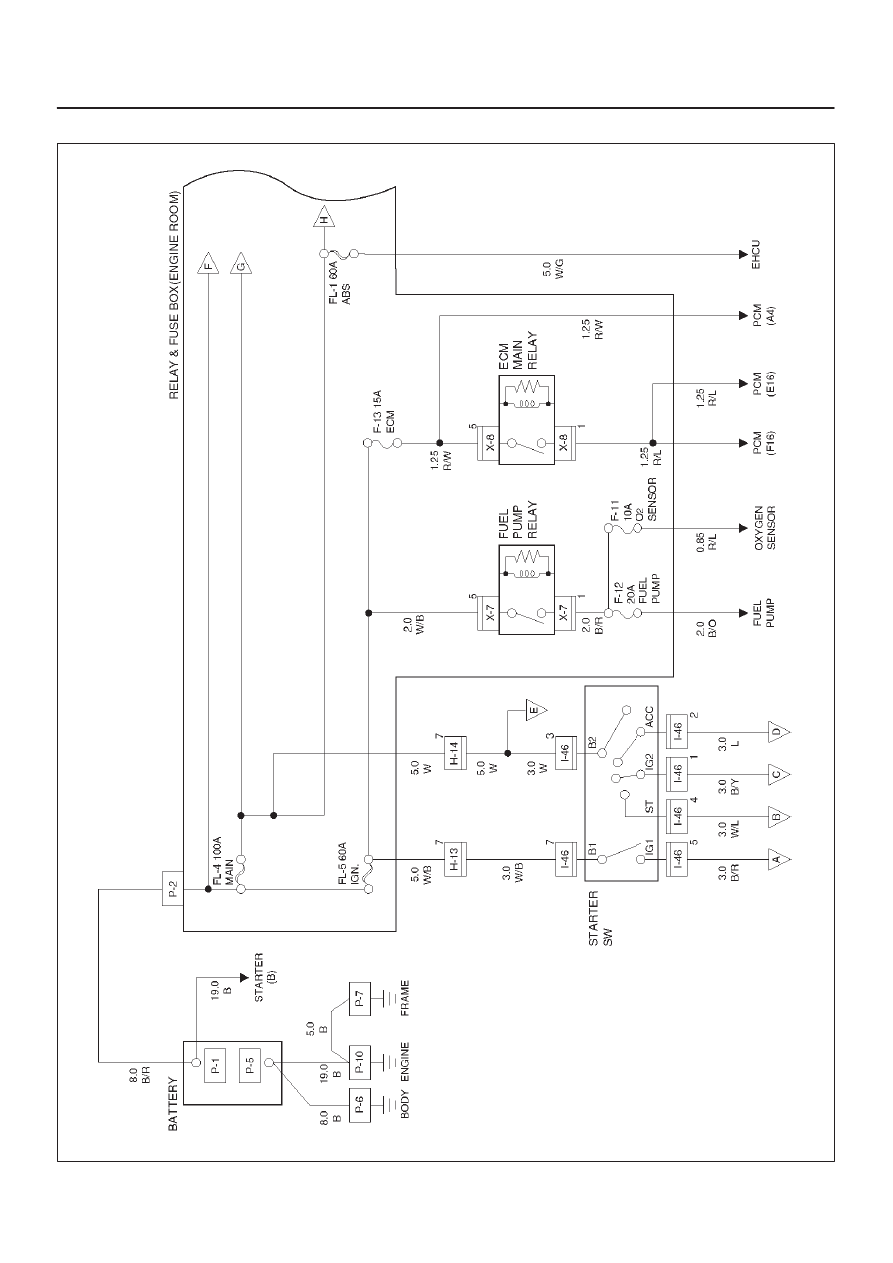

Fuse Block Circuit–1 (6VD1)

D08RX278
