8D–20

WIRING SYSTEM

Connector

D

The connector pin shape (2) determines whether the
connector is male (3) or female (1).

D08RW159

D

The symbol illustrated in the figure is used as
connector, in the circuit of this section.

D08RW160

Legend

(4) Female Side Connector
(5) Male Side Connector

D

Connector is identified with a connector number (6)

D08RW161

D

The applicable terminal number (7) is shown for each
connector.

D08RW162

8D–21

WIRING SYSTEM

D

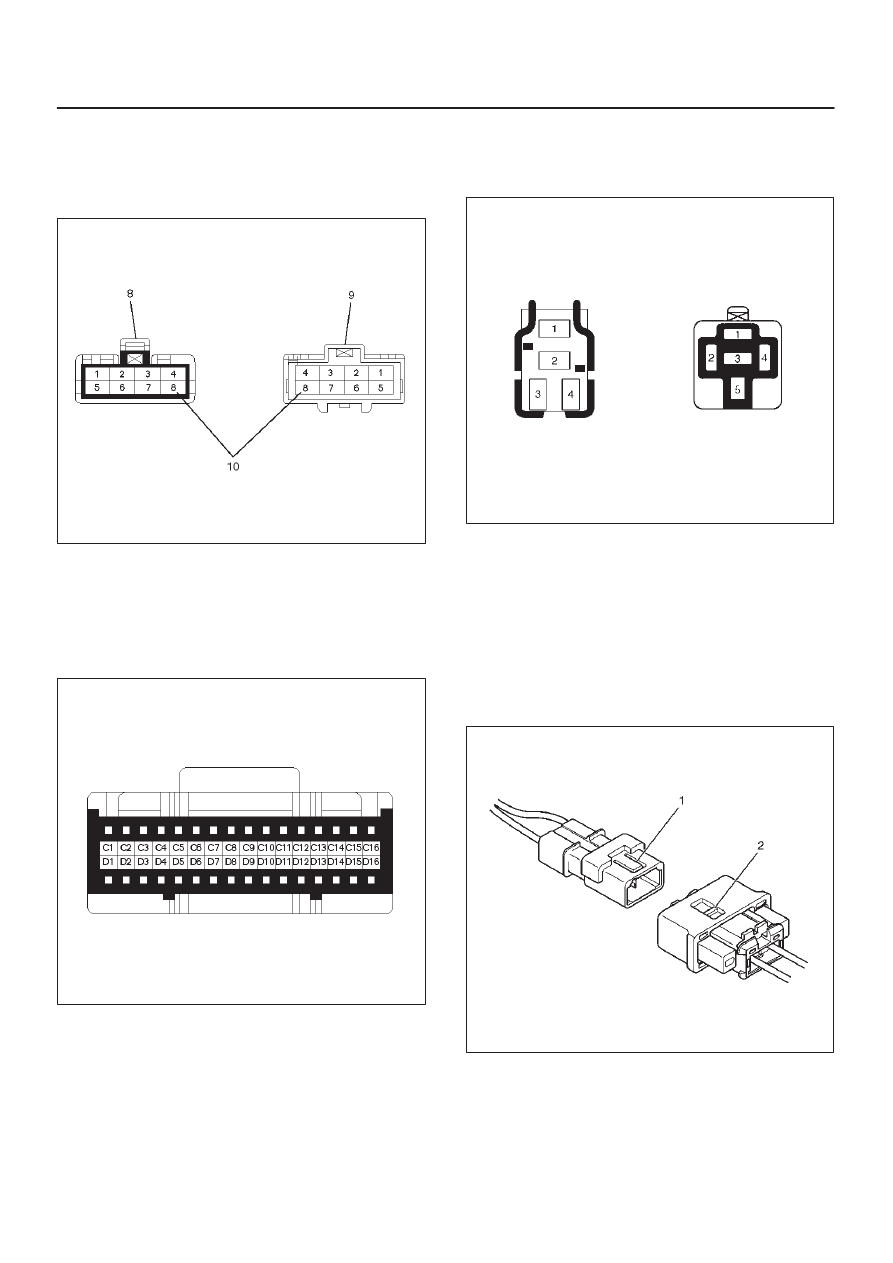

Connector terminal numbers (10) are clearly shown.
Make side connector (9) terminal numbers are in
sequence from upper right to lower left.
Female side connector (8) terminal numbers are in
sequence from upper left to lower right.

D08RW163

NOTE:

1. For those connectors on which specific terminal

numbers or symbols are shown (such as PCM), the
terminal numbers or symbols are used in the circuit
diagram, irrespective of the above rule.
Refer to the following figure.

D08RW164

2. The connectors used for relays have their own

terminal number assignment, irrespective of the
above rule.
Refer to the following figure.

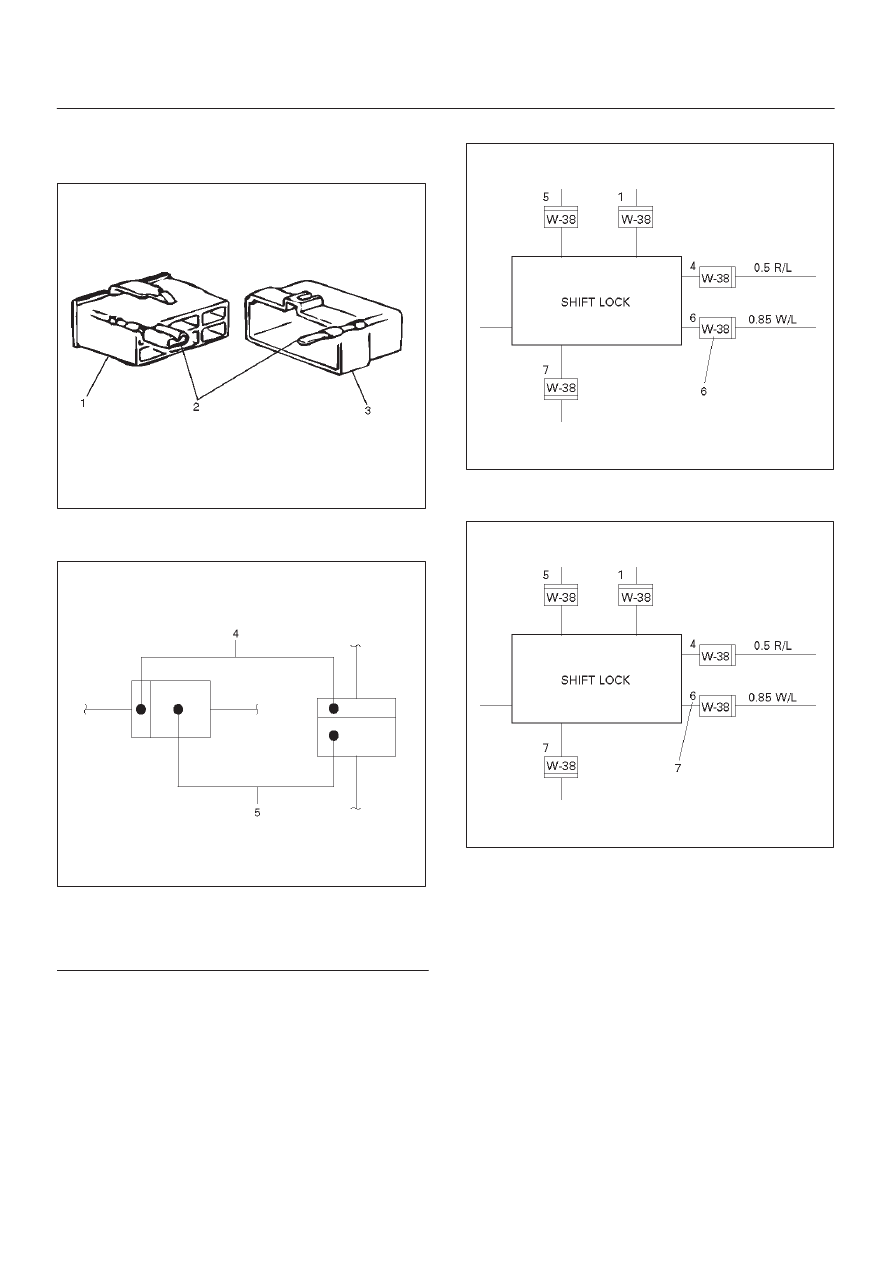

Double Lock Type Connector
Doublelock type yellow color connectors are used for
supplemental restraint system–air bag circuit. When
removing the cable harness, disconnect the connector by
unlocking at two places, outside (1) and inside (2). In such
a case, do not pull the cables. Otherwise, cable
disconnection may occur.
When connecting the connector, insert the connector
completely and lock at outside. Imperfect locking may
cause malfunction of SRS system circuit.

F00RX010

8D–22

WIRING SYSTEM

Reading the Circuit Diagram

In this section, each system has its own parts location
illustration and circuit diagram. And harness connector
faces used in the circuit diagram are shown at the end of
this section.

Parts Location

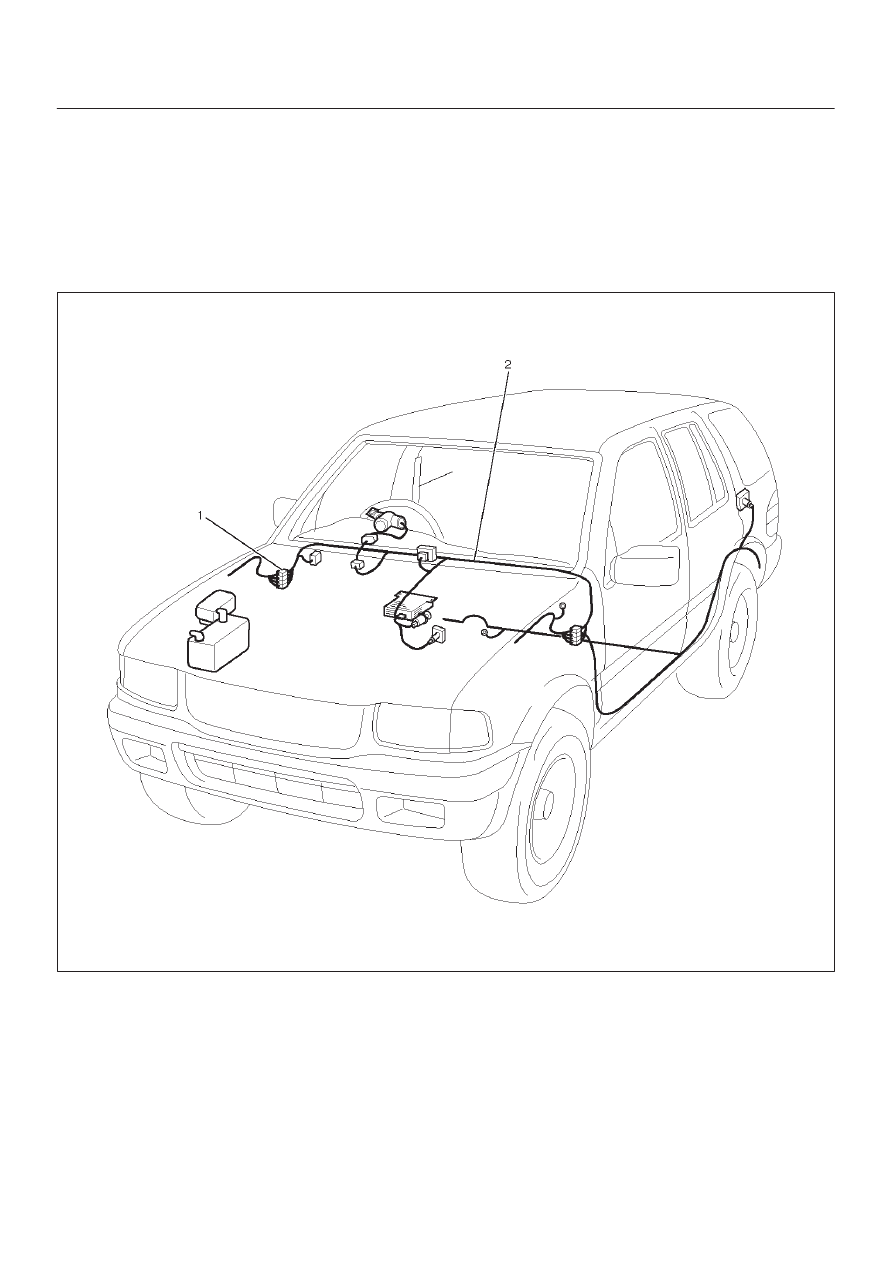

The parts location shows the location of the connectors
(1) and the harness (2) used in each harness routing.

D08RWD38

8D–23

WIRING SYSTEM

Circuit Diagram

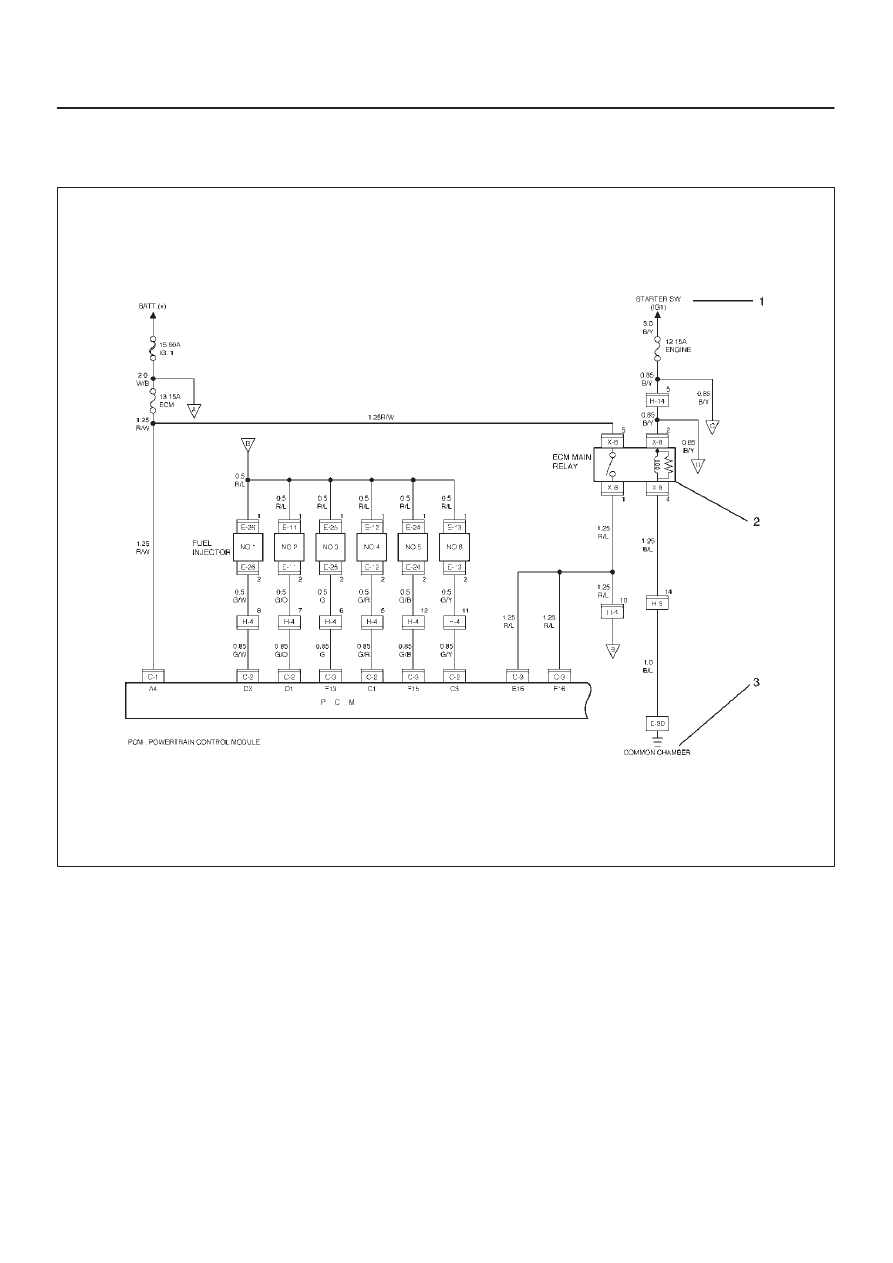

The circuit diagram shows the power supply (1) the load
or loads (2) and the grounding point(s) (3).

D08RX124
