6E1–50

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

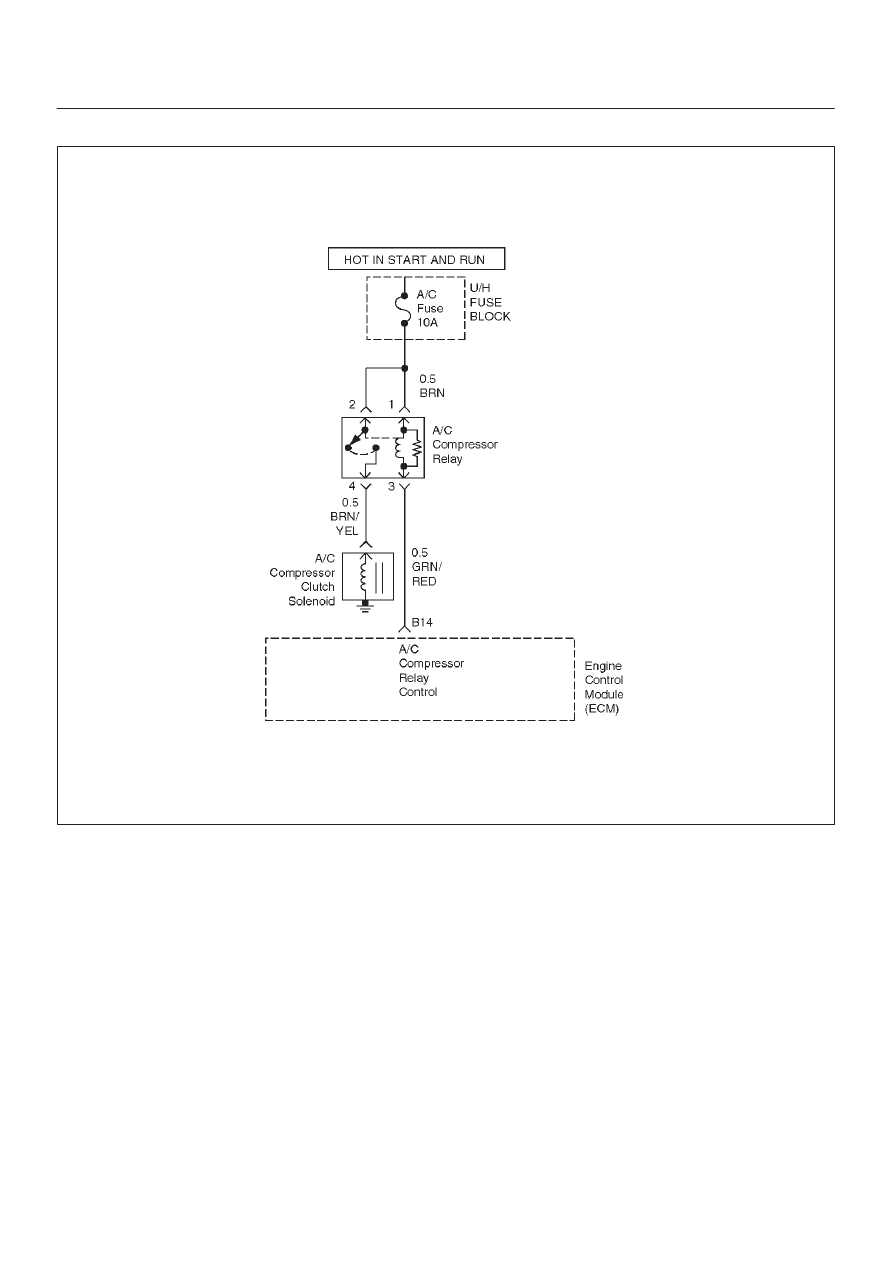

A/C CLUTCH CONTROL CIRCUIT DIAGNOSIS

D06RX107

Circuit Description

When air conditioning and blower fan are selected, and if
the system has a sufficient refrigerent charge, a 12–volt
signal is supplied to the A/C request input of the engine
control module (ECM). The A/C request signal may be
temporarily cancelled during system operation by the
electronic thermostat in the evaporator case. The
electronic thermostat may intermittently remove the
control circuit ground for the A/C thermostat relay to
prevent the evaporator from forming ice. When the A/C
request signal is received by the ECM, the ECM supplies
a ground from the compressor clutch relay if the engine
operating conditions are within acceptable ranges. With
the A/C compressor relay energized, battery voltage is
supplied to the compressor clutch coil.
The ECM will enable the compressor clutch to engage
whenever A/C has been selected with the engine running,
unless any of the following conditions are present:

D

The throttle is greater than 90%.

D

The ignition voltage is below 10.5 volts.

D

The engine speed is greater than 4500 RPM for 5
seconds or 5400 RPM.

D

The engine coolant temperature (ECT) is greater
than 125

°

C (257

°

F)

D

The intake air temperature (IAT) is less than 5

°

C

(41

°

F).

D

The power steering pressure switch signals a high
pressure condition position.

Diagnostic Aids

To diagnose an intermittent fault, check for the following
conditions:

D

Poor connection at the ECM – Inspect harness
connections for backed–out terminals, improper
mating, broken locks, improperly formed or damaged
terminals, and poor terminal–to–wire connection.

6E1–51

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

D

Damaged harness – Inspect the wiring harness for
damage; shorts to ground, shorts to battery voltage,
and open circuits. If the harness appears to be OK,
observe the A/C clutch while moving connnectors and
wiring harnesses related to the A/C. A sudden clutch
malfunction will indicate the source of the intermittent.

A/C Clutch Diagnosis

This chart should be used for diagnosing the electrical
portion of the A/C compressor clutch circuit. A Tech 2 will

be used in diagnosing the system. The Tech 2 has the
ability to read the A/C request input to the ECM. The Tech
2 can display when the ECM has commended the A/C
clutch ON. The Tech 2 should have the ability to override
the A/C request signal and energize the A/C compressor
relay.

A/C Clutch Control Circuit Diagnosis



Step

Action

Value(s)

Yes

No

1

Was the ”On–Board Diagnostic (OBD) System Check”
performed?

—

Go to Step 2

Go to OBD

System

Check

2

1. Ignition ON, engine OFF.
2. Review and record Tech 2 Failure Records data,

then clear the DTCs.

3. Operate the vehicle within the Failure Records

conditions as noted.

4. Using the Tech 2, monitor ”DTC” info for DTC

P1546.

Does the Tech 2 indicate DTC P1546 ”Ran and
Passed”?

—

Refer to

Diagnostic

Aids

Go to Step 3

3

1. Ignition OFF.
2. Remove the A/C Compressor Relay from the

Underhood Electrical Center.

3. Ignition ON, engine OFF.
4. Using a Digital Voltmeter (DVM), check for voltage

on the Fused pins of the A/C Compressor Clutch
Relat connector.

Does the DVM read the following value?

12 Volts

Go to Step 5

Go to Step 4

4

Check the suspect circuit(s) between the A/C
Compressor Clutch Relay connector and the Fuse for
the following conditions:

D

A short to ground

D

An open circuit

D

A short to voltage

Was the problem found?

—

Verify repair

—

5

1. Ignition OFF.
2. Disconnect the Engine Controlm Module (ECM)

connectors from the ECM.

3. Check the A/C Compressor Clutch Relay control

circuit between the ECM and Underhood Electrical
Center for the following conditions:

D

A short to ground

D

An open circuit

D

A short to voltage

Was the problem found?

—

Verify repair

Go to Step 6

6E1–52

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

A/C Clutch Control Circuit Diagnosis

  (Cont'd)

Step

No

Yes

Value(s)

Action

6

1. Reinstall the A/C Compressor Clutch Relay.
2. Using a fused jumper, ground the A/C Compressor

Clutch Relay control circuit at the ECM connector.

3. Ignition ON, engine OFF.

Does the A/C Compressor turn ON?

—

Go to Step 9

Go to Step 7

7

1. Ignition OFF.
2. Check the A/C Compressor Clutch circuit between

the A/C Compressor Clutch Relay and A/C
Compressor Clutch for the following conditions:

D

A short to ground

D

An open circuit

D

A short to voltage

Was the problem found?

—

Verify repair

Go to Step 8

8

Replace the A/C Compressor Clutch Relay.

Is the action complete?

—

Verify repair

—

9

Replace the ECM.
Verify repair.

—

—

—

6E1–53

X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

ELECTRONIC IGNITION SYSTEM

DIAGNOSIS

If the engine cranks but will not run or immediately stalls,
the Engine Cranks But Will Not Start chart must be used
to determine if the failure is in the ignition system or the
fuel system.

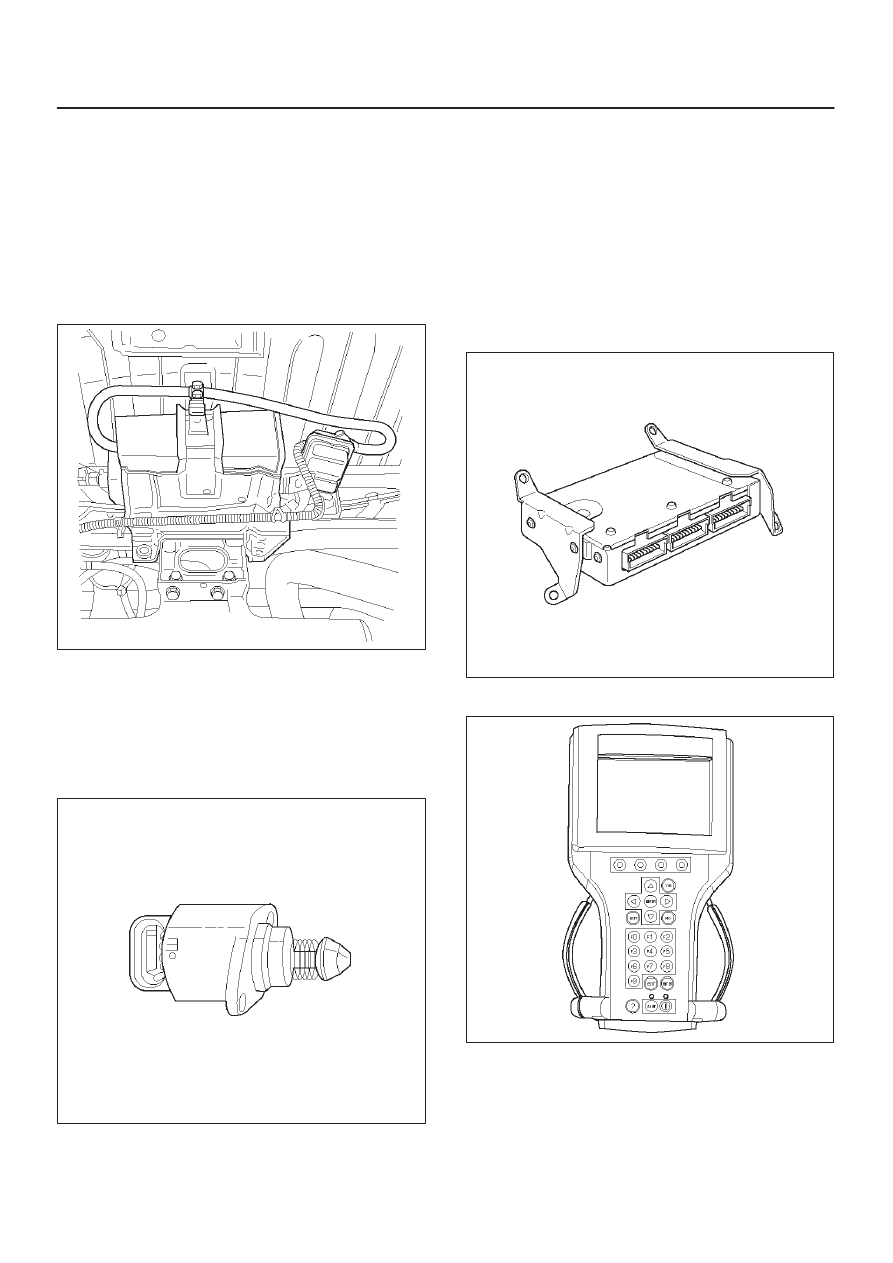

VISUAL CHECK OF THE

EVAPORATIVE EMISSION CANISTER

014RX001

D

If the canister is cracked or damaged, replace the
canister.

D

If fuel is leaking from the canister, replace the canister
and check hoses and hose routing.

IDLE AIR CONTROL (IAC) VALVE

0006

The Tech 2 displays the IAC pintle position in counts. A
count of ”0” indicates the ECM is commanding the IAC
pintle to be driven all the way into a fully–seated position.
This is usually caused by a vacuum leak.
The higher the number of counts, the more air is being
commanded to bypass the throttle blade. In order to
diagnose the IAC system, refer to IAC System Check.
For other possible causes of idle problems, refer to
Rough, Unstable, or Incorrect Idle, Stalling in Symptoms.

ENGINE CONTROL MODULE (ECM)

DIAGNOSIS

014RX002

To read and clear diagnostic trouble codes, use a Tech 2.

901RX031
