RESTRAINT CONTROL SYSTEM

DTC Chart Test Description:

Number(s) below refer to step number(s) on the
diagnostic chart:
2. If air bag assembly has not deployed, Diagnostic

Trouble Code (DTC) 53 may have falsely set.

3. If DTC 53 has set with no signs of frontal impact, the

diagnostic trouble code has  falsely set.

SECTION

RESTRAINT CONTROL SYSTEM

9J1–51

DTC 53 Deployment Commanded With Deployment Loop Fault Or Energy Reserves Out Of
Range

WARNING:  DURING SERVICE PROCEDURES. BE
VERY CAREFUL WHEN HANDLING A SENSING AND
DIAGNOSTIC MODULE (SDM). NEVER STRIKE OR
JAR THE SDM.  NEVER POWER UP THE SRS WHEN
THE SDM IS NOT RIGIDLY ATTACHED TO THE
VEHICLE. ALL SDM AND MOUNTING BRACKET
FASTENERS MUST BE CAREFULLY TORQUED AND
THE ARROW MUST BE POINTING TOWARD THE

FRONT OF THE VEHICLE TO ENSURE PROPER
OPERATION OF THE SRS. THE SDM COULD BE
ACTIVATED WHEN POWERED WHILE NOT RIGIDLY
ATTACHED TO THE VEHICLE WHICH COULD
CAUSE DEPLOYMENT AND RESULT IN PERSONAL
INJURY.

Step

Action

Yes

No

1

Was the “SRS Diagnostic System Check" performed?

Go to Step 2

Go to the “SRS

Diagnostic System

Check."

2

Ignition switch “OFF."
Have air bag assemblies deployed?

Replace

components

and perform

inspections as

directed in

“repairs and

inspections

required after

an accident" in

this section.

Clear

diagnostic

trouble codes.

Repeat the

“SRS

Diagnostic

System Check."

Go to Step 3

3

Inspect front of vehicle and undercarriage for signs of impact.
Were signs of impact found?

Replace

components

and perform

inspections as

directed in

“repairs and

inspections

required after

an accident" in

this section.

Clear

diagnostic

trouble codes.

Repeat the

“SRS

Diagnostic

System Check."

Ignition switch

“OFF."

Replace SDM.

Reconnect all

SRS system

components,

ensure all

components

are properly

mounted.

Repeat the

“SRS

Diagnostic

System Check."

SECTION

9J1–52

RESTRAINT CONTROL SYSTEM

DTC 61  Warning Lamp Circuit Failure

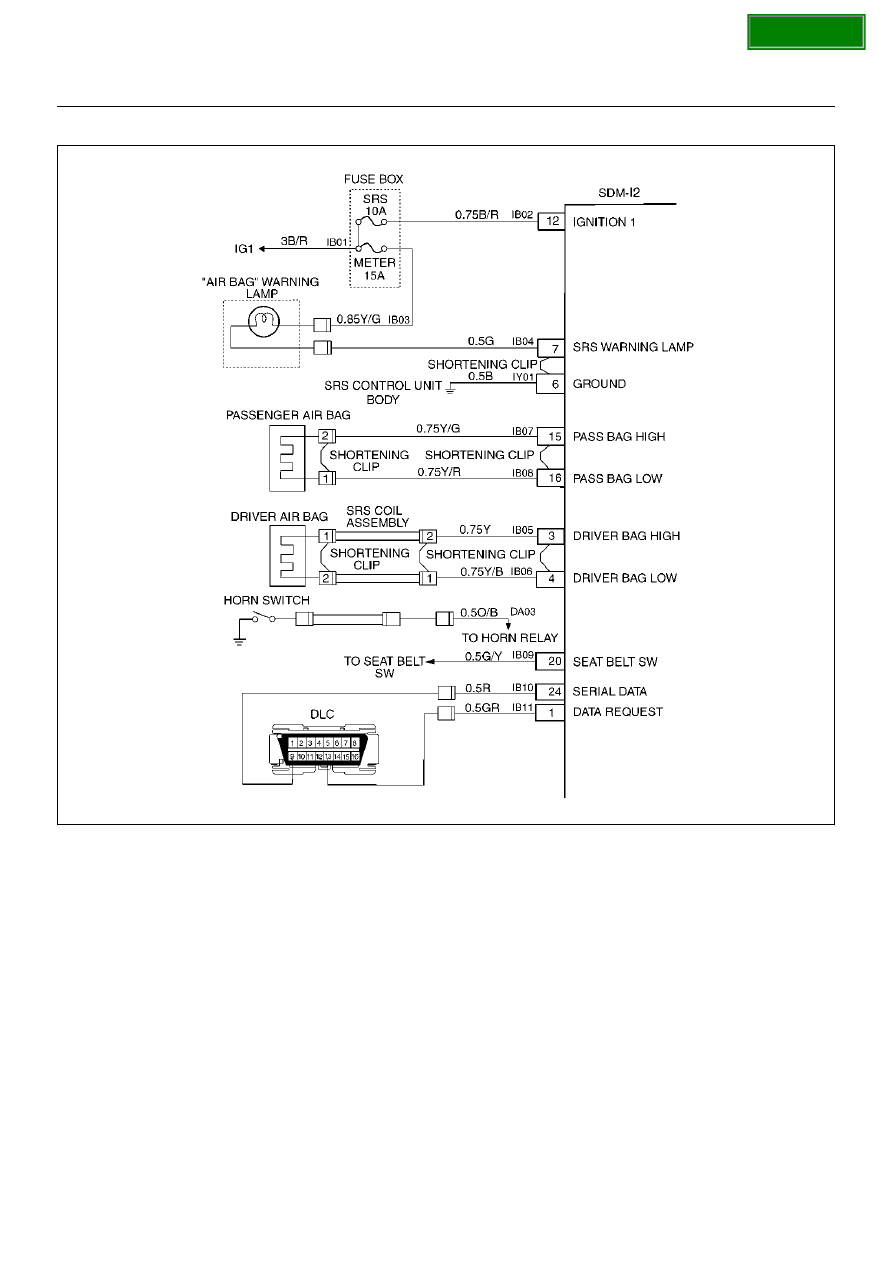

D09RX002

Circuit Description:

When the ignition switch is turned “ON", battery voltage
is applied to the “AIR BAG" warning  lamp and to the
“ignition 1" input terminal “12".  The Sensing and
Diagnostic Module (SDM) responds by flashing the “AIR
BAG"  warning lamp seven times.  The SDM monitors
the lamp driver output by comparing the output  state at
“Supplemental Restraint System (SRS) warning lamp"
terminal “7" to the microprocessor commanded state.
When  “ignition 1" is in the specified value, and the
output state Does not match the commanded  state of
the lamp driver for 500 milliseconds, DTC 61 is set.

DTC Will Set When:

“Ignition 1" voltage is in the specified value and the
output state at the “SRS warning lamp"  terminal does
not match the commanded state of the lamp driver for
500 milliseconds.  This  test is run every 100

milliseconds during “Continuous Monitoring" tests and
once per each ignition cycle at the beginning.

Action Taken:

SDM attempts to turn “ON" the “AIR BAG" warning lamp
and sets a diagnostic trouble code.

DTC Will Clear When:

The ignition switch is turned “OFF."

Diagnostic Aids:

Refer to Charts B and C to diagnose warning lamp
circuit malfunctions.

SECTION

RESTRAINT CONTROL SYSTEM

9J1–53

DTC 61 Warning Lamp Circuit Failure

Step

Action

Yes

No

1

Was the “SRS Diagnostic System Check" performed?

Go to Step 2

Go to the “SRS

Diagnostic System

Check."

2

1. Malfunctions within the “AIR BAG" warning lamp circuitry will

set this diagnostic trouble code.

2. These malfunctions are addressed in the “SRS Diagnostic

System Check" via Chart B and Chart C.

3. Failure to properly perform the “SRS Diagnostic System

Check" may result in misdiagnosis.

4. Ignition switch “ON."

5. Clear SRS diagnostic trouble codes.

Is DTC 61 SET?

Ignition switch

“OFF."

Go to Chart A.

Repeat the “SRS

Diagnostic System

Check."
