9J1–46

RESTRAINT CONTROL SYSTEM

DTC 26 Driver Deployment Loop Open

Step

Action

Yes

No

1

Was the “SRS Diagnostic System Check" performed?

Go to Step 2

Go to the “SRS

Diagnostic System

Check."

2

1. When measurements are requested in this chart use 5–

8840–0285–0 DVM with correct terminal adapter from 5–
8840–0385–0.

2. Use scan tool data list function, read and record the driver

differential voltage.

Is driver differential voltage more than 4.25 volts?

Go to Step 3

Go to Chart A.

3

1. Ignition switch “OFF."

2. Make sure the SRS coil assembly yellow 2–pin connector

located at the base of steering column is seated properly.

Is the yellow 2–pin connector connected properly?

Go to Step 4

Seat driver air

bag assembly

2–pin

connector.

Go to Step 8

4

1. Disconnect and inspect the SRS coil assembly yellow 2–pin

connector located base of steering column.

2. If OK, reconnect the SRS coil assembly yellow 2–pin

connector.

3. Ignition switch “ON".

Is DTC 26 current?

Go to Step 5

Ignition switch

“OFF."

Go to Step 8

5

1. Ignition switch “OFF."

2. Disconnect SRS coil and passenger air bag assembly, yellow

2–pin connectors located at the base of steering column and
behind the glove box assembly.

3. Connect SRS driver / passenger load tool 5–8840–2421–0

and appropriate adapter to SRS coil and passenger air bag
assembly harness connectors.

4. Ignition switch “ON."

Is DTC 26 current?

Go to Step 6

Go to Step 7

6

1. Ignition switch “OFF."

2. There has been an open circuit in the driver deployment loop.

Use the high resolution ohmmeter mode of the DVM while
checking CKTs IB05 YEL and IB06 YEL/BLK, and SDM
connector terminal “3" AND “4" to locate the root cause.

Was a fault found?

Replace SRS

harness.

Go to Step 8

Go to Chart A.

7

1. Ignition switch “OFF."

2. Disconnect SRS driver / passenger load tool from SRS coil

assembly harness connector.

3. Connect SRS driver / passenger load tool 5–8840–2421–0

on steering column.

4. Reconnect SRS coil assembly harness connector as the

base of steering column.

5. Ignition switch “ON."

Is DTC 26 current?

Ignition switch

“OFF."

Replace SRS

coil assembly,

refer to in this

section.

Go to Step 8

Ignition switch

“OFF."

Replace driver

air bag

assembly.

Go to Step 8

8

1. Reconnect all components, ensure all component are

properly mounted.

2. Clear diagnostic trouble codes.

Was this step finished?

 Repeat the “SRS

Diagnostic System

Check."

Go to Step 8

SECTION

RESTRAINT CONTROL SYSTEM

9J1–47

DTC 51  Deployment Event Commanded

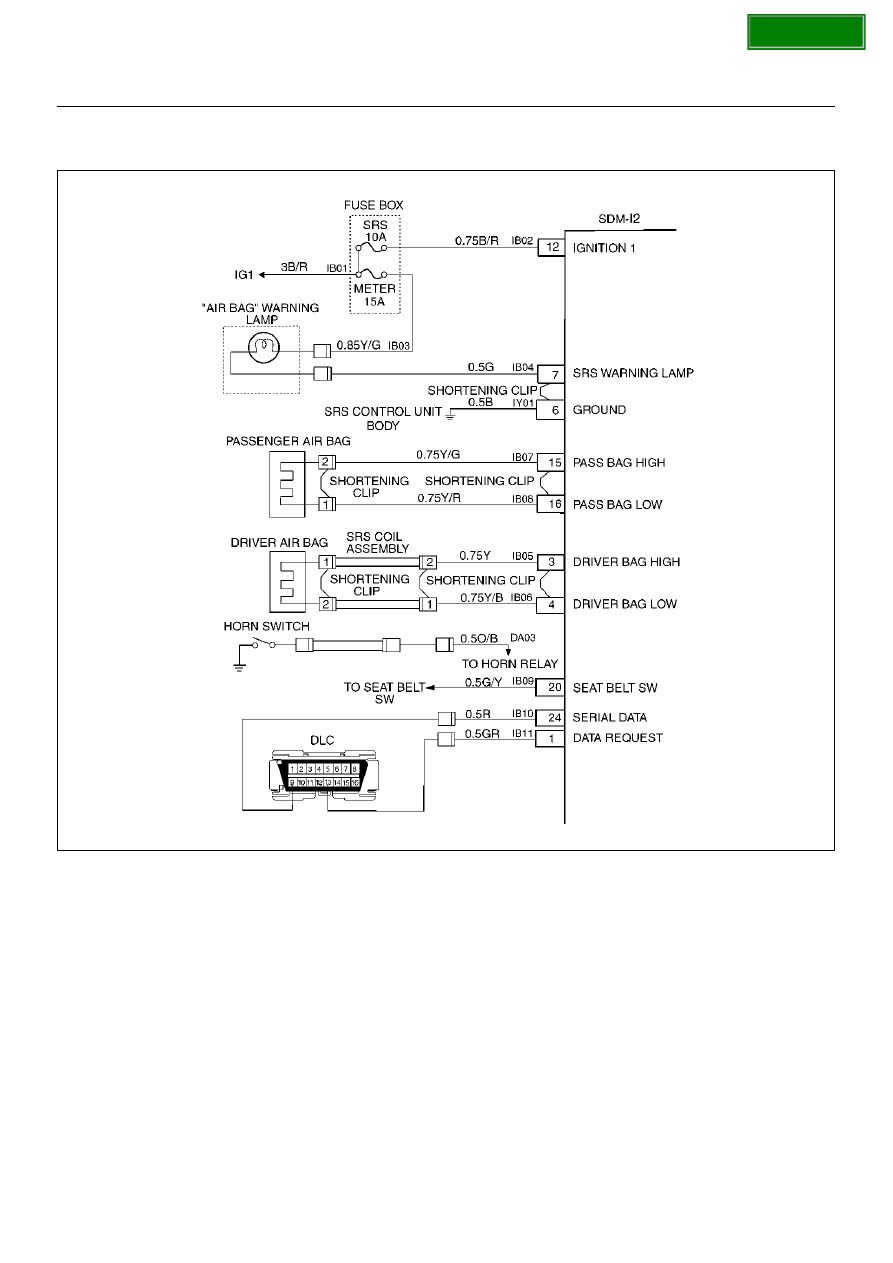

D09RX002

Circuit Description:

The Sensing and Diagnostic Module (SDM) contains a
sensing device which converts vehicle velocity changes
to an electrical  signal.  The electrical signal generated
is processed by the SDM and then compared to a value
stored in memory.  When the generated signal exceeds
the stored value, the SDM will cause  current to flow
through the air bag assembly deploying the air bags and
causing Diagnostic Trouble Code (DTC) 51 to set.

DTC Will Set When:

The SDM detects a frontal crash, up to 30 degrees off
the centerline of the vehicle, of  sufficient force to
warrant deployment of the air bags.

Action Taken:

SDM turns “ON" the “AIR BAG" warning lamp records

“Crash Data", and sets a diagnostic trouble  code.

DTC Will Clear When:

The SDM is replaced.

DTC Chart Test Description:

Number(s) below refer to step number(s) on the
diagnostic chart:
2. If air bag assembly (s) has not deployed, DTC 51 may

have falsely set.

3. If DTC 51 has set with no signs of frontal impact, the

diagnostic trouble code has  falsely set.

SECTION

9J1–48

RESTRAINT CONTROL SYSTEM

DTC 51 Deployment Event Commanded

WARNING:  DURING SERVICE PROCEDURES. BE
VERY CAREFUL WHEN HANDLING A SENSING AND
DIAGNOSTIC MODULE (SDM). NEVER STRIKE OR
JAR THE SDM.   NEVER POWER UP THE SRS WHEN
THE SDM IS NOT RIGIDLY ATTACHED TO THE
VEHICLE. ALL SDM AND MOUNTING BRACKET
FASTENERS MUST BE  CAREFULLY TORQUED
AND THE ARROW MUST BE POINTING TOWARD

THE FRONT OF THE VEHICLE TO ENSURE PROPER
OPERATION OF THE SUPPLEMENTAL RESTRAINT
SYSTEM (SRS).  THE SDM COULD BE ACTIVATED
WHEN POWERED WHILE NOT RIGIDLY  ATTACHED
TO THE VEHICLE WHICH COULD CAUSE
DEPLOYMENT AND RESULT IN PERSONAL INJURY.

Step

Action

Yes

No

1

Was the “SRS Diagnostic System Check" performed?

Go to Step 2

Go to the “SRS

Diagnostic System

Check."

2

Ignition switch “OFF."
Have air bag assemblies deployed?

Replace

components

and perform

inspections as

directed in

“repairs and

inspections

required after

an accident" in

this section.

Clear

diagnostic

trouble codes.

Repeat the

“SRS

Diagnostic

System Check."

Go to Step 3

3

Inspect front of vehicle and undercarriage for signs of impact.
Were signs of impact found?

Replace

components

and perform

inspections as

directed in

“repairs and

inspections

required after

an accident" in

this section.

Clear

diagnostic

trouble codes.

Repeat the

“SRS

Diagnostic

System Check."

Ignition switch

“OFF."

Replace SDM.

Reconnect all

SRS system

components,

ensure all

components

are properly

mounted.

Repeat the

“SRS

Diagnostic

System Check."

SECTION

RESTRAINT CONTROL SYSTEM

9J1–49

DTC 53  Deployment Commanded With Deployment Loop Fault Or Energy
Reserves Out Of Range

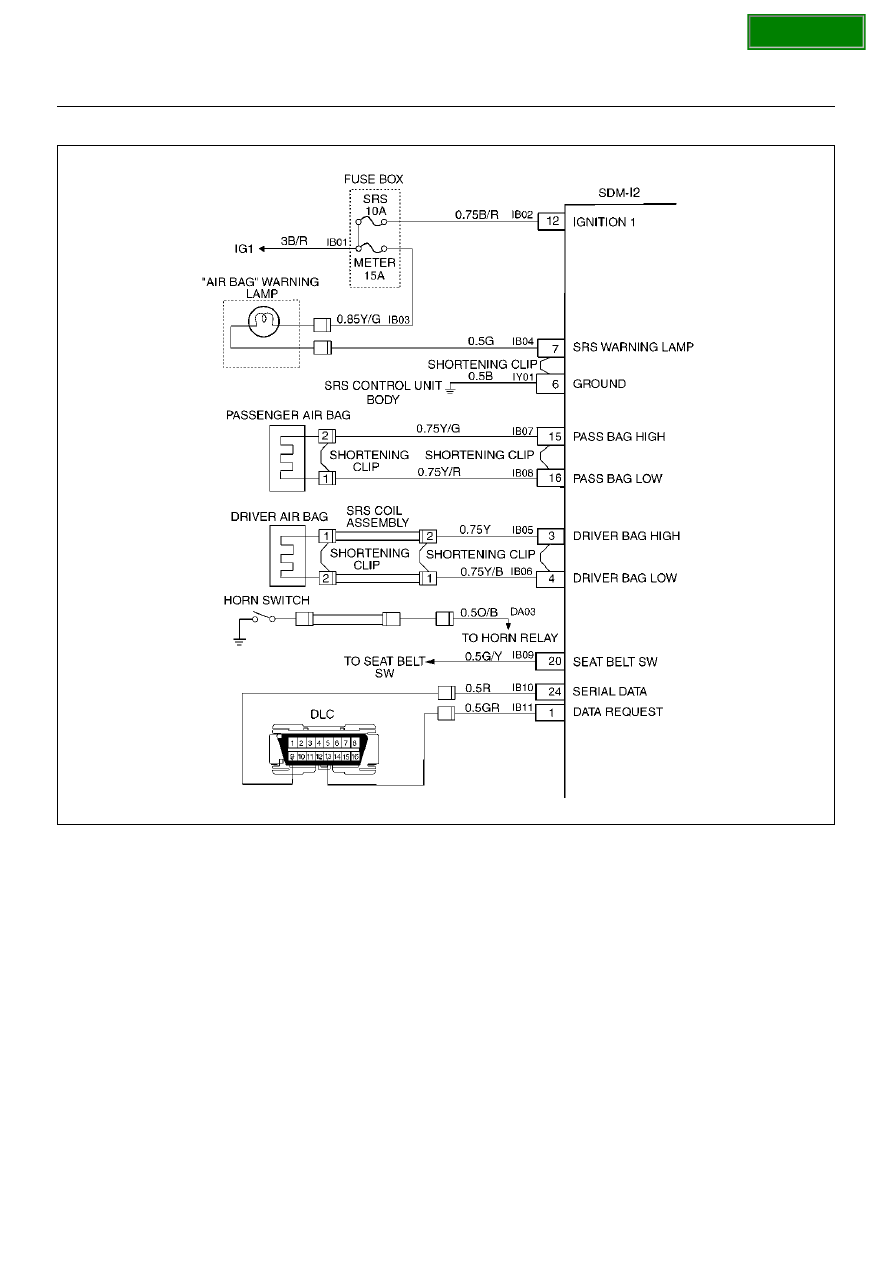

D09RX002

Circuit Description:

The Sensing and Diagnostic Module (SDM) contains a
sensing drive which converts vehicle velocity changes
to an electrical  signal.  The electrical signal generated
is processed by the SDM and then compared to a value
stored in memory.  When the generated signal exceeds
the stored value, the SDM will cause  current to flow
through the air bag assembly deploying the air bags.
Diagnostic Trouble Code (DTC) 53 is set  accompanying
with DTC 51 when a deployment occurs while an air bag
assembly circuit fault  is present that could possible
result in a no deployment situation in one or both air bag
assemblies.

DTC Will Set When:

The SDM detects a frontal crash, up to 30 degrees off

the centerline of the vehicle, of  sufficient force to
warrant deployment of the air bags and an inflator circuit
fault is  present.

Action Taken:

SDM turns “ON" the “AIR BAG" warning lamp records
“Crash Data", and sets a diagnostic trouble  code.

DTC Will Clear When:

The SDM is replaced.  If DTC 53 is set, one or more
DTCs will be set in addition to DTC 53.   Malfunction(s)
setting DTC(s) (other than DTC 71) must be repaired so
that DTC(s) will  not be set when a new SDM is
installed.
