Opel Frontera UE. Manual - part 1734





EXTERIOR/INTERIOR TRIM

8J–13

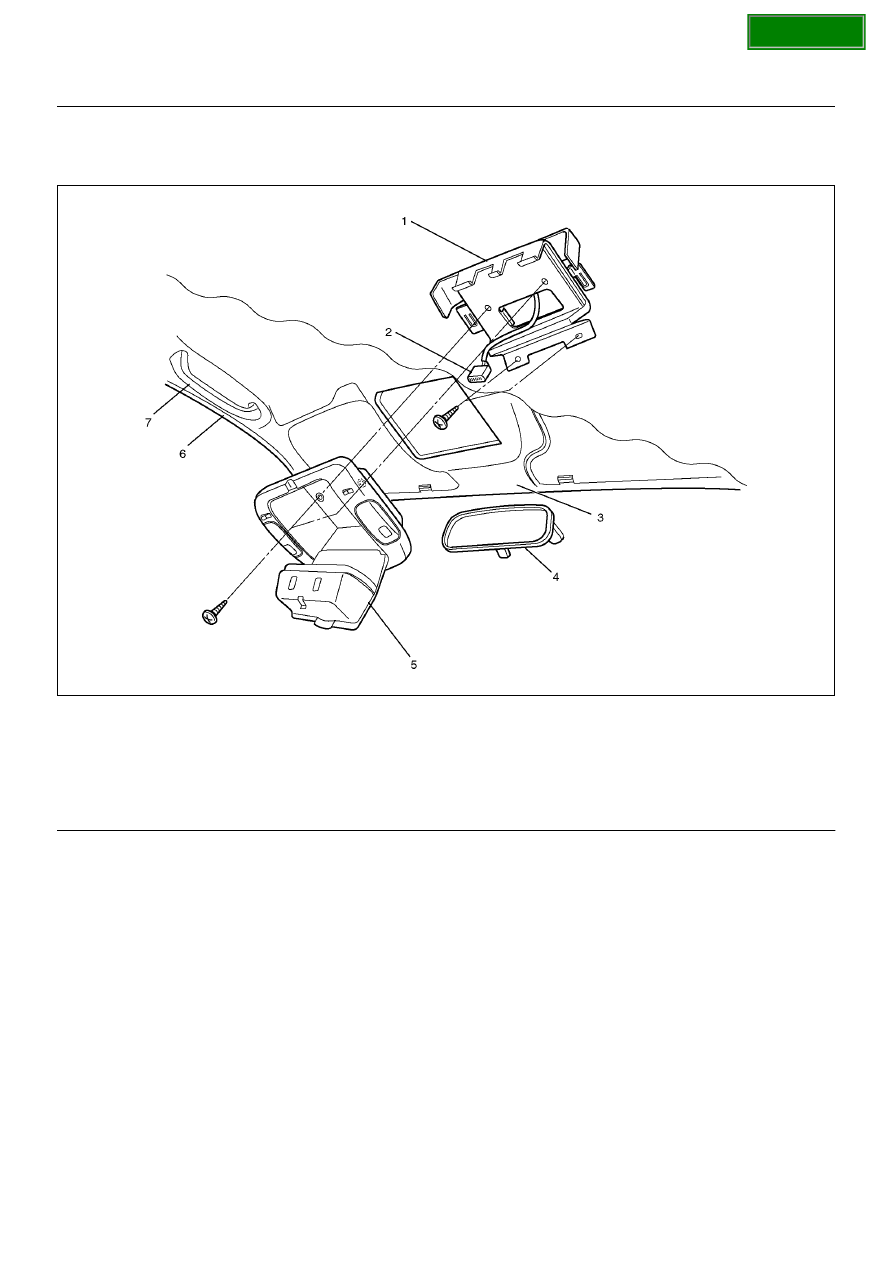

Overhead Console

Parts Location

743R100002

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the overhead console assembly.

• Open the lid and remove the two screws.

• Disconnect the harness connector.

3. Remove the sunvisor and sunvisor holder. (right and

left)

4. Remove the front assist grip. (right and left)

5. Remove the front piller trim cover.

6. Remove the front door finisher.

• Remove the upper side of door finisher.

7. Remove the interior mirror.

8. Remove the overhead console bracket.

• Remove the two screws.

Installation

To install, follow the removal steps in the reverse order.

(1) Overhead Console Bracket
(2) Harness Connector
(3) Head Lining
(4) Interior Mirror

(5) Overhead Console Assembly
(6) Front Door Finisher
(7) Front Assist Grip

SECTION

8J–14

EXTERIOR/INTERIOR TRIM

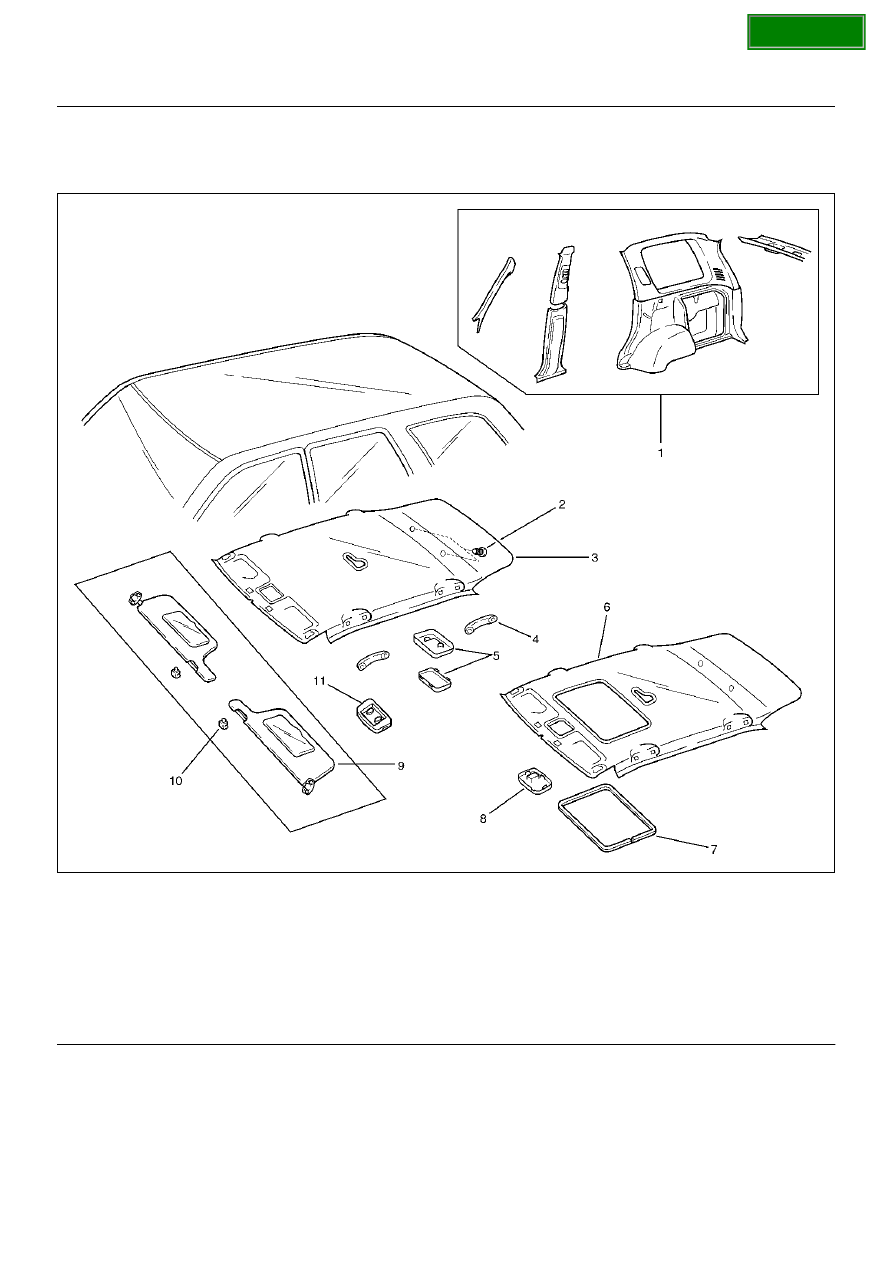

Headlining

Parts Location

666RY00003

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the interior trim panels.

• Refer to Interior Trim Panels in this section.

3. Remove the dome light.

• Remove the dome light lens and the fixing

screws.

• Disconnect the dome light connectors.

(1) Interior Trim Panels
(2) Clip
(3) Headlining (Without Sunroof)
(4) Assist Grip
(5) Dome Light
(6) Headlinng (With Sun Roof)

(7) Sunroof Finisher (With Sunroof)
(8) Sunroof Switch (With Sunroof)
(9) Sunvisors

(10) Sunvisor Holder
(11) Overhead Consol (Without Sunroof)

SECTION

EXTERIOR/INTERIOR TRIM

8J–15

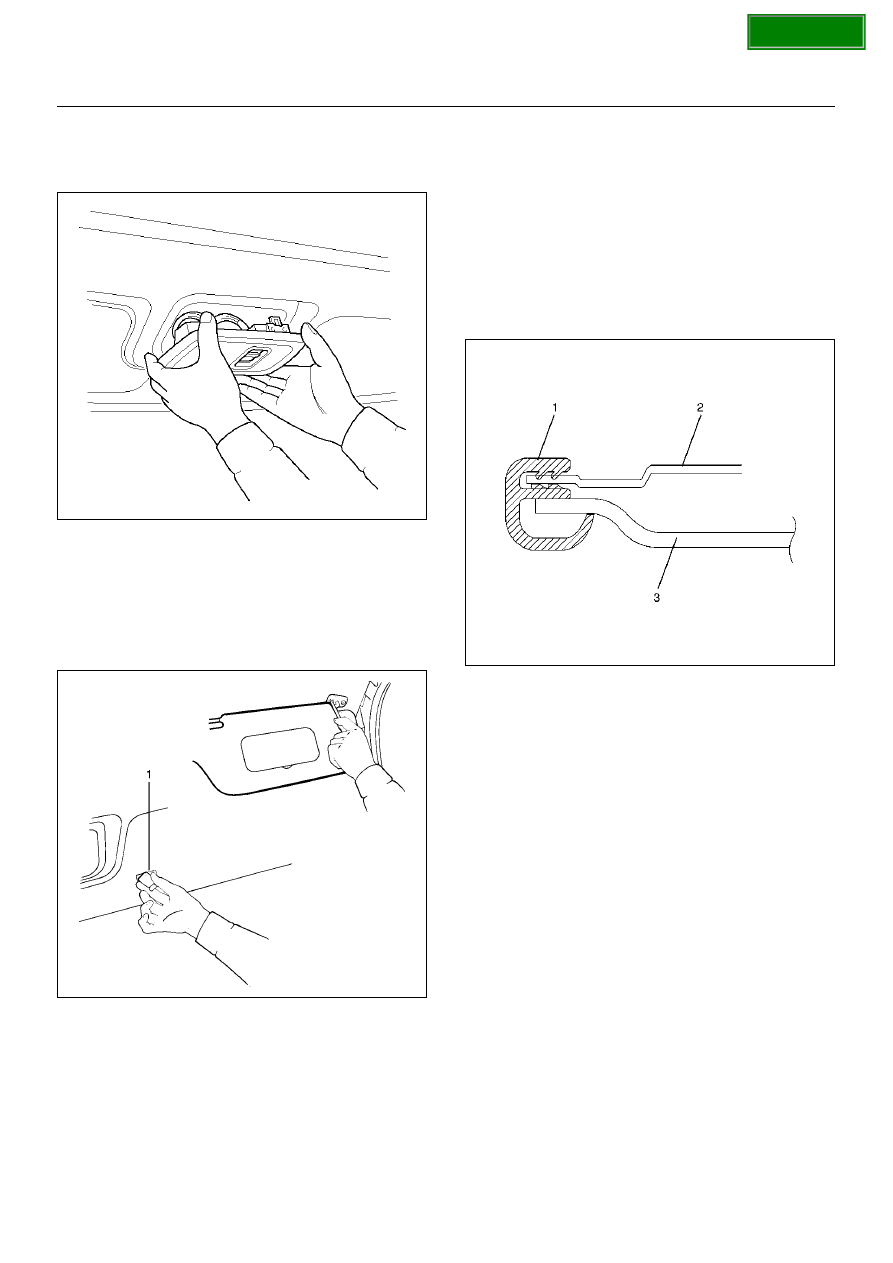

4. Remove the sunroof switch (With sunroof).

• Pry the clip positions free from the sunroof switch

bracket and disconnect the connector.

665RW002

5. Remove the overhead consol (Without sunroof).

• Refer to Overhead Consol Assembly in Exterior/

Interior section.

6. Remove the sunvisors.

• Remove the fixing screws and pull out the

sunvisor holder (1) to remove it.

743R200003

7. Remove the sunroof finisher (With sunroof).

8. Remove the headlining.

• Remove the headlining fixing clips.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Install the headlining so that the fixing clips will not

come off.

2. To install the sunroof finisher (1), first fit it in at one

place with the headlining (3) close to the sunroof
frame complete (2), then install the entire finisher
tightly by hitting it with a plastic hammer, not
allowing it to move up.

665RW003

SECTION

8J–16

EXTERIOR/INTERIOR TRIM

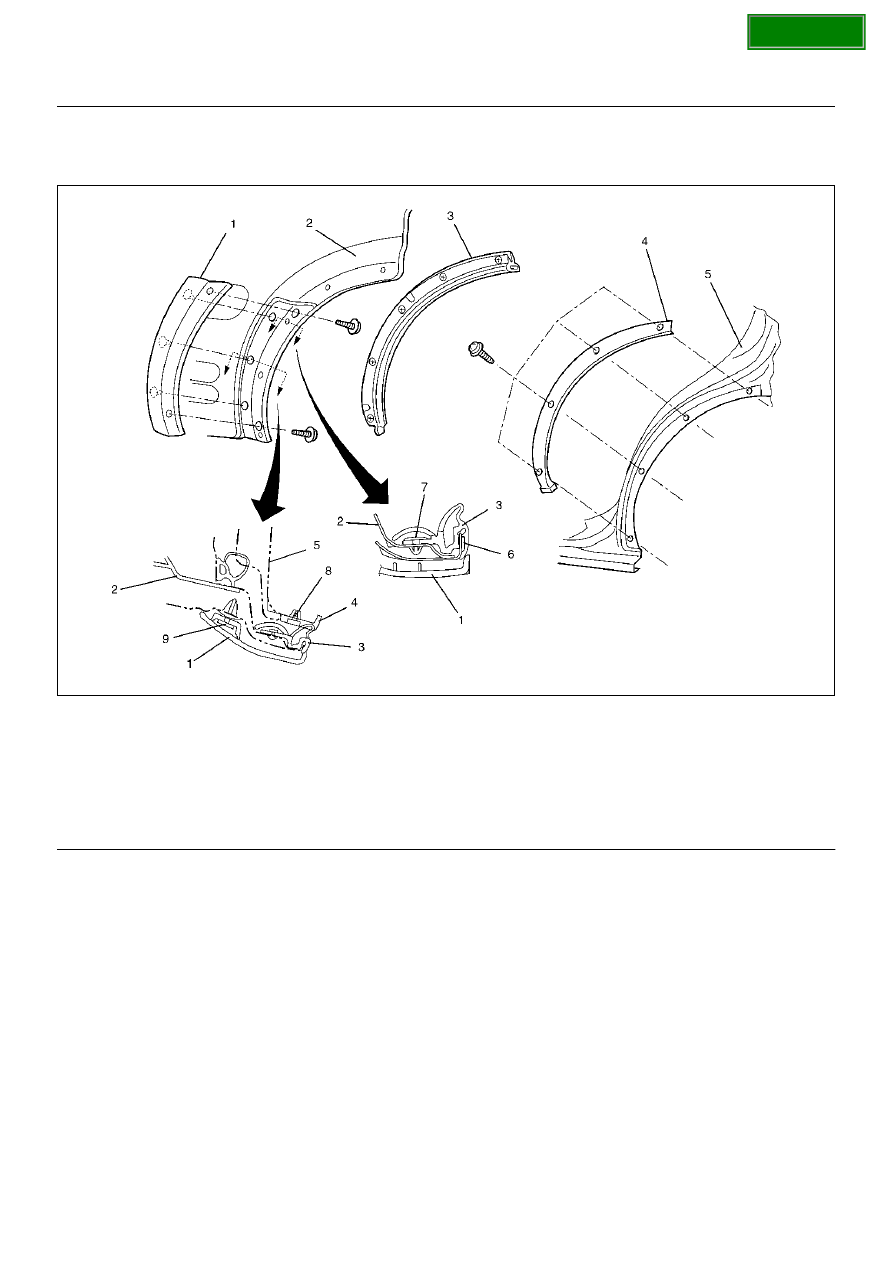

Wheel Arch Protector

Wheel Arch Protector and Associated Parts

620RW019

Legend

EndOFCallout

Removal

1. Remove the wheel arch cover.

• Remove the four fixing screws.

2. Remove the wheel arch protector.

• Remove the two fixing screws from the back side

of the rear door panel and pull out the clips at
three positions.

3. Remove the rear door wheel arch seal.

• After disengaging five clips, peel off the double

sided adhesive tape.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Use a new double sided adhesive tape whenever

installing the rear door wheel arch seal.
Using a white gasoline, clean the places in advance
where a double sided adhesive tape is affixed.

(1) Wheel Arch Protector
(2) Rear Door Panel
(3) Rear Door Wheel Arch Seal
(4) Wheel Arch Cover
(5) Body Panel

(6) Double Sided Adhesive Tape
(7) Clip
(8) Screw Grommet
(9) Clip

SECTION
