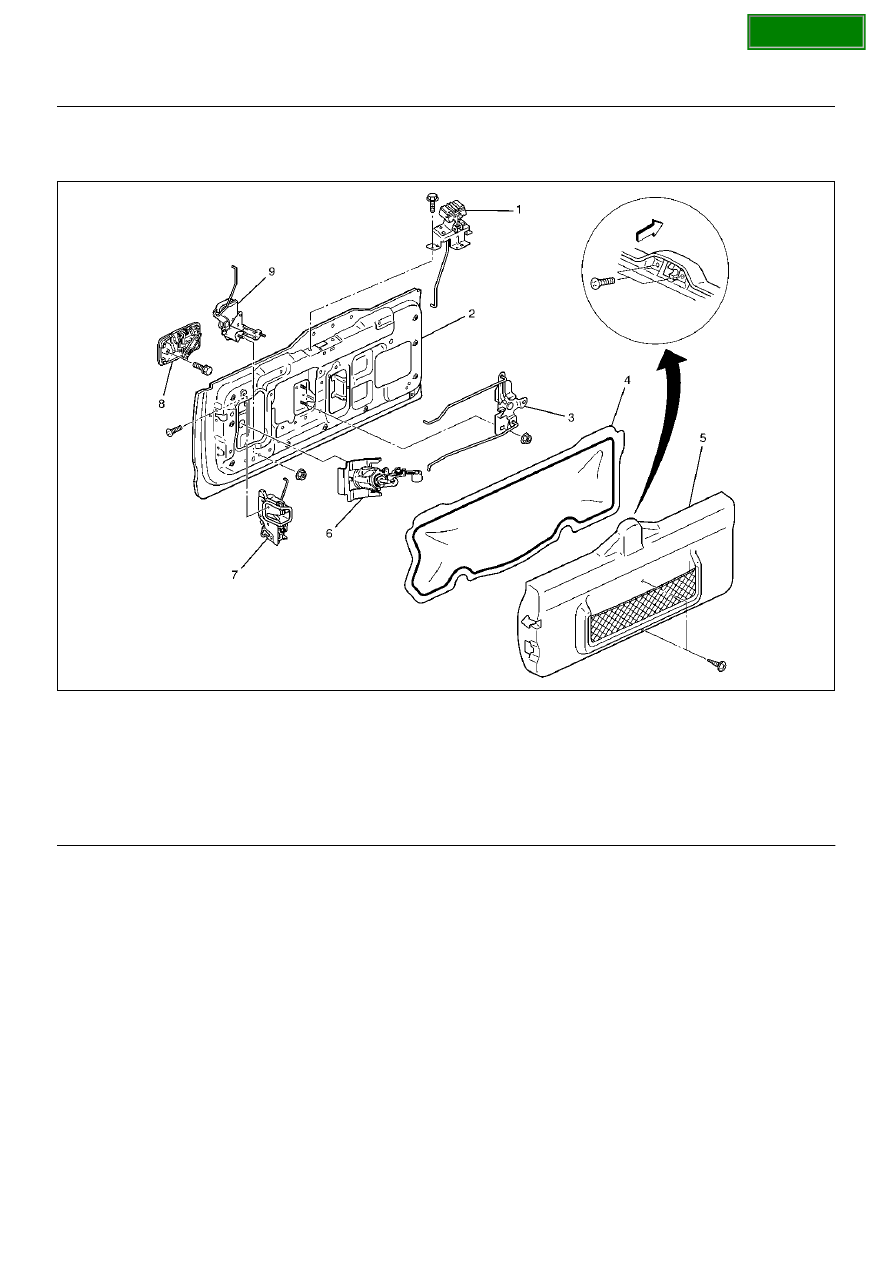

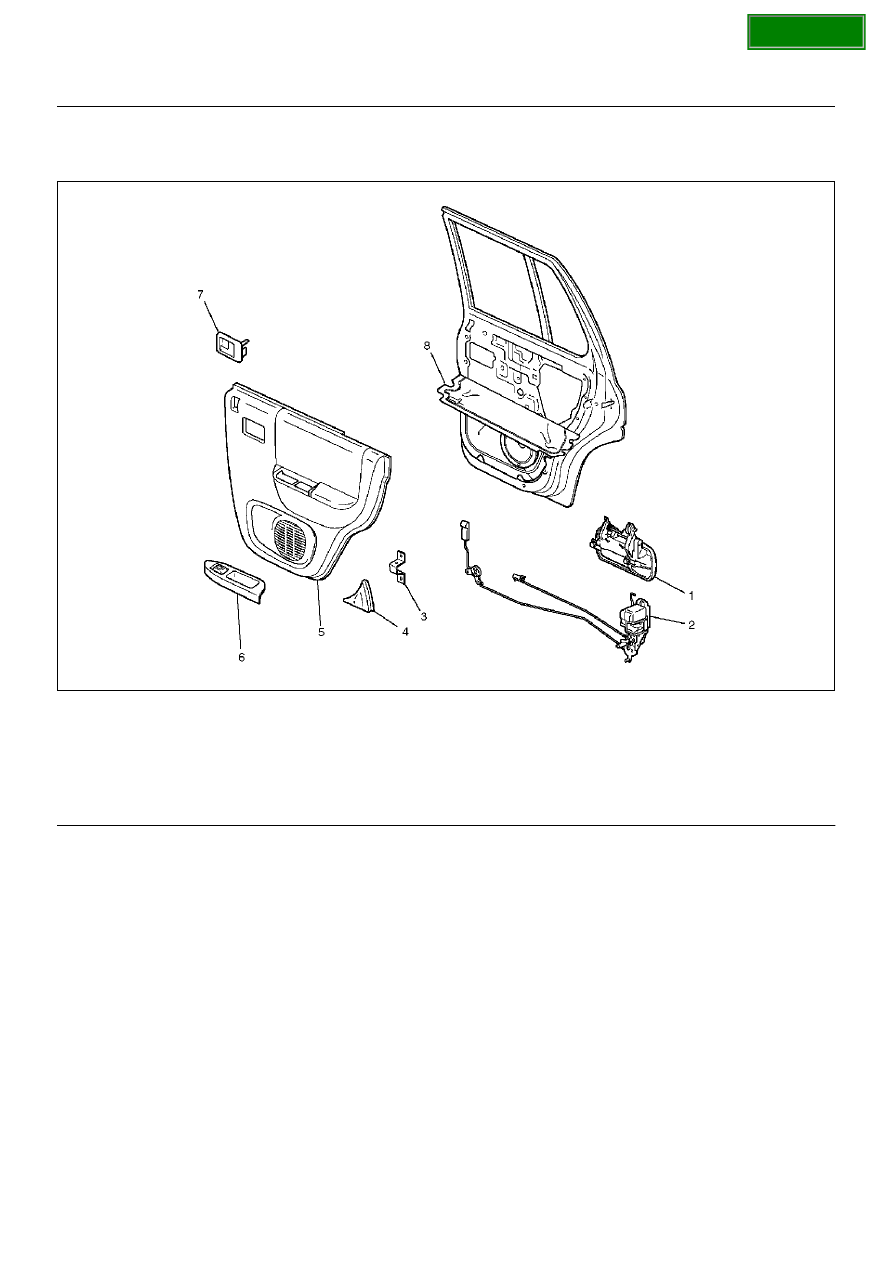

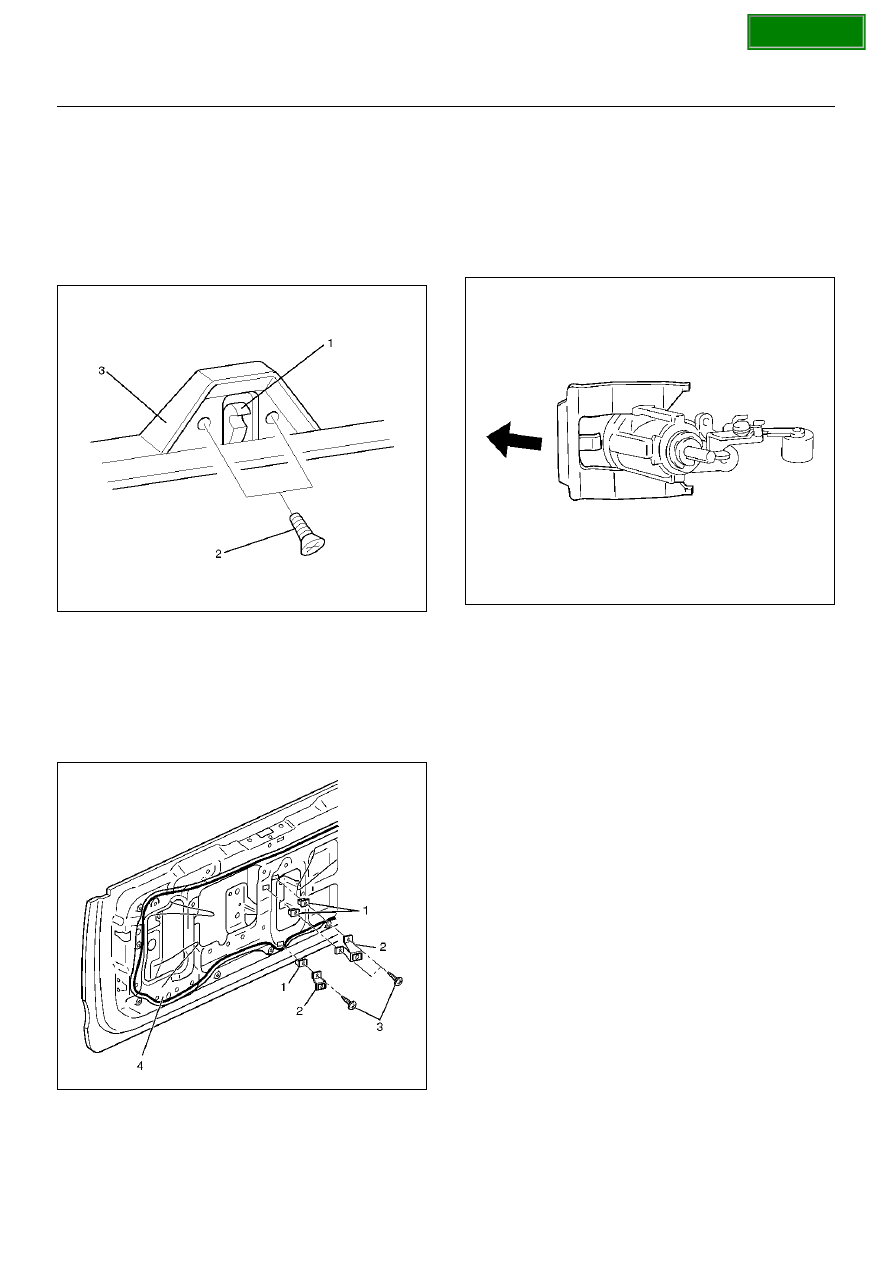

8H–8 SECURITY AND LOCKS Rear Outside Handle Rear Outside Handle and Associated Parts 655R100006 Legend EndOFCallout Removal 1. Disconnect the battery ground cable. 2. Remove the door trim panel. • Refer to Rear Door Lock Assembly in this section. 3. Peel the upper half of the waterproof sheet. • Taking notice of the door harness, peel the waterproof sheet off the door panel carefully. 4. Disconnect the locking link and remove fixing bolts to remove the outside handle. Installation To install, follow the removal steps in the reverse order, 1. Check that the outside handle operates smoothly. 2. Tighten the outside handle fixing bolts to the specified torque. Torque 9 N·m (0.9kg·m/78lbin) (1) Outside Handle (5) Door Trim Panel |
