Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT  AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE  SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR  BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after  removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE  SPECIFIED, do not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded fasteners  or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force,  and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications.  Following
these instructions can help you avoid damage to
parts and systems.

SECTION

8H–2

SECURITY AND LOCKS

Front Door Lock Assembly

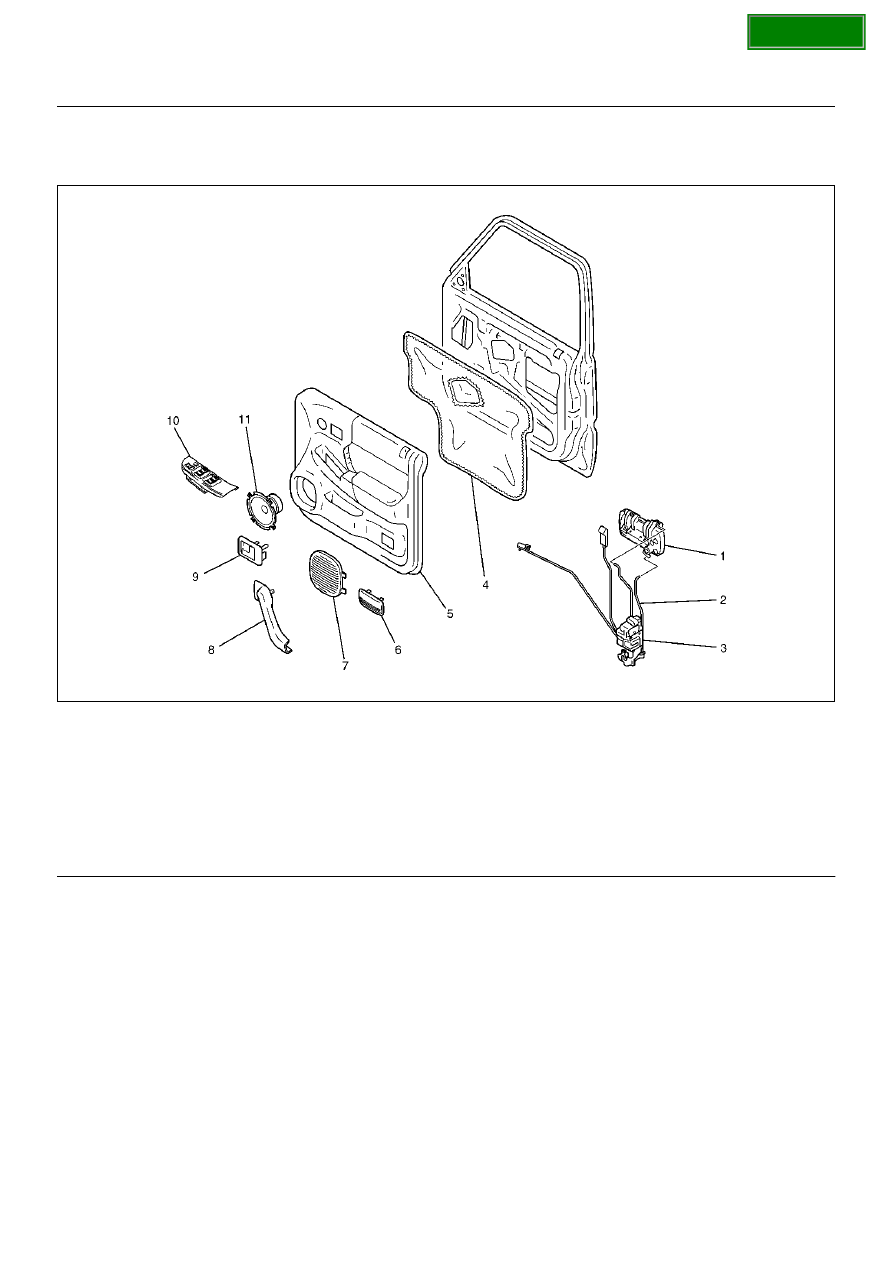

Front Door Lock Assembly and Associated Parts

635RY00005

Legend

EndOFCallout

(1) Outside Handle
(2) Door Locking Link
(3) Door Lock Assembly
(4) Waterproof Sheet
(5) Door Trim Panel
(6) Courtesy Light Lens

(7) Speaker Grille
(8) Grip Cover
(9) Inside Handle

(10) Power Window Switch
(11) Speaker Assembly

SECTION

SECURITY AND LOCKS

8H–3

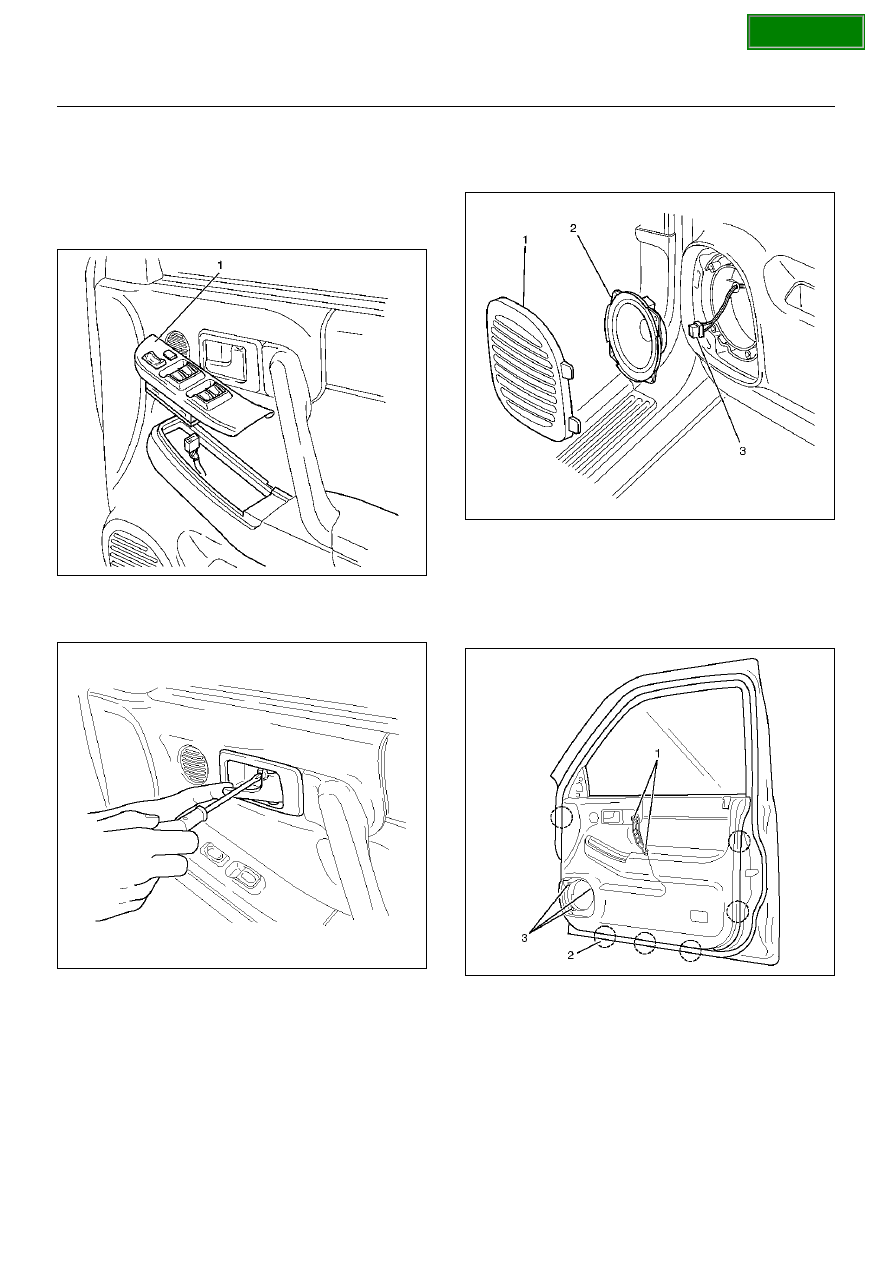

Removal

1. Disconnect the battery ground cable.

2. Remove the power window switch (1).

• Pry out the power window switch and remove the

connectors.

635RW016

3. Remove the screw while pulling the inside lever

toward you and then remove the inside handle.

632RW003

4. Remove the speaker grille (1).

• Pull out the front side of the grille.

5. Remove the speaker assembly (2).

• Remove four screws and disconnect the speaker

harness connector (3).

890RX012

6. Remove the courtesy light lens.

7. Remove the five screws (1), (3) and pull out the door

trim panel at the six clip positions (2).

• Disconnect the tweeter connector and courtesy

light connector.

635RW007

8. Remove the waterproof sheet.

• Taking notice of the door harness, peel the

waterproof sheet off the door panel carefully.

9. Raise the glass up to the uppermost position, and

then remove the rear guide rail.
