8H–4

SECURITY AND LOCKS

10. Disconnect the locking links then remove the door

lock assembly fixing screws and door lock assembly.

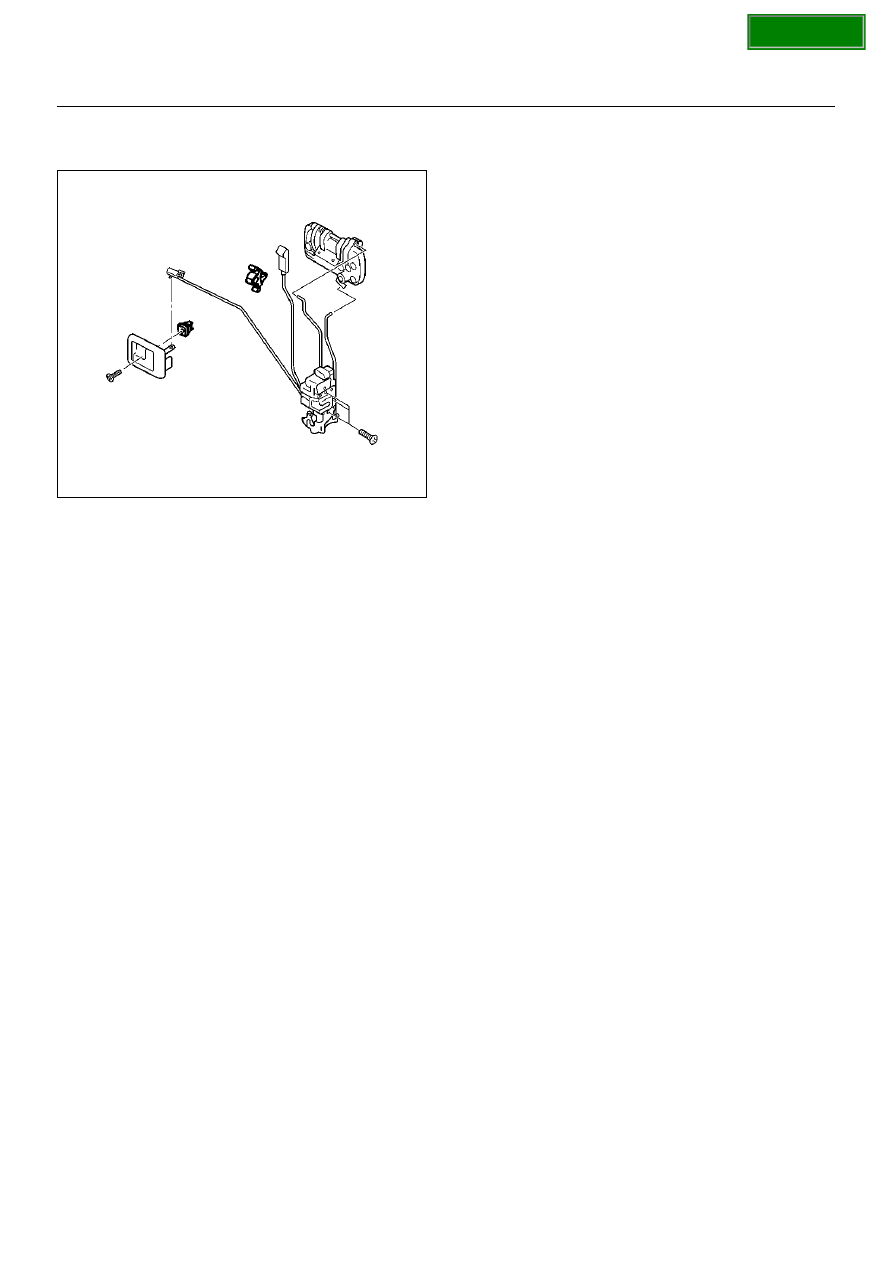

632RY00005

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Apply chassis grease to the lock assembly and

striker moving surface.

2. Tighten the door lock assembly fixing screws to the

specified torque.

Torque 7  N·m (0.7kg·m/61lbin)

3. Check that the door lock operates smoothly.

SECTION

SECURITY AND LOCKS

8H–5

Front Outside Handle

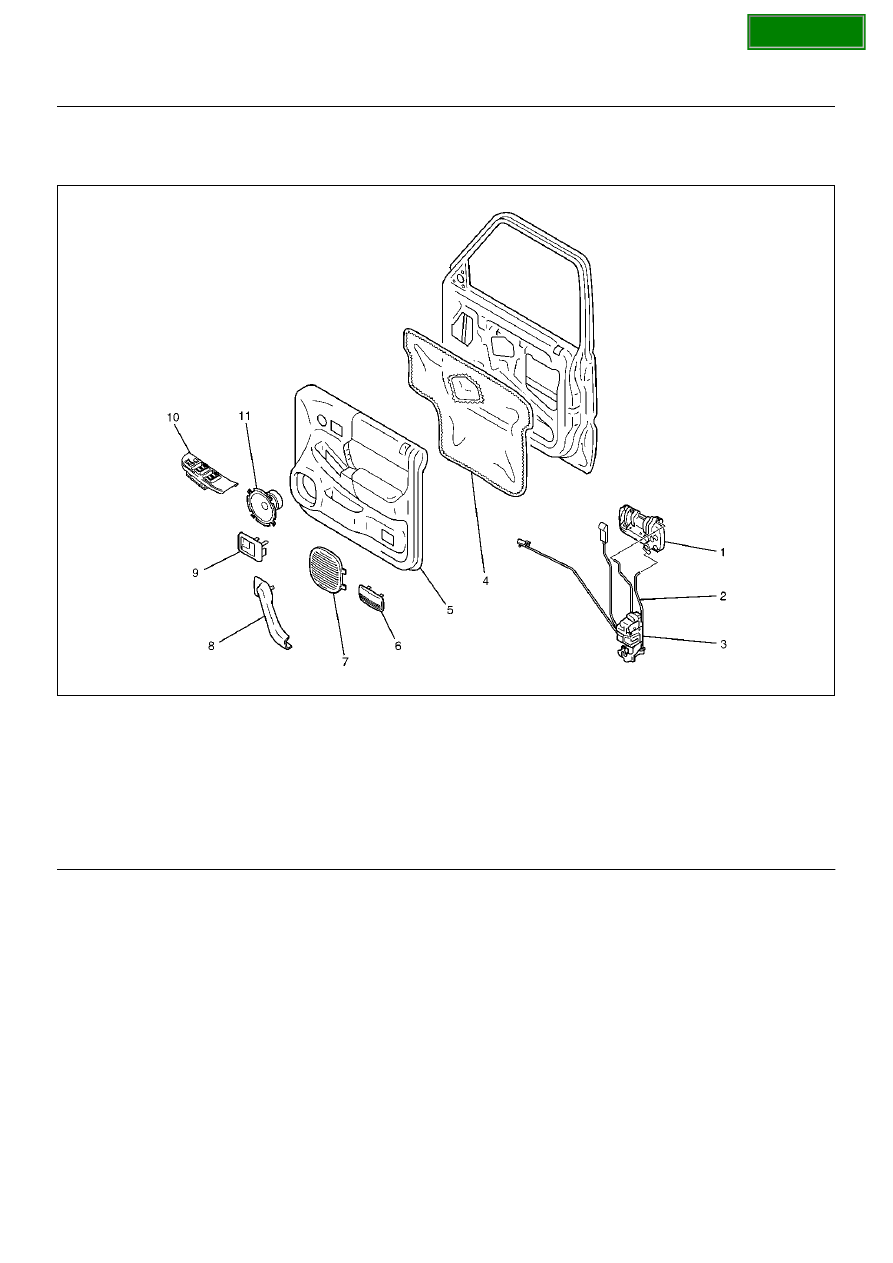

Front Outside Handle and Associated Parts

635RY00005

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the door trim panel.

• Refer to Front Door Lock Assembly in this

section.

3. Remove the waterproof sheet.

• Taking notice of the door harness, peel the

waterproof sheet off the door panel carefully.

4. Disconnect the locking links and remove the outside

handle.

5. Remove the fixing clip to remove the door lock

cylinder.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Be sure to install the door lock cylinder at a right

angle to the outside handle.

2. Check for smooth outside handle and lock cylinder

operation.

3. Tighten the outside handle fixing bolts to the

specified torque.

Torque 9 N·m (0.9kg·m/78lbin)

(1) Outside Handle
(2) Door Locking Link
(3) Door Lock Assembly
(4) Waterproof Sheet
(5) Door Trim Panel
(6) Courtesy Light Lens

(7) Speaker Grille
(8) Grip Cover
(9) Inside Handle

(10) Power Window Switch
(11) Speaker Assembly

SECTION

8H–6

SECURITY AND LOCKS

Rear Door Lock Assembly

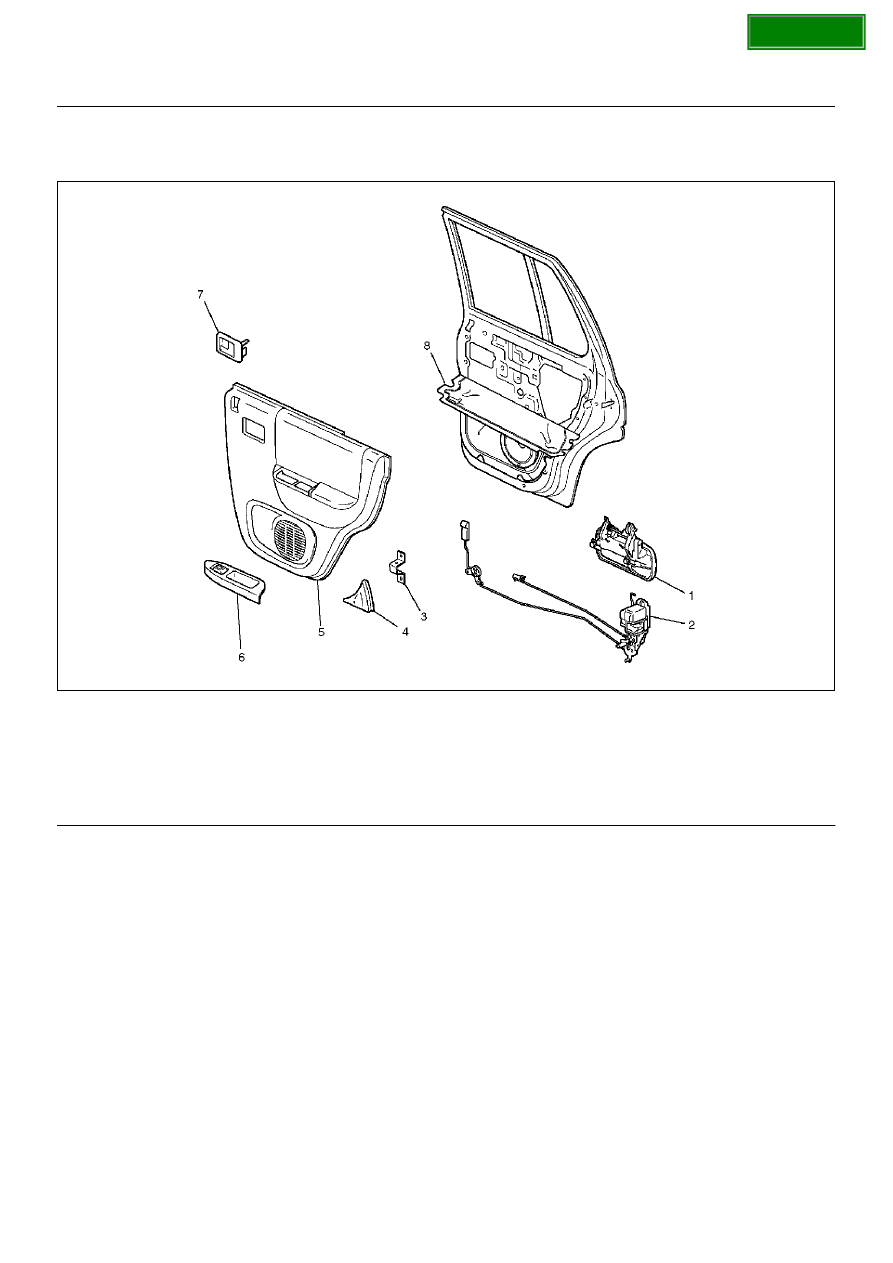

Rear Door Lock Assembly and Associated Parts

655R100006

Legend

EndOFCallout

(1) Outside Handle
(2) Door Lock Assembly
(3) Bracket
(4) Rear Corner Garnish

(5) Door Trim Panel
(6) Power Window Switch and Pull Case
(7) Inside Handle
(8) Waterproof Sheet

SECTION

SECURITY AND LOCKS

8H–7

Removal

1. Disconnect the battery ground cable.

2. Remove rear corner garnish.

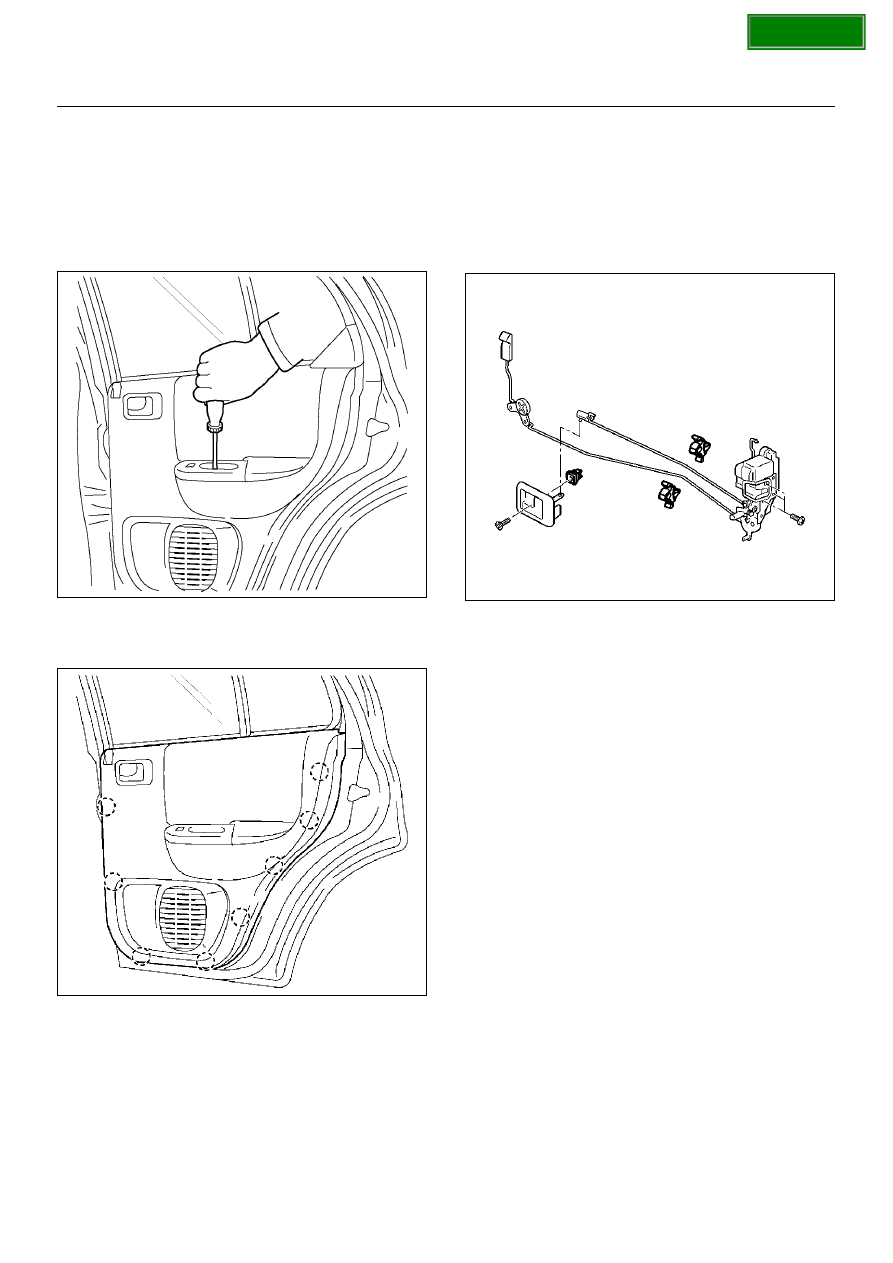

3. Remove the screw while pulling the inside lever

toward you and then remove the inside handle.

4. Remove the screw at the pull case.

655R100002

5. Pull out the trim panel at the eight clip positions.

• Disconnect the power window switch connector.

655R100003

6. Remove the bracket.

7. Peel the upper half of the waterproof sheet.

• Taking notice of the door harness, peel the

waterproof sheet off the door panel carefully.

8. Disconnect the locking links and remove the door

lock assembly fixing screws to remove the door lock
assembly.

652RW002

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Apply chassis grease to the lock assembly and

striker moving surface.

2. Tighten the door lock assembly fixing screws to the

specified torque.

Torque 7 N·m (0.7kg·m/61lbin)

3. Check that the door lock operates smoothly.
