BODY STRUCTURE

8F–13

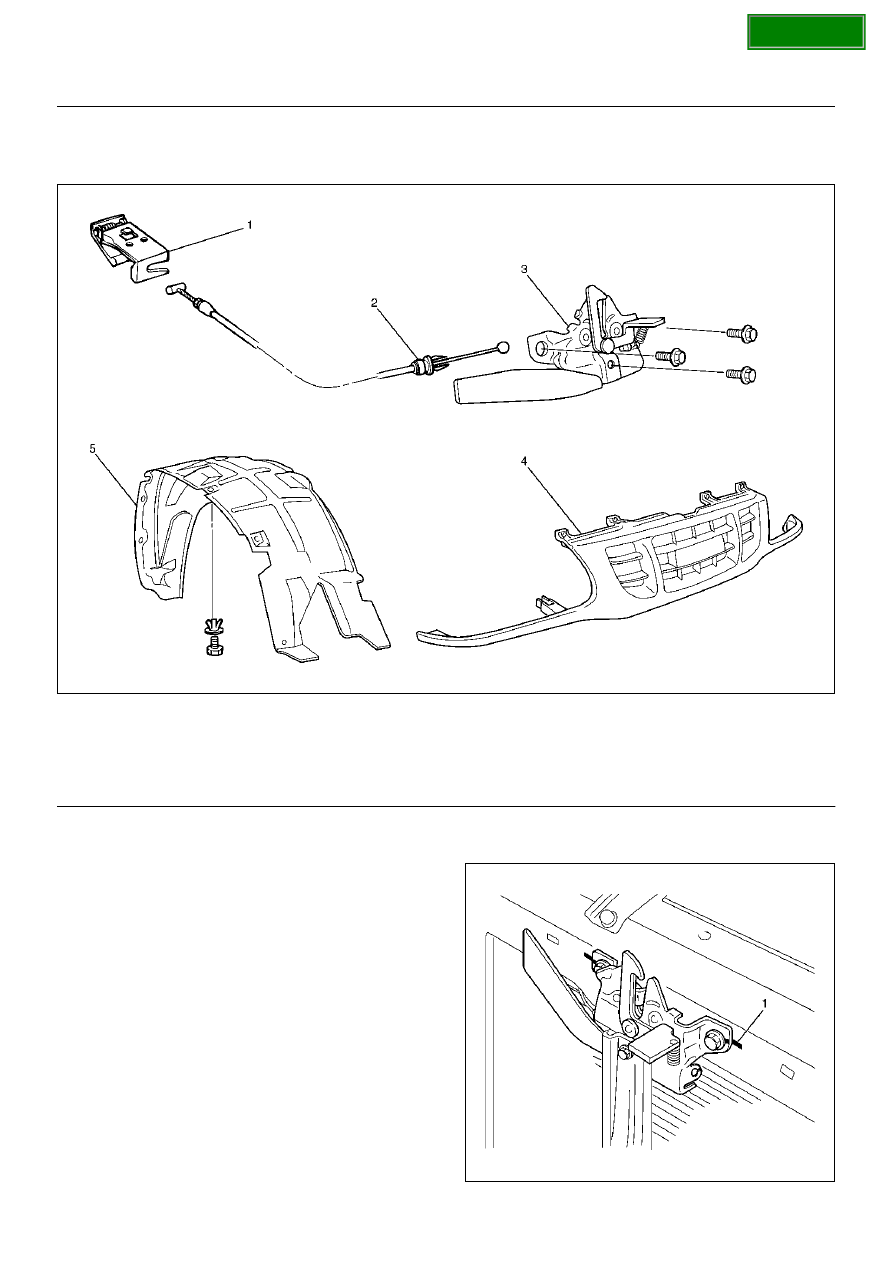

Engine Hood Lock

Parts Location

610RY00024

Legend

EndOFCallout

Removal

1. Remove the hood lock control lever.

2. Remove the inner liner.

3. Remove the radiator grille.

• Refer to Radiator Grille in this section.

4. Remove the engine hood lock assembly.

• Apply setting marks(1) to the hood lock assembly

and the body prior to removal.

610RY00020

(1) Hood Lock Control Lever
(2) Control Cable
(3) Engine Hood Lock Assembly

(4) Radiator Grille
(5) Inner Liner

SECTION

8F–14

BODY STRUCTURE

5. Remove the control cable.

• Remove the cable fixing clips from the engine

hood lock.

Installation

To install, follow the removal steps in the reverse order
noting the following points.

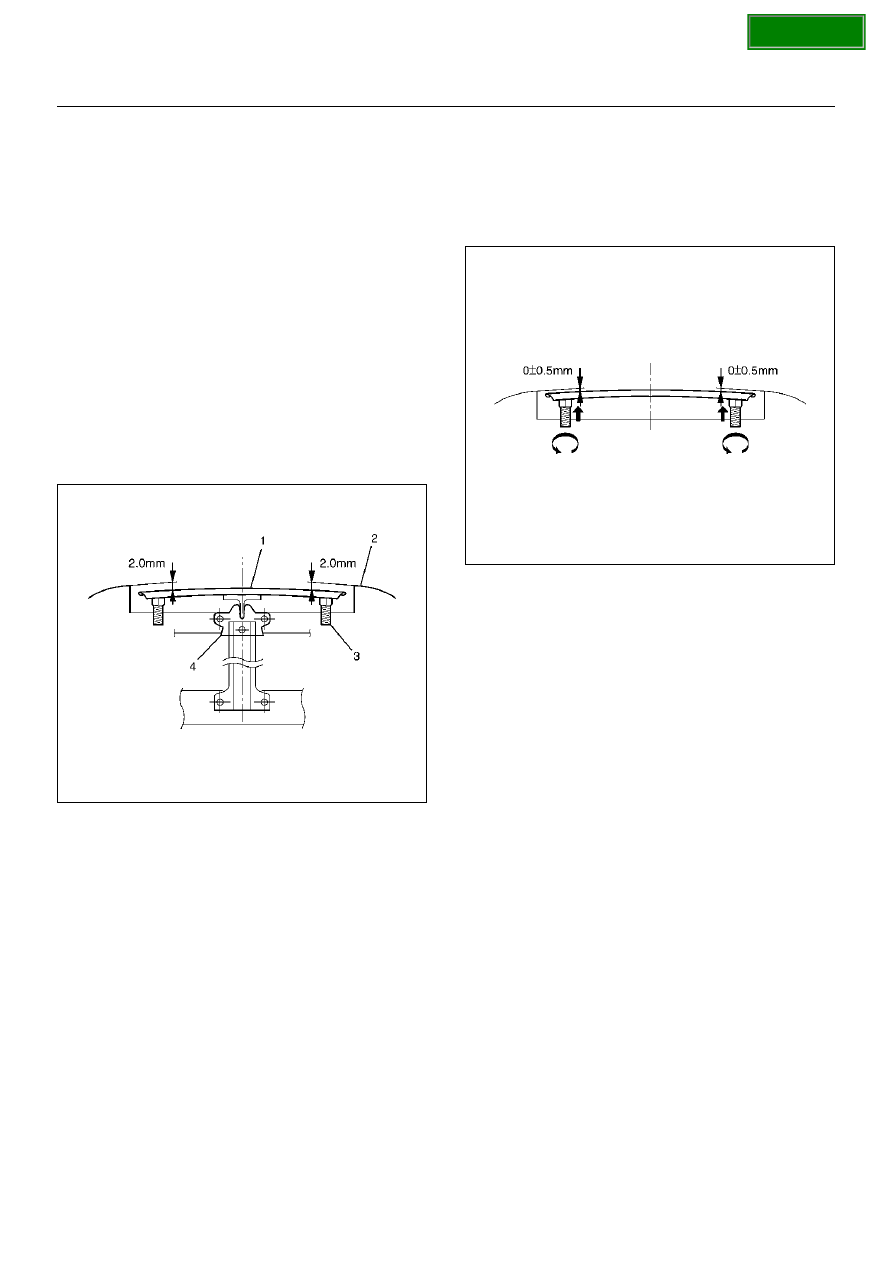

1. Set the position of installing the engine hood lock

assembly (4).

• Install the buffers (3) to the body.

• Adjust the buffers as the position of the engine

hood (1) is 2mm to the fender panel (2).

2. Fix the engine hood lock assembly.

• Tighten the hood lock assembly fixing bolts under

condition 1 to the specified torque.

Torque : 10 N·m (1.0 kg·m/87 lb in)

610RY00021

3. Adjust the appearance quality. (Engine hood and

fender panel)

• By buffers, adjust the difference of the height of

engine hood is 0

±

0.5mm to the fender. (Turn the

buffers approx. one revolution and move the
position of buffers upward.)

610RY00022

4. Reroute the control cable to its original position, and

check and see if the lock assembly and control lever
work normaly.

SECTION

BODY STRUCTURE

8F–15

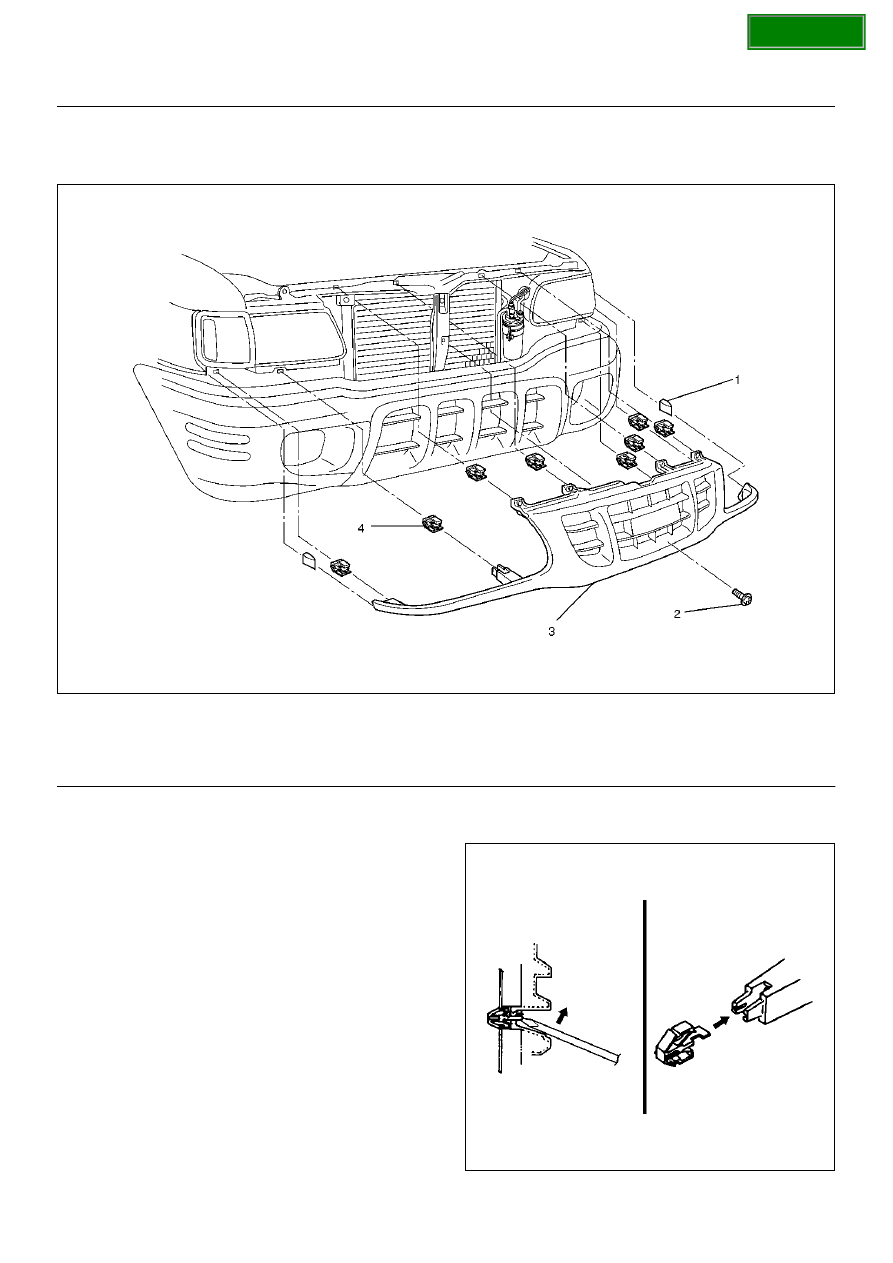

Radiator Grille

Parts Location

603RY00010

Legend

EndOFCallout

Removal

1. Open the hood.

2. Support the hood.

3. Remove radiator grille.

• Raise the clips on the radiator grille and remove

screw.

603RY00011

(1) Radiator Grille Rubber
(2) Screw

(3) Radiator Grille Assembly
(4) Clip

SECTION

8F–16

BODY STRUCTURE

4. Pull out the radiator grille rubber from fender panel

front lower side.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Install the radiator grille clips remaining on the body

side in the radiator grille, and then install the radiator
grille on the body.

SECTION
