BODY STRUCTURE

8F–9

2. Rear bumper adjustment.

• When the bolts fixing rear bumper assembly are

tightened, adjustment should be made with shims

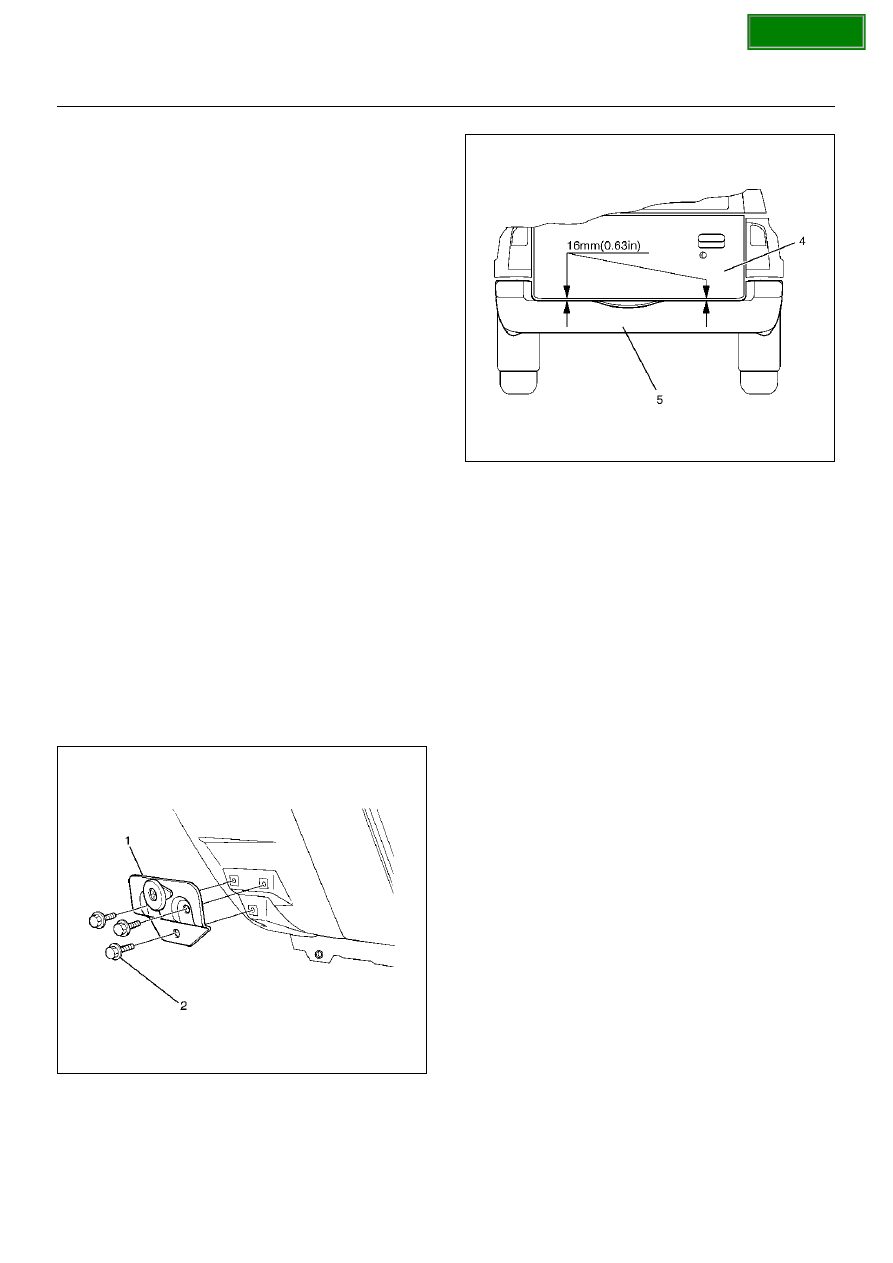

so that clearances shown in the figure below are
provided between the body (tailgate) (4) and the
rear bumper(5).

690RY00015

3. Tighten the spare tire fixing bolts to the specified

torque.

Torque : 118 N·m (12.0 kg·m/87 lb ft)

Rear Bumper Slider

Removal

1. Remove the Rear bumper.

• Refer to Rear bumper removal (in this section).

2. Remove the rear bumper slider(1).

• Remove the three bolts(2).

690RW016

Installation

To install, follow the removal steps in reverse order,
noting the following point:

1. Apply chassis grease to the slider and the slider

bracket moving surface.

SECTION

8F–10

BODY STRUCTURE

General Description (Sheet Metal)

This section includes items of front end sheet metal that
are attached by bolts, screws or clips and related
accessory components.
Anticorrosion materials have been applied to the interior
surfaces of some metal panels to provide rust

resistance.
When servicing these panels, areas on which this
material has been disturbed, should be properly
recoated with service–type anticorrosion material.

Engine Hood

Parts Location

610RY00017

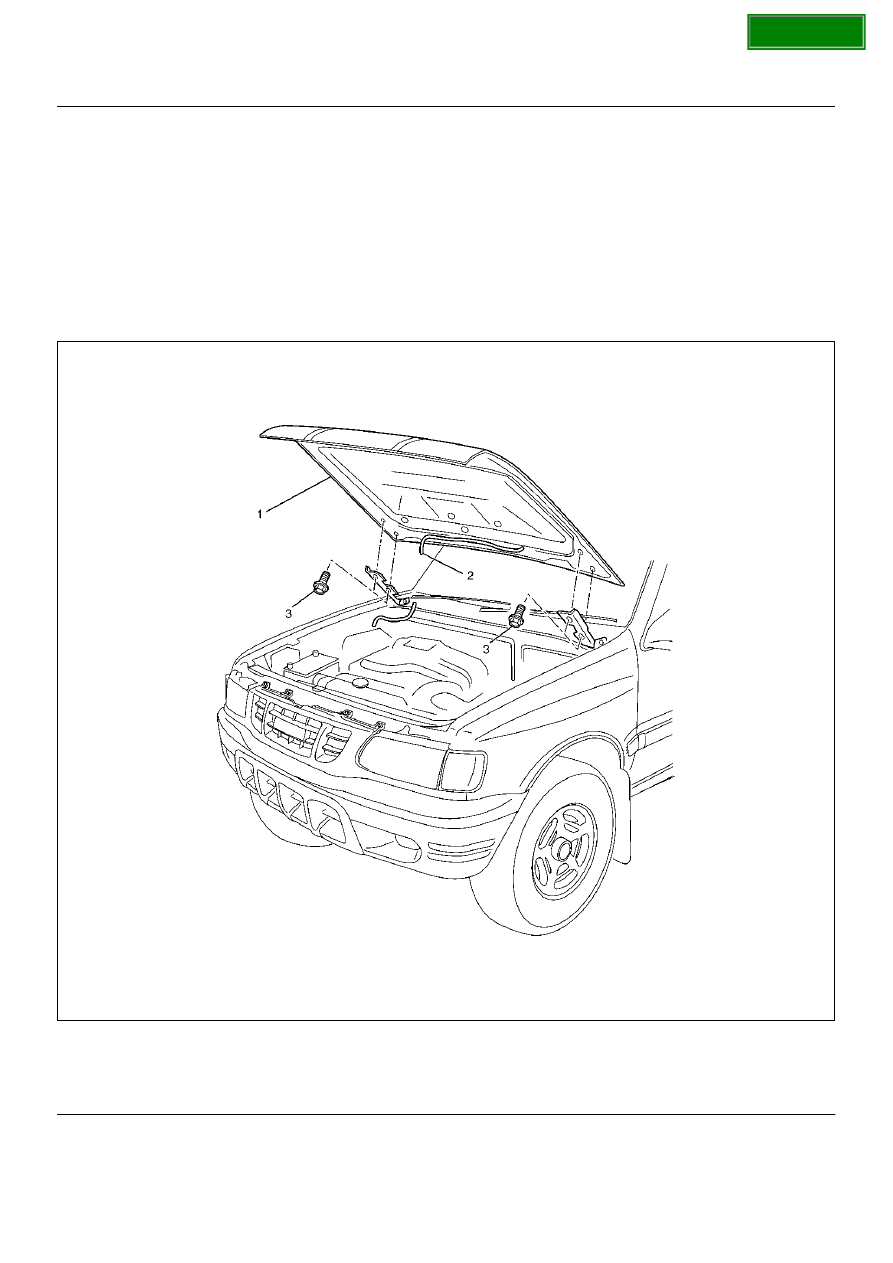

Legend

EndOFCallout

(1) Engine Hood Assembly
(2) Windowshield Washer Nozzle Tube

(3) Hood Hinge Bolt

SECTION

BODY STRUCTURE

8F–11

Removal

1. Open the hood.

2. Support the hood.

3. Remove the windshield washer nozzle tube.

880RS001

4. Remove the hood hinge bolts.

• Before removing the hinges from the engine

hood, scribe a mark showing location of the
hinges to facilitate installation in the original
position.

610RS006

5. Remove the engine hood.

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Tighten the engine hood hinge fixing bolts to the

specified torque.

Torque : 10 N·m (1.0 kg·m/87 lb in)

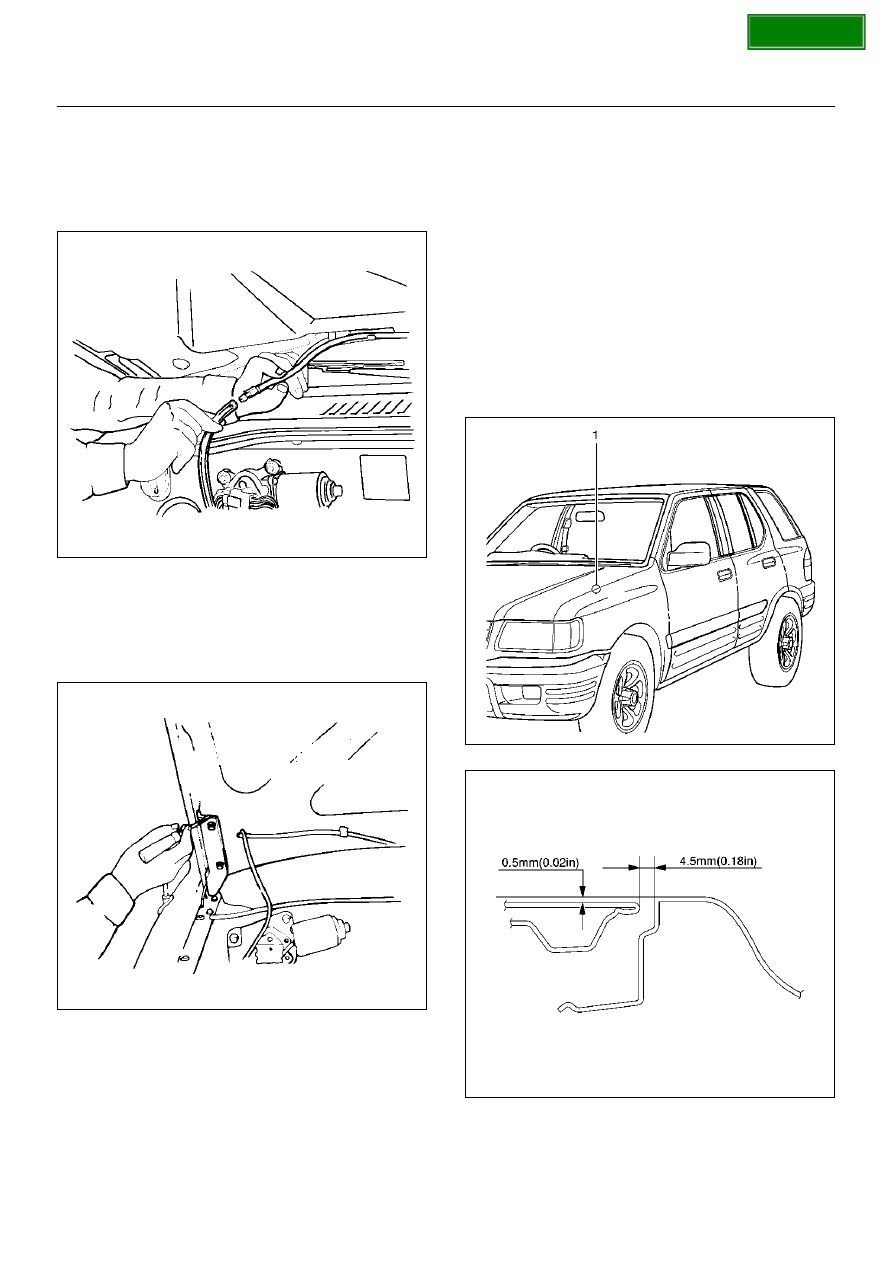

2. Check the engine hood and fender(1).

Clearance: 4.5 mm (0.18 in)

Height (step): 0.5 mm (0.02 in)

• Adjust clearance with the hinges on the engine

hood.

• Adjust height (step) with the hood buffers(2).

610RY00010

610RX001

SECTION

8F–12

BODY STRUCTURE

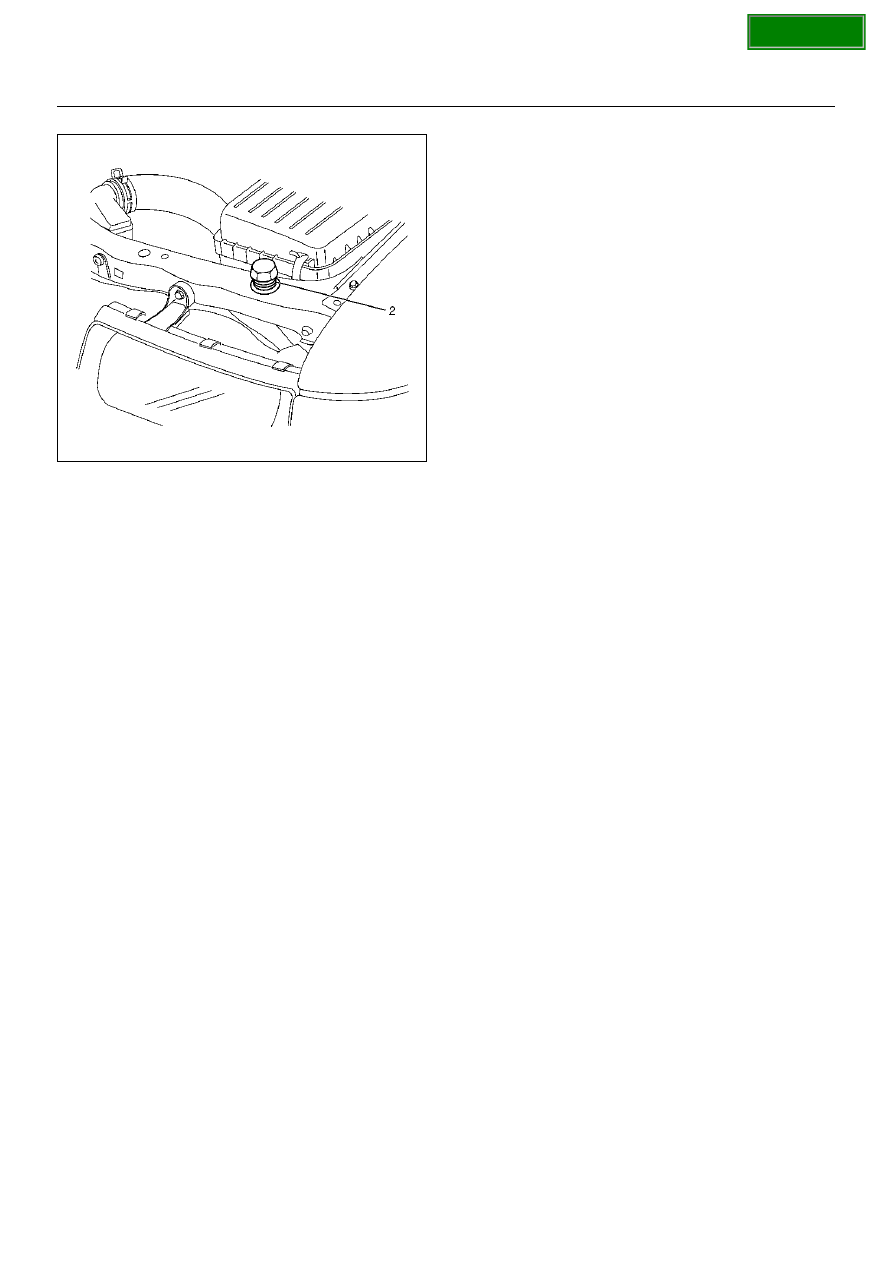

610RY00008
