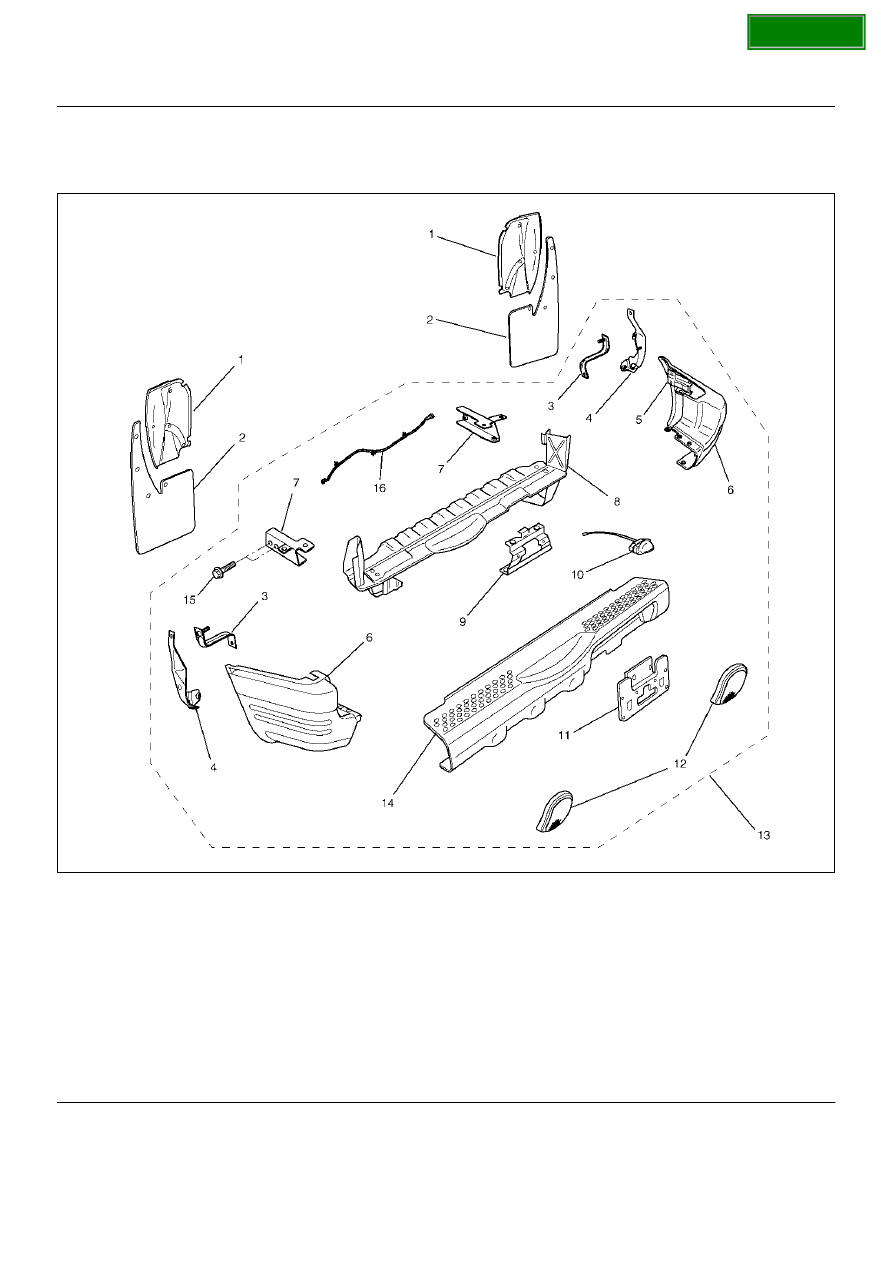

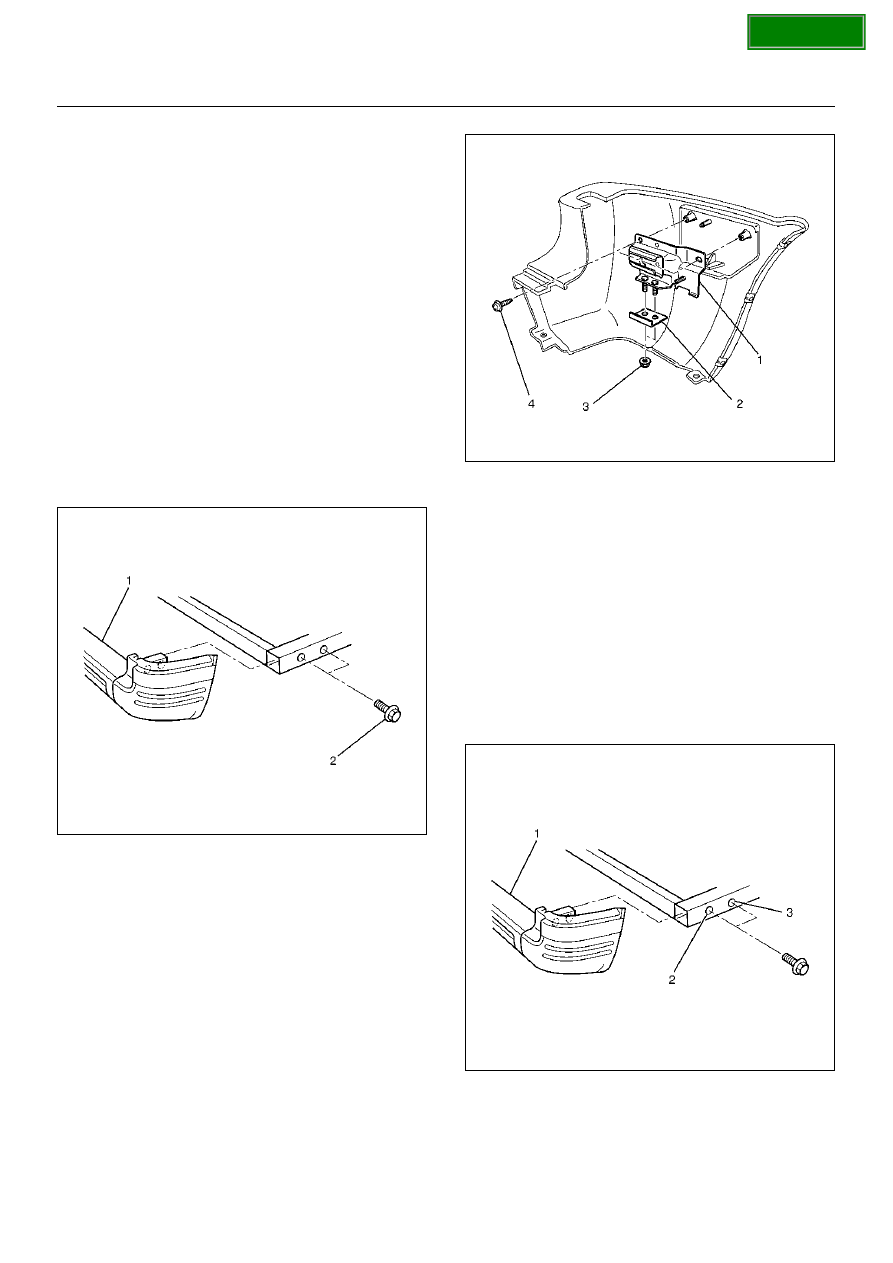

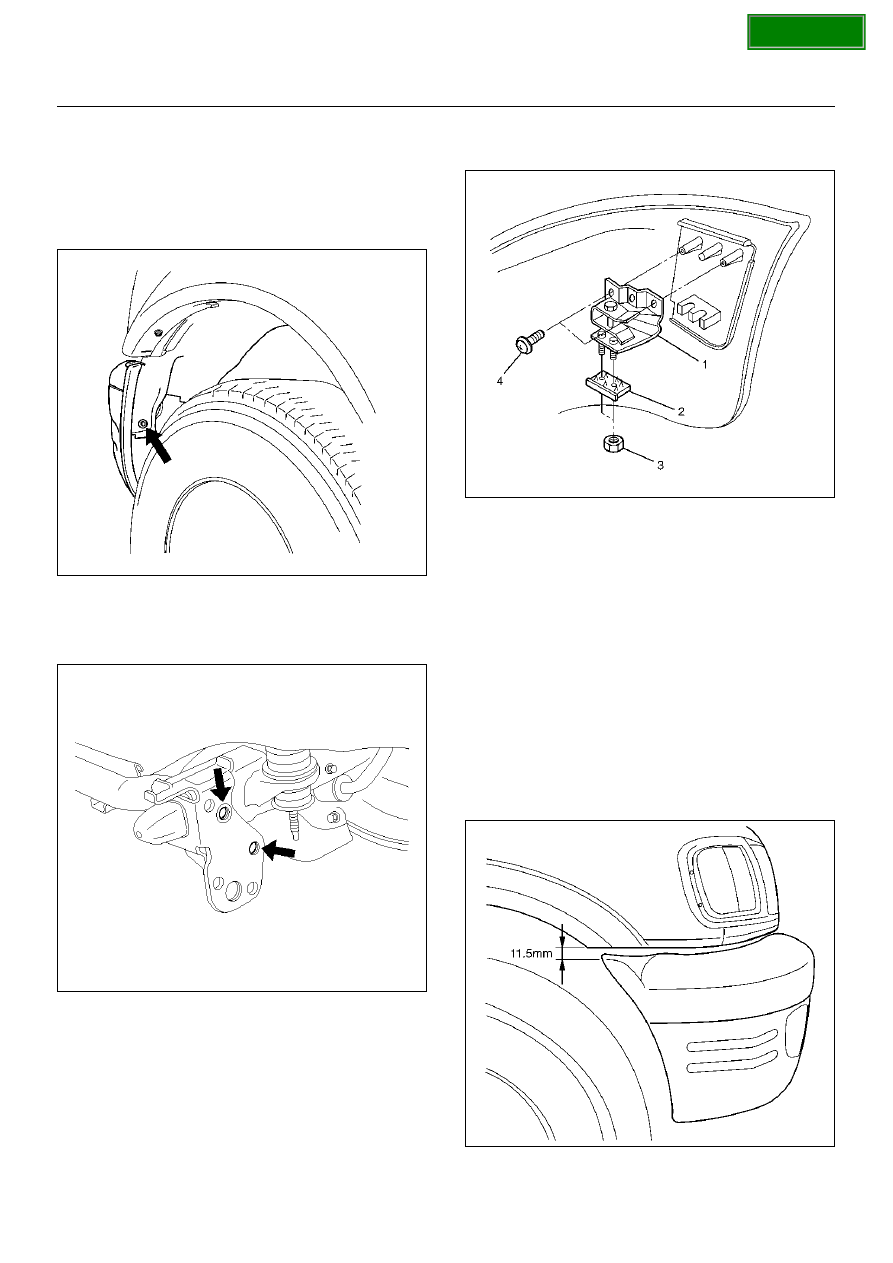

BODY STRUCTURE 8F–5 Removal 1. Disconnect the battery ground cable. 2. Disconnect front fog light connector (With fog light). 3. Remove the inner liner fixing clip on the back side of the front bumper. 647RY00002 4. Remove the front bumper fixing bolts. • Remove the two bolts from both sides of the front bumper. 601RW004 5. Remove the front bumper assembly. 6. Remove the support assembly. • Remove the three fixing bolts. 7. Remove the front bumper reinforcement assembly. • Remove the eleven fixing bolts. 8. Remove the three bolts at each backbar and remove backbars. 9. Remove the front fog light assembly (With fog light). 10. Remove the front bumper slider(1). • Remove the two screws(4) and the two nuts(3), and release the claw from the washer(2). 601RY00004 Installation To install, follow the removal steps in reverse order 1. Tighten the front bumper assembly fixing bolts to the specified torque. Torque : 147 N·m (15 kg·m/108 lb ft) 2. Front bumper adjustment • When the bolts fixing front bumper assembly are tightened, adjustment should be made between 601RY00013 |
