METER AND GAUGE

8E–5

Connector No. I–10

Terminal

Function

1

2 Intelligent suspention indicator light

3 TOD rear position indicator light

4

5 TOD auto position indicator light

6

7 TOD front position indicator light

8 3 position (A/T)

9 D position (A/T)

10 2 position (A/T)

11 AIR BAG warning light

12 Ground

13 Battery (+)

14 Starter switch (+)

15 OIL TEMP warning light

16 Seat belt warning light

17 Charge warning light

18

19

20

21 L position (A/T)

22 ABS indicator light

23 4WD indicator light

24

25 REDUCED POWER warning light

26 Oil pressure warning light

27 CHECK TRANS warning light

28

29 CHECK T.O.D warning light

30 Engine coolant temperature gauge

Connector No. I–9

Terminal

Function

1 R position (A/T)

2 +IGN  (A/T)

3 N position (A/T)

4 P position (A/T)

5 Illumination (+)

6 Tachometer

7 Speedometer

8 Turn signal indicator light (Left)

9 Brake warning light

10 High-beam indicator light (+)

11 High-beam indicator light (-)

12 Turn signal indicator light (Right)

13 Turn signal indicator light (-)

14

15 Illumination (-)

16 Ground

Connector No. I–2

Terminal

Function

1 Starter switch (+)

2

3 Fuel gauge

4

5 CRUISE SET indicator light

6

7

8

9

10 SPORTS MODE indicator light

11

12 WINTER DRIVE indicator light

13 POWERT DRIVE indicator light

14

SECTION

8E–6

METER AND GAUGE

Removal

1. Disconnect the battery ground cable.

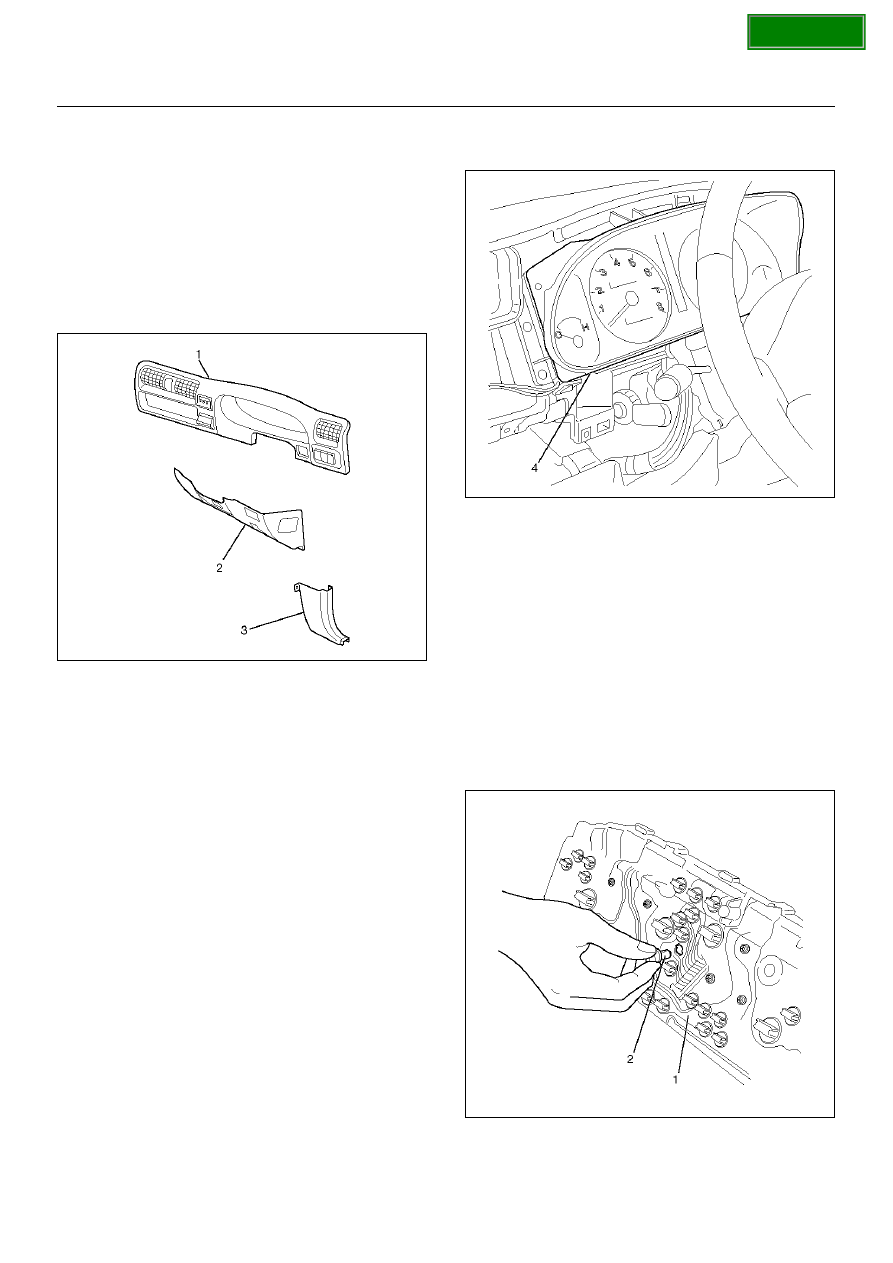

2. Remove the Dash Side Trim Panel –RH (3).

3. Remove the lower cover Assembly(2).

• Refer to the Instrument Panel Assembly in Body

Structure section.

4. Remove the meter cluster Assembly(1).

• Refer to the Instrument Panel Assembly in Body

Structure section.

821RW292-1

5. Remove four fixing screws and disconnect the meter

connectors to remove the meter assembly(4).

825RW284

CAUTION:  The removed meter assembly should be
placed upright or with its face side up.

Installation

To install, follow the removal steps in the reverse order.

Warning Light Bulb, Indicator Light Bulb, Illumination Light Bulb,

A/T Shift Indicator Light Bulb

Removal

1. Disconnect the battery ground cable.

2. Remove the meter assembly(1).

• Refer to the Meter Assembly removal steps in

Meter and Gauge section.

3. Hold the bulb socket by hand and rotate it

counterclockwise to remove the socket & bulb(2)
from the meter body.

825RW059

Installation

To install, follow the removal steps in the reverse order.

SECTION

METER AND GAUGE

8E–7

Vehicle Speed Sensor

Removal

1. Disconnect the battery ground cable.

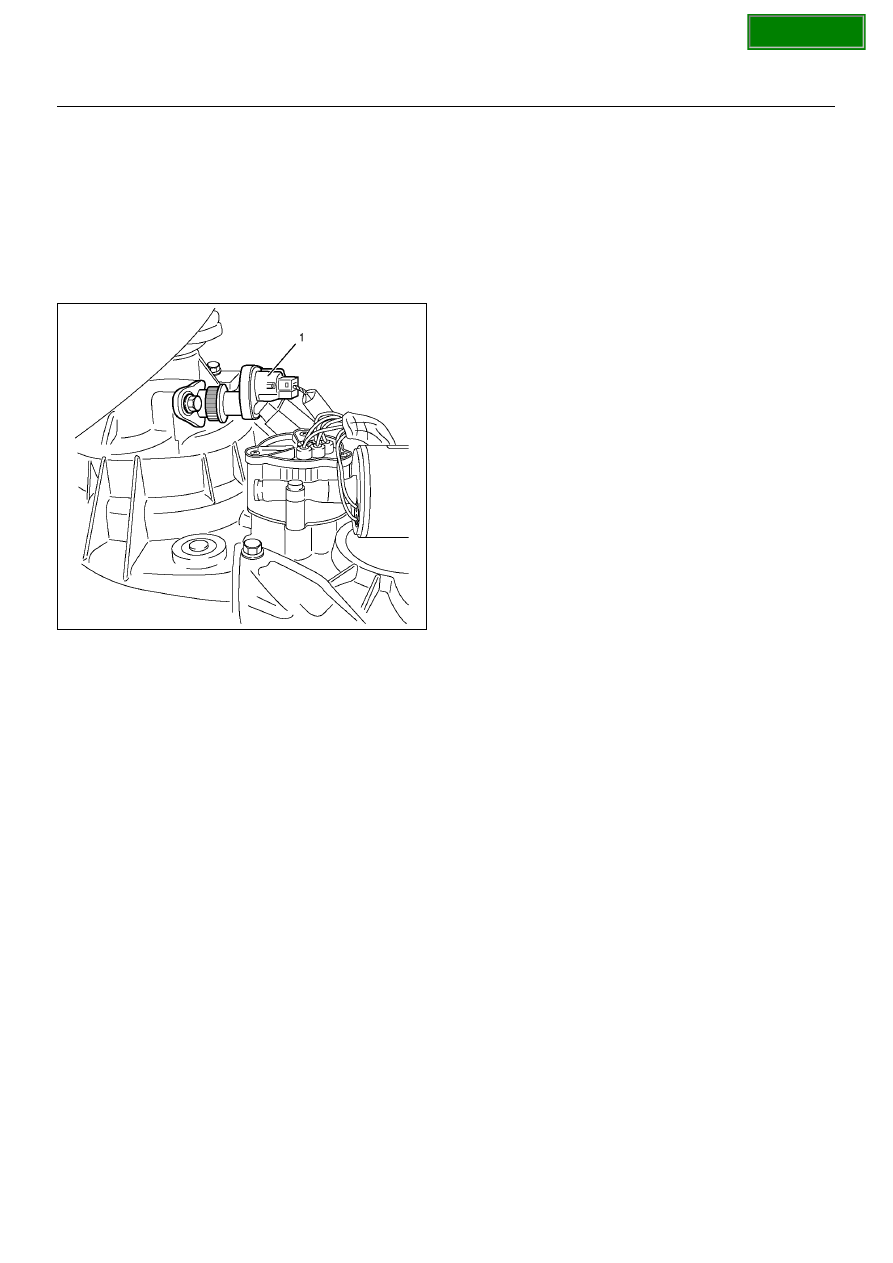

2. Remove the vehicle speed sensor(1).

• Disconnect the connector.

• Rotate the sensor counterclockwise.

225R200001

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the vehicle speed sensor to the specified

torque.

Torque: 25 N·m (18 lbft)

Fuel Tank Unit

Removal and Installation

Refer to Engine Fuel section.

SECTION

8E–8

METER AND GAUGE

Main Data and Specifications

Torque Specifications

Application

N·m

kg·m

LbFt

LbIn

Vehicle Speed Sensor Fixing

25

2.5

18

SECTION
