Diagnosis

All The Doors Do Not Lock And Unlock By Door Lock SW–RH

Step

Action

Value(s)

Yes

No

1

Is the fuse C–7 normal?

—

Go to Step 2

Replace the

fuse

2

Disconnect the front power window & door lock
SW–RH connector D–5.

Is the battery voltage applied between harness side
connector D–5 terminal 11 and the ground?

Approx. 12V

Go to Step 4

Go to Step 3

3

Repair an open circuit between the fuse C–7 and the
switch.

Is the action complete?

—

Verify repair

—

4

Disconnect the FRT door lock actuator–RH connector
D–8.

Is there continuity between harness side connector
D–5 terminal 10 and connector D–8 terminal 1 (or
connector D–5 terminal 12 and connector D–8 terminal
2)?

—

Go to Step 5

Go to Step 6

5

Replace the FRT power window & door lock SW–RH.

Is the action complete?

—

Verify repair

—

6

Repair an open circuit between the FRT power window
& door lock SW–RH and door lock actuator.

Is the action complete?

—

Verify repair

—

All The Doors Do Not Lock and  Unlock by FRT Door Lock SW–LH

Step

Action

Value(s)

Yes

No

1

Disconnect the FRT power window & door lock
SW–RH and –LH connector D–5 and D–17.

Is there continuity between harness side connector
D–5 terminal 13 and connector D–17 terminal 6 (or
connector D–5 terminal 14 and connector D–17
terminal 7)?

—

Go to Step 2

Go to Step 3

2

Replace the FRT power window & door lock SW–LH.

Is the action complete?

—

Verify repair

—

3

Repair an open circuit between the FRT power window
& door lock SW–RH and –LH.

Is the action complete?

—

Verify repair

—

SECTION

8D–119

WIRING SYSTEM

All the Doors Do Not Lock and Unlock by Door Lock Key SW

Step

Action

Value(s)

Yes

No

1

Is B–8 grounded securely?

—

Go to Step 2

Ground it

securely

2

Disconnect the door lock key SW connector D–6.

Is there continuity between harness side connector
D–6 terminal 2 and the ground?

—

Go to Step 4

Go to Step 3

3

Repair an open circuit between connector D–6 terminal
2 and the ground B–8.

Is the action complete?

—

Verify repair

—

4

Is there continuity between the switch side connector
terminal 1 and 2 when the switch is turned to lock
position, and terminal 2 and 4 when the switch is turned
to unlock position?

—

Go to Step 5

Repair or

replace the

switch

5

Repair an open circuit between the door lock key SW
and FRT power window & door lock SW–RH.

Is the action complete?

—

Verify repair

—

SECTION

8D–120

WIRING SYSTEM

Power Window

General Description

The power window system consists of power window
switches, power window motors and power window relay.
With the starter switch in “ON” position, the battery
voltage is supplied through power window relay to the
power window switches. Selection of up or down switch
changes over the motor rotating direction to open or close
the window.
When the lock switch on the switch panel on the driver
side is pressed, the power window switch is in open state.
As a result, the power source to the other switches are cut
off, and the power window motors do not run.

SECTION

8D–121

WIRING SYSTEM

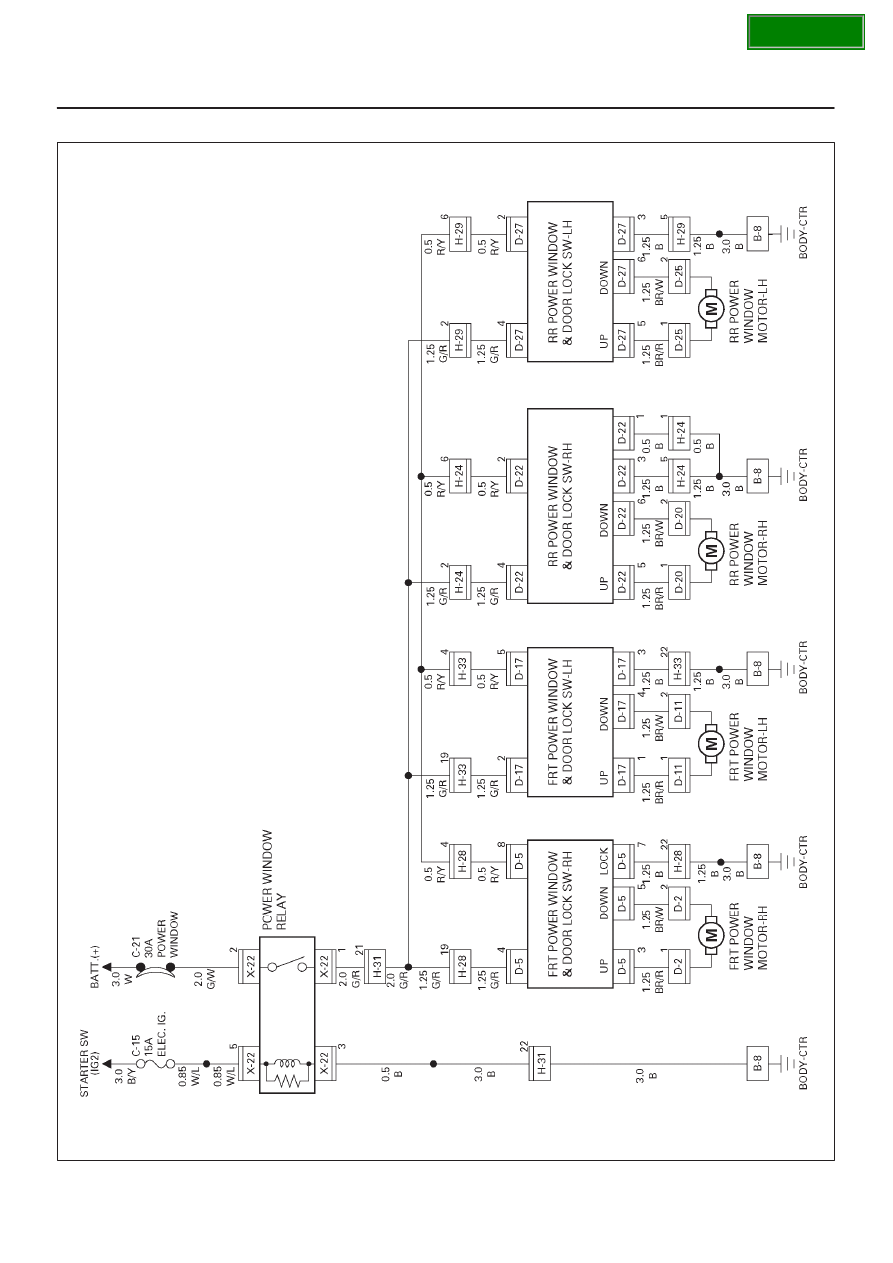

Circuit Diagram–1

D08R100194
