8D–114

WIRING SYSTEM

Power Door Lock

General Description

The door lock system consists of door lock & power
window switch, key cylinder switch and door lock
actuator. Door lock switch on driver’s side can actuate the
door lock mechanism.
Locking or unlocking the lock switch on the driver side
causes the door lock mechanism to be locked or
unlocked.
At this time, the current flows for approx. 1 second from
door lock switch on driver’s side to door lock actuator to
run the motor.
When the key is in the key cylinder, Door Lock can not be
done.

SECTION

8D–115

WIRING SYSTEM

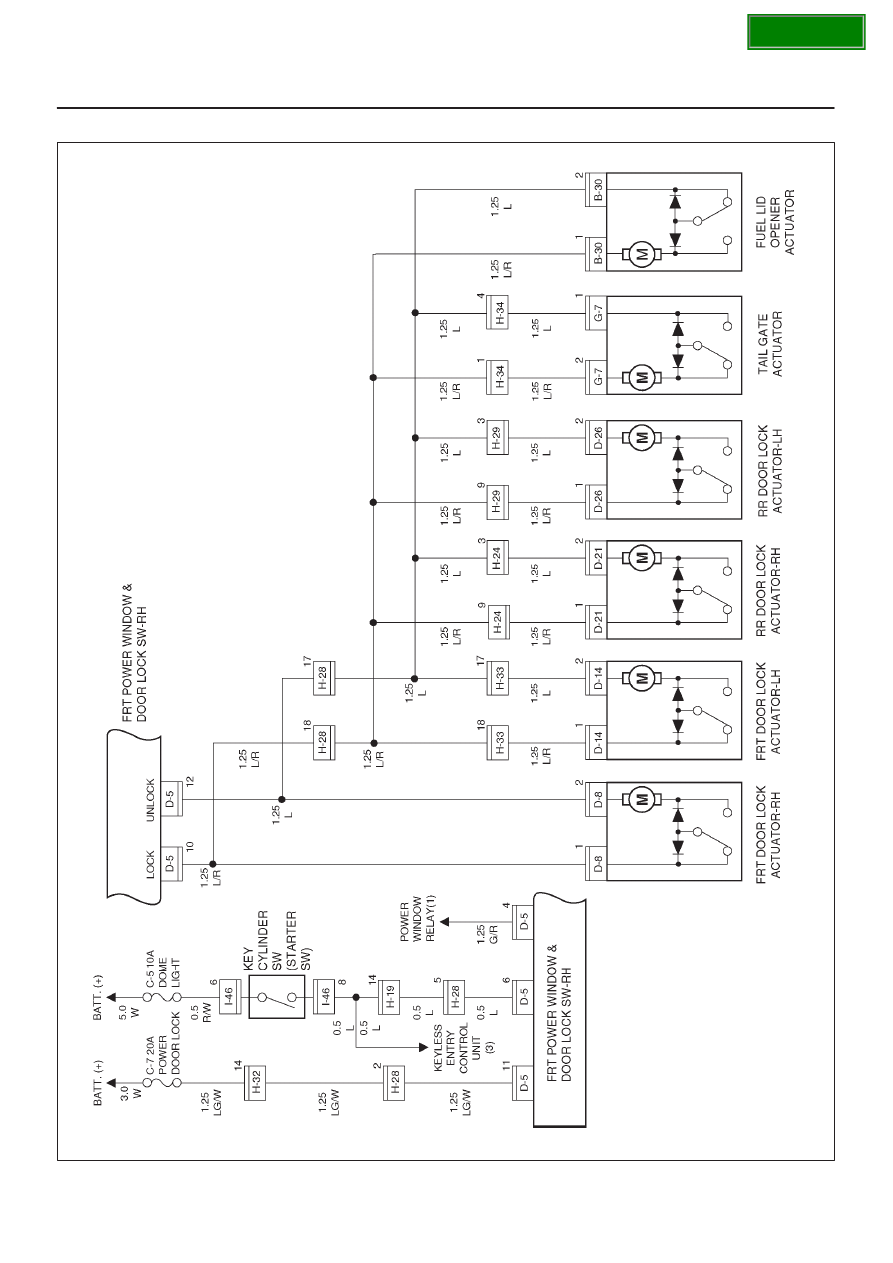

Circuit Diagram–1

D08R100234

SECTION

8D–116

WIRING SYSTEM

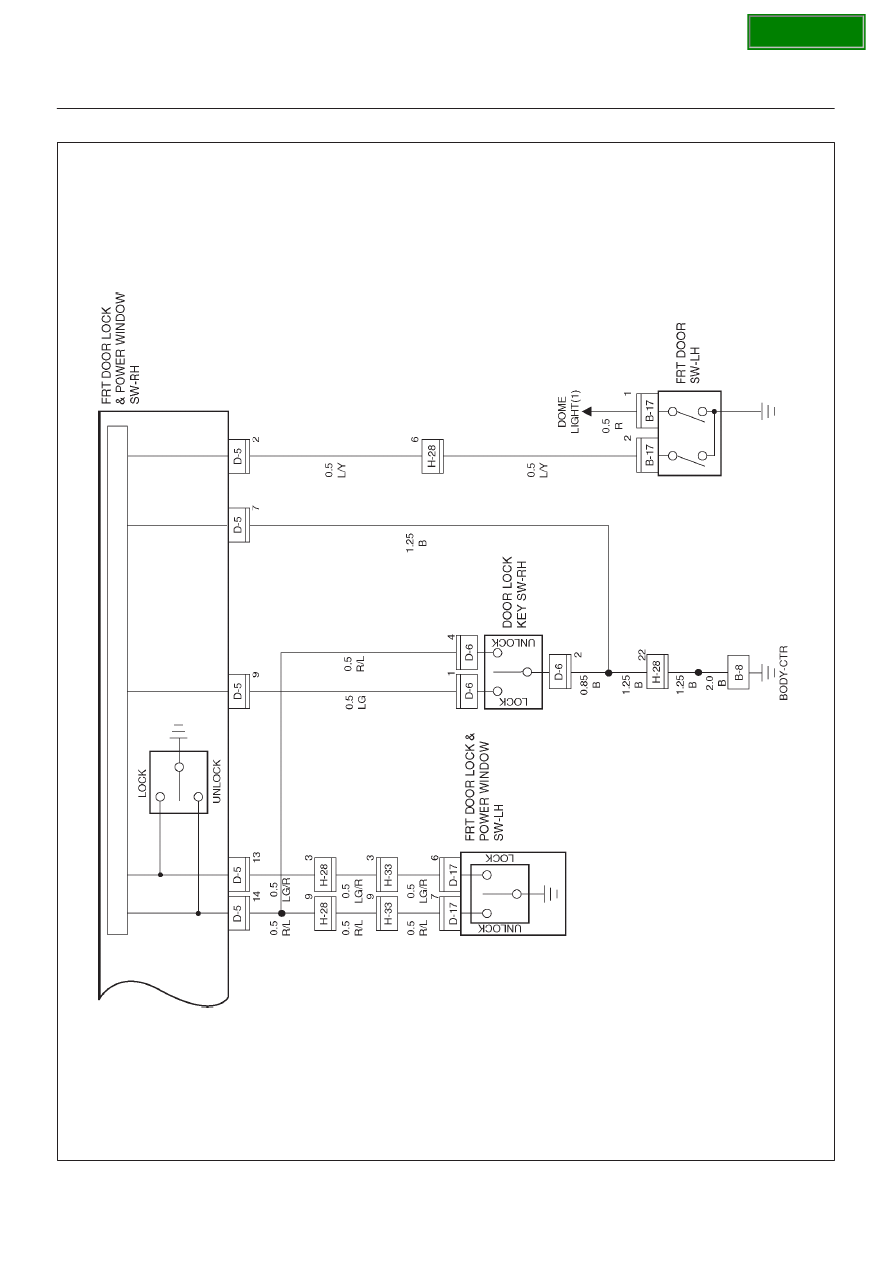

Circuit Diagram–2

D08R100124

SECTION

8D–117

WIRING SYSTEM

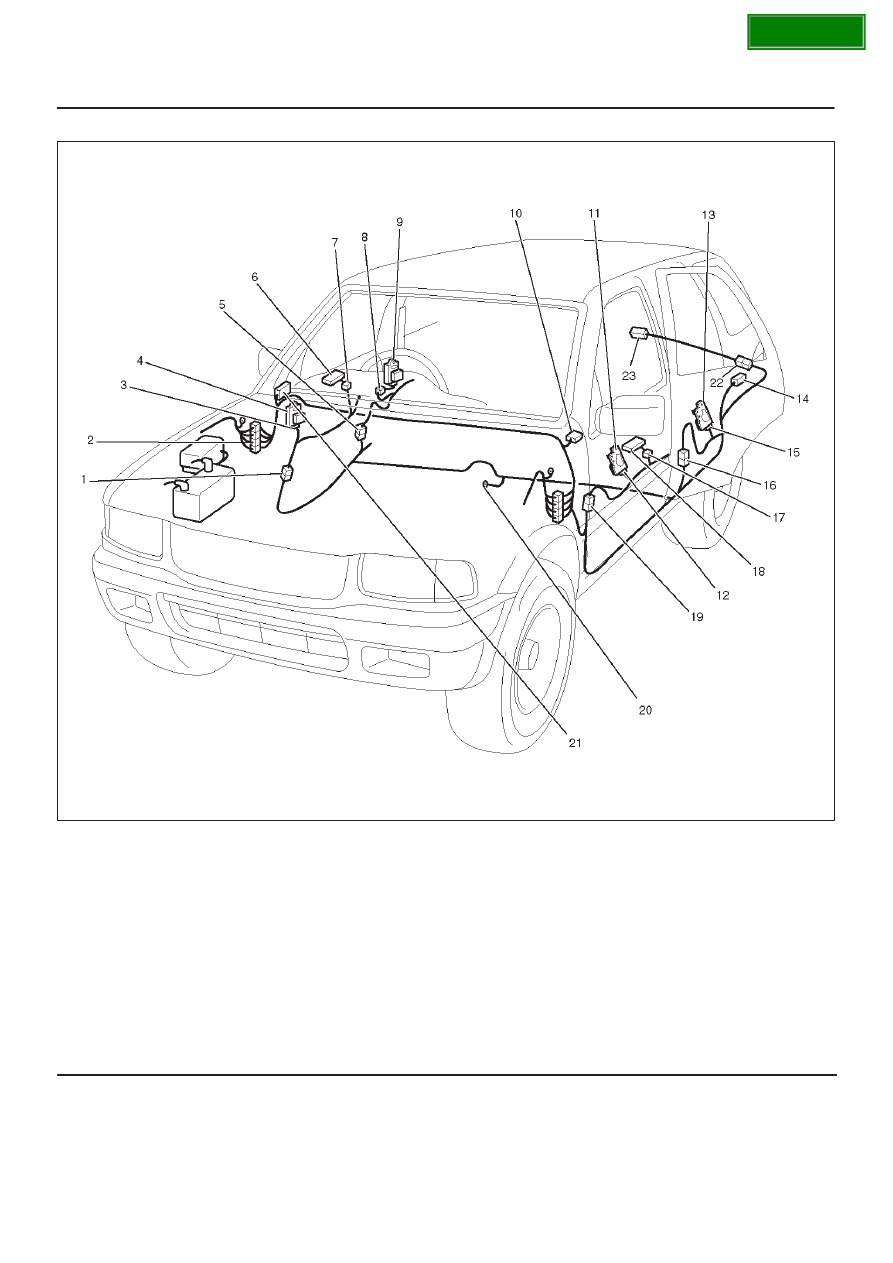

Parts Location

D08RWD15

Legend

(1) H–28
(2) H–19, H–32
(3) D–8
(4) FRT Door Lock Actuator–RH
(5) H–24
(6) FRT Door Lock Switch–RH
(7) D–6, D–5
(8) D–21
(9) RR Door Lock Actuator–RH

(10) I–26

(11) FRT Door Lock Actuator–LH

(12) D–14
(13) RR Door Lock Actuator–LH
(14) B –30
(15) D–26
(16) H–29
(17) D–17
(18) FRT Door Lock Switch–LH
(19) H–33
(20) B–8
(21) Relay & Fuse Box (Instrument Panel)
(22) H–34, H–22 (2Door Model)
(23) G–7
