8D–110

WIRING SYSTEM

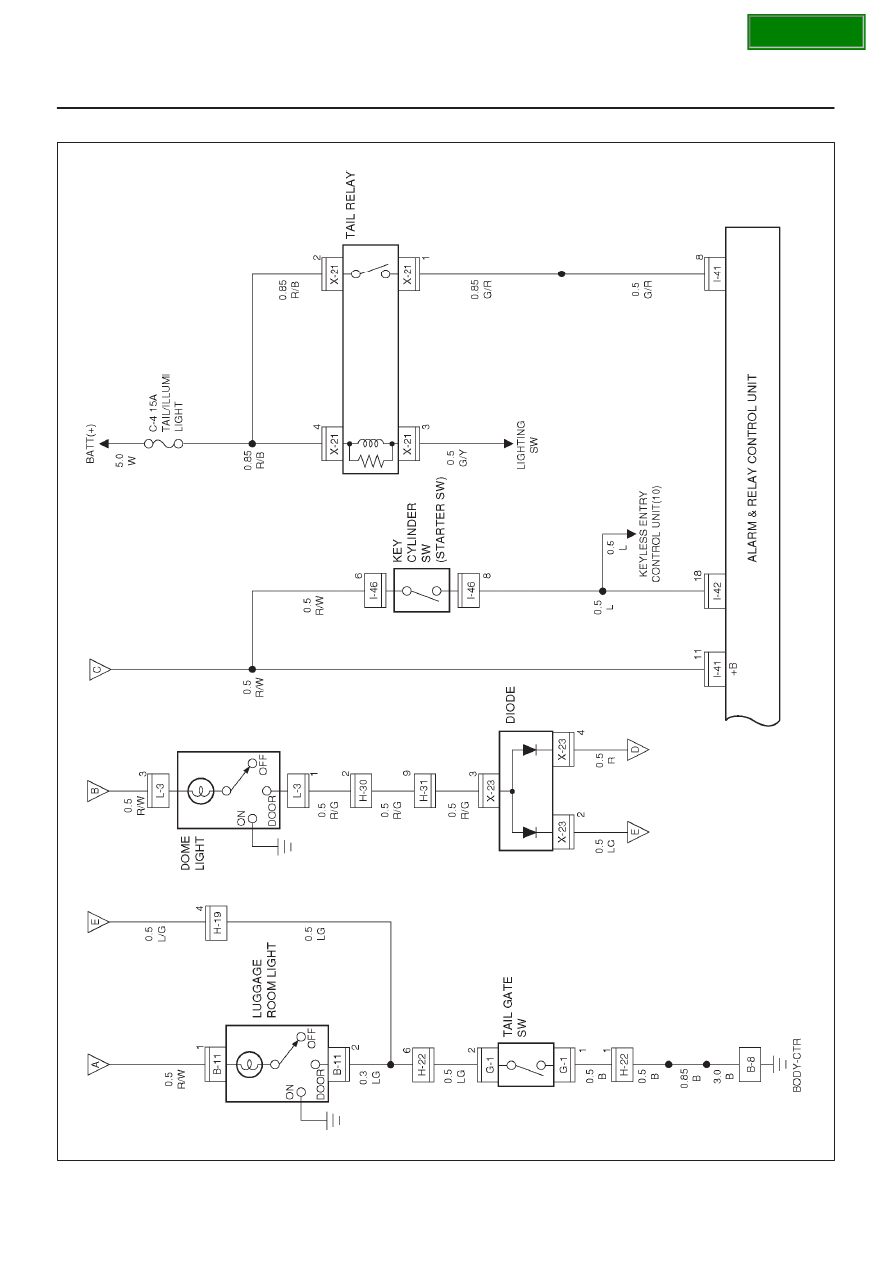

Circuit Diagram–1

D08R100118

SECTION

8D–111

WIRING SYSTEM

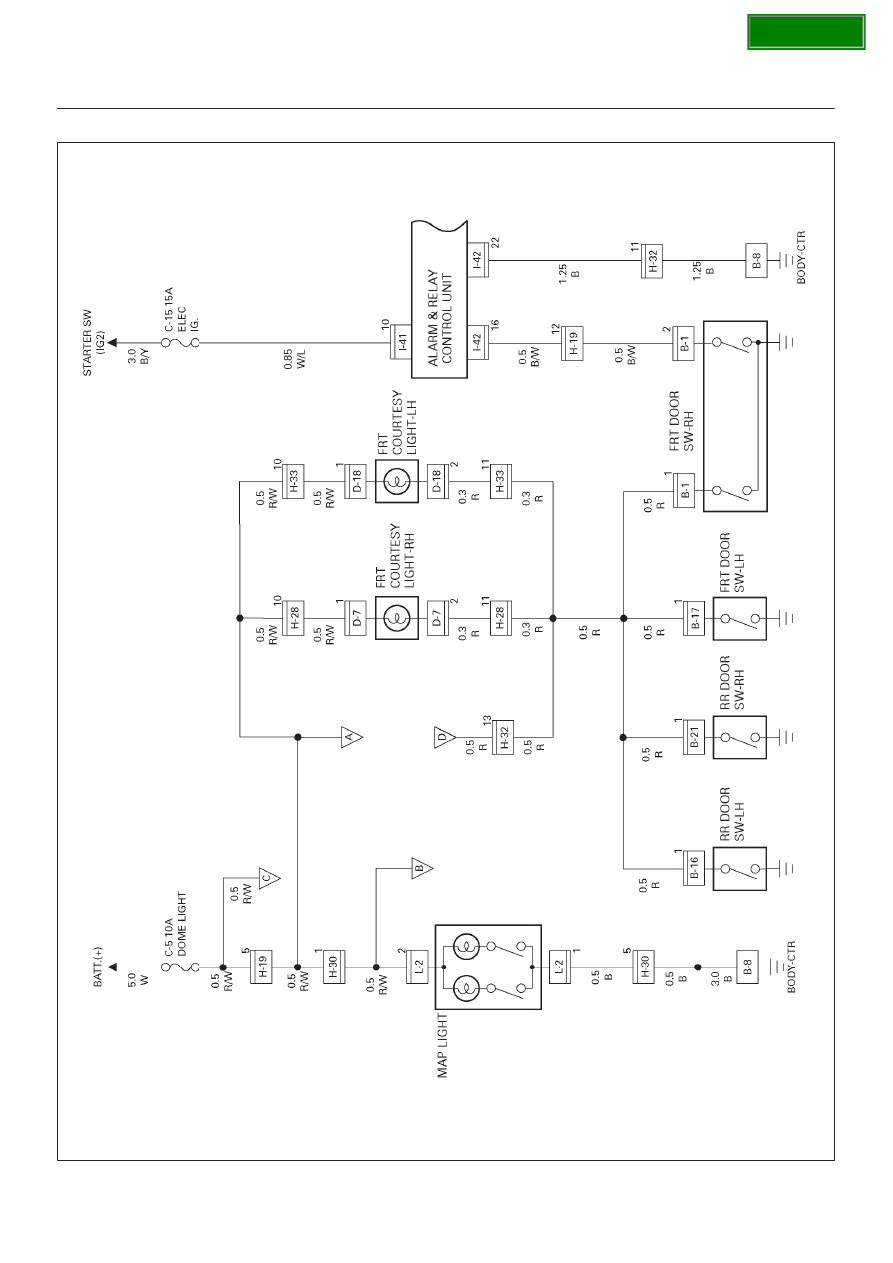

Circuit Diagram–2

D08R100230

SECTION

8D–112

WIRING SYSTEM

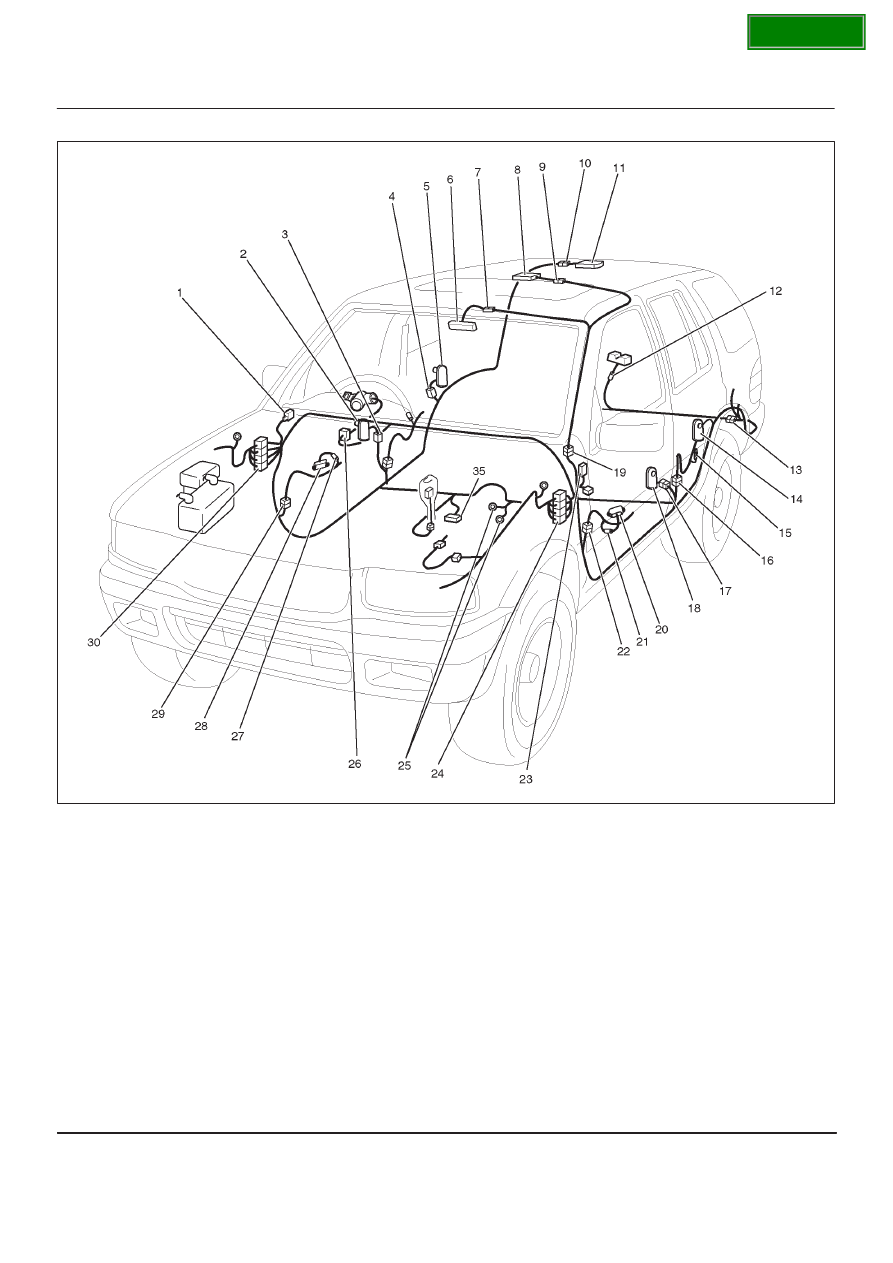

Parts Location

D08R100192

Legend

(1) Relay & Fuse Box
(2) FRT Door SW–RH
(3) B–1
(4) B–21
(5) RR Door SW–RH
(6) Map Light
(7) L–2
(8) Dome Light
(9) L–3

(10) B–11

(11) Luggage Room Light

(12) G–1
(13) H–22
(14) RR Door SW–LH
(15) B–16

(16) H–29
(17) B–17
(18) FRT Door SW–LH
(19) H–30
(20) FRT Courtesy–Light–LH
(21) D–18
(22) H–33
(23) I–41, I–42
(24) H–31
(25) B–6, B–8
(26) I–46
(27) D–7
(28) FRT Courtesy–Light–RH
(29) H–28
(30) H–19, H–32

SECTION

8D–113

WIRING SYSTEM

Diagnosis

Dome Light Inoperative

Step

Action

Value(s)

Yes

No

1

Remove the dome light bulb.

Is the bulb normal?

—

Go to Step 2

Replace the

bulb

2

1. Reinstall the bulb.
2. Disconnect the dome light connector L–3.
3. Set the dome light switch to door position.

Is there continuity between the dome light side
connector terminal 1 and 3?

—

Go to Step 3

Repair or

replace the

dome light

3

Is the battery voltage applied between harness side
connector L–3 terminal 3 and the ground?

Approx. 12V

Go to Step 5

Go to Step 4

4

Repair an open circuit between the fuse C–5 and the
dome light.

Is the action complete?

—

Verify repair

—

5

Repair an open circuit between the dome light and the
door switch or the tail gate switch.

Is the action complete?

—

Verify repair

—
