8D–42

WIRING SYSTEM

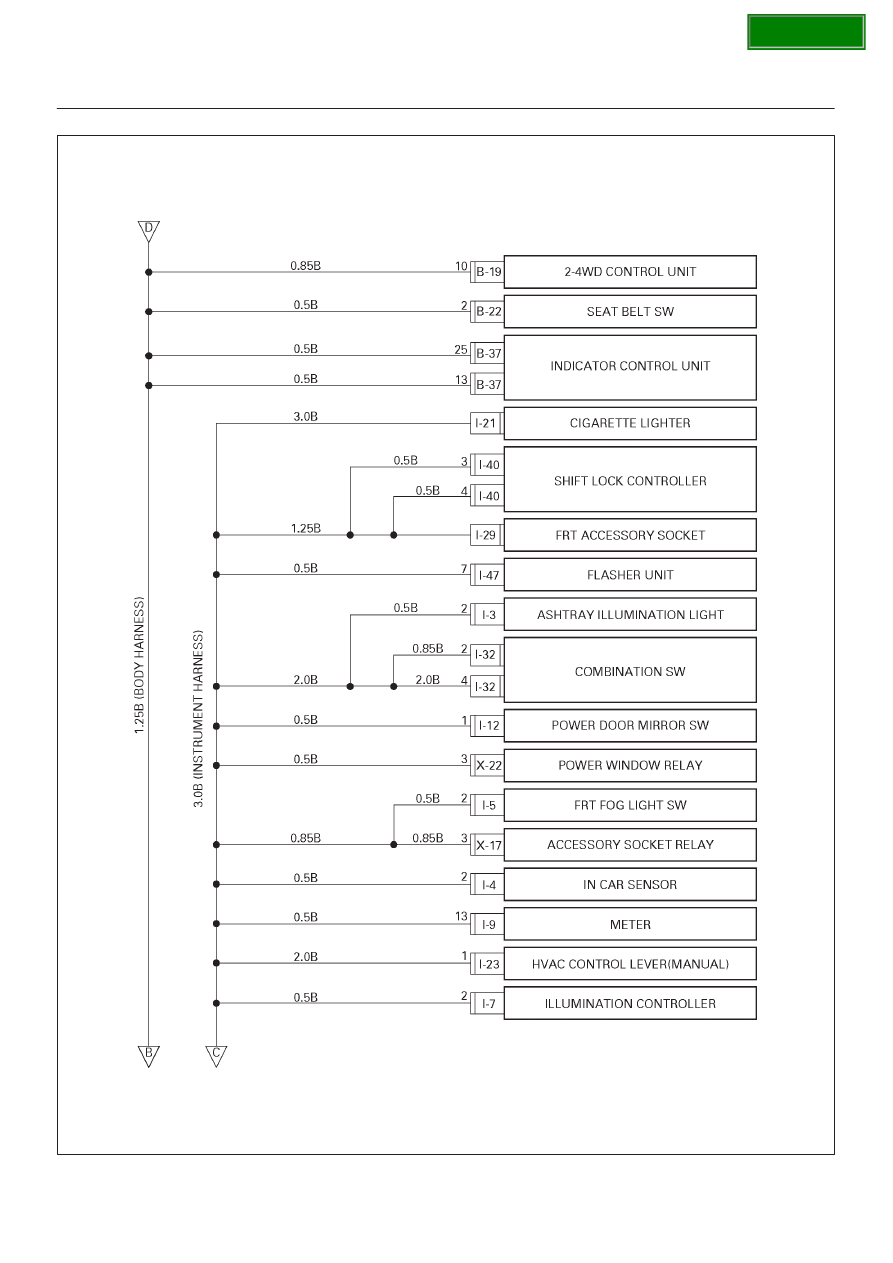

Circuit Diagram – 4

D08R100228

SECTION

8D–43

WIRING SYSTEM

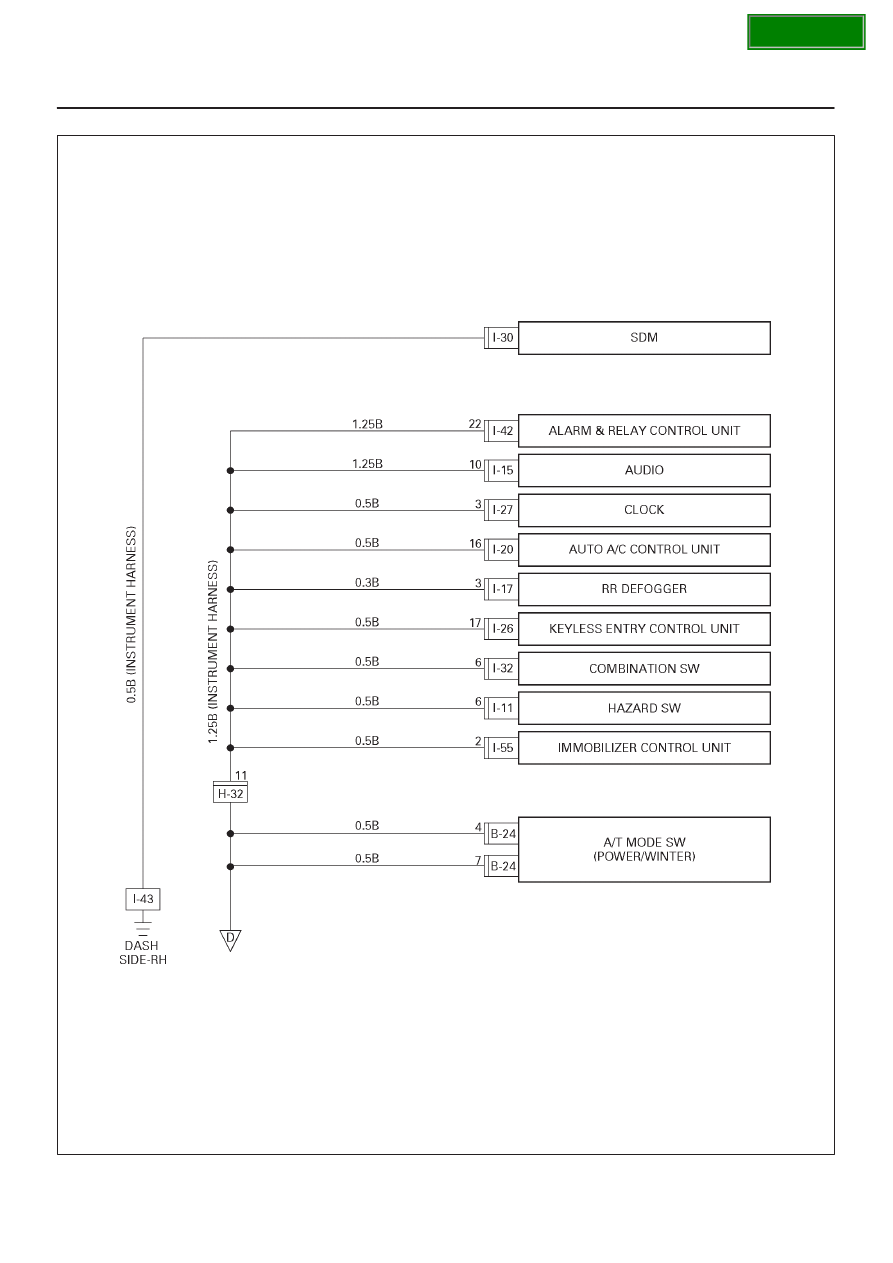

Circuit Diagram – 5

D08R100175

SECTION

8D–44

WIRING SYSTEM

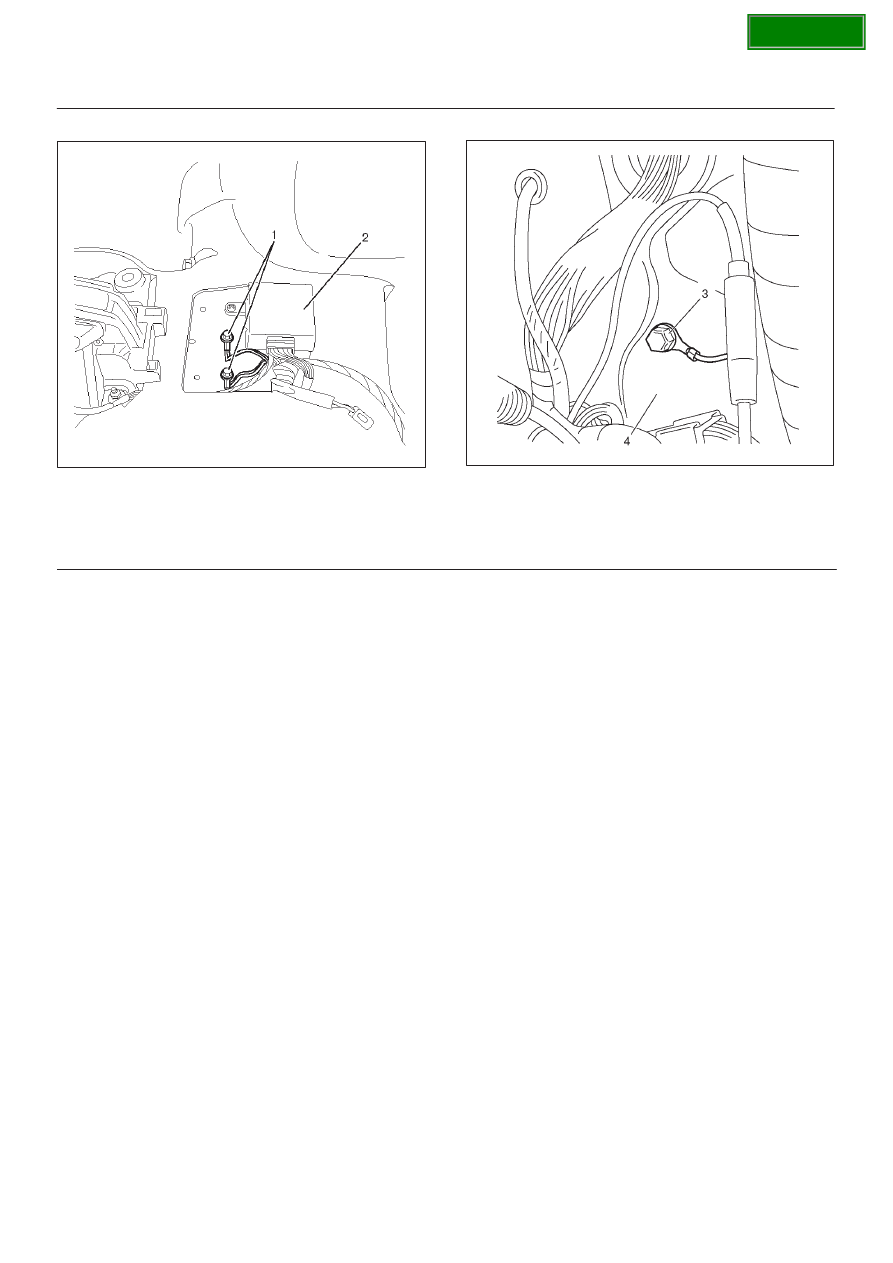

Location – 1

D08RW050

D08R100179

Legend

(1) B–6, B–7, B–8
(2) 2–4WD Control Unit

(3) I–43
(4) Dash Side Panel RH

SECTION

8D–45

WIRING SYSTEM

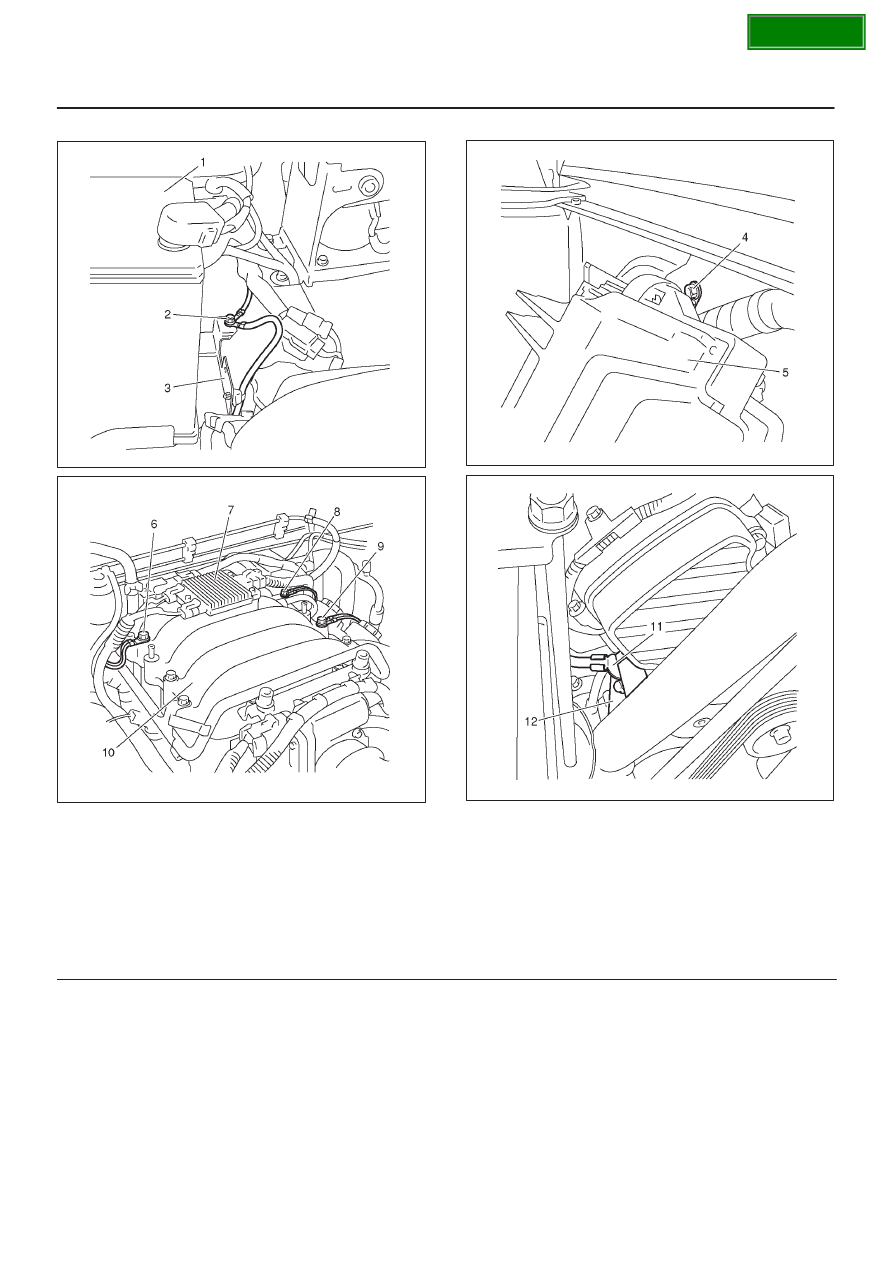

Location – 2

D08R100180

D08R100182

D08R100181

D08R100183

Legend

(1) Battery
(2) C–36, P–6
(3) Battery Tray
(4) C–16
(5) PCM
(6) E–30

(7) Ion Sensor
(8) E–28
(9) E–29

(10) Common Chamber

(11) P–10

(12) ACG
