8D–46

WIRING SYSTEM

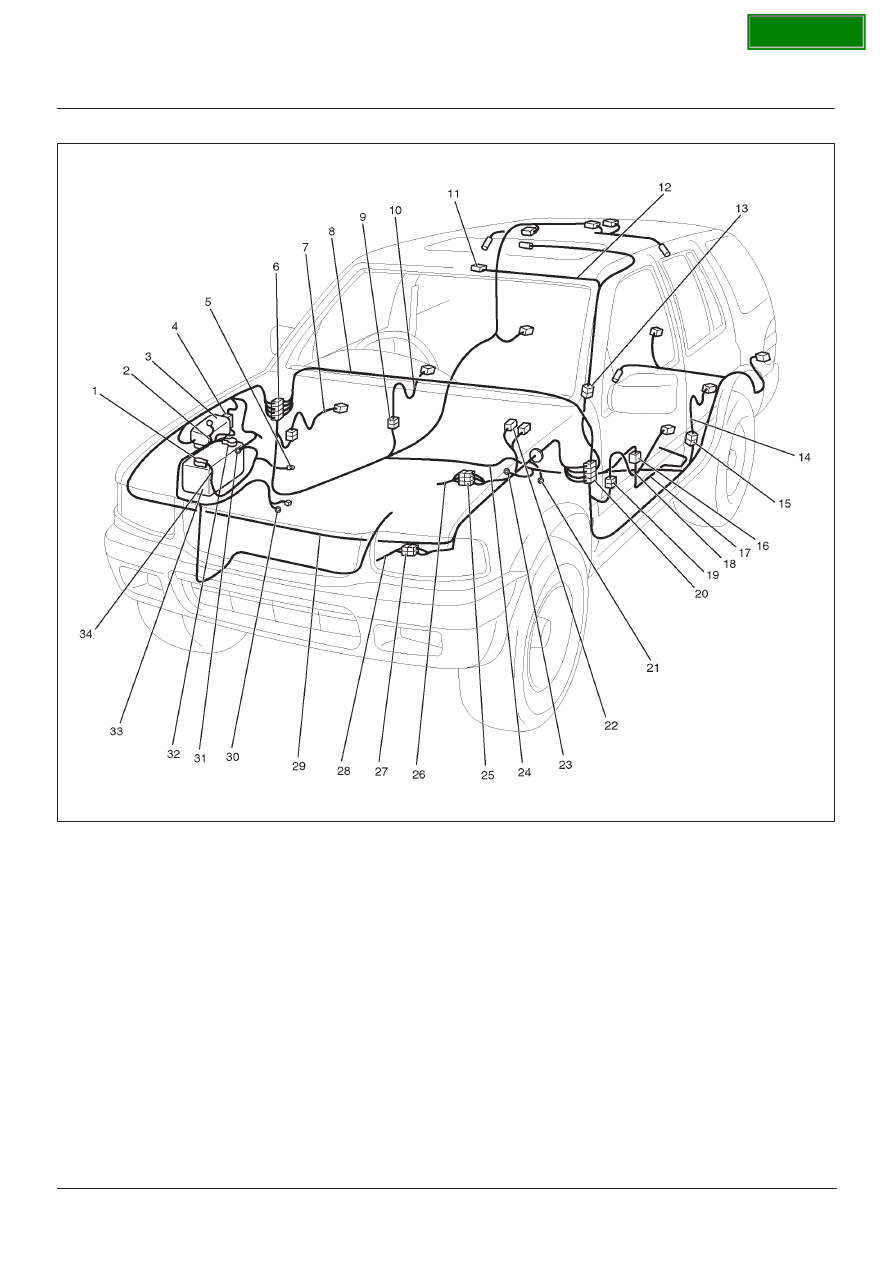

Cable Harness Routing

D08R100186

Legend

(1) P–5
(2) Battery (+) Cable
(3) H–1
(4) H–2
(5) P–10
(6) H–13, H–14, H–19, H–32, H–45
(7) FRT Door Harness–RH
(8) Instrument Harness
(9) H–24

(10) RR Door Harness–RH

(11) L–2 (Map Light)

(12) Roof Harness
(13) H–30
(14) RR Door Harness–LH
(15) H–29
(16) H–25, H–42
(17) Chassis Harness

(18) FRT Door Harness – LH
(19) H–33
(20) H–15, H–16, H–17, H–31, H–40
(21) C–16
(22) C–53, C–54
(23) B–8
(24) Body Harness
(25) H–4, H–5, H–6, H–39
(26) Engine Harness
(27) H–38
(28) TOD Harness
(29) Engine Room Harness
(30) P–9
(31) P–6, C–36
(32) P–1
(33) Battery
(34) Battery (–) Cable

SECTION

8D–47

WIRING SYSTEM

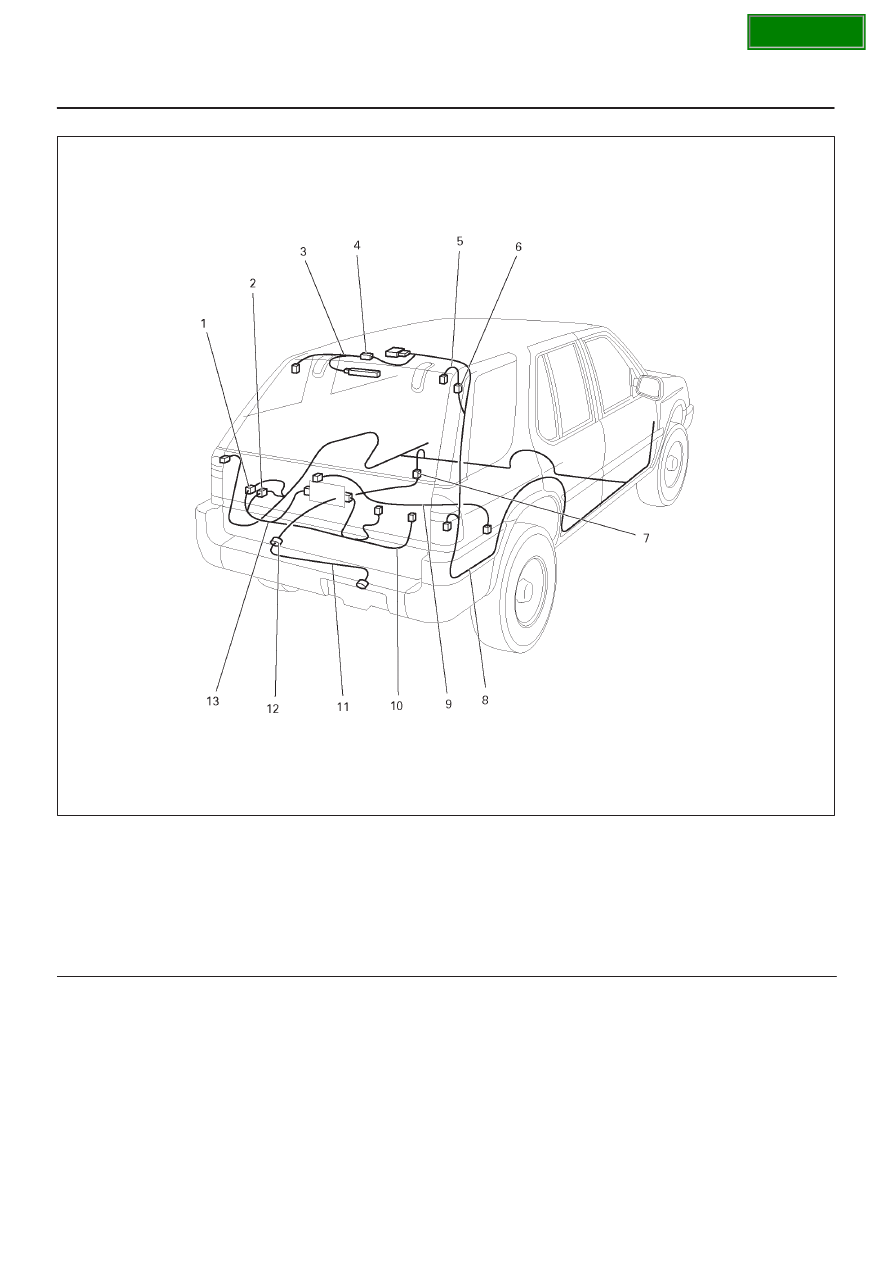

(4Door Model)

D08R100185

Legend

(1) H–22
(2) H–34
(3) Hatch Glass Harness LH
(4) H–21
(5) Hatch Glass Harness RH
(6) H–20

(7) H–25
(8) Body Harness
(9) Chassis Harness

(10) Tailgate Harness

(11) License Plate Light Harness

(12) Trailer Connector
(13) Tailgate Harness

SECTION

8D–48

WIRING SYSTEM

Start and Charging

General Description

This system consists of starter, AC generator, starter
relay, clutch start SW (M/T), mode SW (A/T) and heater &
A/C relay.
When starter SW is set to “ST” position with A/T select
lever at “P” (Parking) or “N” (Neutral) position (Mode SW
“ON”), or clutch pedal depressed (Clutch start SW “ON”),
battery positive voltage is applied to starter solenoid coil
through starter relay to start starter. At the some time,
starter relay cuts off blower motor and A/C circuit.

SECTION

8D–49

WIRING SYSTEM

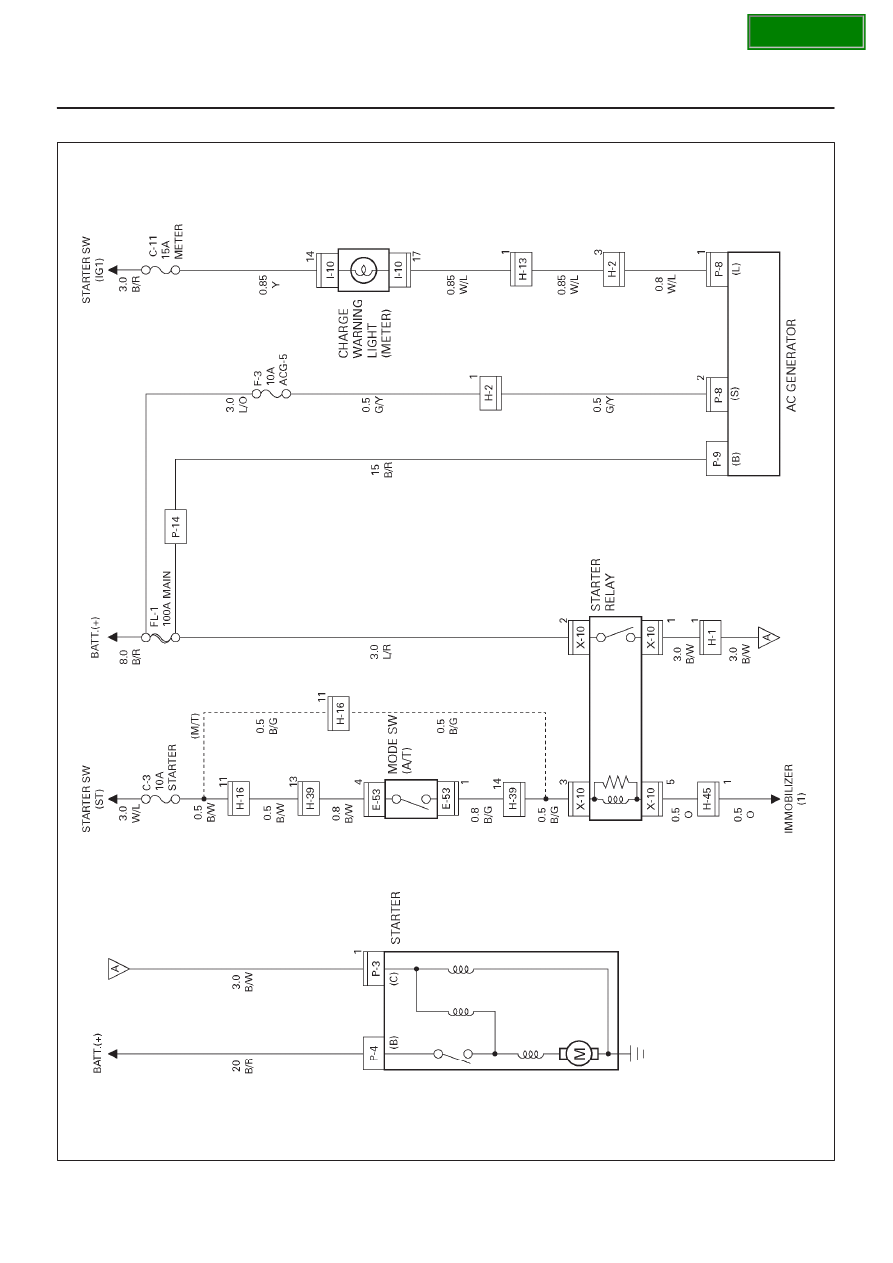

Circuit Diagram–1

D08R100103

SECTION
