8D–34

WIRING SYSTEM

Fusible Link (Relay and Fuse Box · Engine Room)

Fuse Link No.

Capacity

Indication on label

FL-1

100A

MAIN

FL-2

60A

IGN. 1

FL-3

30A

ECM

FL-4

50A

ABS

FL-5

50A

IGN. 2

FL-6

30A

COND. FAN

FL-8

30A

ACTIVE RIDE

ABS: Anti - lock Brake System

Circuit Breaker (Relay & Fuse Box · Instrument Panel)

Fuse No.

Capacity

Indication on label

Parts (Load)

C-21

30A

(POWER WINDOW)

Power window SW, Power window motor, Sun roof
motor, Sun roof control unit, Sun roof SW, Safety stop
SW, Limit SW, Power seat switch, Front tilt motor & SW,
Rear tilt motor & SW, Slide motor, Recliner moror & SW

SECTION

8D–35

WIRING SYSTEM

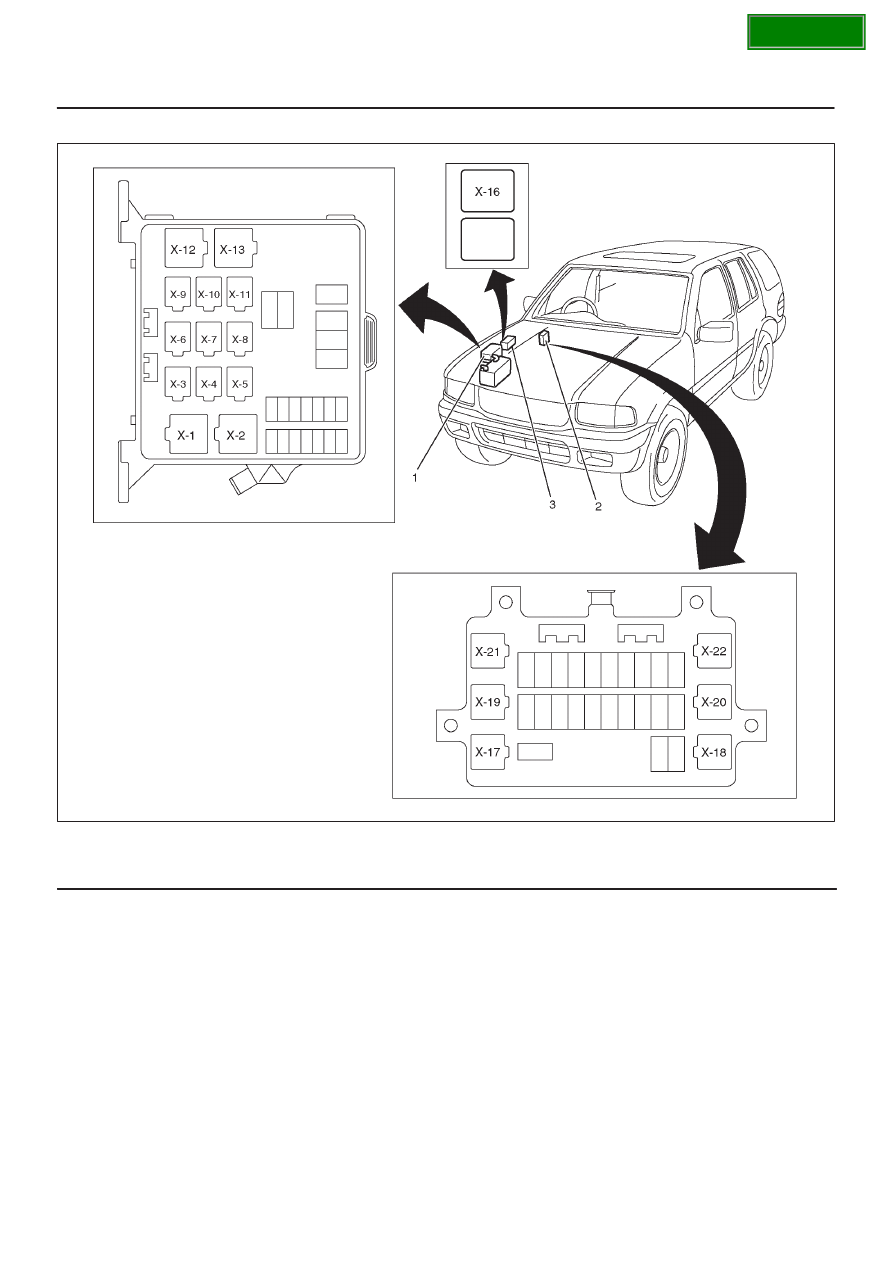

Relay Location

810RY00025

Legend

(1) Relay & Fuse Box (Engine Room)

(2) Relay & Fuse Box (Instrument panel)
(3) Relay & Fuse Option Box (Engine Room)

SECTION

8D–36

WIRING SYSTEM

Relay List

Connector No.

X–1

X–2

X–3

X–4

X–5

X–6

X–7

X–8

X–9

Usage

Heater

A/C

comp.

ECM
Main

–

Fog

light

–

–

Thermo

Head

light

Engine

6VD1

f

f

f

–

f

–

–

f

f

Connector No.

X–10

X–11

X–12

X–13

X–17

X–18

X–19

X–21

I–22

Usage

Starter

Con-

denser

fan

Fuel

pump

–

ACC

socket

Rear

defog-

ger

–

Taillight

Power

window

Engine

6VD1

f

f

f

–

f

f

–

f

f

SECTION

8D–37

WIRING SYSTEM

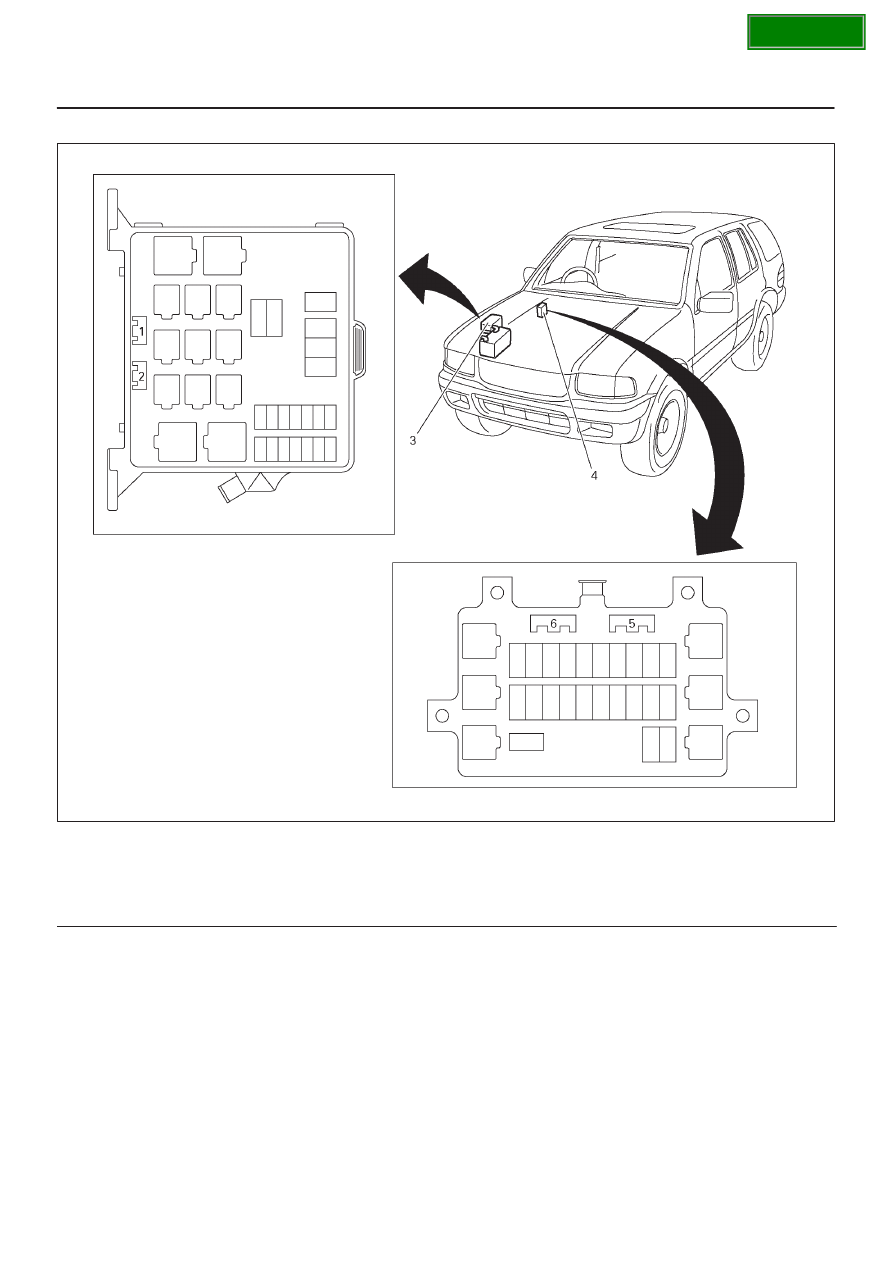

Diode Location

810R100010

Legend

(1) X–14
(2) X–15
(3) Relay & Fuse Box (Engine Room)

(4) Relay & Fuse Box (Instrument panel)
(5) X–24
(6) X–23
