8A–14

LIGHTING SYSTEM

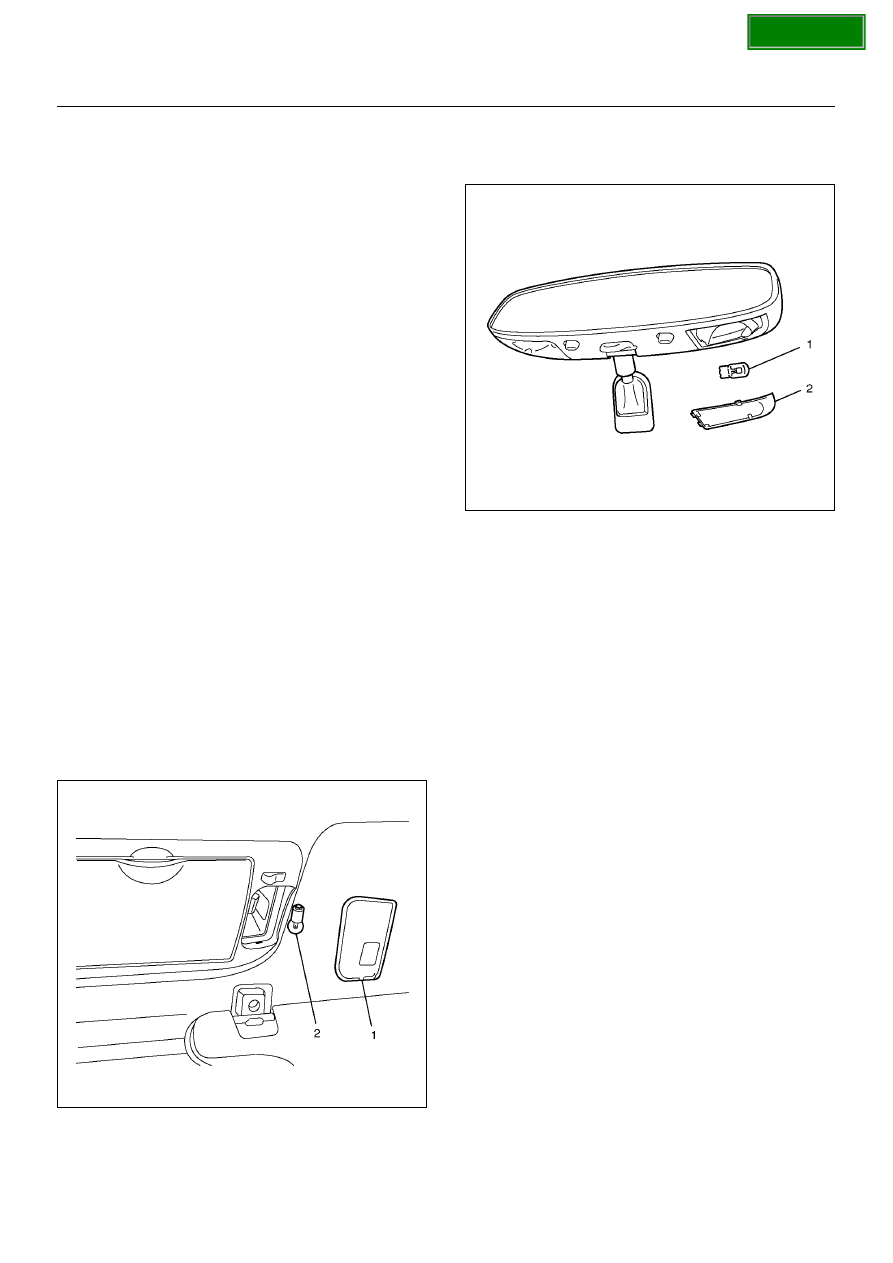

Map Light Bulb

Removal

1. Disconnect the battery ground cable.

2. Remove the lens (2).

3. Remove the bulb (1).

• Pull out the bulb.

805R100001

Installation

To install, follow the removal steps in the reverse order.

Map Light Bulb (with Overhead Console)

Removal

1. Disconnect the battery ground cable.

2. Remove the lens (1).

3. Remove the bulb (2).

825RX059

Installation

To install, follow the removal steps in the reverse order.

SECTION

LIGHTING SYSTEM

8A–15

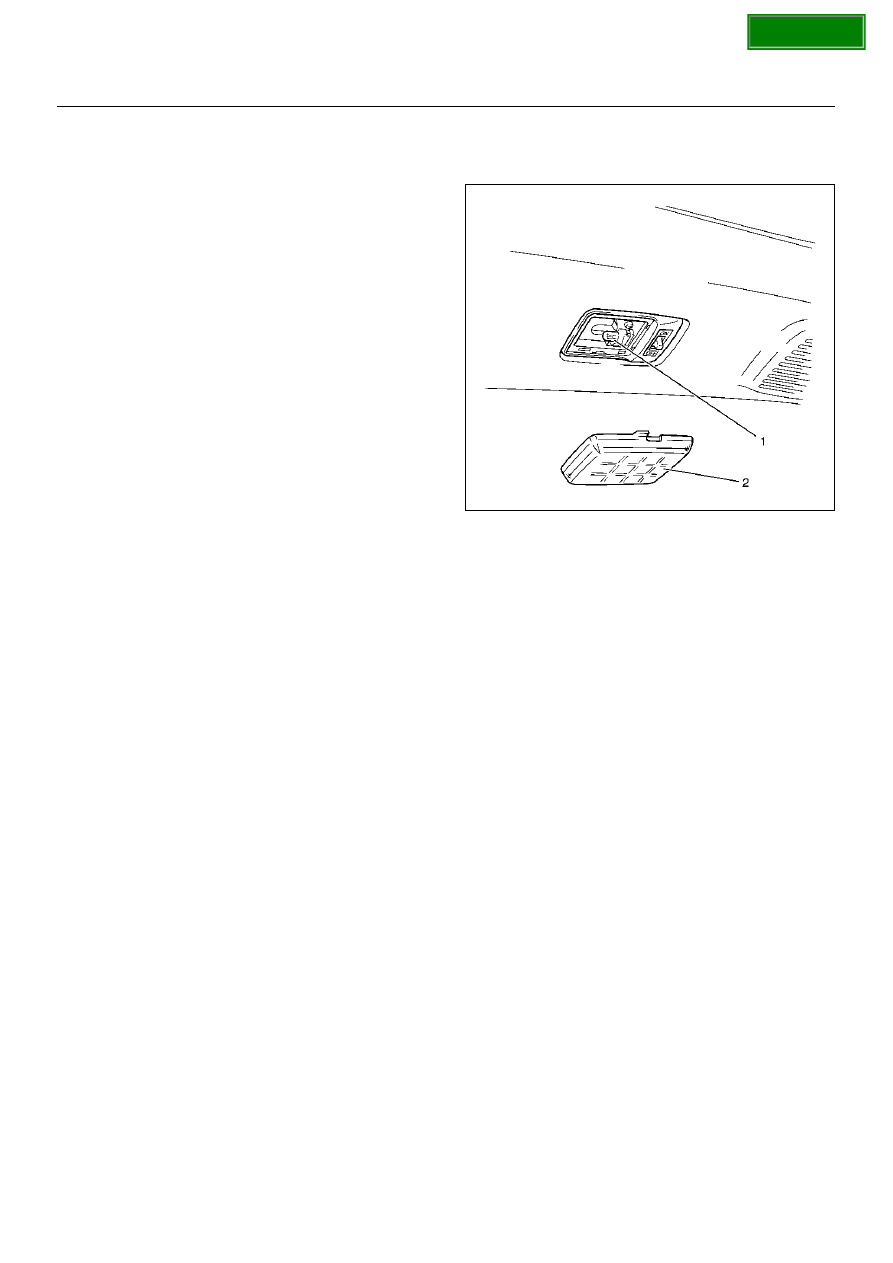

Luggage Room Light Bulb (4Door Model)

Removal

1. Disconnect the battery ground cable.

2. Remove the lens (2).

3. Remove the bulb (1).

• Pull out the bulb.

825RW077

Installation

To install, follow the removal steps in the reverse order.

HVAC Bezel Illumination Light Bulb

Removal and Installation

Refer to Control Panel Illumination bulb in Heating,
Ventilation and Air Conditioning (HVAC) section.

SECTION

8A–16

LIGHTING SYSTEM

Shift Lever Illumination Light Bulb (A/T)

Removal

1. Disconnect the battery ground cable.

2. Remove the console assembly.

• Remove four screws.

3. Remove the bulb (1).

• Turn the bulb socket counterclockwise.

• Pull out the bulb from the socket.

825RW287

Ashtray Illumination Bulb

Removal

1. Disconnect the battery ground cable.

2. Remove the lower cluster panel(1).

• Refer to Instrument Panel Assembly in Body

Structure section.

3. Disconnector the connector (2).

4. Turn the socket counterclockwise to remove it then

pull out the bulb(3).

45RW013

Installation

To install, follow the removal steps in the reverse order.

Starter Switch

Removal and Installation

Refer to Lock cylinder in steering section.

SECTION

LIGHTING SYSTEM

8A–17

Lighting Switch (Combination Switch)

Removal and Installation

Refer to Combination Switch in Steering section.

Dimmer·Passing Switch (Combination Switch)

Removal and Installation

Refer to Combination Switch in Steering section.

Door Switch

Removal

1. Disconnect the battery ground cable.

2. Remove the door switch (2).

• Remove the screw (1).

• Disconnect the connector (3).

825RW289

Installation

To install, follow the removal steps in the reverse order.
