Opel Frontera UE. Manual - part 1633
8A–6
LIGHTING SYSTEM
Fog Light Assembly
Removal
1. Disconnect the battery ground cable.

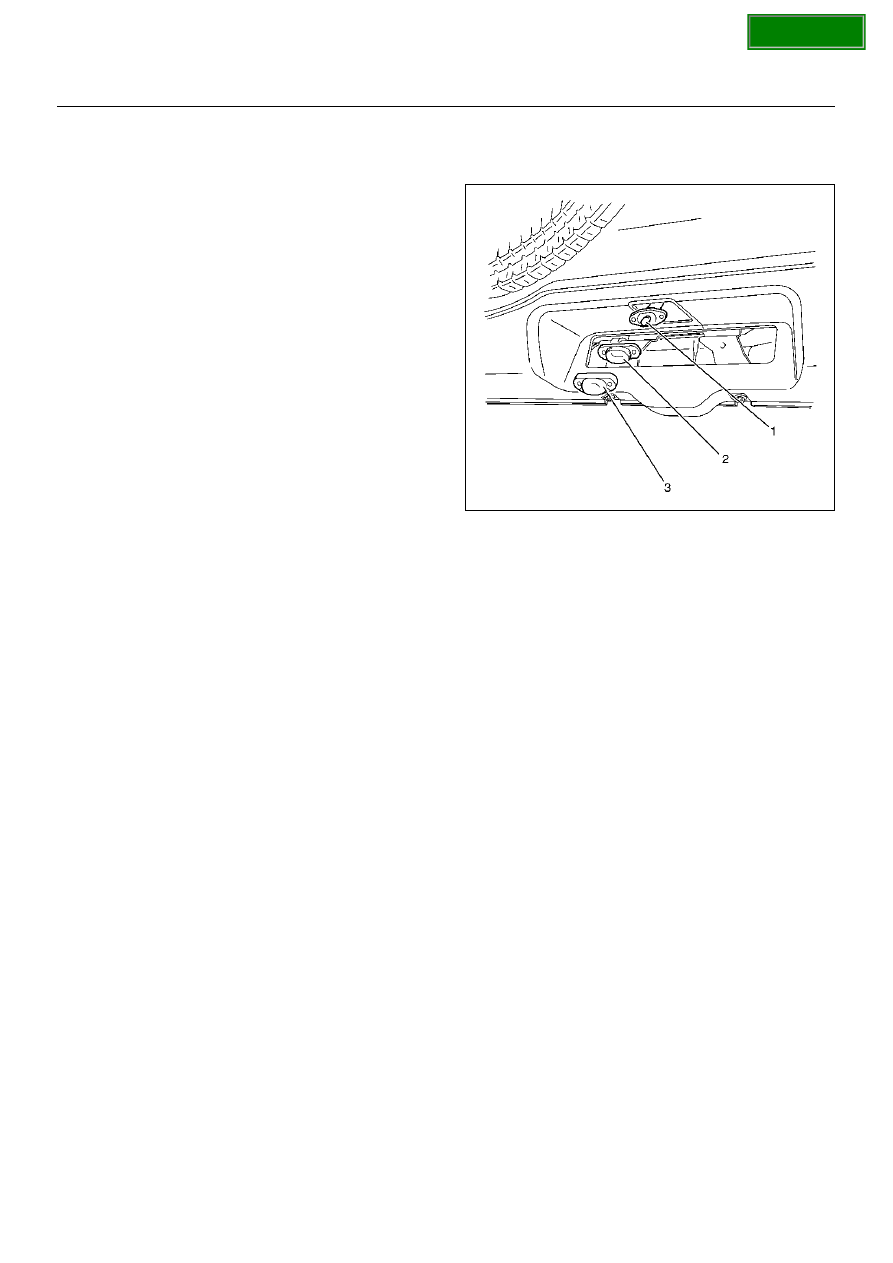

2. Remove the fog light assembly (1).
• Disconnect the connector.
• Remove two nuts from the bracket.
801RY00012
Installation
To install, follow the removal steps in the reverse order.
CAUTION: After installing the fog light, be sure to
adjust the fog light aim.
Fog Light Adjustment
Preparation
Place the vehicle with 1 – person in driver seat, on a
level surface and check to see if the inflation pressure of
the tires iscorrect, the linses are clean, the battery is
sufficiently charged, and adjust to place vehicle by using
the screen.
1. Set up the screen (1) on a leve surface.
2. Put on the screen at right angles to the center line
(3).
3. Adjust the center of the vehicle (2) to the center line
on floor.
801R100007
4. Keep the vehicle (2) 3m (9.8 ft) apart from the
screen (1).

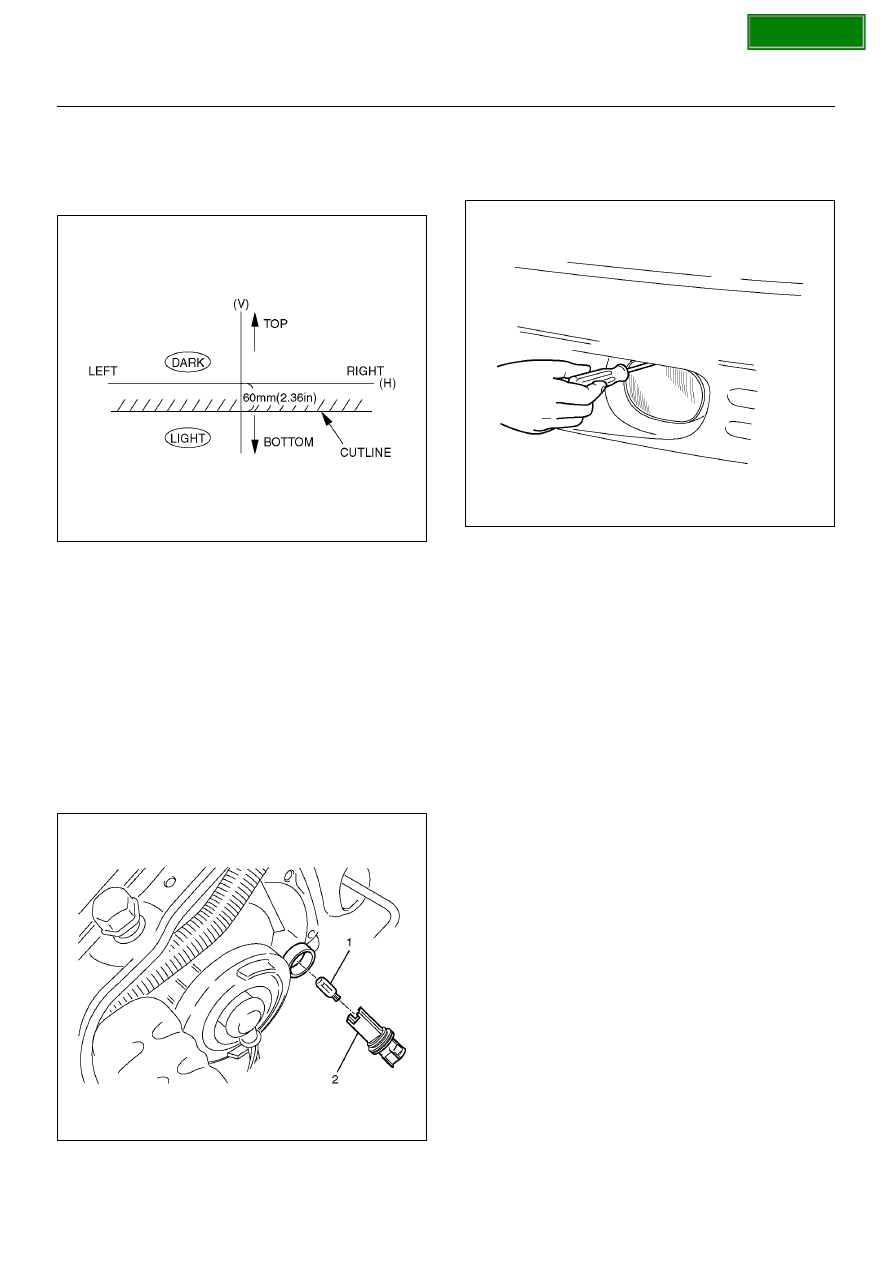

5. Toward the screen from the bulb center mark of fog
light, extend a parallel line (A) to the floor and draw
a vertical line (V) at an intersection point of screen
and a parallel line (A).
801R100015
6. Measure a hight (H) from the bulb mark of fog light
to the floor and draw a horizontal line on the screen.
7. Turn on the fog light.
