6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

and wiring harnesses related to the sensor.  A change
in the display will indicate the location of the fault.

If DTC P0106 cannot be duplicated, the information
included in the Failure Records data can be useful in

determining vehicle mileage since the DTC was last set.
If it is determined that the DTC occurs intermittently,
performing the DTC P1107 Diagnostic Chart may isolate
the cause of the fault.

DTC P0106 – MAP System Performance



Step

Action

Value(s)

Yes

No

1

Was the “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to

Step 2

Go to

OBD

System

Check

2

1. Ignition “ON”, engine “OFF”.
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records

conditions as noted.

4. Using a Tech 2, monitor “DTC” info for DTC P0106.

Does the Tech 2 indicate DTC P0106 failed?

—

Go to

Step 4

Go to

Step 3

3

1. Check for the following conditions:

D

Vacuum hoses disconnected, damaged, or
incorrectly routed

D

Intake manifold vacuum leaks

D

Vacuum leaks at throttle body

D

Vacuum leaks at EGR valve flange and pipes;

D

Crankcase ventilation valve faulty, missing or
incorrectly installed.

2. If a problem is found, repair as necessary.

Was a problem found?

—

Verify repair

Refer to

Diagnostic

Aids

4

1. Disconnect the MAP sensor electrical connector.
2. Observe the MAP value displayed on the Tech 2.

Is the MAP value near the specified value?

11 kPa

Go to

Step 5

Go to

Step 13

5

1. Connect a test light between B+ and the MAP

sensor signal circuit at the MAP sensor harness
connector.

2. Observe the MAP value displayed on the Tech 2.

Is the MAP value near the specified value?

105 kPa

Go to

Step 6

Go to

Step 9

6

1. Jumper the 5 volt reference circuit and the MAP

signal circuit together at the MAP sensor harness
connector.

2. Observe the MAP value displayed on the Tech 2.

Is the MAP value near the specified value?

104 kPa

Go to

Step 7

Go to

Step 8

7

1. Ignition “OFF”.
2. Disconnect the PCM and check the sensor ground

circuit for high resistance, an open between the
PCM and the MAP sensor, or for a poor connection
at the PCM.

3. If a problem is found, repair as necessary.

Was a problem found?

—

Verify repair

Go to

Step 11

8

1. Check the 5 volt reference circuit for high

resistance, an open between the PCM and the MAP
sensor, or a poor connection at the PCM.

2. If a problem is found, repair as necessary.

Was a problem found?

—

Verify repair

Go to

Step 10

SECTION

6E–128

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

DTC P0106 – MAP System Performance

  (Cont'd)

Step

No

Yes

Value(s)

Action

9

1. Ignition “OFF”.
2. Disconnect the PCM, and check the MAP sensor

signal circuit for high resistance, an open, a short to
ground, or a short to the sensor ground circuit.

3. If a problem is found, repair as necessary.

Was a problem found?

—

Verify repair

Go to

Step 10

10

1. Check the MAP sensor signal circuit for a poor

connection at the PCM.

2. If a problem is found, repair as necessary.

Did the terminal require replacement?

—

Verify repair

Go to

Step 14

11

1. Check for a poor connection at the MAP sensor.
2. If a problem is found, repair as necessary.

Was a problem found?

—

Verify repair

Go to

Step 12

12

Replace the MAP sensor.

Is the action complete?

—

Verify repair

—

13

1. Ignition “OFF”, disconnected the PCM.
2. Ignition “ON”, check the MAP signal circuit for a

short to voltage or a short to the 5 volt reference
circuit.

3. If a problem is found, repair as necessary.

Was a problem found?

—

Verify repair

Go to

Step 14

14

Replace the PCM.

IMPORTANT: The replacement PCM must be
programmed.  Refer to

On-Vehicle Service in

Powertrain Control Module and Sensors for
procedures.

And also refer to latest Service Bulletin.

Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.

Is the action complete?

—

Verify repair

—

SECTION

6E–129

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

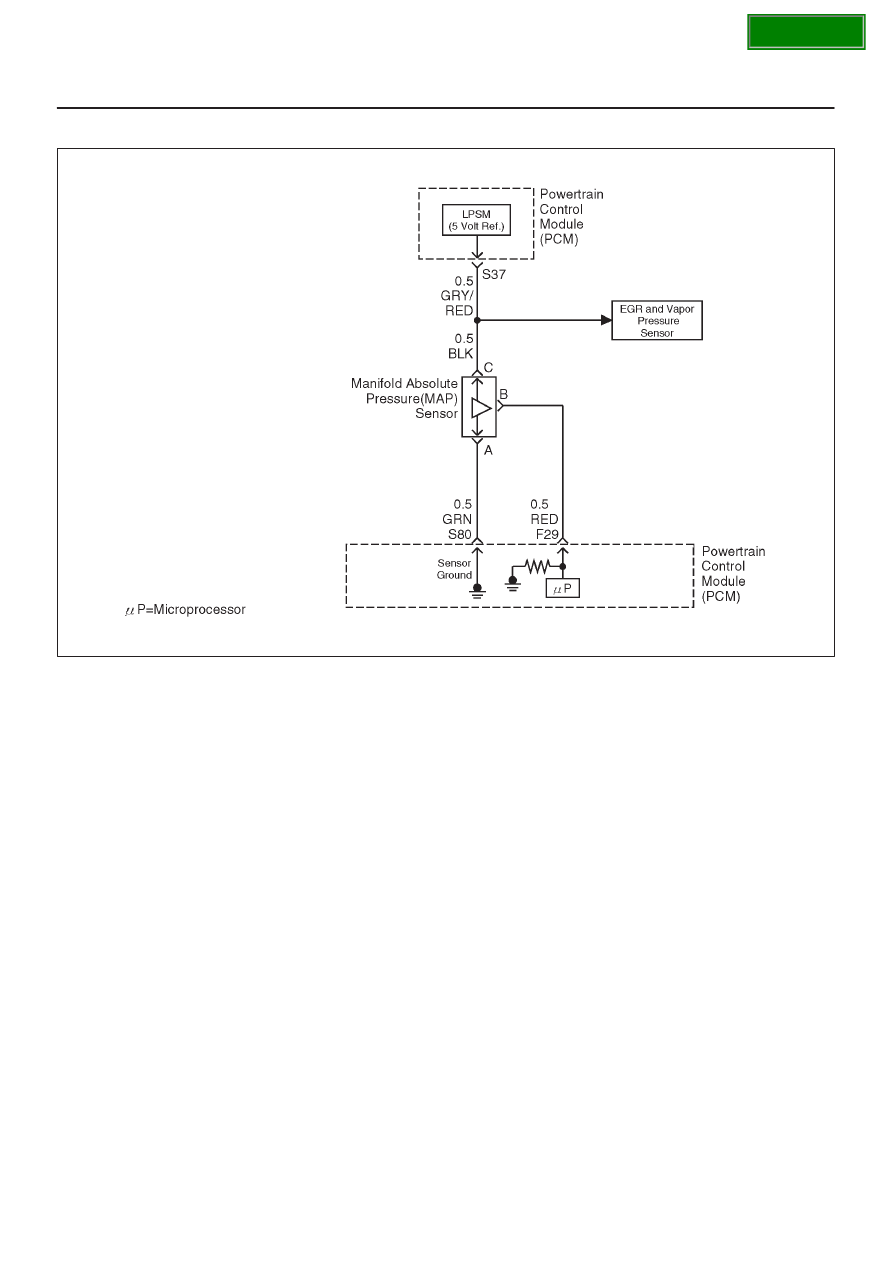

Diagnostic Trouble Code (DTC) P0107 MAP Sensor Circuit Low Voltage

060R100132

Circuit Description

The manifold absolute pressure (MAP) sensor responds
to changes in intake manifold pressure (vacuum).  The
MAP sensor signal voltage to the powertrain control
module (PCM) varies from below 2 volts at idle (high
vacuum) to above 4 volts with the ignition “ON”, engine
not running or at wide-open throttle (low vacuum).
The MAP sensor is used to determine manifold pressure
changes while the exhaust gas recirculation (EGR) flow
test diagnostic is being run (refer to

DTC P0401), to

determine engine vacuum level for some other
diagnostics and to determine barometric pressure
(BARO).  The PCM monitors the MAP signals for voltages
outside the normal range of the MAP sensor.  If the PCM
detects a MAP signal voltage that is excessively low, DTC
P0107 will be set.

Conditions for Setting the DTC

D

No TP sensor DTCs present.

D

Engine is running.

D

Throttle angle is above 1% if engine speed is less than
1000 RPM.

D

Throttle angle is above 2% if engine speed is above
1000 RPM.

D

The MAP sensor indicates manifold absolute pressure
at or below 11 kPa for a total of approximately 10
seconds over a 16-second period.

D

Ignition voltage more than 11 volts.

Action Taken When the DTC Sets

D

The PCM will ON the MIL after second trip with
detected fault.

D

The PCM will default to a BARO value of 79.3 kPa.

D

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.

Conditions for Clearing the MIL/DTC

D

The PCM will turn the MIL “OFF” on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.

D

A history DTC P0107 will clear after 40 consecutive
warm-up cycles have occurred without a fault.

D

DTC P0107 can be cleared by using the Tech 2 “Clear
Info” function.

Diagnostic Aids

Check for the following conditions:

D

Check for intermittent codes.

D

The MAP sensor shares a 5 Volt reference with the
Fuel Tank Pressure Sensor.  If these codes are also
set, it could indicate a problem with the 5 Volt reference
circuit .

D

The MAP sensor shares a ground with the Fuel Tank
Pressure Sensor, the ECT sensor, and the
Transmission Fluid Temperature sensor.

D

Poor connection at PCM – Inspect harness connectors
for backed-out terminals, improper mating, broken

SECTION

6E–130

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

locks, improperly formed or damaged terminals, and
poor terminal-to-wire connection.

D

Damaged harness – Inspect the wiring harness for
damage.  If the harness appears to be OK, observe the
MAP display on the Tech 2 while moving connectors
and wiring harnesses related to the sensor.  A change
in the display will indicate the location of the fault.

If DTC P0107 cannot be duplicated, the information
included in the Failure Records data can be useful in
determining vehicle mileage since the DTC was last set.
If it is determined that the DTC occurs intermittently,
performing the DTC P0107 Diagnostic Chart may isolate
the cause of the fault.

DTC P0107 – MAP Sensor Circuit  Low Voltage



Step

Action

Value(s)

Yes

No

1

Was the “On-Board Diagnostic (OBD) System Check”
performed?

—

Go to

Step 2

Go to

OBD

System

Check

2

1. Ignition “ON”, engine “OFF”.
2. With the throttle closed, observe the MAP value

displayed on the Tech 2.

Is the MAP value near the specified value?

0 V    11 kPa

at sea level

Go to

Step 4

Go to

Step 3

3

1. Ignition “ON”, engine “OFF”.
2. Review and record Tech 2 Failure Records data.
3. Operate the vehicle within Failure Records

conditions as noted.

4. Using a Tech 2, monitor “DTC” info for DTC P0107.

Does the Tech 2 indicate DTC P0107 failed?

—

Go to

Step 4

Refer to

Diagnostic

Aids

4

1. Ignition “OFF”.
2. Disconnect the MAP sensor electrical connector.
3. Jumper the 5 volt reference circuit and the MAP

signal together at the MAP sensor harness
connector.

4. Ignition “ON”.
5. Observe the MAP value displayed on the Tech 2.

Is the MAP value near the specified value? (If no, start
with diagnosis chart for other sensors in the circuit and
see if 5V returns.)

5 V 104 kPa

Go to

Step 10

Go to

Step 5

5

1. Disconnect the jumper.
2. Connect a test light between B+ and the MAP

sensor signal circuit at the MAP sensor  harness
connector.

3. Observe the MAP value displayed on the Tech 2.

Is the MAP value near the specified value.

5 V 104 kPa

Go to

Step 6

Go to

Step 8

6

1. Ignition “OFF”.
2. Disconnect the PCM and check the 5 volt reference

circuit for an open or short to ground.

3. If the 5 volt reference circuit is open or shorted to

ground, repair it as necessary.

Was the 5 volt reference circuit open or shorted to
ground?

—

Verify repair

Go to

Step 7

7

Check the 5 volt reference circuit for a poor connection
at the PCM and replace the terminal if necessary.

Did the terminal require replacement?

—

Verify repair

Go to

Step 11
