BRAKE CONTROL SYSTEM

5A–7

Pressure Reduction

Once the brake pressure is isolated, it must be reduced
to allow the wheels to unlock. This is accomplished by
dumping a portion of the brake fluid pressure into a low
pressure accumulator.
The microprocessor activates the normally closed dump
valve to open, allowing fluid from the wheels to be
dumped into the accumulator. This is done with very
short activation pulses opening and closing the dump
valve passageway. Brake pressure is reduced at the

wheel and allows the wheel to begin rotating again. The
fluid from the brake piston is stored in the accumulator
against spring pressure and a portion of this fluid also
primes the pump.
The dump valves are operated independently to control
the deceleration of the wheel. At this point, the brake
pedal is isolated from the base brake system, the
hydraulic control unit pumps are primed and the
attenuators are ready to pump fluid.

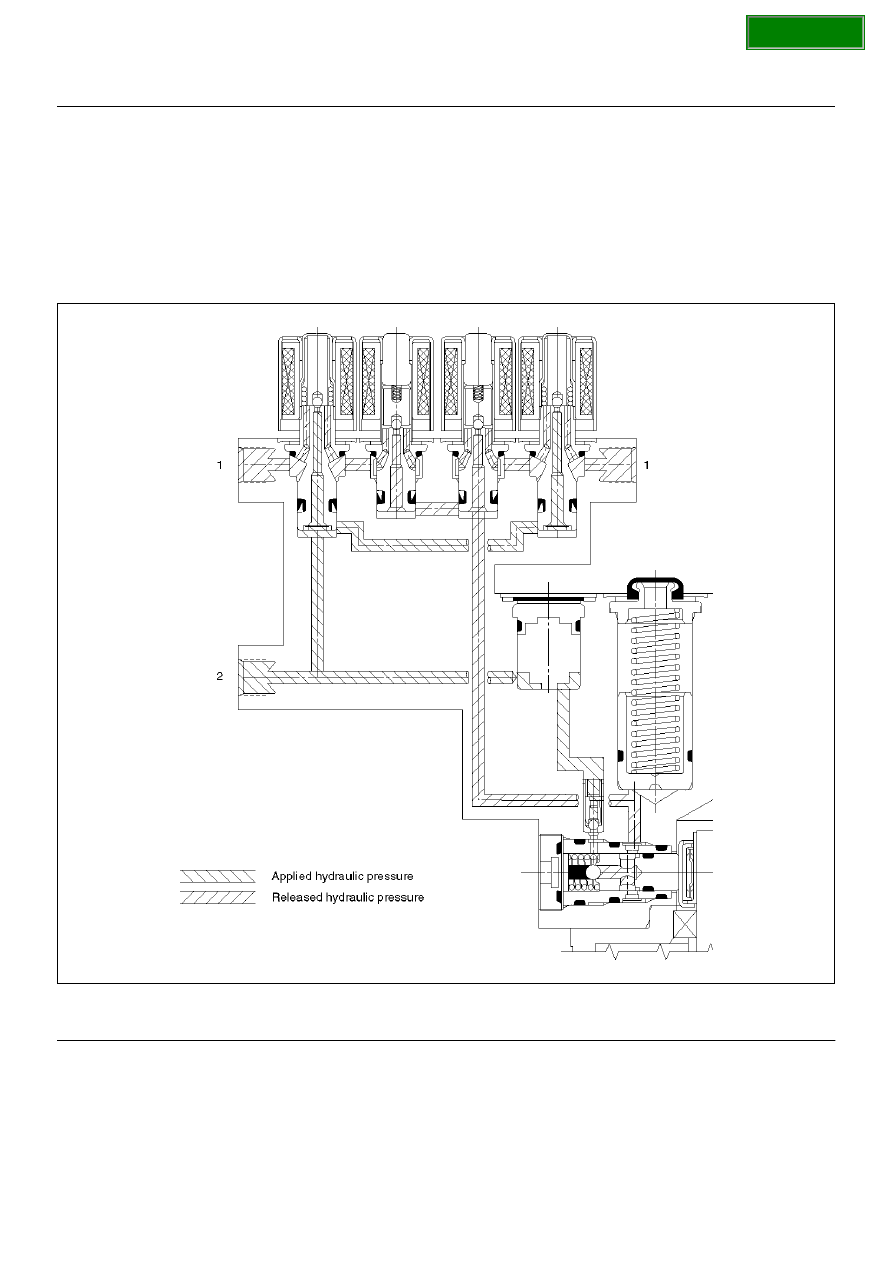

C05RW009

Legend

EndOFCallout

(1) Brake

(2) Master Cylinder

SECTION

5A–8

BRAKE CONTROL SYSTEM

Pressure Increase (Re-apply)

The re-apply sequence is initiated to achieve optimum
braking. The isolation valve is momentarily opened to
allow master cylinder and pump pressure to reach the
brakes. This controlled pressure rise continues until the
wheel is at optimum brake output or until the brake
pressure is brought up to the master cylinder output
pressure.
If more pressure is required, more fluid is drawn from
the master cylinder and applied to the brakes. The

driver may feel slight pedal pulsations, or pedal drop,
this is normal and expected.
As fluid is re-applied to the brakes, the wheel speed will
reduce. If the wheels approach imminent lockup again,
the module will isolate, dump and re-apply again. This
cycle occurs in millisecond intervals, allowing several
cycles to occur each second. It is a much faster and
more controlled way of “pumping the pedal".

C05RW014

Legend

EndOFCallout

(1) Brake

(2) Master Cylinder

SECTION

BRAKE CONTROL SYSTEM

5A–9

Brake Release

At the end of the anti-lock stop, when the brake pedal is
released, the pump will remain running for a short time
to help drain any fluid from the accumulators. As this
fluid returns into the system, the spring forces the piston

back to its original position.
The isolation valve opens and fluid may return to the
master cylinder. Conventional braking is then resumed.

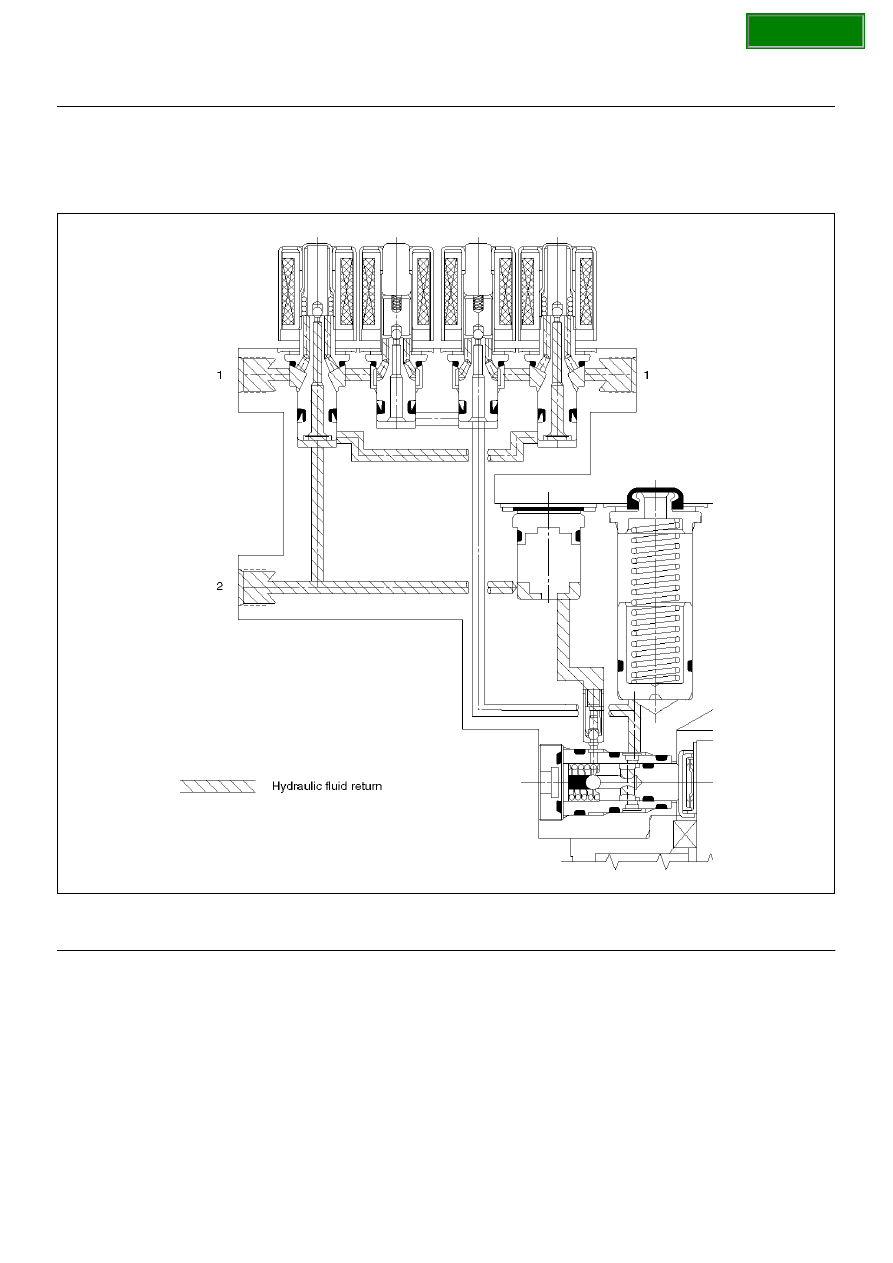

C05RW013

Legend

EndOFCallout

(1) Brake

(2) Master Cylinder

SECTION

5A–10

BRAKE CONTROL SYSTEM

System Components

Electronic Hydraulic Control Unit (EHCU), three Wheel
Speed Sensors, Warning Light, and G-sensor.

Electronic Hydraulic Control Unit (EHCU)

The EHCU consists of ABS control circuits, fault
detector, and a fail-safe.  It drives the hydraulic unit
according to the signal from each sensor, cancelling
ABS to return to normal braking when a malfunction has
occurred in the ABS.
The EHCU has a self-diagnosing function which can
indicate faulty circuits during diagnosis.
The EHCU is mounted on the engine compartment rear
right side.  It consists of a Motor, Plunger Pump,
Solenoid Valves.
Solenoid Valves: Reduces or holds the caliper fluid
pressure for each front disc brake or both rear disc
brakes according to the signal sent from the EHCU.
Reservoir: Temporarily holds the brake fluid that returns
from the front and rear disc brake caliper so that
pressure of front disc brake caliper can be reduced
smoothly.
Plunger Pump: Feeds the brake fluid held in the
reservoir to the master cylinder.
Motor: Drives the pump according to the signal from
EHCU.
Check Valve: Controls the brake fluid flow.

ABS Warning Light

825RX048

Vehicles equipped with the Anti-lock Brake System have
an amber “ABS"  warning light in the instrument panel.
The “ABS" warning light will illuminate if a malfunction
in the Anti-lock Brake System is detected by the
Electronic Hydraulic Control Unit (EHCU).   In case of
an electronic malfunction, the EHCU will turn “ON" the
“ABS" warning light  and disable the Anti-lock braking
function.
The “ABS" light will turn “ON" for approximately three

seconds after the ignition  switch is to the “ON" position.
If the “ABS" light stays “ON" after the ignition switch is
the “ON" position,  or comes  “ON" and stays “ON" while
driving, the Anti-lock Brake System should be inspected
for a malfunction according to the diagnosis procedure.

Wheel Speed Sensor

It consists of a sensor and a rotor.   The sensor is
attached to the knuckle on the front wheels and to the
rear axle case on the rear differential.
The rotor is press-fit in the axle shaft.
The flux generated from electrodes magnetized by a
magnet in the sensor varies due to rotation of the rotor,
and the electromagnetic induction generates alternating
voltage in the coil.   This voltage draws a “sine curve"
with the frequency proportional to rotor speed and it
allows detection of wheel speed.

G-Sensor

The G-sensor installed inside the EHCU detects the
vehicle deceleration speed  and sends a signal to the
EHCU.  In 4WD operation, all four wheels may  be
decelerated in almost the same phase, since all wheels
are connected mechanically.
This tendency is noticeable particularly on roads with
low friction coefficient, and the ABS control is  adversely
affected.
The G-sensor judges whether the friction coefficient of
road surface is low or high, and  changes the EHCU's
operating system to ensure ABS control.

Normal and Anti-lock Braking

Under normal driving conditions, the Anti-lock Brake
System functions the same as a  standard power
assisted brake system. However, with the detection of
wheel lock-up,  a slight bump or kick-back will be felt in
the brake pedal. This pedal “bump" will be followed by a
series of short pedal pulsations which occurs in rapid
succession.  The brake pedal pulsation will continue
until there is no longer a need for the anti-lock function
or until the vehicle is stopped. A slight ticking or popping
noise may be heard during brake applications  when the
Anti-lock features is being used.
When the Anti-lock feature is being used, the brake
pedal may rise even as the brakes are being applied.
This is also normal.  Maintaining a constant force on the
pedal will provide the shortest stopping distance.

Brake Pedal Travel

Vehicles equipped with the Anti-lock Brake System may
be stopped by applying normal force  to the brake pedal.
Although there is no need to push the pedal beyond the
point where it stops or holds the vehicle, by applying
more force the pedal will continue to travel toward the
floor.
This extra brake pedal travel is normal.
