4D2–35

TRANSFER CASE (TOD)

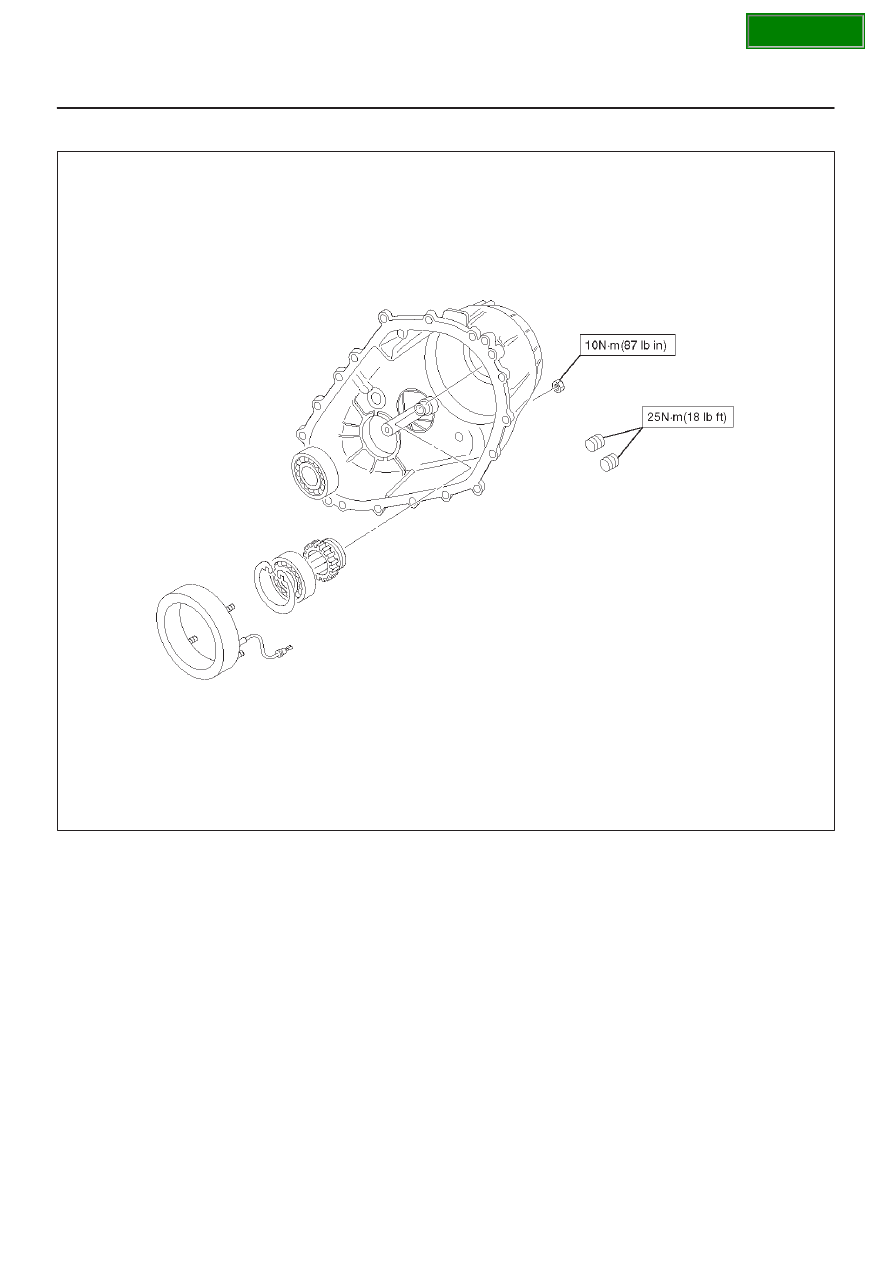

Torque Specifications (Cont’d)

E04R200003

SECTION

4D2–36 TRANSFER CASE (TOD)

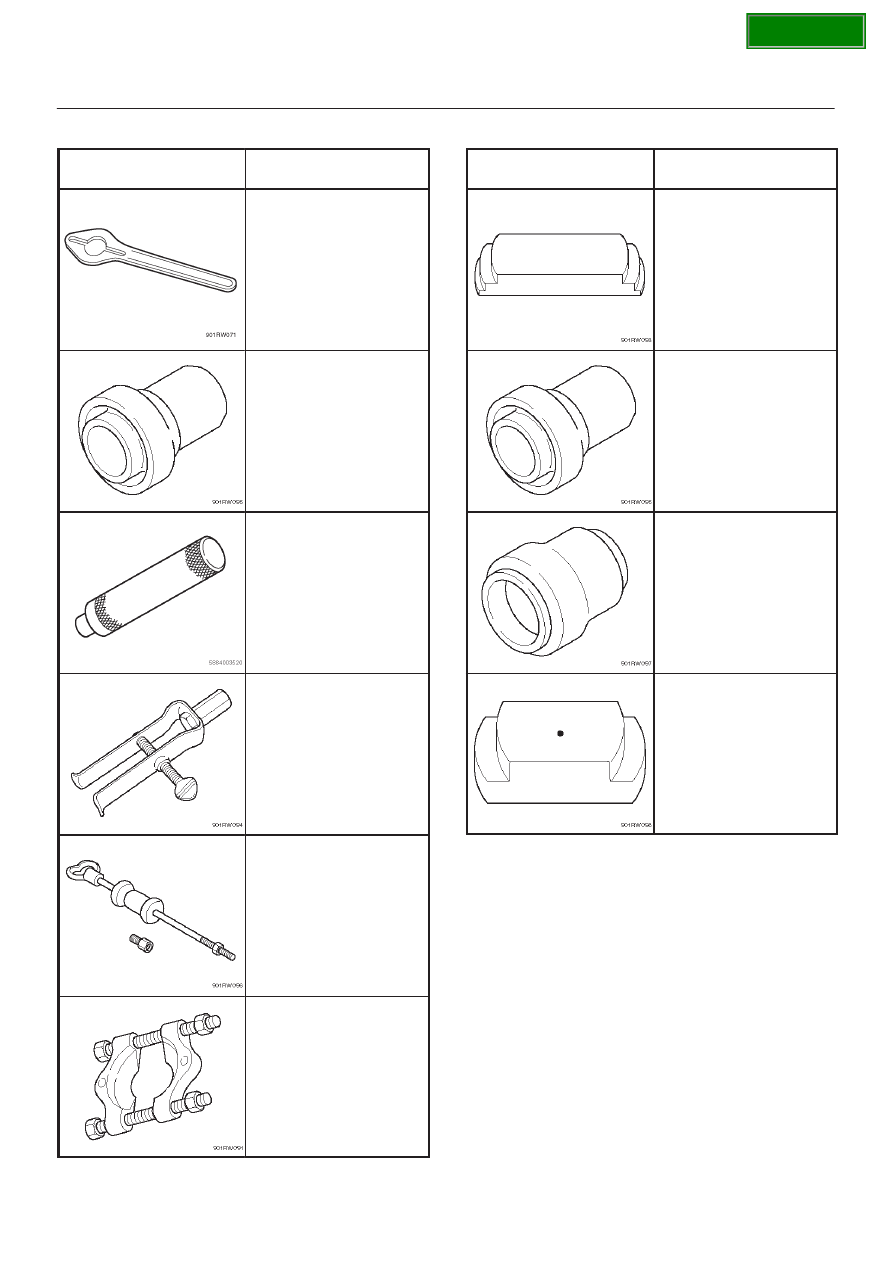

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J–8614–11

Flange Holder

J–42804

Rear Oil Seal Installer

J–33951

Shift Shaft Oil Seal

Installer

J–42805

Bearing Remover

J–2619–01

Slide Hammer

J–22912–01

Bearing Remover

ILLUSTRATION

TOOL NO.

TOOL NAME

J–42806

Ring Gear Remover

J–42807

Front Output Shaft Oil

Seal Installer

J–42808

Input Shaft Oil Seal

Installer

J–42809

Ring Gear Installer

SECTION

BRAKE CONTROL SYSTEM

5A–1

FRONTERA

BRAKES

CONTENTS

Brake Control System.................................... 5A - 1
Anti-lock Brake System.................................. 5B - 1
Power-assisted Brake System....................... 5C - 1
Parking Brake System ................................... 5D - 1

BRAKE CONTROL SYSTEM

CONTENTS

Service Precaution......................................... 5A - 2
General Description ....................................... 5A - 3

Functional Description  ............................... 5A - 4
System Components  ................................. 5A - 10
Electronic Hydraulic Control Unit (EHCU)  . 5A - 10
ABS Warning Light  .................................... 5A - 10
Wheel Speed Sensor ................................. 5A - 10
G-Sensor  ................................................... 5A - 10
Normal and Anti-lock Braking  .................... 5A - 10
Brake Pedal Travel  .................................... 5A - 10
Acronyms and Abbreviations  ..................... 5A - 11

General Diagnosis ......................................... 5A - 11

General Information  ................................... 5A - 11
ABS Service Precautions  .......................... 5A - 11
Computer System Service Precautions  ..... 5A - 11
General Service Precautions  ..................... 5A - 11
Note on Intermittents  ................................. 5A - 12
Test Driving ABS Complaint Vehicles  ....... 5A - 12
“ABS" Warning Light  .................................. 5A - 12
Normal Operation  ...................................... 5A - 12
Tech 2 Scan Tool  ...................................... 5A - 13
DATA LIST  ................................................ 5A - 16
ACTUATOR TEST ..................................... 5A - 17
Tech 2 Service Bleed  ................................ 5A - 21
Basic Diagnostic Flow Chart ...................... 5A - 23
Basic Inspection Procedure  ....................... 5A - 23

EHCU Connector Pin-out Checks.................. 5A - 24

Circuit Diagram  .......................................... 5A - 25
Connector List  ........................................... 5A - 27
Part Location  ............................................. 5A - 29

Symptom Diagnosis....................................... 5A - 30

Chart A-1 ABS Works Frequently But

Vehicle Does Not Decelerate ................... 5A - 30

Chart TA-1 ABS Works Frequently But

Vehicle Does Not Decelerate
(Use TECH 2)  .......................................... 5A - 31

Chart A-2 Uneven Braking Occurs

While ABS Works  .................................... 5A - 31

Chart TA-2 Uneven Braking Occurs

While ABS Works (Use TECH 2)  ............. 5A - 31

Chart A-3, TA-3  The Wheels Are Locked  . 5A - 32

Chart A-4 Brake Pedal Feed Is Abnormal  . 5A - 32
Chart A-5, TA-5 Braking Sound

(From EHCU) Is Heard While Not Braking  5A - 33

Diagnosis By “ABS"  Warning Light

Illumination Pattern ...................................... 5A - 36

Diagnostic Trouble Codes (DTCs) ............. 5A - 37
Chart B-1 With the key in the ON position

(Before starting the engine).   Warning
light (W/L) is not activated. ....................... 5A - 39

Chart B-2 CPU Error (DTC 14 (Flash out) /

C0271, C0272, C0273, C0284 (Serial
communications)) ..................................... 5A - 39

Chart B-3 Low or High Ignition Voltage

(DTC 15 (Flash out) / C0277, 0278 (Serial
communications)) ..................................... 5A - 40

Chart B-4 Excessive Dump Time

(DTC 17 (Flash out) / C0269 (Serial
communications)) ..................................... 5A - 40

Chart B-5 Excessive Isolation Time

(DTC 18 (Flash out) / C0274 (Serial
communications)) ..................................... 5A - 40

Chart B-6 G-Sensor Output Failure

(DTC 21 (Flash out) / C0276 (Serial
communications)) ..................................... 5A - 41

Chart B-7 Brake Switch Failure

(DTC 22 (Flash out) / C0281 (Serial
communications)) ..................................... 5A - 41

Chart B-8 2WD Controller in 4WD Vehicle

Controller (DTC 13 (Flash out) /  C0285
(Serial communications)), 4WD State
Input Signal Failure (DTC 24 (Flash out) /
C0282 (Serial communications)) .............. 5A - 42

Chart B-9 Pump Motor Failure (DTC 32

(Flash out) / C0267, C0268 (Serial
communications)) ..................................... 5A - 42

Chart B-10 EHCU Valve Relay Failure

(DTC 35 (Flash out) / C0265, C0266 (Serial
communications)) ..................................... 5A - 43

Chart B-11 FL Isolation Solenoid Coil

Failure (DTC 41 (Flash out) / C0245,
C0247 (Serial

SECTION

5A–2

BRAKE CONTROL SYSTEM

communications))  .................................... 5A - 43

Chart B-12 FL Dump Solenoid Coil

Failure (DTC 42 (Flash out) / C0246,
C0248 (Serial communications))  ............. 5A - 43

Chart B-13 FR Isolation Solenoid Coil

Failure (DTC 43 (Flash out) /
C0241, C0243 (Serial communications))  . 5A - 44

Chart B-14 FR Dump Solenoid Coil

Failure (DTC 44(Flash out) /
C0242, C0244 (Serial communications))  . 5A - 44

Chart B-15 Rear Isolation Solenoid

Coil Failure (DTC 45 (Flash out) / C0251,
C0253 (Serial communications))  ............. 5A - 44

Chart B-16 Rear Dump Solenoid Coil

Failure (DTC 46 (Flash out) /
C0252, C0254 (Serial communications))  . 5A - 45

Chart B-17 FL Speed Sensor Open or

Shorted (DTC 51 (Flash out) / C0225 (Serial
communications))  .................................... 5A - 45

Chart B-18 FR Speed Sensor Open or

Shorted (DTC 52 (Flash out) / C0221 (Serial
communications))  .................................... 5A - 46

Chart B-19 Rear Speed Sensor Open or

Shorted (DTC 53 (Flash out) / C0235 (Serial
communications))  .................................... 5A - 47

Chart B-20 FL Speed Sensor Missing

(DTC 61 (Flash out) / C0226, C0227 (Serial
communications)) ..................................... 5A - 48

Chart B-21 FR Speed Sensor Missing

(DTC 62 (Flash out) / C0222, C0223 (Serial
communications)) ..................................... 5A - 49

Chart B-22 Rear Speed Sensor Missing

(DTC 63 (Flash out) / C0236, C0237 (Serial
communications))......................................  5A - 50

Chart B-23 Simultaneous Drop-out of

Front Speed Sensor Signal (DTC 64
(Flash out) / C0229 (Serial
communications)) ..................................... 5A - 51

Chart B-24 Wheel Speed Input

Abnormality (DTC 65 (Flash out) /
C0238 (Serial communications)) .............. 5A - 52

Chart C-1-1 FL Sensor Output Inspection

Procedure ................................................ 5A - 53

Chart C-1-2 FR Sensor Output Inspection

Procedure ................................................ 5A - 54

Chart C-1-3 Rear Sensor Output Inspection

Procedure ................................................ 5A - 55

Chart TC-1 Sensor Output Inspection

Procedure ................................................ 5A - 55
