Opel Frontera UE. Manual - part 1376





BRAKE CONTROL SYSTEM

5A–3

General Description

The Anti-lock Brake System (ABS) works on all four
wheels. A combination of wheel speed  sensor and
Electronic Hydraulic Control Unit (EHCU) can determine
when a wheel is about to stop turning and adjust  brake
pressure to maintain best braking.

This system helps the driver maintain greater control of
the  vehicle under heavy braking conditions.

NOTE:  The Electronic Hydraulic Control Unit (EHCU)
comprises the Hydraulic Unit (H/U) and the coil
Integrated Module.

C05RW004

Legend

EndOFCallout

(1) Electronic
(2) Hydraulic
(3) Hydraulic Unit (H/U)
(4) Coil Integrated Module

(5) Front Wheel Speed Sensor
(6) Rear Wheel Speed Sensor
(7) Proportioning and Bypass (P&B) Valve

SECTION

5A–4

BRAKE CONTROL SYSTEM

Functional Description

Hydraulic Unit (H/U)

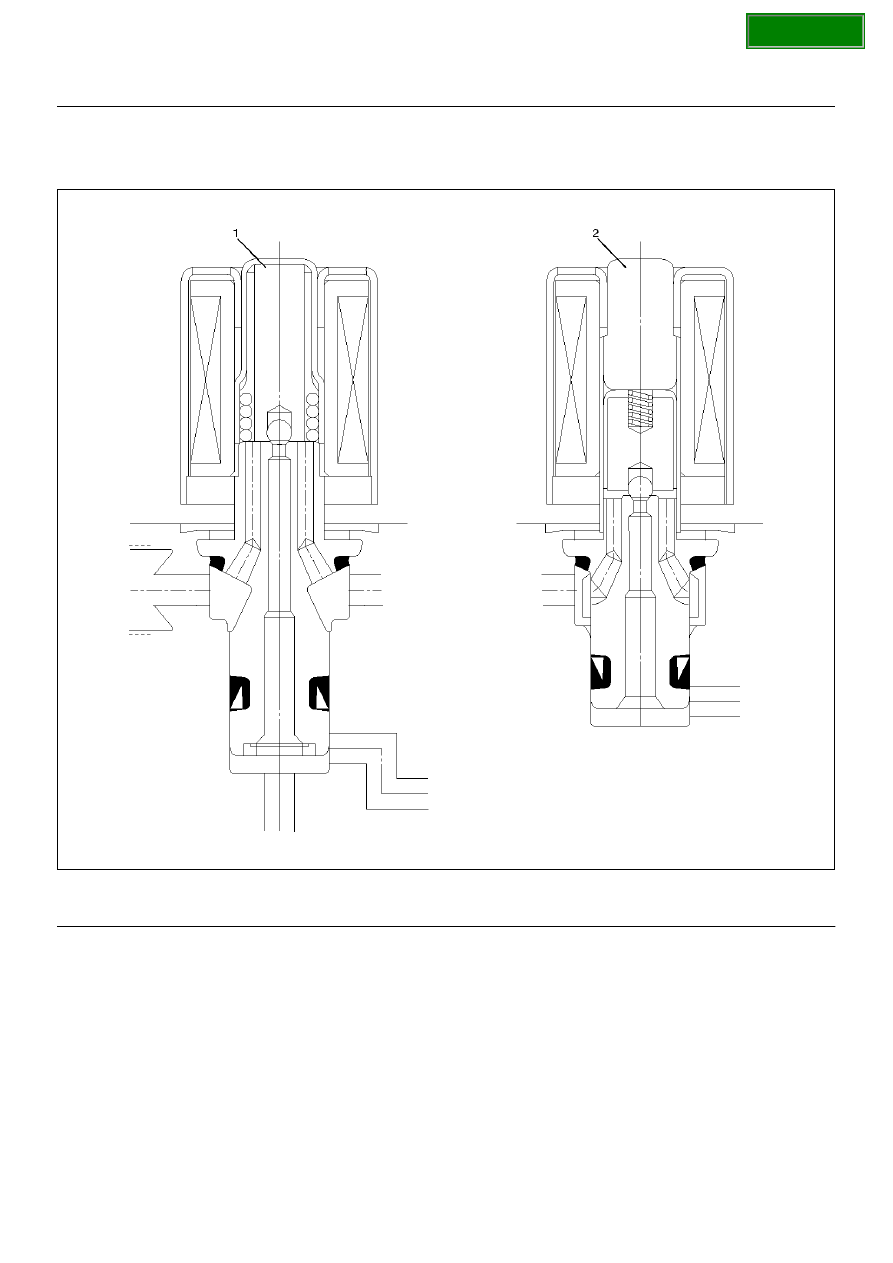

Solenoid Valve

C05RW012

Legend

EndOFCallout

(1) Isolation Valve

(2) Dump valve

SECTION

BRAKE CONTROL SYSTEM

5A–5

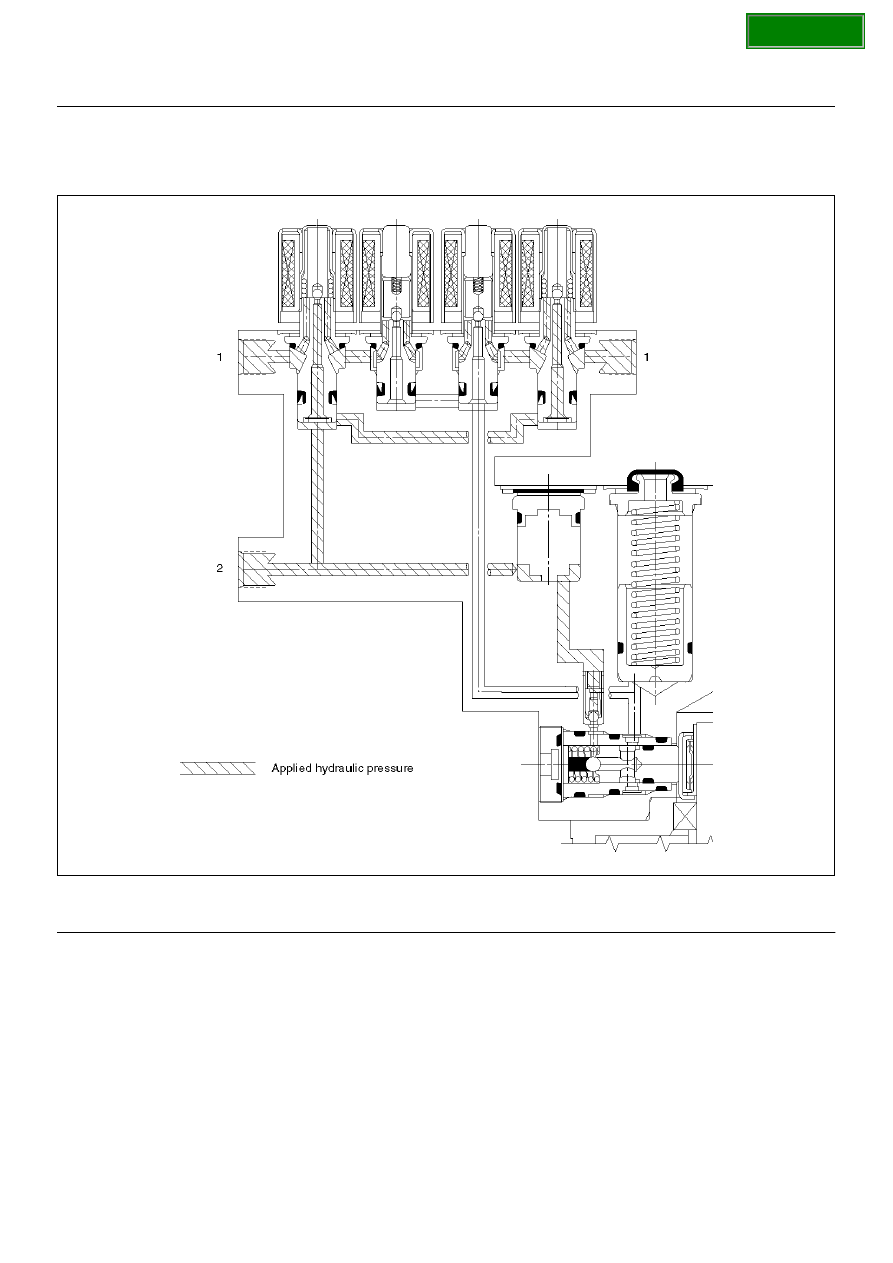

Normal Braking

During normal (non anti-lock) braking, the solenoid
valves are without current and closed due to spring
force.

Brake fluid travels through the centre of the normally
open isolation valve around the normally closed dump
valve and on to the brake pistons.

C05RW010

Legend

EndOFCallout

(1) Brake

(2) Master Cylinder

SECTION

5A–6

BRAKE CONTROL SYSTEM

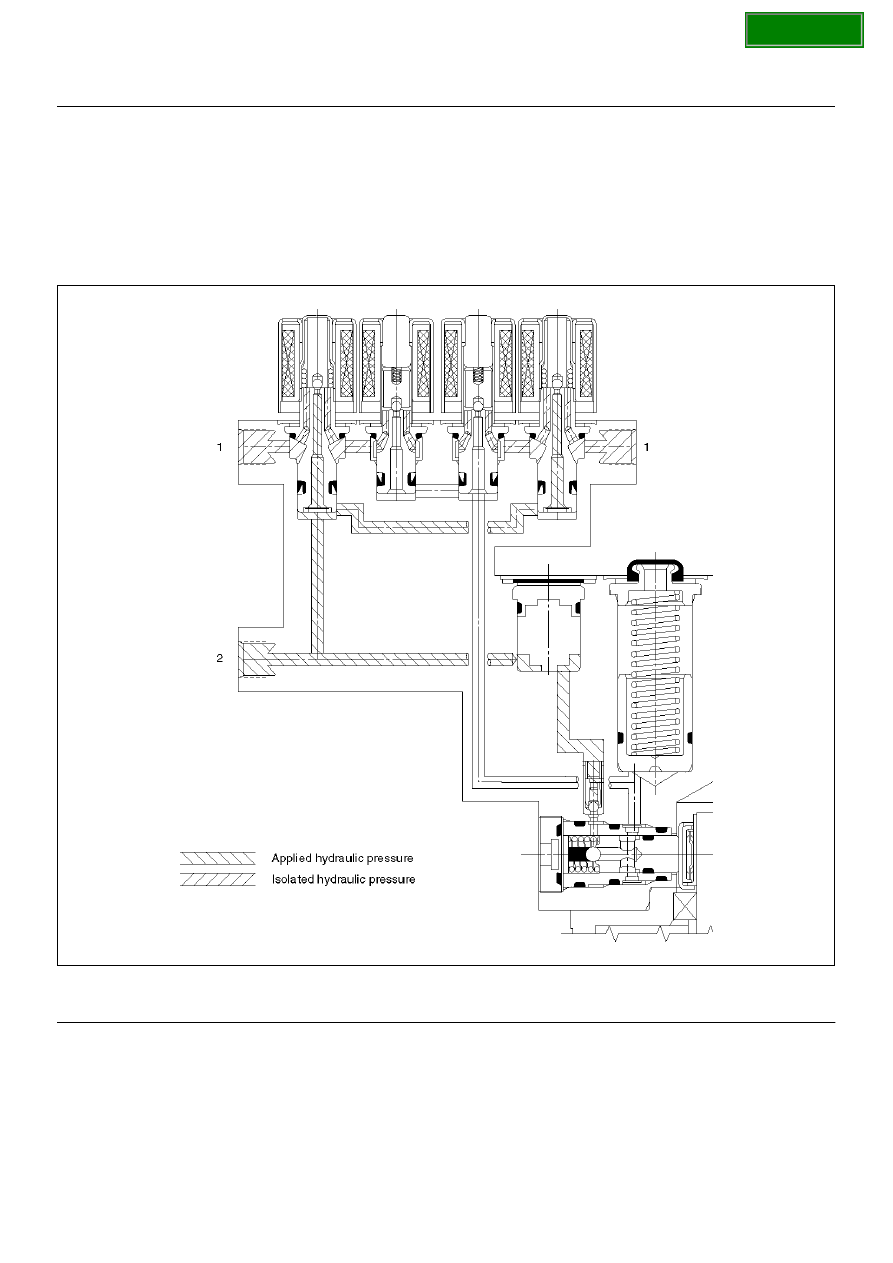

Pressure Isolation (Pressure Maintain)

The electro-hydraulic control unit is activated when the
brakes are applied which sends a signal to the coil
integrated module to prepare for a possible anti-lock
stop.
If the information from the wheel speed sensors
indicates excessive wheel deceleration (imminent
lockup), the first step in the anti-lock sequence is to
isolate the brake pressure being applied by the brake

pedal.
The microprocessor in the coil integrated module sends
a voltage to the coil to energize and close the isolation
valve. This prevents any additional fluid pressure
applied by the brake pedal from reaching the wheel.
With the isolation valves closed, further unnecessary
increase in the brake pressure is therefore prevented.

C05RW011

Legend

EndOFCallout

(1) Brake

(2) Master Cylinder

SECTION
