4C–6

DRIVE SHAFT SYSTEM

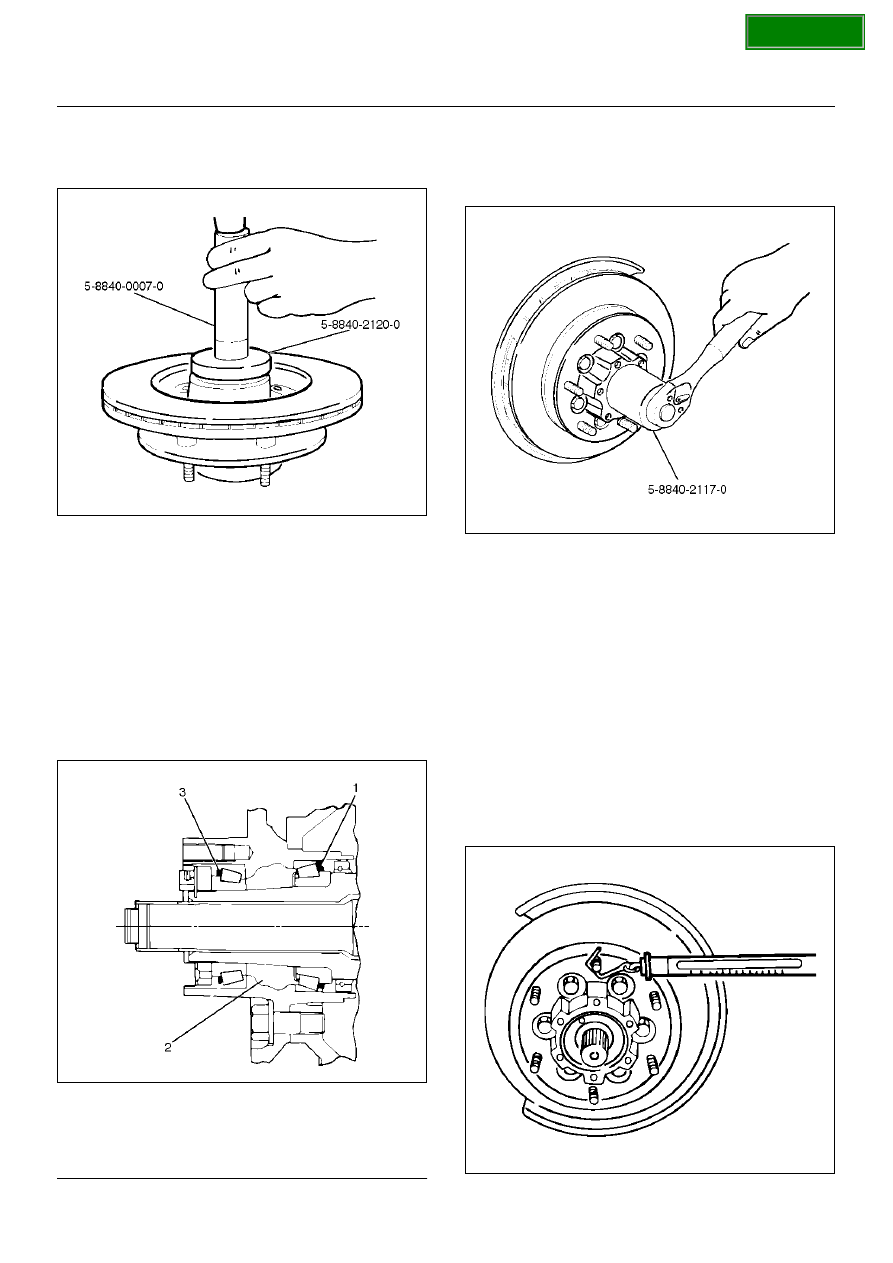

5. Apply grease (NLGI No.2 or equivalent) to the lip

portion, then install oil seal by using installer 5–
8840–2120–0 and grip 5–8840–0007–0.

411RW008

6. Install ABS sensor ring, then tighten the bolts to the

specified torque.

Torque: 18N·m (1.8kg·m/13lbft)

7. Install hub and disc assembly.

• Apply grease in the hub.
• Apply wheel bearing type grease NLGI No. 2 or

equivalent to the outer and inner bearing.

Grease Amount

Hub: 35g (1.23oz)

Outer bearing: 10 g (0.35oz)

Inner bearing: 15g (0.53oz)

411RS009

Legend

EndOFCallout

8. Install hub nut.

Turn to the place where there is a chamfer in the
tapped hole to the outer side, then attach the nut by
using front hub nut wrench 5–8840–2117–0.

411RW005

Preload Adjustment

1. Tighten the hub nut to 29 N·m (3.0kg·m/22 lbft),

then fully loosen the nut.

2. Tighten the hub nut to the value given below,

using a spring scale on the wheel pin.

New bearing and New oil seal

Bearing Preload: 20– 25N (2.0– 2.5kg·m/4.4–

5.5lb)

Used bearing and New oil seal

Bearing Preload: 12– 18N (1.2– 1.8kg·m/2.6–

4.0lb)

If the measured bearing preload is outside the
specifications, adjust it by loosening or tightening
the bearing nut.

411RS011

(1) Inner Bearing
(2) Hub
(3) Outer Bearing

SECTION

DRIVE SHAFT SYSTEM

4C–7

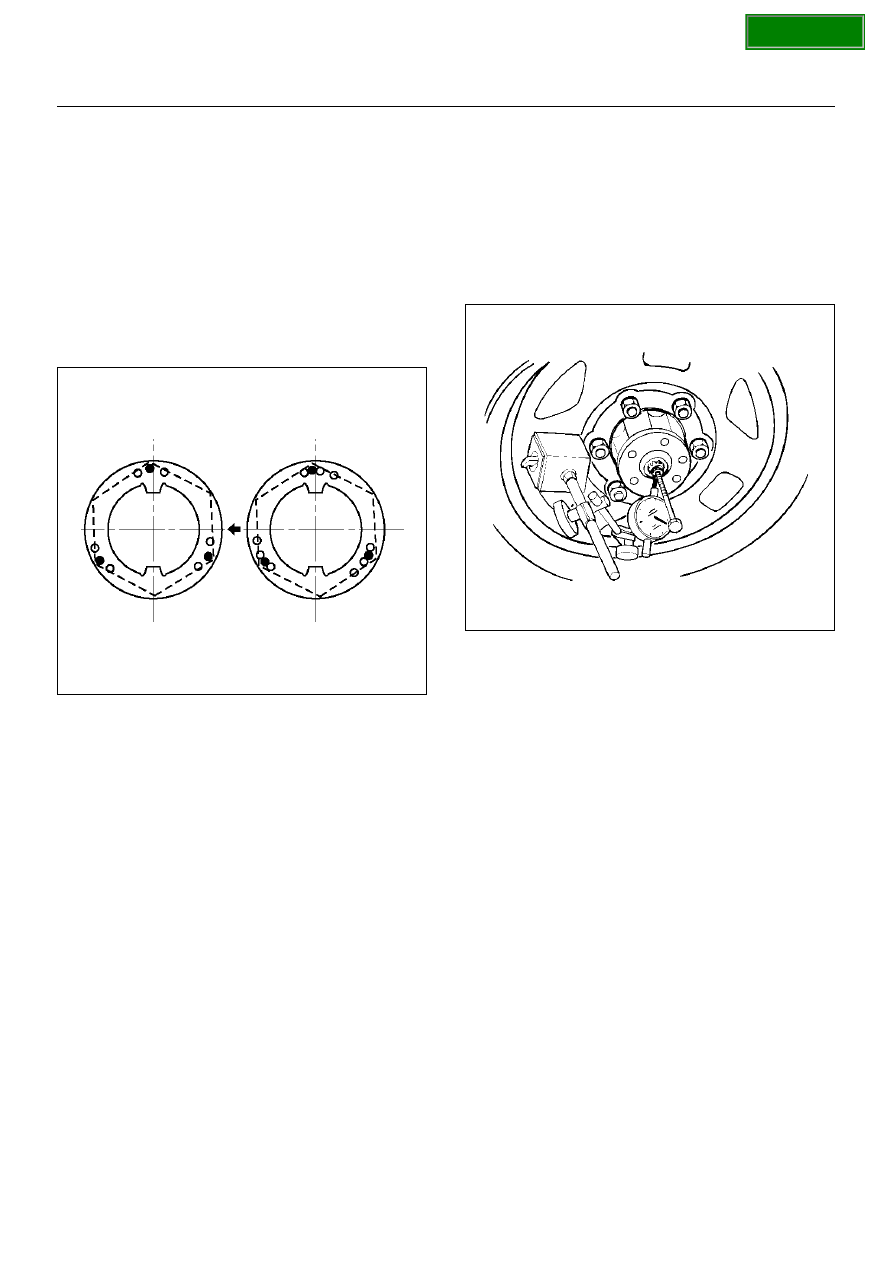

9. Install lock washer and lock screw in the following

manner.

• Turn the side with larger diameter of the tapered

bore to the vehicle outer side, then attach the
washer.

• If the bolt holes in the lock plate are not aligned

with the corresponding holes in the nut, reverse
the lock plate.

• If the bolt holes are still out of alignment, turn in

the nut just enough to obtain alignment.

• Screw is to be fastened tightly so its head may

come lower than the surface of the washer.

411RS012

10. Apply adhesive (LOCTITE 515 or equivalent) to

both joining flange faces then install hub flange.

11. Install snap ring and shim.

• Adjust the clearance between the free wheeling

hub body and the snap ring.

Clearance: 0mm–0.3mm (0in–0.012in)

Shims Available: 0.2mm, 0.3mm, 0.5 mm, 1.0 mm

(0.008in, 0.012in, 0.020in, 0.039in)

411RW002

12. Install hub cap.

13. Tighten the bolts to the specified torque.

Torque: 59N·m (6.0kg·m/43lbft)

SECTION

4C–8

DRIVE SHAFT SYSTEM

Front Drive Shaft Joint

Front Drive Shaft Joints
Replacement

• Refer to Front Drive Axle Assembly Replacement in

this section, and refer to Front Hub and Disc Overhaul
in Suspension section.

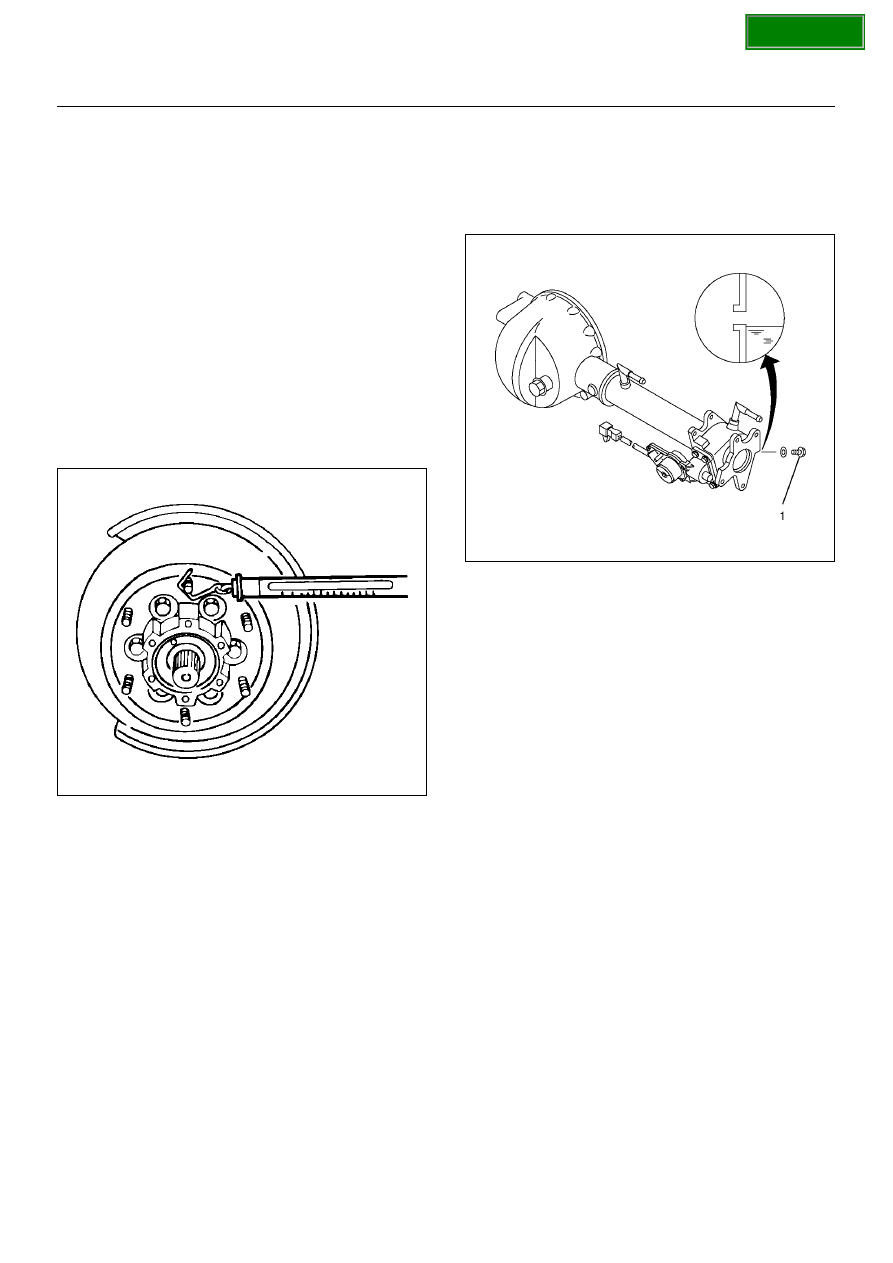

Front Hub Bearing Preload Check

Check the hub bearing preload at the wheel pin.

New bearing and New oil seal:

20 – 25N (2.0 – 2.5kg·m/4.4 – 5.5lb)

Used bearing and New oil seal:

12 – 18N (1.2 – 1.8kg·m/2.6 – 4.0lb)

411RS011

Inspection Of Shift On The Fly System Gear
Oil

412RY00008

1. Open filler plug and make sure that the oil up to the

plug port.
If the oil is short, replenish with gear oil GL–5 grade.

2. Tighten the filler plug to specified torque.

Torque:78 N·m (8.0kg·m/58 lbft)

SECTION

DRIVE SHAFT SYSTEM

4C–9

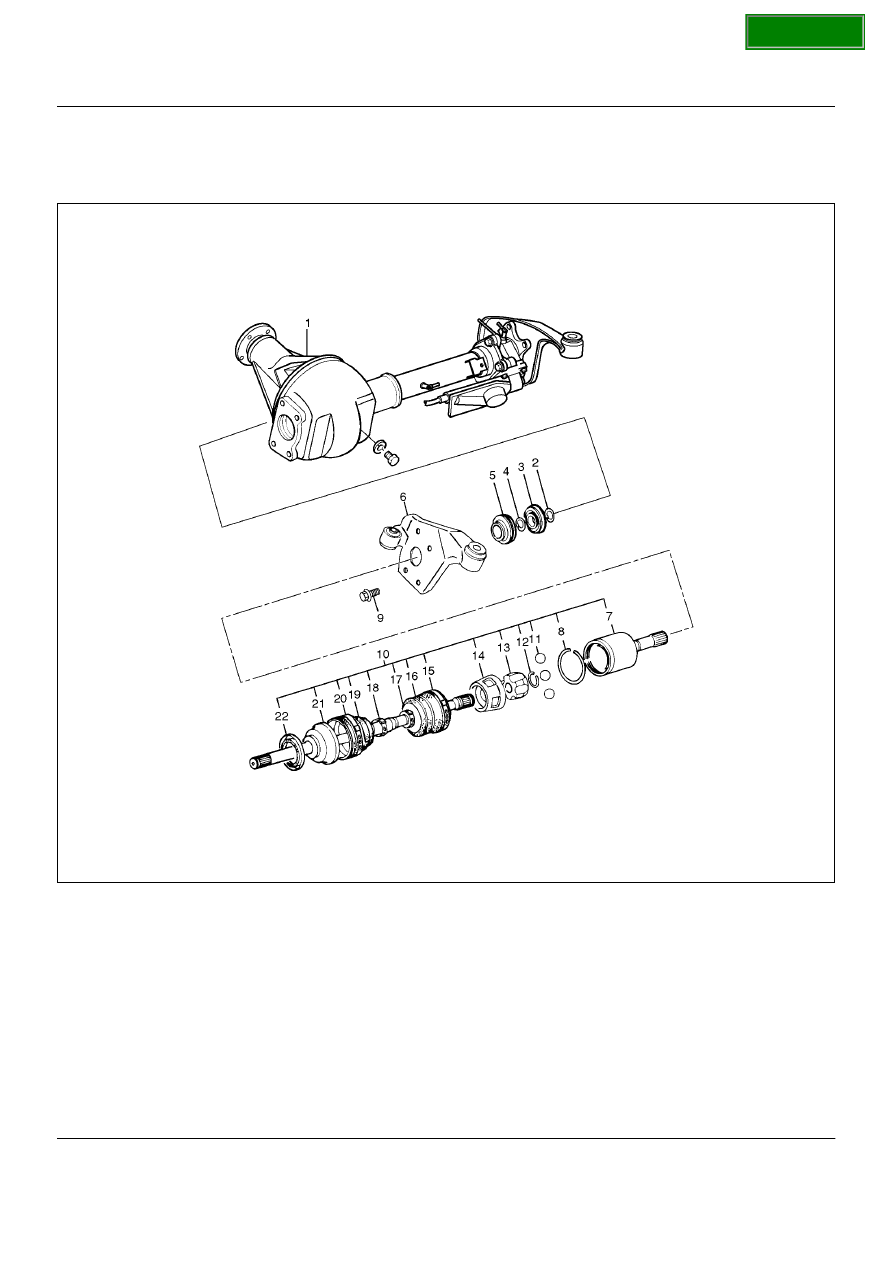

Front Axle Drive Shaft

Front Axle Drive Shaft and Associated Parts

412R100004

Legend

EndOFCallout

(1) Axle Case and  Differential
(2) Snap Ring
(3) Bearing
(4) Snap Ring
(5) Oil Seal
(6) Bracket
(7) DOJ Case
(8) Circlip
(9) Bolt

(10) Drive shaft Joint Assembly
(11) Ball

(12) Snap Ring
(13) Ball Retainer
(14) Ball Guide
(15) Band
(16) Bellows
(17) Band
(18) Band
(19) Bellows
(20) Band
(21) BJ Shaft
(22) Dust Seal

SECTION
