DRIVE LINE CONTROL SYSTEM (TOD)

4B2–56

Step

Action

Yes

No

1

1. Turn on the starter switch.
2. Set the transfer to the 2H mode.

Is the battery voltage observed between terminals 23 and 47?

Go to

Step 2

Go to

Step 5

2

Is 5V observed between terminals 42 and 47?

Go to

Step 3

Go to

Step 6

3

1. Set the transfer to the TOD mode.

Does the voltage between terminals 23 and 47 indicate 0

1V?

Go to

Step 4

The ECU has

failed. Replace

the ECU.

Go to

Step 7

4

Does the voltage between terminals 42 and 47 indicate 0V?

The phenomenon

is not

reproduced.

Refer to

“Troubles

intermittently

observed”.

The shift on the

fly system is

failed (refer to

Section 4B1 and

4C).

Go to

Step 7

5

Does the TOD indicator show the 2H mode?

The ECU has

failed. Replace

the ECU.

Go to

Step 7

See “Trouble

Diagnosis

Depending on

The Status of

TOD Indicator”.

6

Set the transfer to the TOD mode.

Does the voltage between terminals 23 and 47 indicate 0

1V?

The shift on the

fly system has

failed (refer to

Section 4B1 and

4C).

Go to

Step 7

The ECU has

failed. Replace

the ECU.

Go to

Step 7

7

1. Check that all the parts are mounted.
2. Clear the trouble code.

Is this step complete?

Verify the repair.

Return to

Step 7

SECTION

4B2–57

DRIVE LINE CONTROL SYSTEM (TOD)

Check flow

Trouble code

Phenomenon

Standard

11

32

The on/off signal (ADC) line of the

shift on the fly system (front axle

)

P1761

disconnect) is broken, or the line is

short-circuited to the battery.

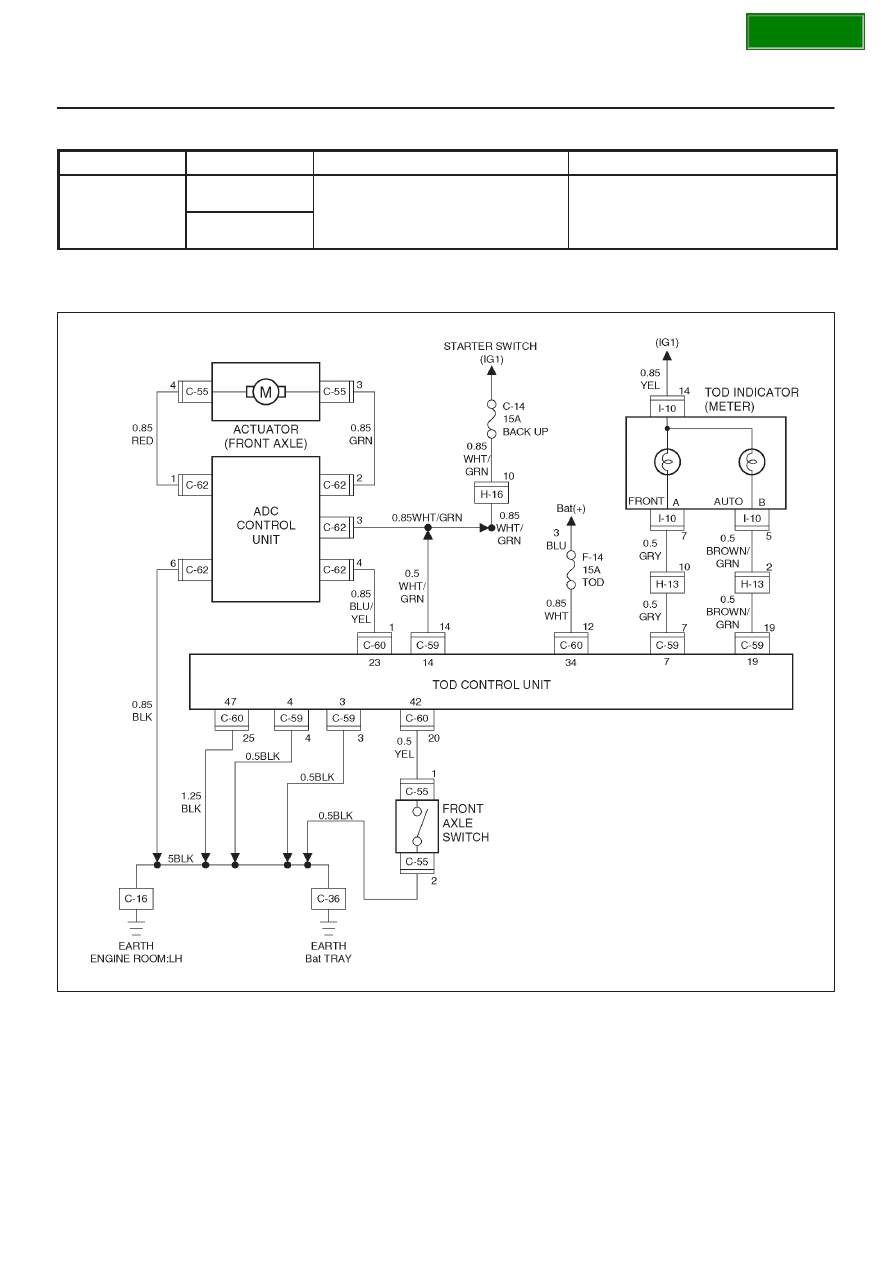

NOTE: The on/off signal line of the shift on the fly system
is broken, or the line is short–circuited to the battery.

D04R100013

SECTION

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–58

Step

Action

Yes

No

1

1. Turn off the starter switch.
2. Disconnect the ECU connector from ECU.
3. Disconnect ADC control unit connector (C–62).

Is the continuity established between terminals (C–60) 1 and
(C–62) 4? After checking, connect the ADC control unit
connector.

Go to

Step 2

The harness is
broken. Repair

the circuit.

Go to

Step 6

2

1. Disconnect the battery ground cable.

Is there the continuity between the connector terminal (C–60) 1
and (C–59) 14?

The harness is

short-circuited to

VIGN. Repair the

circuit.

Go to

Step 6

Go to

Step 3

3

1. Disconnect the battery ground cable.

Is there the continuity between the connector terminal (C–60) 1
and (C–60) 12?

The harness is

short-circuited to

VB. Repair the

circuit.

Go to

Step 6

Go to

Step 4

4

Is the resistance between the connector terminal (C–60) 1 and
(C–60) 25 less than 1

W

?

The harness is

short-circuited to
GND. Repair the

circuit.

Go to

Step 6

Go to

Step 5

5

1. Turn off the starter switch.
2. Connect ECU connector.
3. Turn on the starter switch.
4. Set the transfer to the 2H mode.

Is the battery voltage observed between the connector (C–60)
terminals 1 and 25?

The phenomenon

is not

reproduced.

Refer to

“Trouble

intermittently

observed” or

Refer to

“Sec.4B1 Shift on

the Fly”.

The ECU has

failed. Replace

the ECU.

Go to

Step 6

6

1. Check that all the parts are mounted.
2. Clear the trouble code.

Is this step complete?

Verify the repair.

Return to Step 6

SECTION

4B2–59

DRIVE LINE CONTROL SYSTEM (TOD)

Check flow

Trouble code

Phenomenon

Standard

12

33

 The ADC line is short-circuited to

GND

P1762

GND.

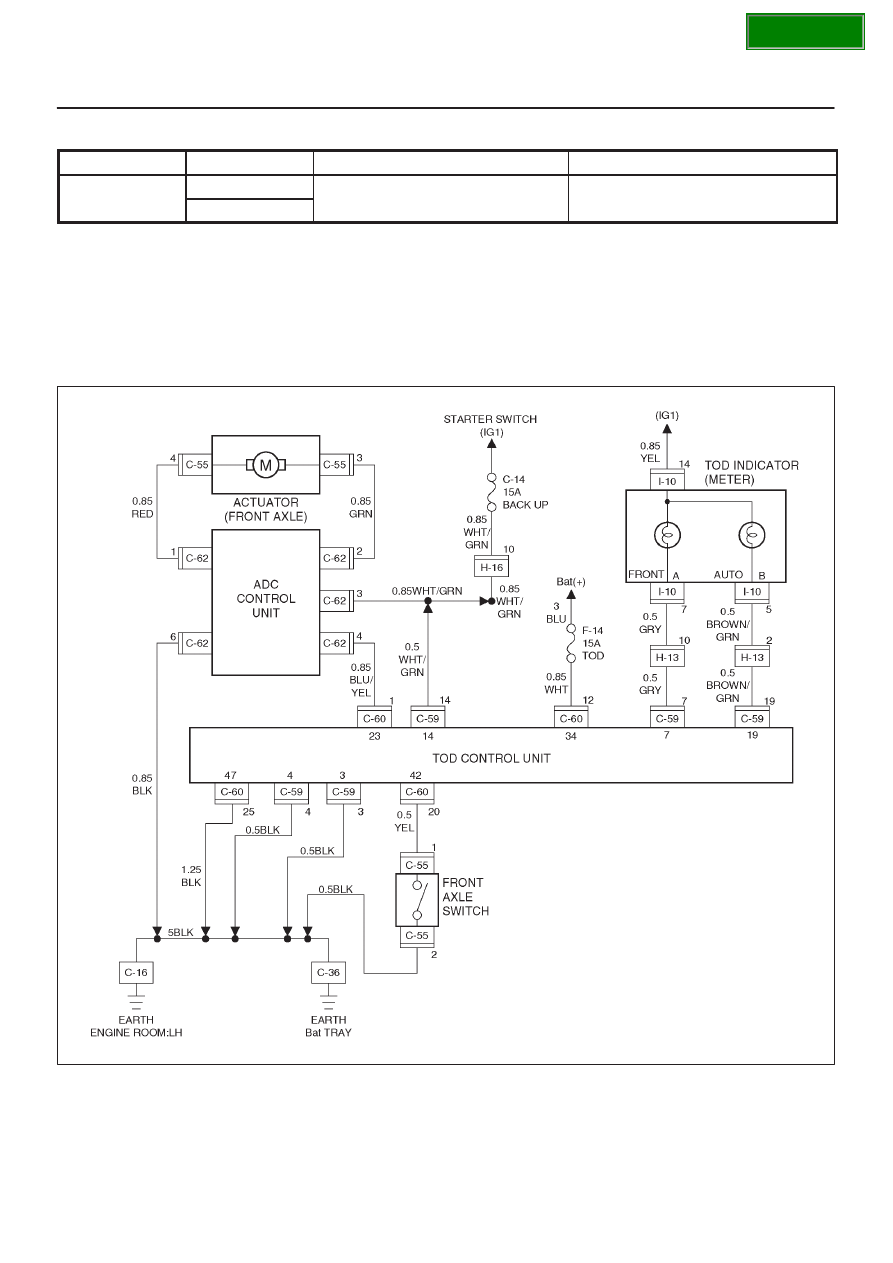

NOTE:

D

The on/off signal line of the shift on the fly system is
short–circuited to GND.

D

The system enters into the fail-safe mode because of
fusing or system protection.

(If a short–circuit is observed on GND, the output to
the on/off signal line becomes 0V.)

D04R100013
