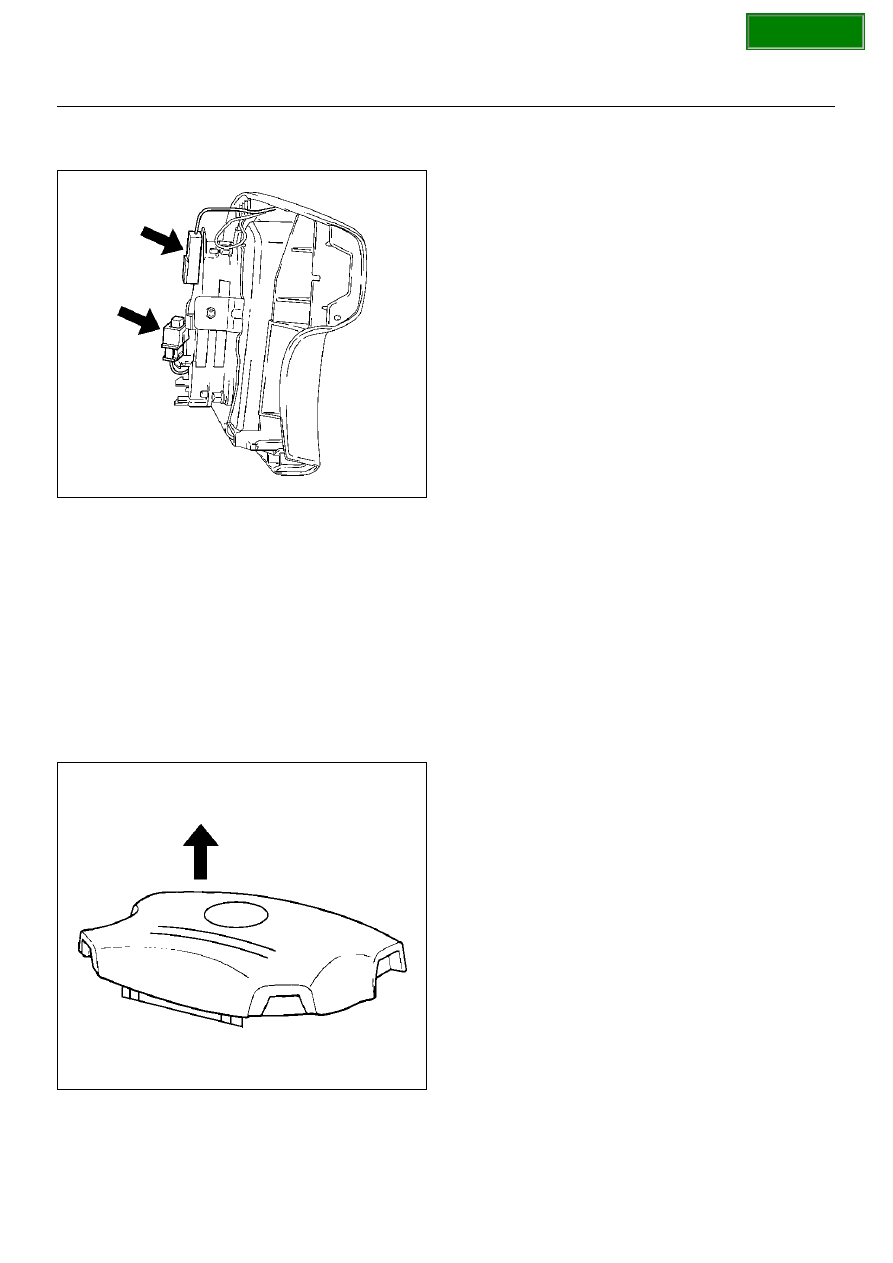

2A–32

POWER-ASSISTED STEERING SYSTEM

6. Disconnect the yellow 2-way SRS connector and

horn lead located behind the inflator module.

827RW073

7. Remove inflator module.

Inspection and Repair

WARNING:  THE INFLATOR MODULE SHOULD
ALWAYS BE CARRIED WITH THE URETHANE
COVER AWAY FROM YOUR BODY AND SHOULD
ALWAYS BE LAID ON A FLAT SURFACE WITH THE
URETHANE SIDE UP.   THIS IS NECESSARY
BECAUSE A FREE SPACE IS PROVIDED TO ALLOW
THE AIR CUSHION TO EXPAND IN THE UNLIKELY
EVENT OF ACCIDENTAL DEPLOYMENT.
OTHERWISE, PERSONAL INJURY MAY RESULT .

827RW072

The inflator module consists of a cover, air bag, inflator,
and retainer. Inspect the inflator module mainly for the
following:

• Check for holes, cracks, severe blemishes and

deformation on the cover.

• Check that the retainer is not deformed.

• Check for defects such as damage and breakage in

the lead wire for the igniter.

If an abnormality is found as the result of the inspection,
replace the inflator module with a new one.

Installation

1. Install inflator module.

2. Support the module and carefully connect the

module connector and horn lead.

NOTE:  Pass the lead wire through the tabs on the
plastic cover (wire protector) of inflator to prevent lead
wire from being pinched.

3. Tighten bolts to specified torque.

Torque: 9N·m (0.9kg·m/78 lbin)

4. Connect the yellow 2-way SRS connector located

under the steering column.

5. Connect the battery “–" terminal cable.

6. Set ignition to “ON" while watching warning light.

Light should flash 7 times and then go off.  If lamp
does not operate correctly, refer to

Restraints

section

.

SECTION

POWER-ASSISTED STEERING SYSTEM

2A–33

Steering Wheel

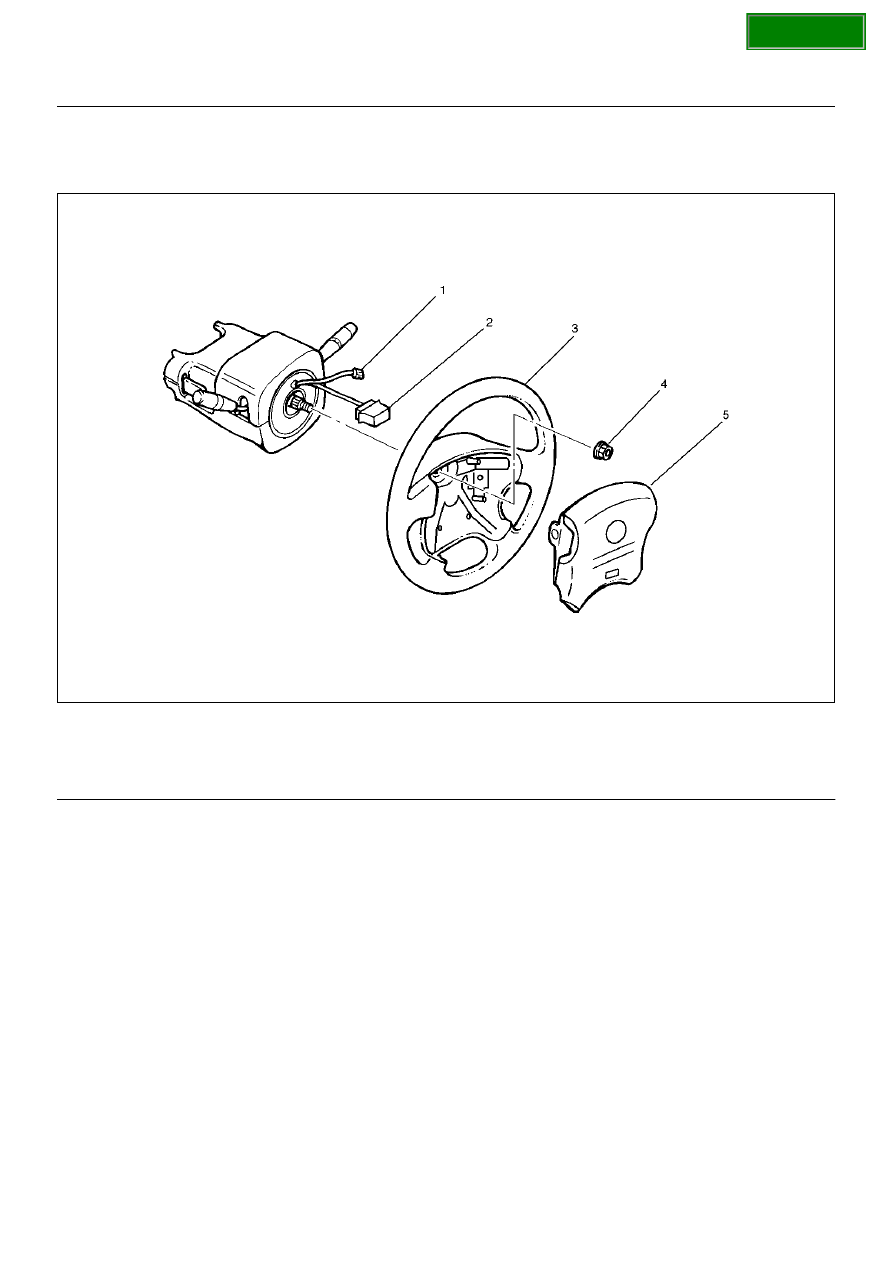

Steering Wheel and Associated Parts

827RW069

Legend

EndOFCallout

CAUTION:  Once the steering column is removed
from the vehicle, the column is extremely
susceptible to damage.  Dropping the column
assembly on its end could collapse the steering
shaft or loosen the slide block which maintains
column rigidity.  Leaning on the column assembly
could cause the jacket to bend or deform.  Any of
the above damage could impair the column's
collapsible design.  If it is necessary to remove the
steering wheel, use only the specified steering
wheel puller.  Under no conditions should the end of
the shaft be hammered upon, as hammering could
loosen slide block which maintains column rigidity.

Removal

1. Turn the steering wheel so that the vehicle's wheels

are pointing straight ahead.

2. Turn the ignition switch to “LOCK".

3. Disconnect the battery “–" terminal cable, and wait

at least 5 minutes.

4. Disconnect the yellow 2-way SRS connector located

under the steering column.

(1) Horn Lead
(2) SRS Connector
(3) Steering Wheel

(4) Steering Wheel Fixing Nut
(5) Inflator Module

SECTION

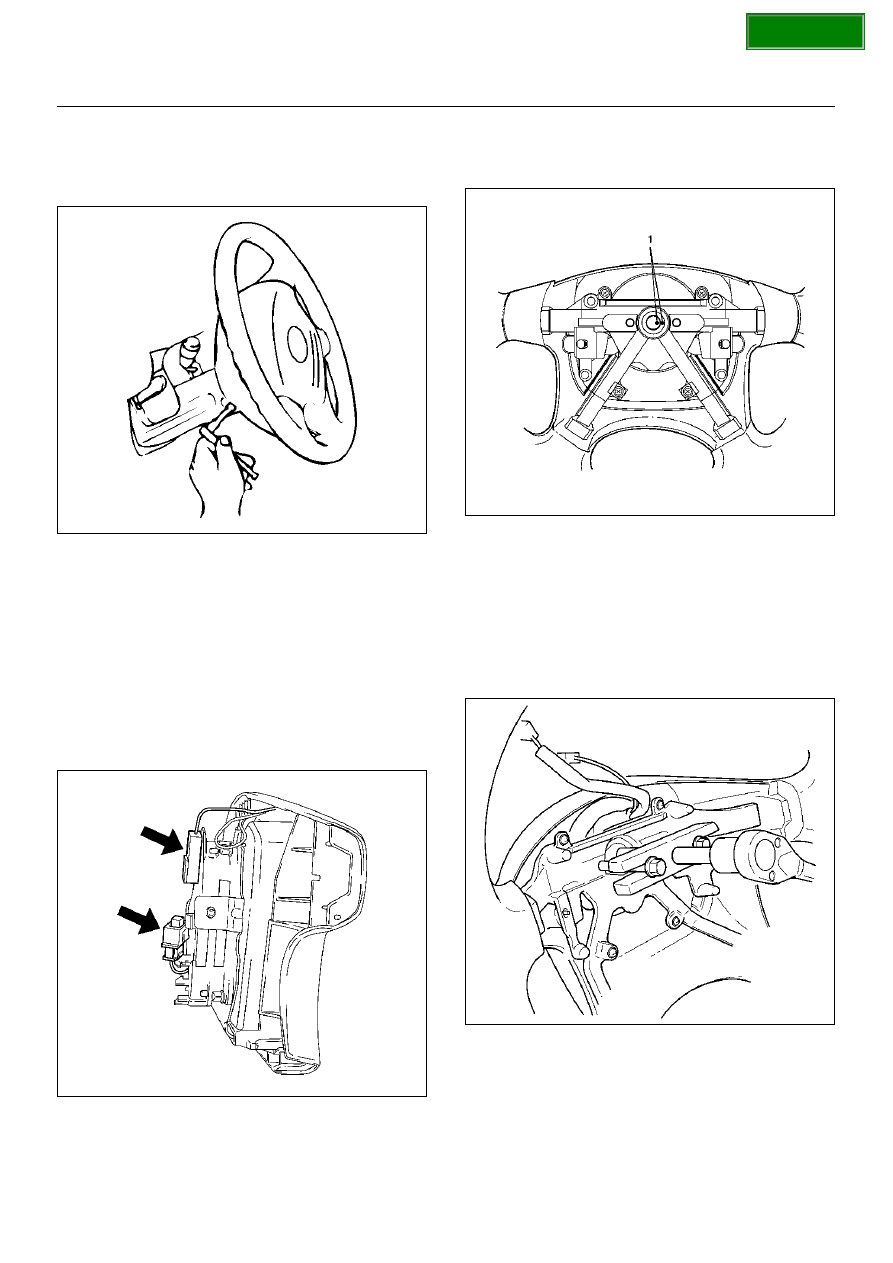

2A–34

POWER-ASSISTED STEERING SYSTEM

5. Loosen the inflator module fixing bolt from behind

the steering wheel assembly using a TORX® driver
or  equivalent until the inflator module can be
released from steering assembly.

827RW070

6. Disconnect the yellow 2-way SRS connector located

behind the inflator module.

WARNING:  THE INFLATOR MODULE SHOULD
ALWAYS BE CARRIED WITH THE URETHANE
COVER AWAY FROM YOUR BODY AND SHOULD
ALWAYS BE LAID ON A FLAT SURFACE WITH THE
URETHANE SIDE UP.   THIS IS NECESSARY
BECAUSE A FREE SPACE IS PROVIDED TO ALLOW
THE  AIR CUSHION TO EXPAND IN THE UNLIKELY
EVENT OF ACCIDENTAL DEPLOYMENT.
OTHERWISE, PERSONAL INJURY MAY RESULT.

827RW073

7. Disconnect horn lead.

8. Remove steering wheel fixing nut.

9. Apply a setting mark (1) across the steering wheel

and shaft so parts can be reassembled in their
original position, then remove steering wheel.

430RW021

10. Move the front wheels to the straight ahead position,

then use steering wheel remover 5–8521–0016–0 to
remove the steering wheel.

CAUTION:  Never apply force to the steering wheel
in direction of the shaft by using a hammer or other
impact tools  in an attempt to remove the steering
wheel.  The steering shaft is designed as an energy
absorbing unit.

430RX005

SECTION

POWER-ASSISTED STEERING SYSTEM

2A–35

Installation

1. Install steering wheel by aligning the setting marks

made when removing.

CAUTION:  Never apply force to the steering wheel
in direction of the shaft by using a hammer or other
impact tools in an attempt to remove the steering
wheel. The steering shaft is designed as an energy
absorbing unit.

2. Tighten the steering wheel fixing nut to the specified

torque.

Torque: 34N·m (3.5kg·m/25lbft)

3. Connect horn lead.

4. Support the module and carefully connect the SRS

connector.

NOTE:  Pass the lead wire through the tabs on the
plastic cover (wire protector) of inflator to prevent lead
wire from being pinches.

5. Tighten bolts to specified torque.

Torque: 9 N·m (0.9kg·m/78 lbin)

6. Connect the yellow 2-way SRS connector located

under the steering column.

7. Connect the battery “–" terminal cable.

8. Turn the ignition switch to “ON" while watching

warning light. Light should flash 7 times and then go
off.   If lamp does not operate correctly, refer to

Restraints section

.
