Opel Frontera UE. Manual - part 1264





2A–28

POWER-ASSISTED STEERING SYSTEM

Installation

1. Install the transfer gear assembly to the universal

joint (steering shaft side) align the setting marks
made at removal.
Then tighten the universal joint bolt.

2. Install the universal joint assembly to the power

steering unit assembly align the setting marks made
at removal.
Then temporary tighten the universal joint bolt (both
of transfer gear assembly side and power steering
unit assembly side).

3. Install the transfer gear assembly with the shim to

frame.

Torque: 54N·m (5.5kg·m/40lbft)

4. Tighten the universal joint bolts to the specified

torque.

Torque: 31N·m (3.2kg·m/23lbft)

SECTION

POWER-ASSISTED STEERING SYSTEM

2A–29

Supplemental Restraint System Steering Wheel & Column

Service Precaution

This steering wheel and column repair section covers
the Supplemental Restraint System (SRS) steering
column.   The following repair procedures are specific to
SRS components. When servicing a vehicle equipped
with Supplemental Restraint System,  pay close
attention to all WARNINGS and CAUTIONS.
For detailed explanation about SRS, refer to

Restraints



section.

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).   REFER TO

THE SRS

COMPONENT AND WIRING LOCATION

 VIEW IN

ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING.   WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION.   FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
SAFE HANDLING OF INFLATOR MODULES
REQUIRES FOLLOWING THE PROCEDURES
DESCRIBED BELOW FOR BOTH LIVE AND
DEPLOYED MODULES.
SAFETY PRECAUTIONS MUST BE FOLLOWED
WHEN HANDLING A DEPLOYED AIR BAG
ASSEMBLY (AIR BAG).   AFTER DEPLOYMENT, THE
AIR BAG ASSEMBLY (AIR BAG) SURFACE MAY
CONTAIN A SMALL AMOUNT OF SODIUM
HYDROXIDE, A BY-PRODUCT OF THE
DEPLOYMENT REACTION, THAT IS IRRITATING TO
THE SKIN AND EYES.   MOST OF THE POWDER ON
THE AIR BAG ASSEMBLY (AIR BAG) IS HARMLESS.
AS A PRECAUTION, WEAR GLOVES AND SAFETY
GLASSES WHEN HANDLING A DEPLOYED AIR BAG
ASSEMBLY, AND WASH YOUR HANDS WITH MILD
SOAP AND WATER AFTERWARDS.

WHEN CARRYING A LIVE AIR BAG ASSEMBLY,
MAKE SURE THE BAG AND TRIM COVER ARE
POINTED AWAY FROM YOU.   NEVER CARRY AN
AIR BAG ASSEMBLY BY THE WIRES OR
CONNECTOR ON THE UNDERSIDE OF MODULE.
IN THE CASE OF AN ACCIDENTAL DEPLOYMENT,
THE BAG WILL THEN DEPLOY WITH MINIMAL
CHANCE OF INJURY.   WHEN PLACING A LIVE AIR
BAG ASSEMBLY ON A BENCH OR OTHER
SURFACE, ALWAYS FACE THE BAG AND TRIM
COVER UP, AWAY FROM THE SURFACE.
NEVER REST A STEERING COLUMN ASSEMBLY
ON THE STEERING WHEEL WITH THE AIR BAG
ASSEMBLY FACE DOWN AND COLUMN VERTICAL.
THIS IS NECESSARY SO THAT A FREE SPACE IS
PROVIDED TO ALLOW THE AIR BAG ASSEMBLY TO
EXPAND IN THE UNLIKELY EVENT OF ACCIDENTAL
DEPLOYMENT.   OTHERWISE, PERSONAL INJURY
COULD RESULT.
TO AVOID DEPLOYMENT WHEN
TROUBLESHOOTING THE SRS SYSTEM,  DO NOT
USE ELECTRICAL TEST EQUIPMENT, SUCH AS
BATTERY-POWERED OR A/C-POWERED
VOLT-METER, OHMMETER, ETC.,  OR ANY TYPE OF
ELECTRICAL EQUIPMENT OTHER THAN
SPECIFIED IN THIS MANUAL.  DO NOT USE A
NON-POWERED PROBE-TYPE TESTER.
INSTRUCTIONS IN THIS MANUAL MUST BE
FOLLOWED CAREFULLY, OTHERWISE PERSONAL
INJURY MAY RESULT.

SRS Connectors

CAUTION:  The special yellow color connectors are
used for supplemental restraint system-air bag
circuit.
When removing the cable harness, do not pull the
cables. Otherwise, cable disconnection may occur.
When connect the SRS connector, insert the
connector completely.  Imperfect locking may cause
malfunction of SRS circuit.

SECTION

2A–30

POWER-ASSISTED STEERING SYSTEM

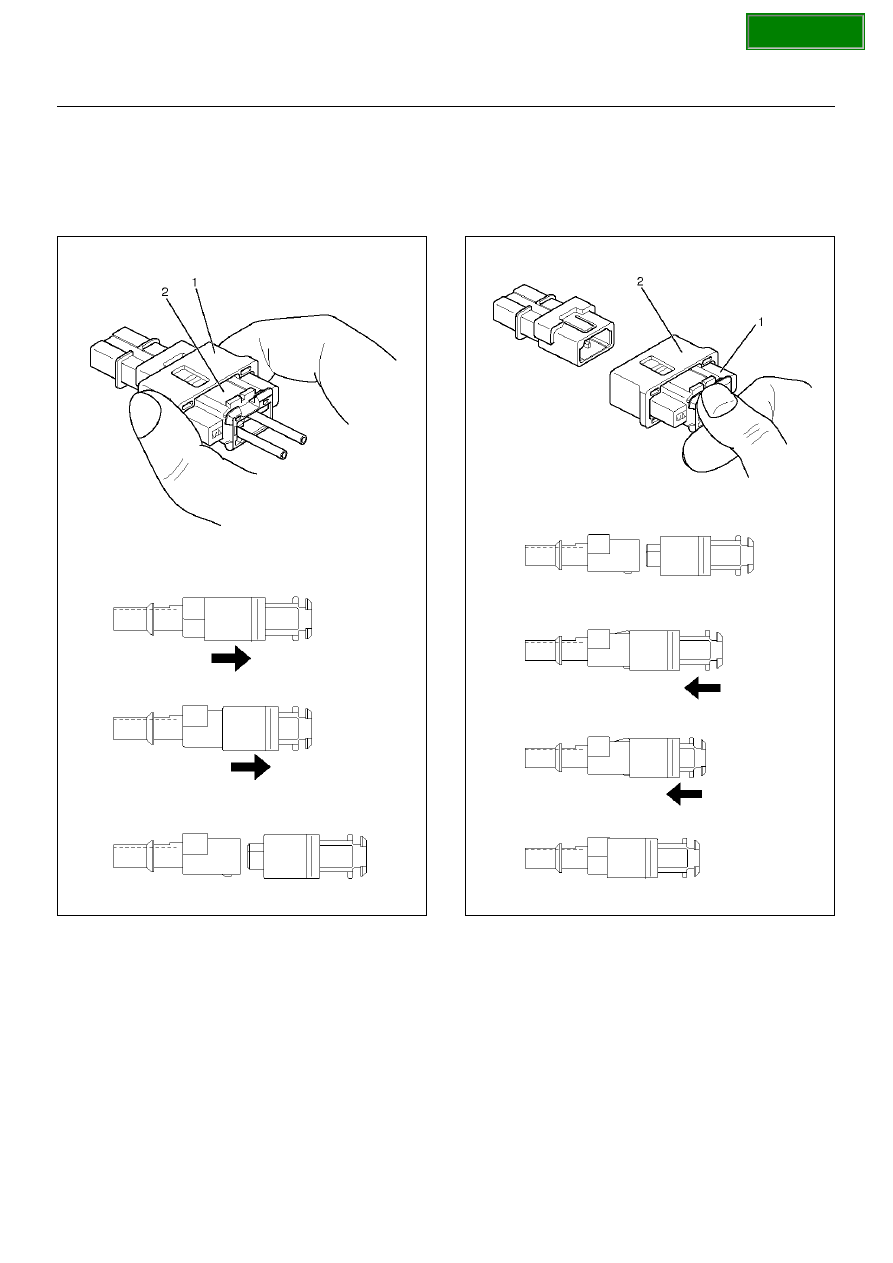

Removal

To remove the connector, hold the cover insulator(1) and
pull it. The cover insulator slides and lock will be
released.
Do not hold the socket insulator(2).

827RW028

Installation

To install the connector, hold the soket insulator(1) and
insert it. The cover insulator slides and connector will be
locked.
Do not hold the cover insulator(2).

827RW027

SECTION

POWER-ASSISTED STEERING SYSTEM

2A–31

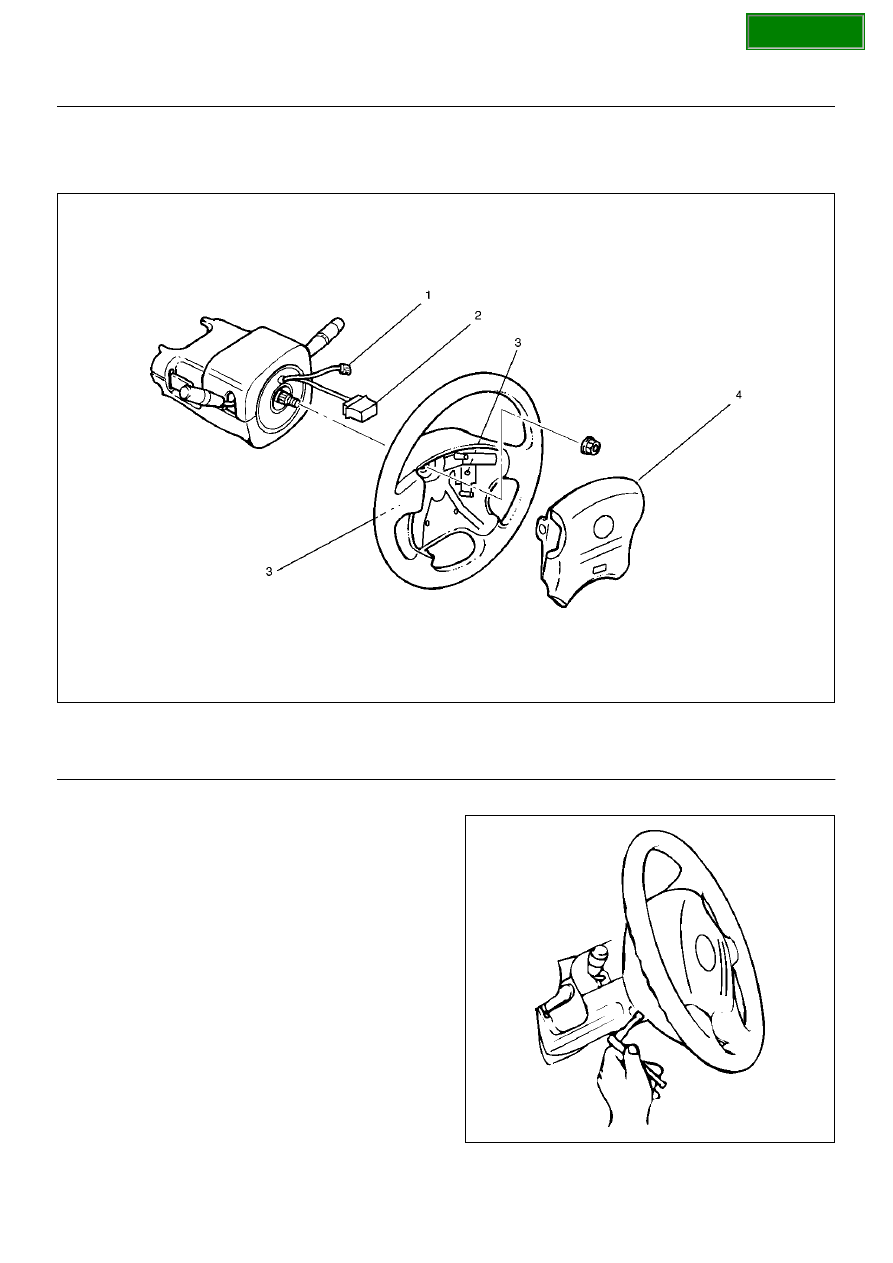

Inflator Module

Inflator Module and Associated Parts

827RW071

Legend

EndOFCallout

Removal

1. Turn the steering wheel so that the vehicle's wheels

are pointing straight ahead.

2. Turn the ignition switch to “LOCK".

3. Disconnect the battery “–" terminal cable, and wait

at least 5 minutes.

4. Disconnect the yellow 2-way SRS connector located

under the steering column.

5. Loosen the inflator module fixing bolt from behind

the steering wheel assembly using a TORX® driver
or equivalent until the inflator module can be
released from steering assembly .

827RW070

(1) Horn Lead
(2) SRS Connector

(3) Fixing Bolt
(4) Inflator Module

SECTION
