2A–20

POWER-ASSISTED STEERING SYSTEM

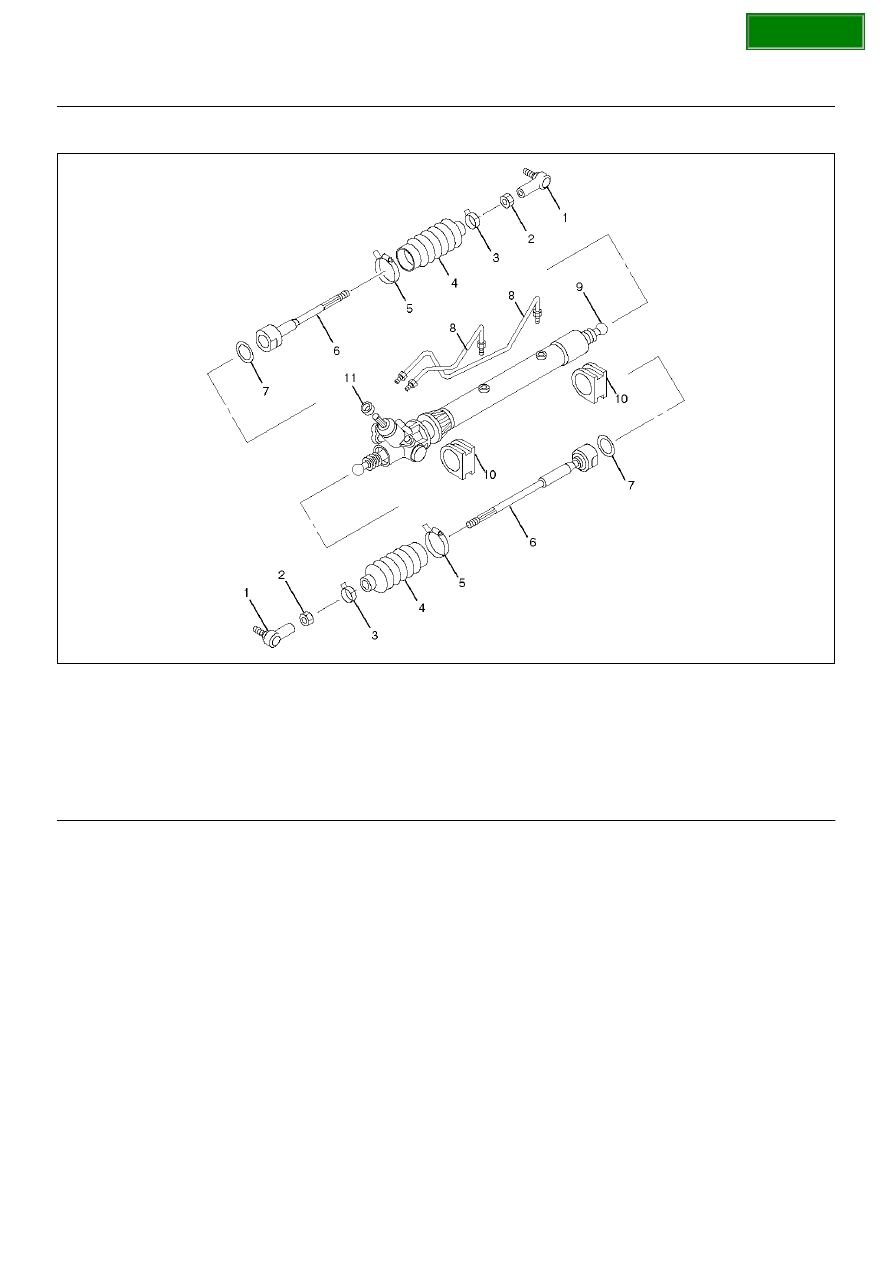

Power Steering Unit Disassembled View

440RW005

Legend

EndOFCallout

Disassembly

NOTE:  The valve housing is made of aluminum and
care should be exercised when clamping in a vise, etc.
to prevent distortion or damage.

1. Loosen lock nut and remove tie–rod end.

2. Remove clip and band, then remove bellows.

3. Remove tie-rod assembly.

To remove, move the boot toward the tie-rod end,
then remove tab washer.

4. Remove oil line, mounting rubber and dust cover.

Inspection and Repair

Inspect the following parts for wear, damage or any
abnormal conditions.

Tie-rod End

If looseness or play is found when checked by moving
the end of ball joint at tie-rod end, replace tie-rod end.

Tie-rod Assembly

If the resistance is insufficient or play is felt when
checked by moving the ball on the tie-rod,  replace the
tie-rod assembly.

Rubber Parts

If wear or damage is found through inspection, replace
with new ones.

Reassembly

1. Install mounting rubber and dust cover (If removed).

2. Install oil line.

Torque: 13N·m (1.3kg·m/113lbin)

3. Install tie-rod assembly with tab washer.

Apply grease to ball joint, install tie-rod and tab
washer, then tighten to specified torque.

Torque: 83N·m (8.5kg·m/61lbft)

After tightening, bend tab washer against width
across flat of inner ball joint.

(1) Tie-rod End
(2) Lock Nut
(3) Clip
(4) Bellows
(5) Band
(6) Tie-rod Assembly

(7) Tab Washer
(8) Oil Line
(9) Valve Housing Assembly

(10) Mounting Rubber
(11) Dust Cover

SECTION

POWER-ASSISTED STEERING SYSTEM

2A–21

4. Apply a thin coat of grease to the shaft for smooth

installation.  Then install bellows.

5. Install band and clip.

6. Install tie-rod end and tighten lock nut.

Torque: 98N·m (10.0kg·m/72lbft)

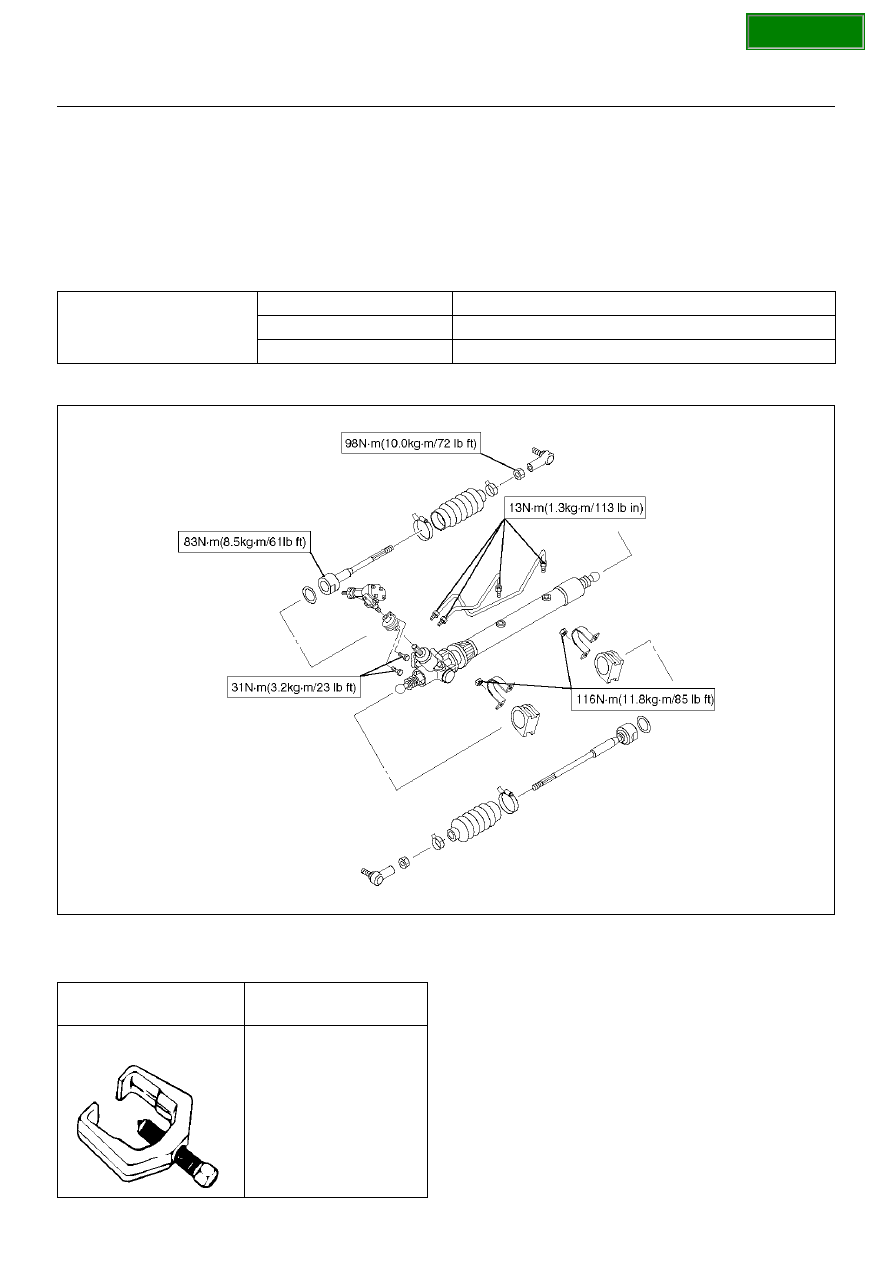

Main Data and Specifications

General Specifications

Torque Specifications

E02RX007

Special Tools

Power Steering unit

Type

Rack and pinion

Rack stroke

152mm (5.98 in)

Lock to lock

3.64

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2005–0

(J–29107)

Tie rod end remover

SECTION

2A–22

POWER-ASSISTED STEERING SYSTEM

Power Steering Pump

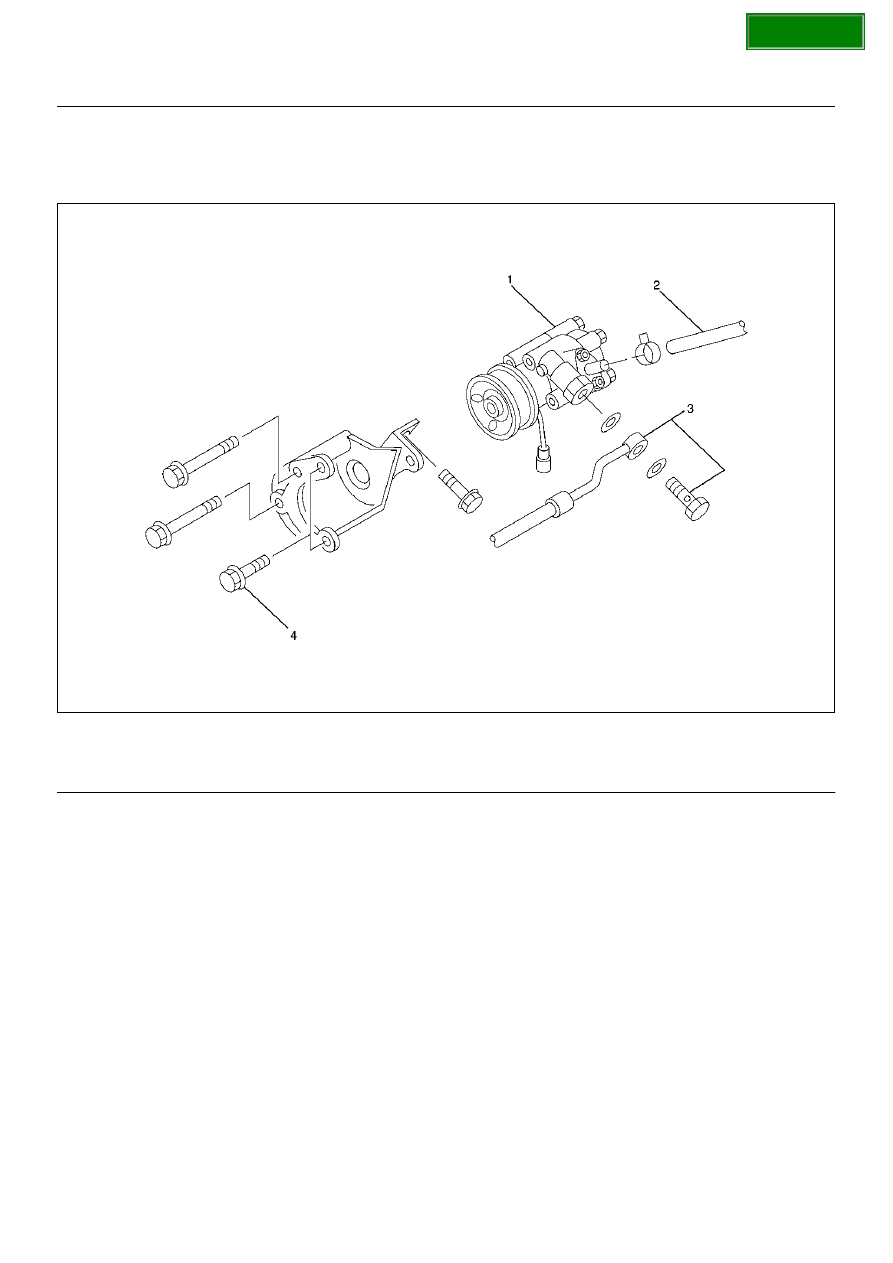

Power Steering Pump and Associated Parts

436RX001

Legend

EndOFCallout

Removal

1. Remove the drive belt.

2. Place a drain pan below the pump.

3. Disconnect the suction hose.

4. Disconnect the flexible hose.

5. Remove the power steering fixing bolt and remove

the pump assembly.

Installation

1. Install the pump assembly to the pump braket,

tighten the fixing bolt to the specified torque.

Torque: 46N·m (4.7kg·m/34lbft)

2. Install the flexible hose.

Tighten the eye bolt to specified torque.

Torque: 54N·m (5.5kg·m/40lbft)

3. Install the drive belt.

4. Connect the suction hose, then fill and bleed

system.
Refer to

Bleeding the Power Steering System

 in this

section.

(1) Pump Assembly
(2) Hose, Suction

(3) Hose, Flexible
(4) Bolt

SECTION

POWER-ASSISTED STEERING SYSTEM

2A–23

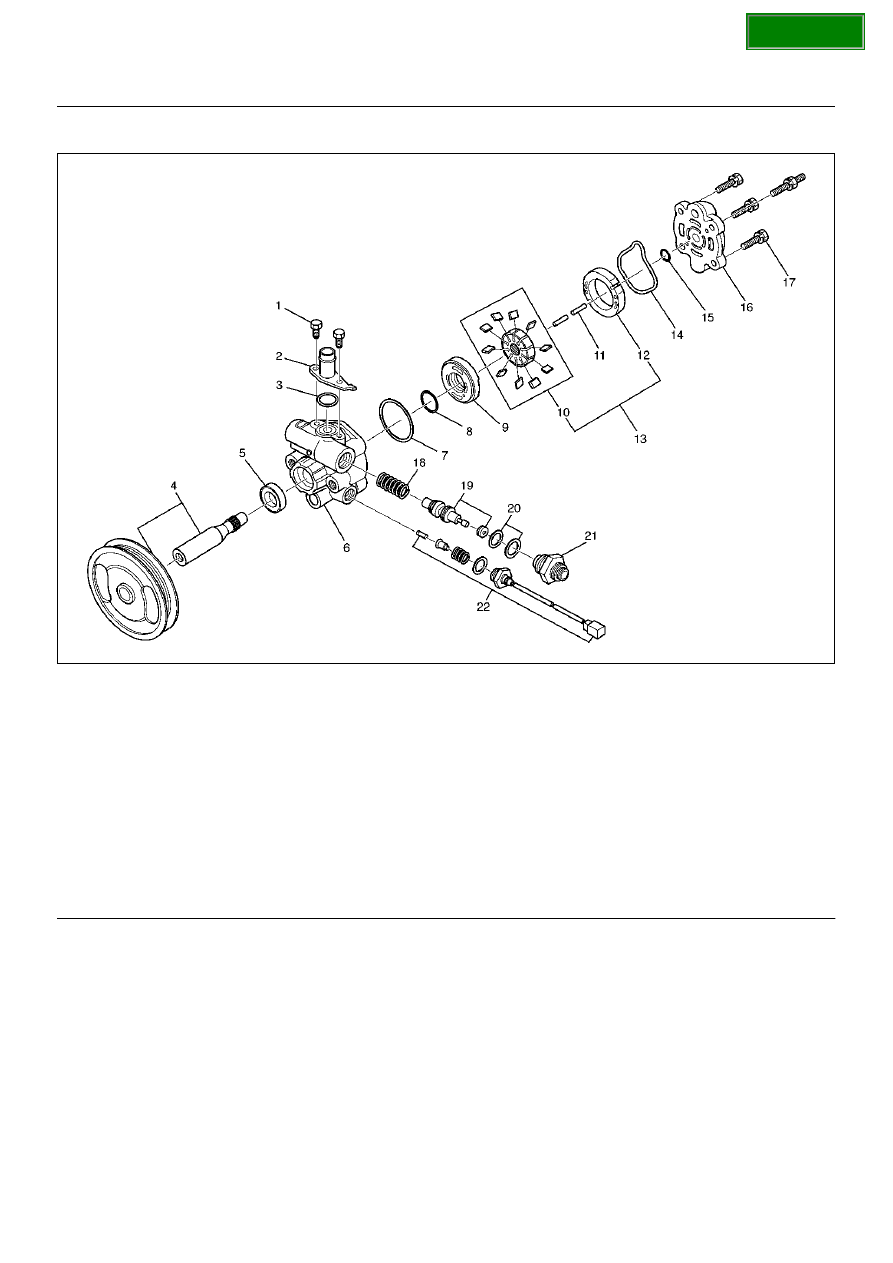

Power Steering Pump Disassembled View

442RX001

Legend

EndOFCallout

Disassembly

1. Clean the oil pump with solvent (plug the discharge

and suction ports to prevent the entry of solvent).
Be careful not to expose the oil seal of shaft
assembly to solvent.

2. Remove the bolt, suction pipe and O-ring.

3. Remove the connector, O-ring, relief valve and

spring.

4. Remove the pressure switch assembly.

5. Remove the bolt, rear housing and O-ring.

6. Remove the snap ring.

7. Remove the shaft assembly.

8. Remove the oil seal.

CAUTION:  When removing the oil seal, be careful
not to damage the housing.

9. Remove the pump cartridge assembly from the front

housing.

10. Remove two O-rings.

(1) Bolt
(2) Suction Pipe
(3) O-ring
(4) Shaft Assembly
(5) Oil Seal
(6) Front Housing
(7) O-ring
(8) O-ring
(9) Side Plate

(10) Rotor and Vane
(11) Pin

(12) Cam
(13) Pump Cartridge Assembly
(14) O-ring
(15) Snap Ring
(16) Rear Housing
(17) Bolt
(18) Spring
(19) Relief Valve
(20) O-ring
(21) Connector
(22) Pressure Switch Assembly

SECTION
