2A–8

POWER-ASSISTED STEERING SYSTEM

General Description

The hydraulic power steering system consists of a
pump,  an oil reservoir, a steering unit, a pressure hose
and a return hose.

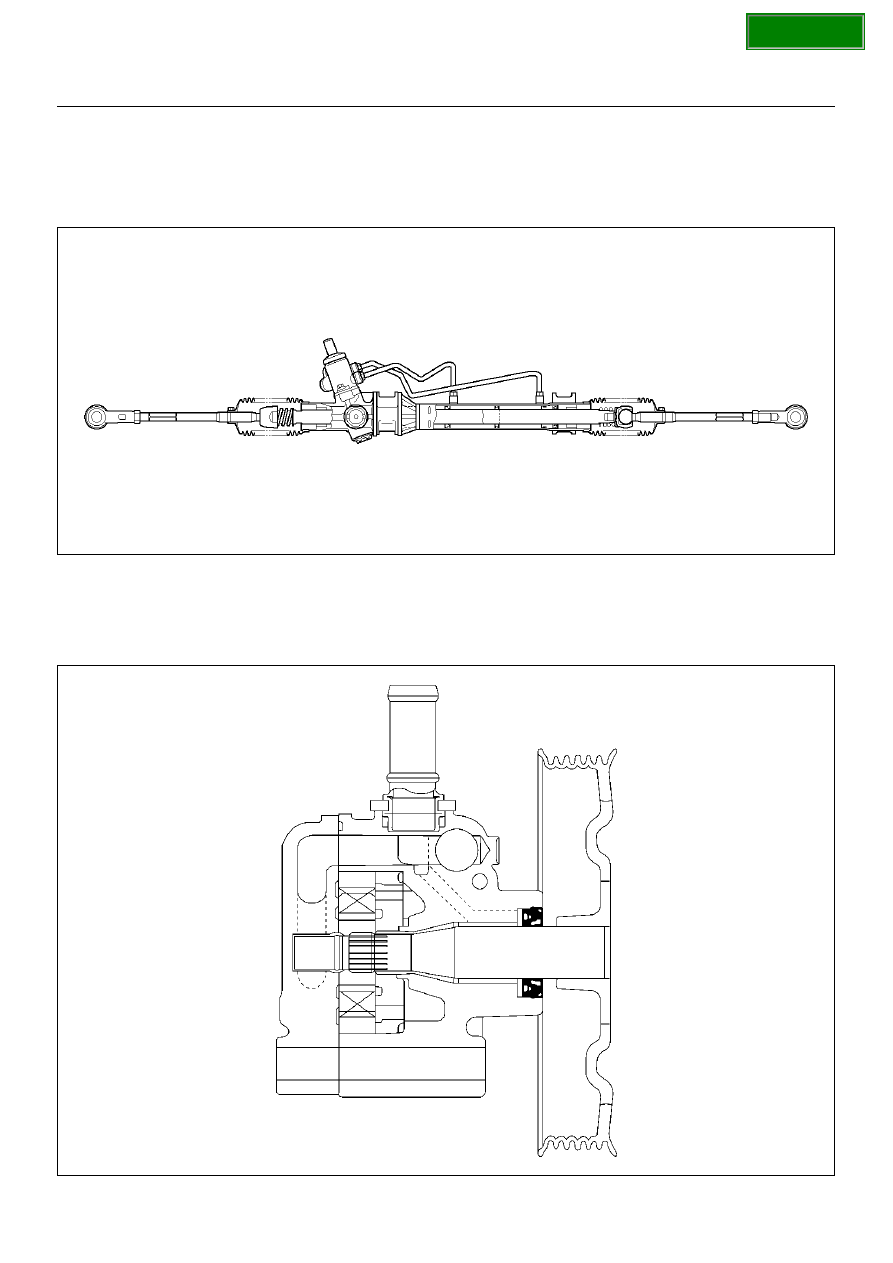

Power Steering Unit

A02RW007

The power steering unit is rack and pinion type.
The toe–in angle can be adjusted by turning the rod on
each side.
The steering housing cannot be disassembled.

Hydraulic Pump

A02RX002

SECTION

POWER-ASSISTED STEERING SYSTEM

2A–9

The hydraulic pump is vane-type design.   The
submerged pump has housing and internal parts that
are inside the reservoir and operate submerged in oil.
There are two bore openings at the rear of the pump
housing.   The larger opening contains the cam ring,
pressure plate, thrust plate, rotor and vane assembly,
and end plate.   The smaller opening contains the
pressure line union, flow control valve and spring.
The flow control orifice is part of the pressure line union.
The pressure relief valve inside the flow control valve
limits the pump pressure.

Pressure Switch

When hydraulic pressure reaches 3430 kPa (35 kg/cm

2

/

500 psi),  the pressure switch of the power steering
pump closes causing the Powertrain Control Module
(PCM) to actuate the throttle valve, which increases the
engine rpm to prevent the overload-induced engine
speed slow down.  The switch opens when hydraulic
pressure drops to 2940 kPa (30 kg/cm

2

/430 psi).

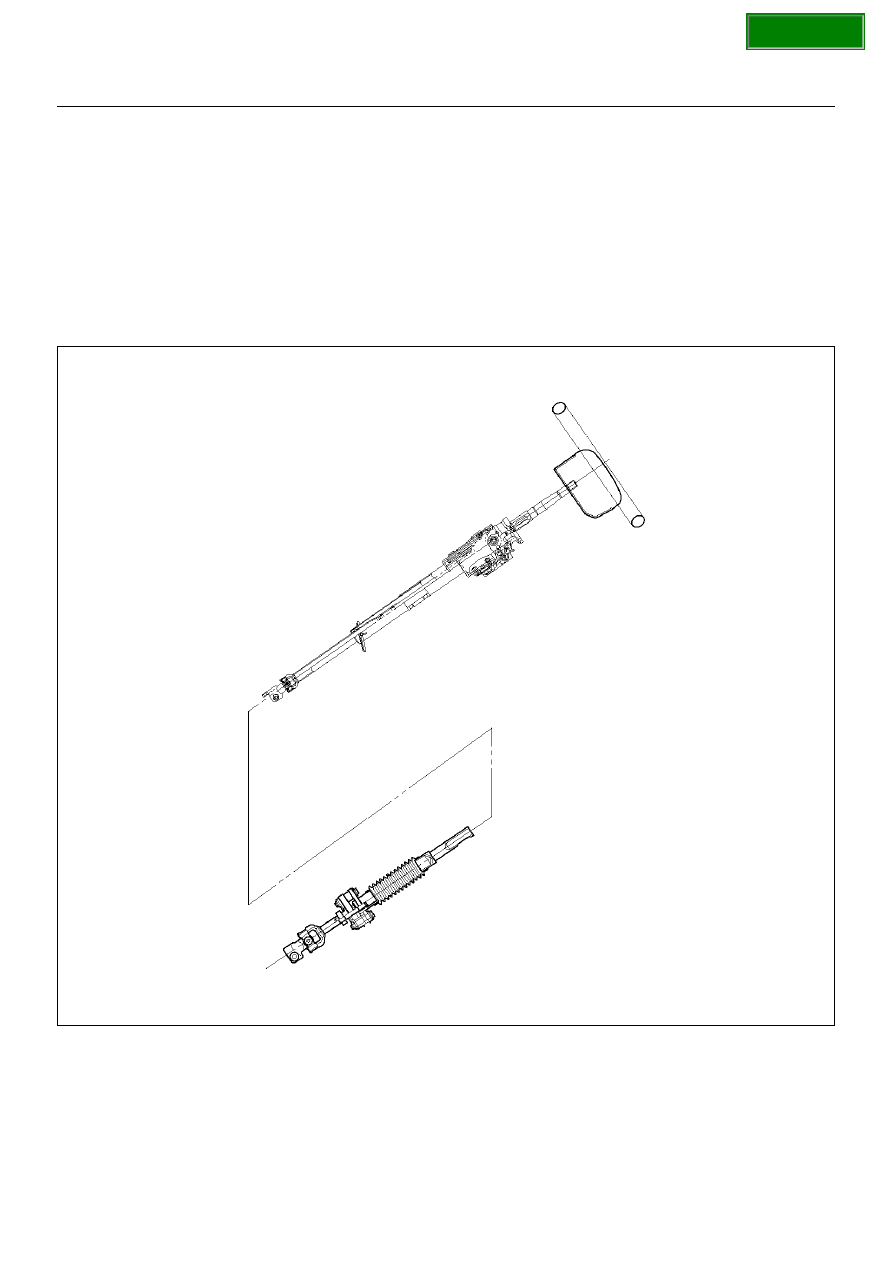

Steering Column

431RY00009

WARNING:  TO AVOID DEPLOYMENT WHEN
TROUBLE-SHOOTING THE SRS SYSTEM, DO NOT
USE ELECTRICAL TEST EQUIPMENT,   SUCH AS
BATTERY-POWERED OR A/C-POWERED
VOLT-METER, OHMMETER, ETC.,   OR ANY TYPE
OF ELECTRICAL EQUIPMENT OTHER THAN
SPECIFIED IN THIS MANUAL.   DO NOT USE A
NON-POWERED PROBE-TYPE TESTER.

INSTRUCTION IN THIS MANUAL MUST BE
FOLLOWED CAREFULLY, OTHERWISE PERSONAL
INJURY MAY RESULT.
When servicing a vehicle equipped with Supplemental
Restraint System,  pay close attention to all WARNINGS
and CAUTIONS.
For detailed explanation about SRS, refer to

Restraints

section

.

SECTION

2A–10

POWER-ASSISTED STEERING SYSTEM

The steering column has three important features in
addition to the steering function:

1. The column is energy absorbing, designed to

compress in a front-end collision to minimize the
possibility of injury to the driver of the vehicle.

2. The ignition switch and lock are mounted

conveniently on the column.

3. With the column mounted lock, the ignition and

steering operation can be locked to prevent theft of
the vehicle.

The column can be disassembled and reassembled.
However, to insure the energy absorbing action, use
only the specified screws, bolts and nuts as designated,
and tighten them to the specified torque.
Handle the column with care when it is removed from
the vehicle. A sharp blow on the end of steering shaft or

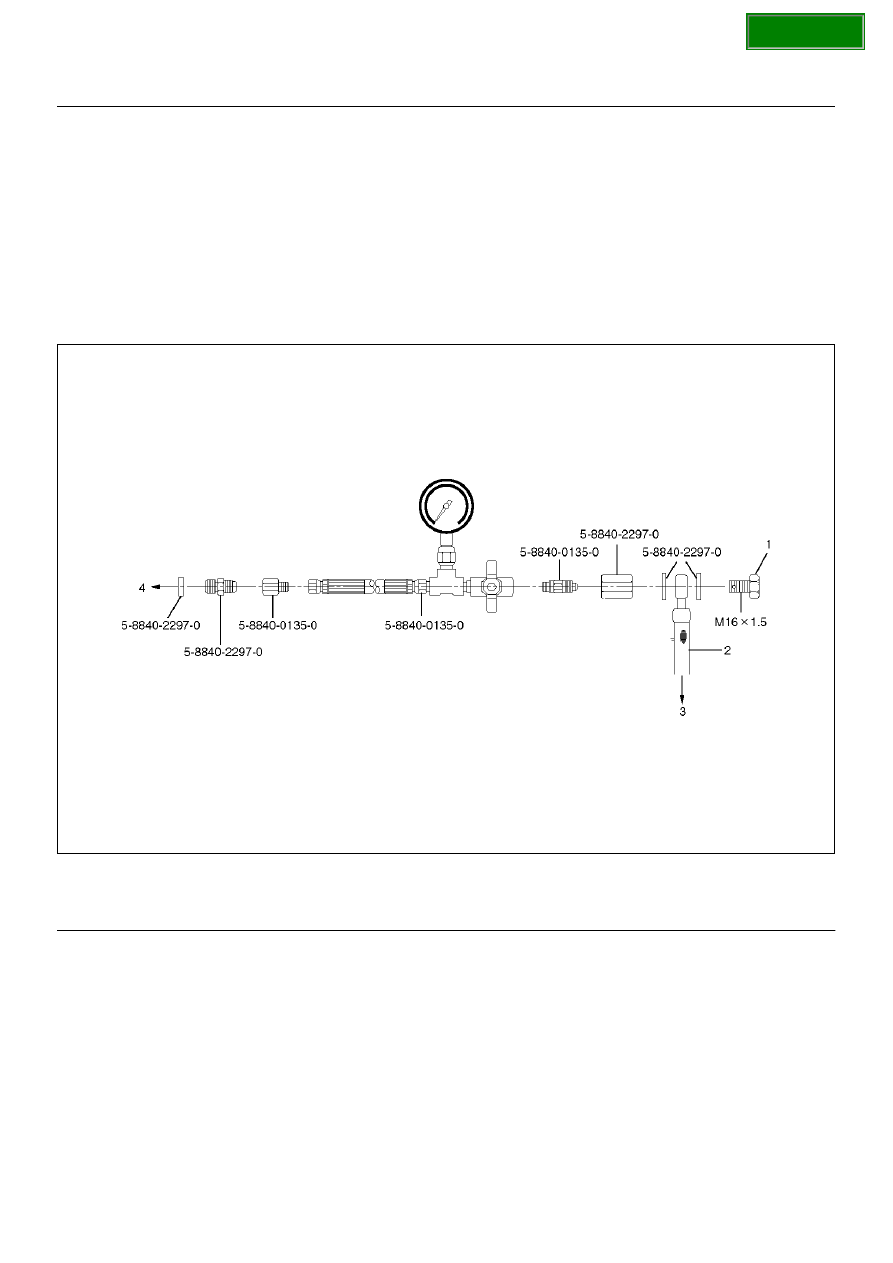

Power Steering System Test

Test Procedure

F02RX002

Legend

EndOFCallout

Test of fluid pressure in the power steering system is
performed to determine whether or not the oil pump and
power steering unit are functioning normally.
The power steering system test is used to identify and
isolate hydraulic circuit difficulties.   Prior to performing
this test, the following inspections and corrections, if
necessary, must be made.

• Inspect pump reservoir for proper fluid level.

• Inspect pump belt for proper tension.

• Inspect pump driver pulley condition.

1. Place a container under the pump to catch the fluid

when disconnecting or connecting the hoses.

2. With the engine NOT running, disconnect the

pressure hose at the power steering pump and
install power steering tester 5–8840–0135–0 as
shown in the illustration.   The gage must be
between the shutoff valve and pump.  Open the
shutoff valve.

3. Check the fluid level.  Fill the reservoir with power

steering fluid, to the “Full" mark.   Start the engine,
then turn the steering wheel and momentarily hold it
against a stop (right or left). Turn the engine off and
check the connections at tester for leakage.

(1) Bolt
(2) Hose

(3) Power Steering Unit
(4) Power Steering Pump

SECTION

POWER-ASSISTED STEERING SYSTEM

2A–11

4. Bleed the system.  Refer to

Bleeding the Power

Steering System

 in this section.

5. Start the engine and check the fluid level.  Add

power steering fluid if required.   When the engine is
at normal operating temperature, increase engine
speed to 1500 rpm.

CAUTION:  Do not leave shutoff valve fully closed
for more than 5 seconds, as the pump could
become damaged internally.

6. Fully close the shutoff valve.  Record the highest

pressures.

• If the pressure recorded is within 9300–9800 kPa

(95–100 kg/cm

2

/1350–1420 psi), the pump is

functioning within its specifications.

• If the pressure recorded is higher than 9800 kPa

(100 kg/cm

2

/1420 psi), the valve in the pump is

defective.

• If the pressure recorded is lower than 9300 kPa

(95 kg/cm

2

/1350 psi), the valve or the rotating

group in the pump is defective.

7. If the pump pressures are within specifications,

leave the valve open and turn (or have someone
else turn) the steering wheel fully in both directions.
Record the highest pressures and compare with the
maximum pump pressure recorded in step 6.   If this
pressure cannot be built in either side of the power
steering unit, the power steering unit is leaking
internally and must be replaced.

8. Shut the engine off, remove the testing gauge.

9. Reconnect the pressure hose, check the fluid level

and make the needed repairs.

10. If the problem still exists, the steering and front

suspension must be thoroughly examined.

Maintenance

The hydraulic system should be kept clean and fluid
level in the reservoir should be checked at regular
intervals and fluid added when required.   Refer to

Recommended Fluids and Lubricants

 in General

Information section for the type of fluid to be used and
the intervals for filling.
If the system contains some dirt, flush it as described in
this section.   If it is exceptionally dirty, the pump must
be completely disassembled before further usage. (The
steering unit cannot be disassembled.)
All tubes, hoses, and fittings should be inspected for
leakage at regular intervals.  Fittings must be tight.
Make sure the clips, clamps and supporting tubes and
hoses are in place and properly secured.
Power steering hoses and lines must not be twisted,
kinked or tightly bent.   Air in the system will cause
spongy action and noisy operation.   When a hose is
disconnected or when fluid is lost, for any reason, the
system must be bled after refilling.   Refer to

Bleeding

the Power Steering System

 in this section.

• Inspect belt for tightness.

• Inspect pulley for looseness or damage.  The pulley

should not wobble with the engine running.

• Inspect hoses so they are not touching any other

parts of the vehicle.

• Inspect fluid level and fill to the proper level.

Fluid Level

1. Run the engine until the power steering fluid

reaches normal operating temperature, about 55

°

(130

°

F

)

, then shut the engine off.

2. Check the level of fluid in the reservoir.

3. If the fluid level is low, add power steering fluid as

specified in General Information to the proper level
and install the receiver cap.

4. When checking the fluid level after the steering

system has been serviced, air must be bled from the
system.   Refer to

Bleeding the Power Steering

System

 in this section.

Bleeding The Power Steering System

When a power steering pump or unit has been installed,
or an oil line has been disconnected,  the air that has
entered the system must be bled out before the vehicle
is operated.   If air is allowed to remain in the power
steering fluid system, noisy and unsatisfactory
operation of the system may result.

Bleeding Procedure

When bleeding the system, and any time fluid is added
to the power steering system,  be sure to use only
power steering fluid as specified in General Information.

1. Fill the pump fluid reservoir to the proper level and

let the fluid settle for at least two minutes.

2. Start the engine and let it run for a few seconds.  Do

not turn the steering wheel.  Then turn the engine
off.

3. Add fluid if necessary.

4. Repeat the above procedure until the fluid level

remains constant after running the engine.

5. Raise and support the front end of the vehicle so

that the wheels are off the ground.

6. Start the engine.  Slowly turn the steering wheel

right and left, lightly contacting the wheel stops.

7. Add power steering fluid if necessary.

8. Lower  the vehicle, set the steering wheel at the

straight forward position after turning it to its full
steer positions 2 or 3 times,  and stop the engine.

9. Check the fluid level and refill as required.

10. If the fluid is extremely foamy, allow the vehicle to

set a few minutes, then repeat the above procedure.

SECTION
