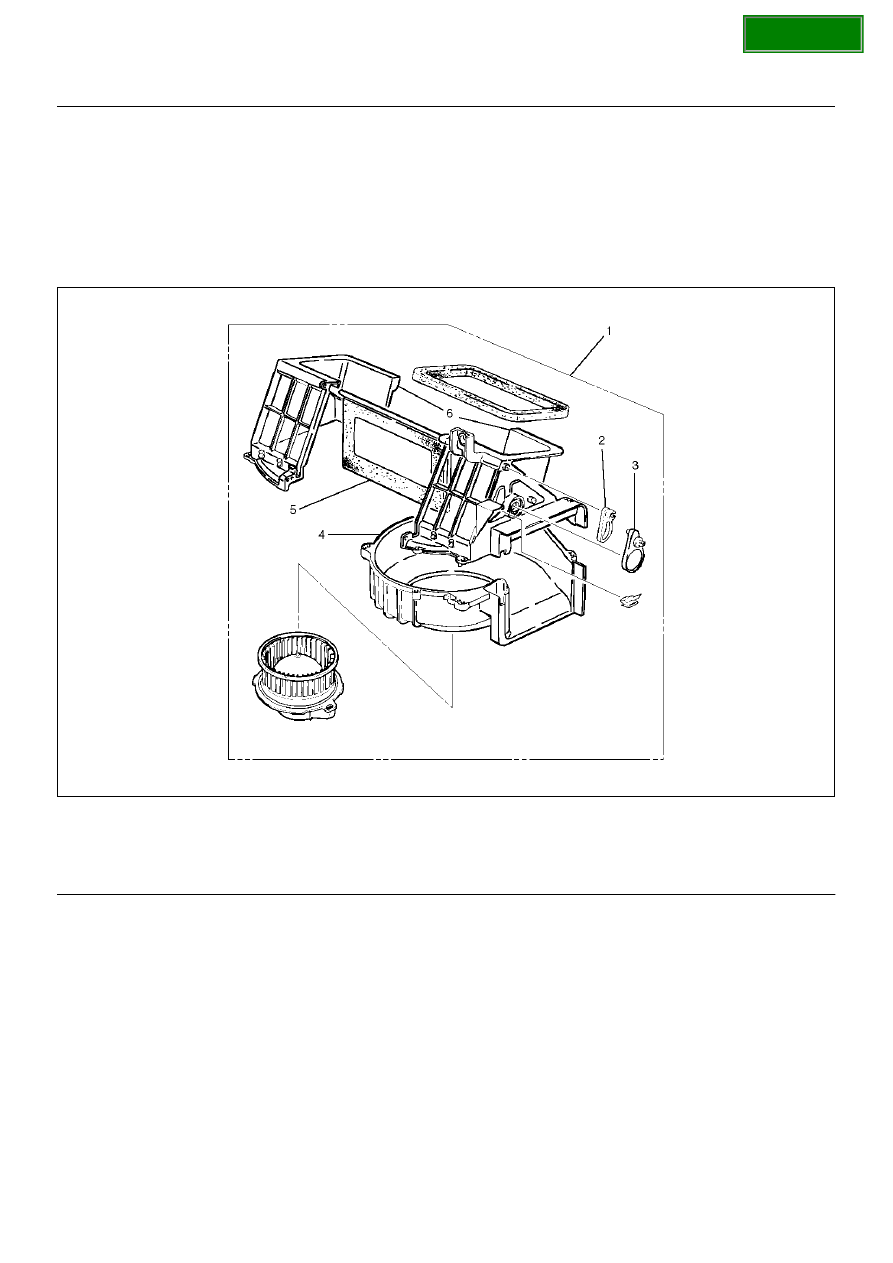

HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–25 Installation To install, follow the removal steps in the reverse order, 1. Adjust the control cables. • Refer to Control Lever Assembly in this section. Blower Link Unit and / or Mode door Disassembled View 873RX002 EndOFCallout Removal 1. Disconnect the battery ground cable. 2. Discharge and recover refrigerant (with air conditioning). • Refer to Refrigerant Recovery in this section. 3. Remove blower assembly. • Refer to Blower Assembly in this section. 4. Remove lower case. Legend (1) Blower Assembly (4) Lower Case |
