HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–29

• Remove foot rest carpet and 3 clips.

8. Remove defroster nozzle.

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

1. Connect each duct and nozzle securely leaving no

clearance between them and making no improper
matching.

Control Lever Assembly and / or Control Cable

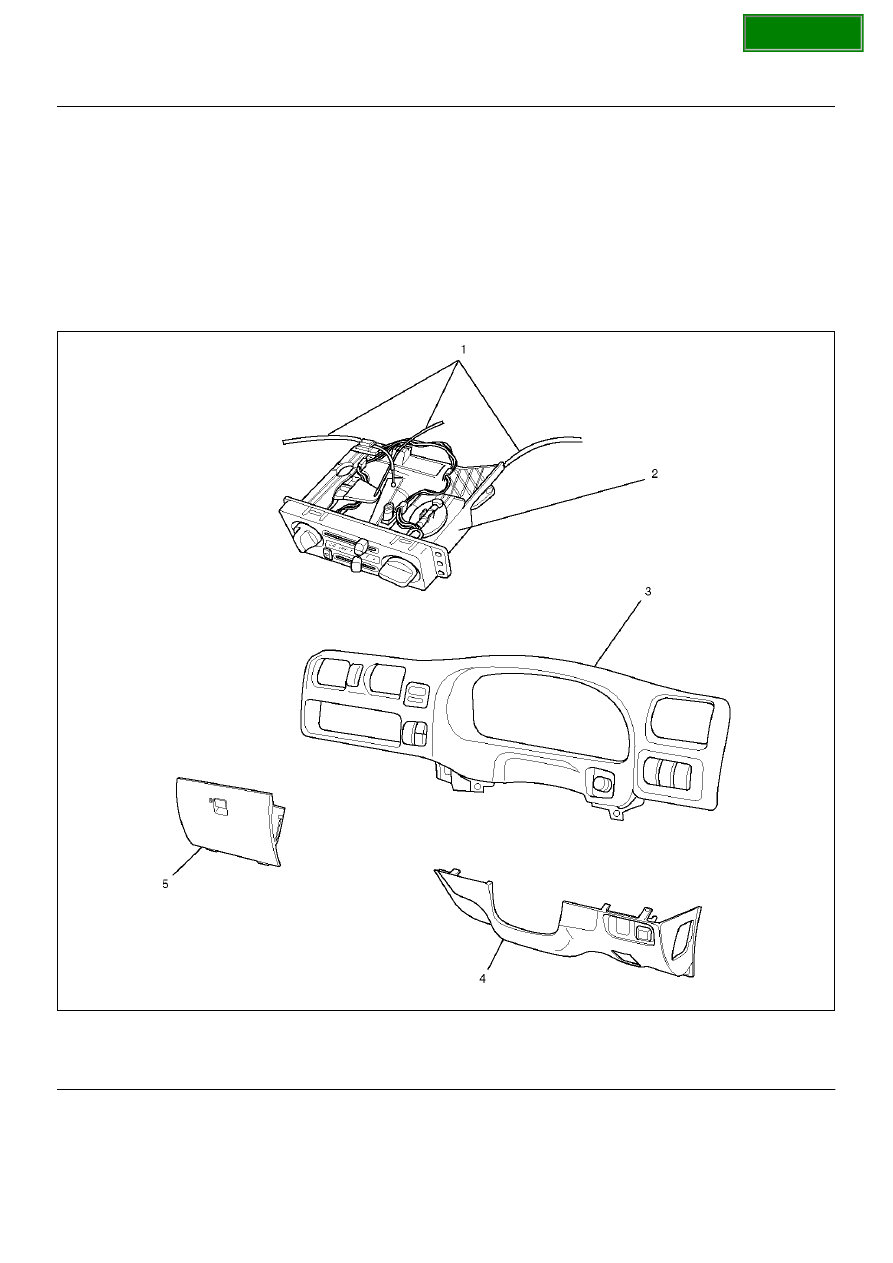

Control Lever Assembly, Control Cable and Associated Parts

865RX009

EndOFCallout

Legend

(1) Control Cable
(2) Control Lever Assembly

(3) Meter Cluster Assembly
(4) Instrument Panel Driver Lower Cover Assembly
(5) Glove Box

SECTION

1A–30

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Removal

1. Disconnect the battery ground cable.

2. Remove instrument panel driver lower cover

assembly.

3. Remove meter cluster assembly.

• Refer to Instrument Panel Assembly in Body

Structure section.

4. Remove glove box.

5. Remove the control lever attaching screws.

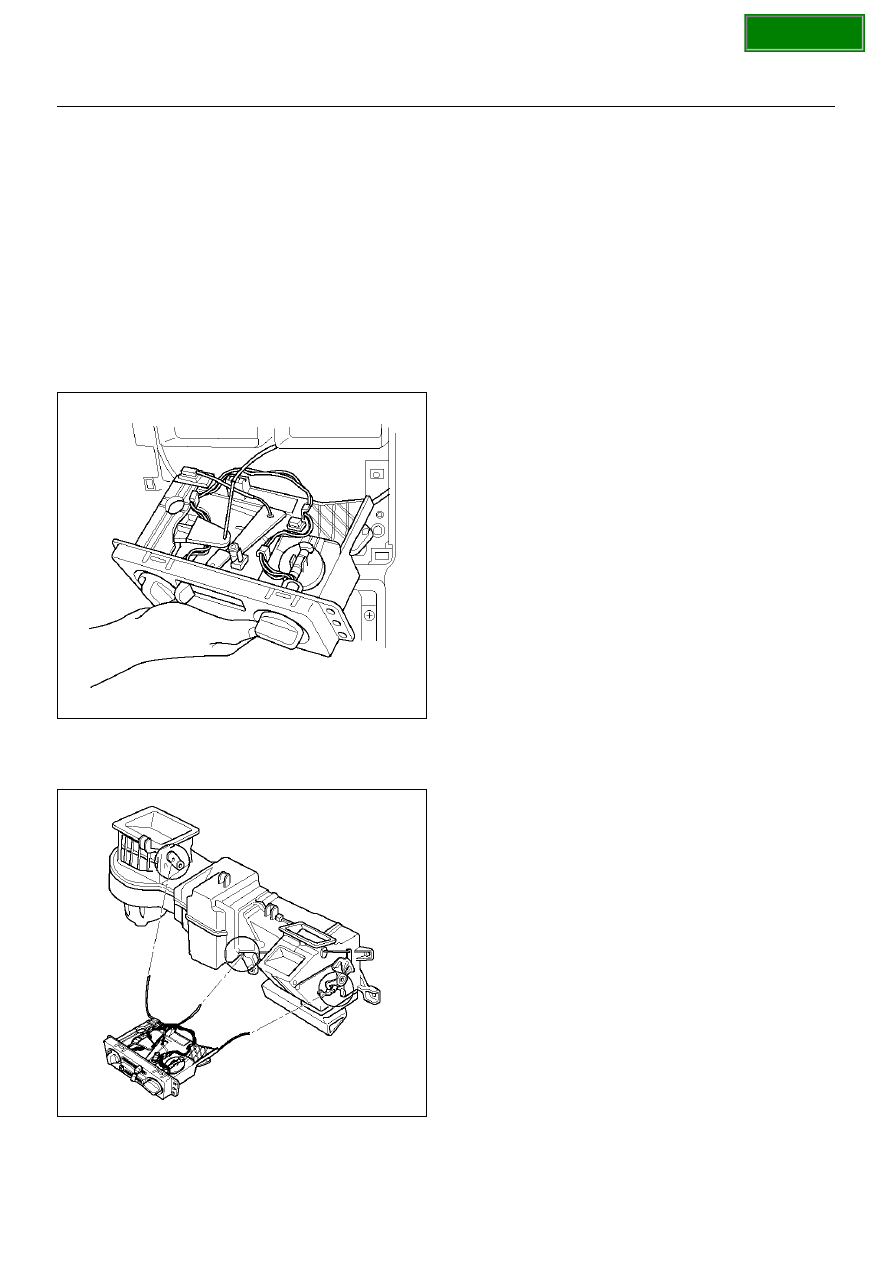

6. Pull the control lever assembly out and disconnect

the fan switch and air conditioning switch
connectors.

865RX012

7. Remove control level assembly.

8. Disconnect control cables at each unit side.

865RX010

SECTION

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–31

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

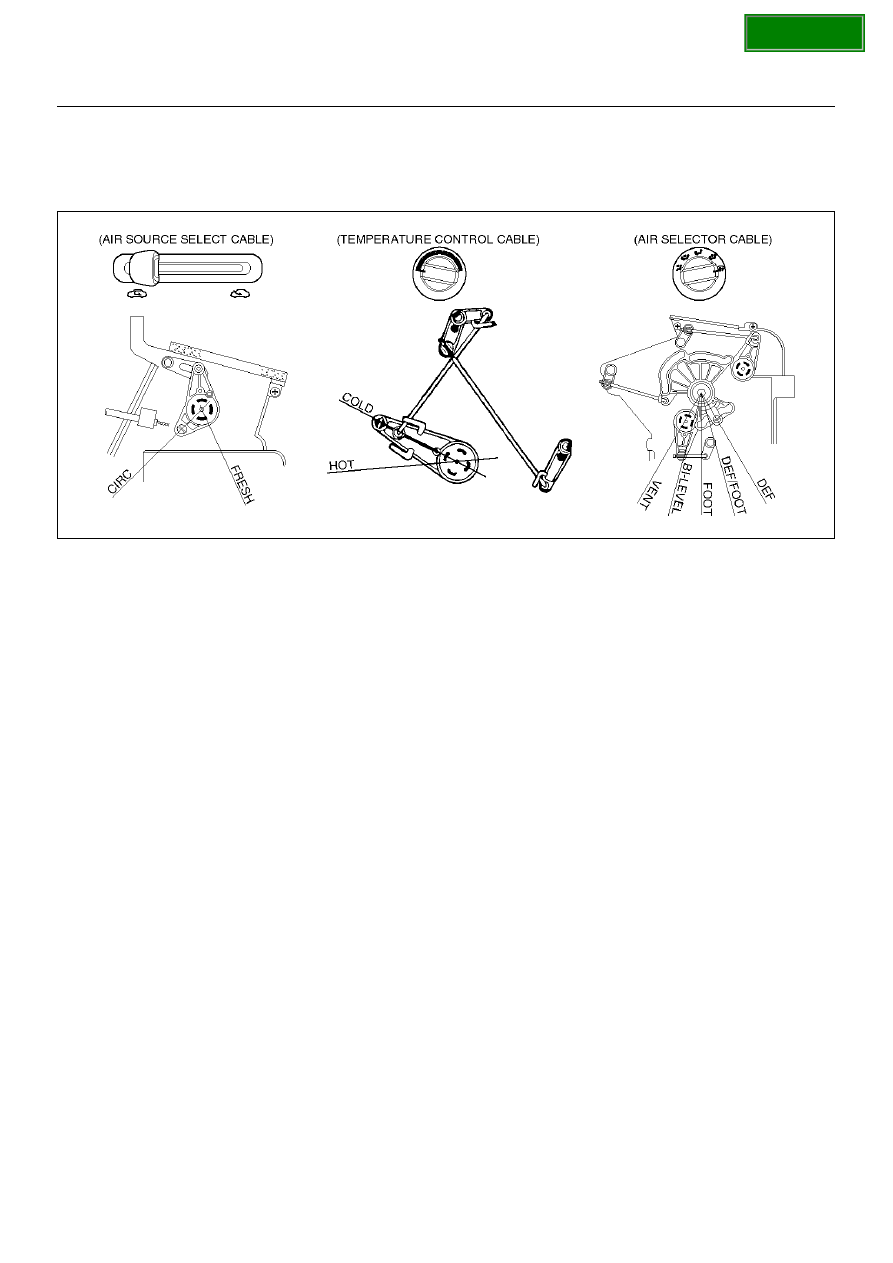

1. Adjust the control cable.

865RX013

• Air source control cable.

1 Slide the control lever to the left (“CIRC"

position).

2 Connect the control cable at the “CIRC"

position of the link unit of the blower assembly
and secure it with the clip.

• Temperature control cable.

1 Turn the control knob to the left (“MAX COLD"

position).

2 Connect the control cable at the “COLD"

position of the temperature control link of the
heater unit and secure it with the clip.

• Air select control cable

1 Turn the control knob to the right

(“DEFROST" position).

2 Connect the control cable at the “DEFROST"

position of the mode control link of the heater
unit and secure it with the clip.

2. Check the control cable operation.

SECTION

1A–32

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Control Panel Illumination Bulb

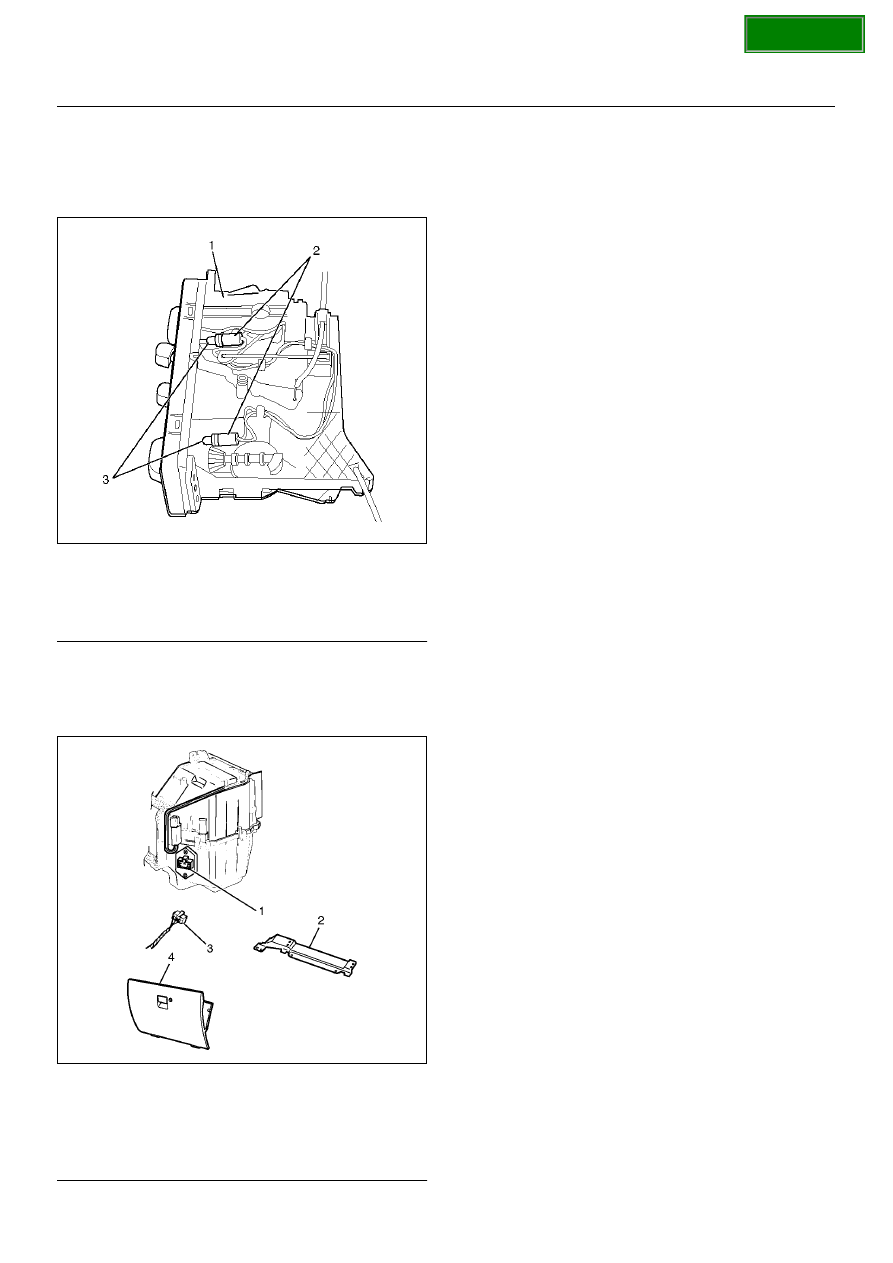

Control Panel Illumination Bulb and
Associated Parts

865RX011

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove control lever assembly.

• Refer to Control Lever Assembly in this section.

3. Pull out the bulb socket from the panel by turning it

counterclockwise.

4. Pull the illumination bulb from the socket.

Installation

To install, follow the removal steps in the reverse order.

Resistor

Resistor and Associated Parts

840R100005

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove glove box.

• Remove the 2 inside clips.

3. Remove passenger knee bolster reinforcement.

4. Remove resistor harness connector.

5. Remove resistor.

Installation

To install, follow the removal steps in the reverse order.

Legend

(1) Control Lever Assembly
(2) Bulb Socket
(3) Illumination Bulb

Legend

(1) Resistor
(2) Passenger Knee Bolster Reinforcement
(3) Resistor Harness Connector
(4) Glove Box
