HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–13

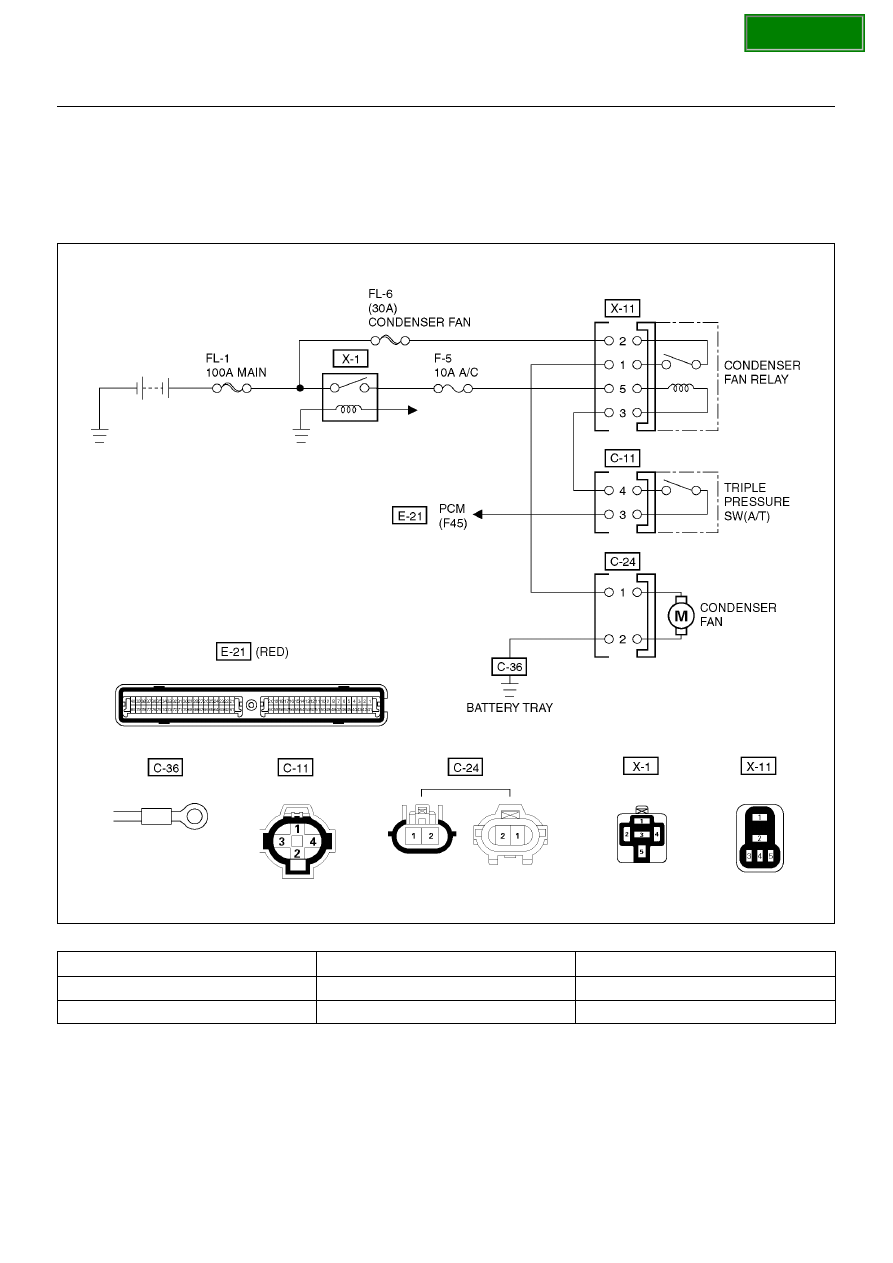

Condenser Fan Diagnosis

While the air conditioning is ON, the cycling switch in
the triple pressure switch senses the refrigerant
pressure, and activates the condenser fan to improve
the cooling capacity of the condenser when the
refrigerant pressure exceeds a set pressure value. The

condenser fan stops when the air conditioning is turned
“OFF" or when the pressure goes down below the set
pressure value.

D08R100140

Condition

Possible cause

Correction

Condenser fan does not run.

—

Refer to Chart A

Condenser fan does not stop.

—

Refer to Chart B

SECTION

1A–14

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Chart “A" Condenser Fan Does Not Run

Step

Action

Value(s)

Yes

No

1

Is the fusible link No.FL–6 normal?

—

Go to Step 2

Replace the

fusible link wire

2

Is the fuse No.F–5 normal?

—

Go to Step 3

Replace the

fuse

3

Is the heater relay (No.X–1) and condenser fan relay
(No.X–11) normal?

—

Go to Step 4

Replace the

relay

4

1. Disconnect the condenser fan motor connector

No.C–24.

2. Connect the motor side connector terminal

No.C24–1 to the battery positive terminal and
No.C24–2 to the battery negative terminal.

Does the fan operate?

—

Go to Step 6

Go to Step 5

5

Repair or replace the condenser fan motor.
Is the action complete?

—

Go to Step 4

—

6

Is there continuity between the harness side
connector terminal No.C24–2 and ground (C–36)?

—

Go to Step 8

Go to Step 7

7

Repair an open circuit between terminal No.C24–2
and No.C–36.
Is the action complete?

—

Go to Step 6

—

8

Is there continuity between the harness side
connector terminal No.C24–1 and No.X11–1?

—

Go to Step 10

Go to Step 9

9

Repair an open circuit between terminal No.C24–1
and No.X11–1.
Is the action complete?

—

Verify repair

—

10

Is the battery voltage applied between the harness
side connector terminal No.X11–2 and ground?

—

Go to Step 12

Go to Step 11

11

Repair an open circuit between terminal No.X11–2
and No.FL–6.
Is the action complete?

—

Go to Step 10

—

12

Is the battery voltage applied between the harness
side connector terminal No.C11–4 and ground?

—

Go to Step 14

Go to Step 13

13

Repair an open circuit between terminal No.X11–3
and No.C11–4.
Is the action complete?

—

Go to Step 12

—

14

Is there continuity between the harness side
connector terminal No.C11–3 and No.E21–F45?

—

Go to Step 16

Go to Step 15

15

Repair an open circuit between terminal No.C11–3
and No.E21–F45.
Is the action complete?

—

Verify repair

—

16  Connect the harness side connector terminal

No.C24–1 to the battery terminal and No.C24–2 to the
battery negative terminal.
Is the battery voltage between the pressure switch
side connector terminal No.C24–2 and ground?

—

Go to Step 18

Go to Step 17

17

Replace the triple pressure switch.
Is the action complete?

—

Verify repair

—

18

Replace the auto air conditioner control unit.
Is the action complete?

—

Verify repair

—

SECTION

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–15

Chart “B" Condenser Fan Does Not Stop

Step

Action

Value(s)

Yes

No

1

1. Turn on the ignition switch “ON" (the engine is

run).

2. Air conditioning switch “OFF".

3. Disconnect the triple pressure switch.

Does the condenser fan stop?

—

Go to Step 2

Go to Step 3

2

Replace the triple pressure switch.
Is the action complete?

—

Verify repair

—

3

Disconnect the relay.
Is there continuity between the harness side
connector terminal No.X11–3 and ground?

—

Go to Step 4

Go to Step 5

4

Repair short circuit between terminal No.X11–3 and
No.C11–4.
Is the action complete?

—

Verify repair

—

5

Replace the relay condenser fan.
Is the action complete?

—

Verify repair

—

SECTION

1A–16

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

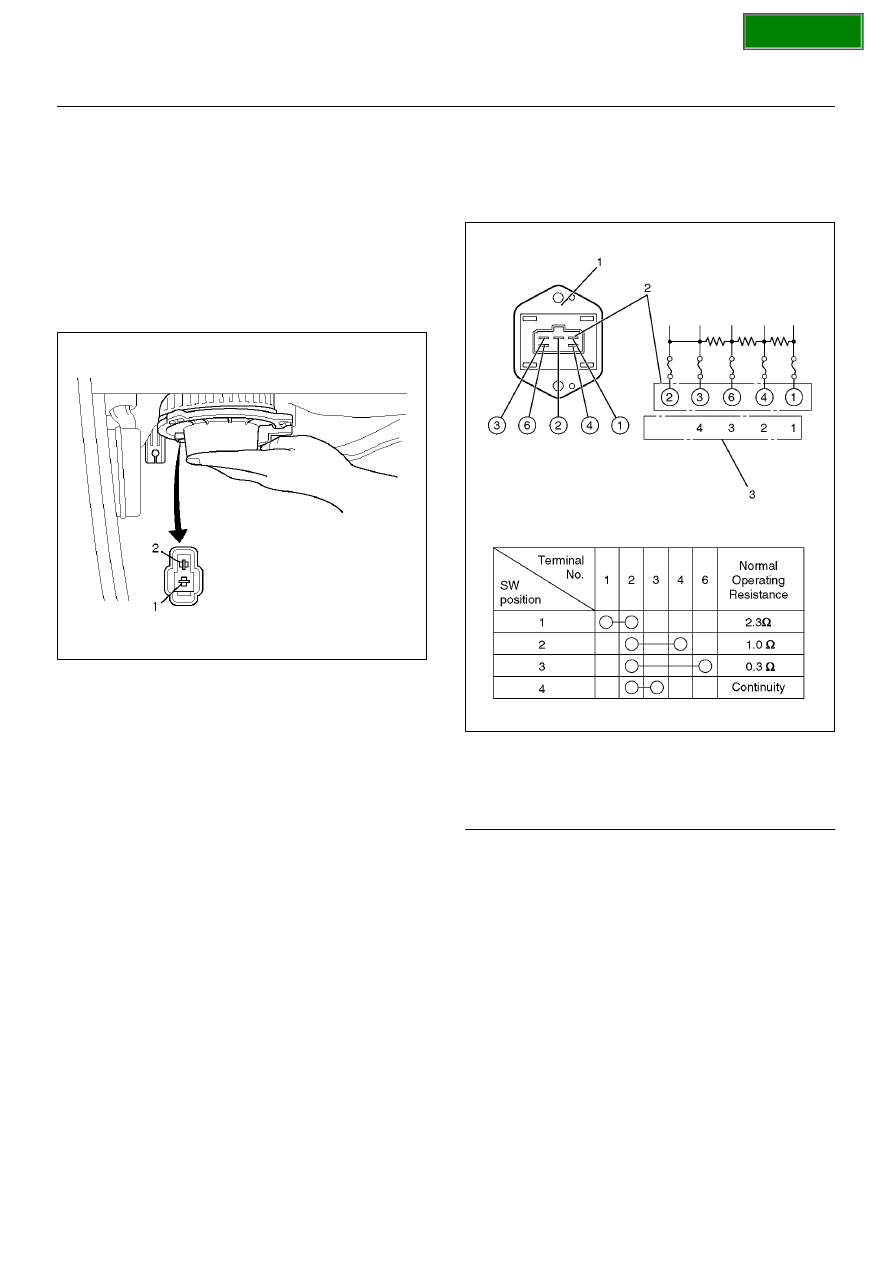

Individual Inspection

Blower Motor

1. Disconnect the blower motor (C-70) connector from

the blower motor.

2. Connect the battery positive terminal to the No. 2

terminal of the blower motor and the negative to the
No. 1.

3. Be sure to check to see if the blower motor operates

correctly.

873RW008

Resistor

1. Disconnect the resistor (C-68) connector.

2. Check for continuity and resistance between the

terminals of the resistor.

840R100006

EndOFCallout

Legend

(1) Resister Assembly
(2) Connector Terminal (Resister Side)
(3) Position Switch
