5A–34

BRAKE CONTROL SYSTEM

Diagnostic Trouble Codes

Choose and trace an appropriate flowchart by the
numbers listed below to find fault and repair.

Code

Diagnosis

Item

Chart

No.

Flash out

Serial

Communications

12

13

C0285

2 WD Controller in 4WD Vehicle Controller

Wiring

B-8

14

C0271

RAM read/write error

Coil

Integrated

Module

B-2

C0272

ROM checksum error

C0270

ALU function error

C0273

Inoperative isolation item

C0284

Loop time overrun

15

C0277

Low ignition voltage

Wiring

B-3

C0278

High ignition voltage

17

C0269

Excessive dump time

Coil

Integrated

Module

B-4

18

C0274

Excessive isolation time

B-5

21

C0276

G-Sensor Failure

B-6

22

C0281

Brake switch Failure

B-7

24

C0282

Open or shorted 4

×

4 input signal

Wiring

B-8

32

C0267

Open motor circuit or shorted ECU output

Motor

B-9

C0268

Stalled motor or open ECU output

35

C0265

Open relay circuit

Relay

B-10

C0266

Shorted relay circuit

41

C0245

FL Open isolation solenoid or shorted ECU output

Solenoid

B-11

C0247

FL Shorted isolation solenoid or open ECU output

42

C0246

FL Open dump solenoid or shorted ECU output

B-12

C0248

FL Shorted dump solenoid or open ECU output

43

C0241

FR Open isolation solenoid or shorted ECU output

B-13

C0243

FR Shorted isolation solenoid or open ECU output

44

C0242

FR Open dump solenoid or shorted ECU output

B-14

C0244

FR Shorted dump solenoid or open ECU output

45

C0251

Rear Open isolation solenoid or shorted ECU output

B-15

C0253

Rear Shorted isolation solenoid or open ECU output

46

C0252

Rear Open dump solenoid or shorted ECU output

B-16

C0254

Rear Shorted dump solenoid or open ECU output

BRAKE CONTROL SYSTEM

5A–35

51

C0225

FL Open or shorted sensor

Sensor or

Wiring

B-17

52

C0221

FR Open or shorted sensor

B-18

53

C0235

Rear Open or shorted sensor

B-19

61

C0226

FL Missing sensor signal

B-20

C0227

FL Sensor signal dropout

62

C0222

FR Missing sensor signal

B-21

C0223

FR Sensor signal dropout

63

C0236

Rear Missing sensor signal

B-22

C0237

Rear Sensor signal dropout

64

C0229

Simultaneous dropout of front sensor signal

B-23

65

C0238

Wheel speed error

Vehicle or

Sensor

B-24

C0286

Shorted indicator lamp

Wiring

Code

Diagnosis

Item

Chart

No.

Flash out

Serial

Communications

5A–36

BRAKE CONTROL SYSTEM

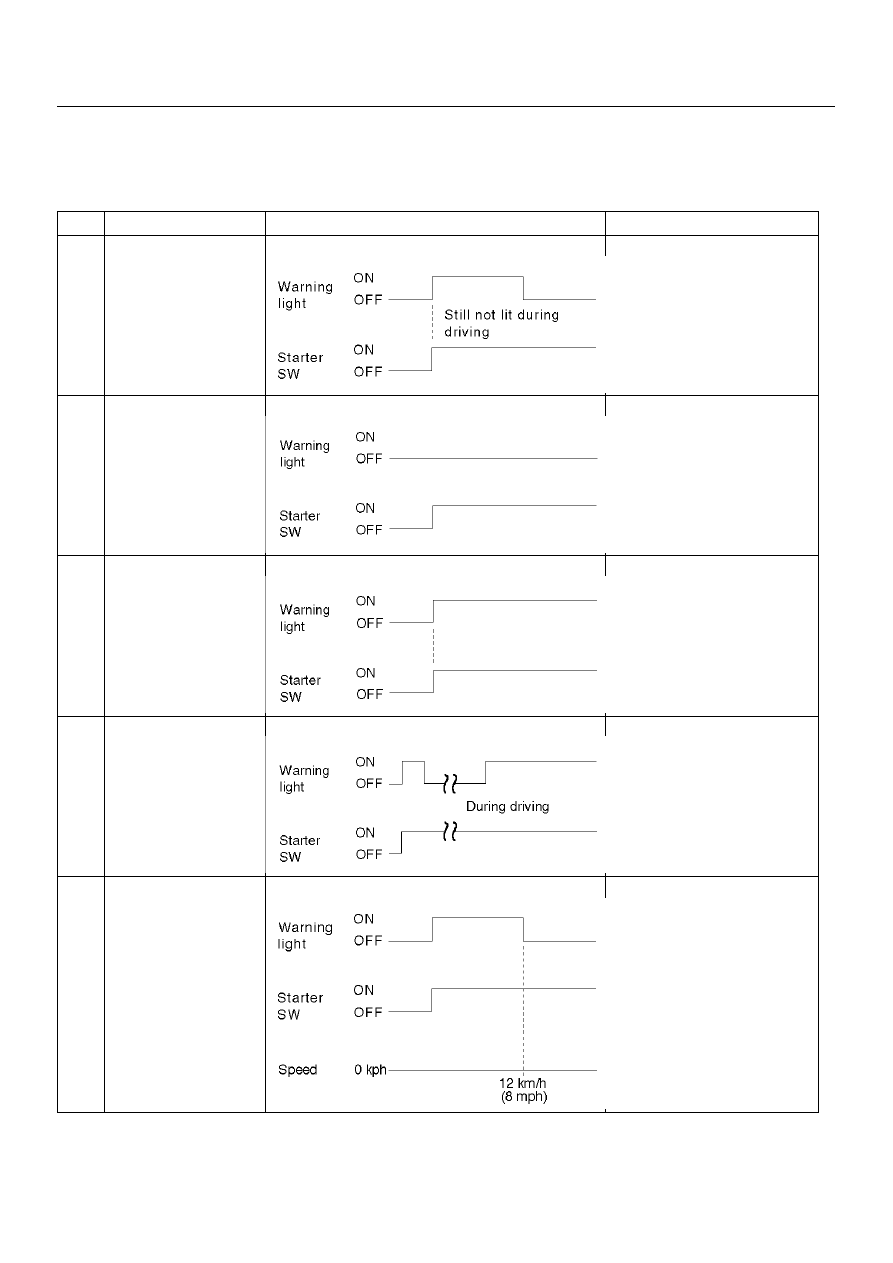

Diagnosis By “ABS"  Warning Light
Illumination Pattern

In the event that there is abnormality in the “ABS"

warning light illumination pattern  while the key is in the
ON position or if the warning light is actuated during
driving, trouble should be  diagnosed on a illumination
pattern basis as follows:

No.

Condition

“ABS" Warning Light Illumination Pattern

Diagnostic

1

Warning light is
actuated normally

Normal

2

Warning light is not lit

Warning light lighting circuit
trouble

Go to Chart B-1

3

Warning light remains
ON

Diagnostic trouble codes are

stored.

Display diagnostic trouble

codes and diagnose on a
code basis according to
the flow charts.

4

Warning light is
actuated while driving

Diagnostic trouble codes are

stored.

Display diagnostic trouble

codes and diagnose on a
code basis according to
the flow charts.

5

Warning light goes at
12 km/h (8 mph) or
higher (After repairing
the faulty part)

Even after repairing the faulty

part the warning light (W/L)
dose not go out it vehicle is
at a stop.

Turn the ignition switch to the

ON position and drive the
vehicle at 12 km/h (8 mph)
or higher to make sure that
the warning light goes out.

BRAKE CONTROL SYSTEM

5A–37

Diagnostic Trouble Codes (DTCs)

When the warning light in the meter remains ON, the
EHCU stores the fault identification and  disables the
ABS.
How to display and erase DTCs:

NOTE:

• DTCs can be displayed also by TECH 2. Use

“Diagnostic Trouble Codes" mode.

1. How to start DTC display:

• Confirm that the vehicle has come to a complete

stop (with the wheels standing still) and that the
brake  pedal is not depressed.  (Unless these two
condition are satisfied, DTC display cannot be
started.)

• With IGN OFF, connect #12 terminal with #4

terminal or # 5 terminal (GND) . Then turn IGN
ON.

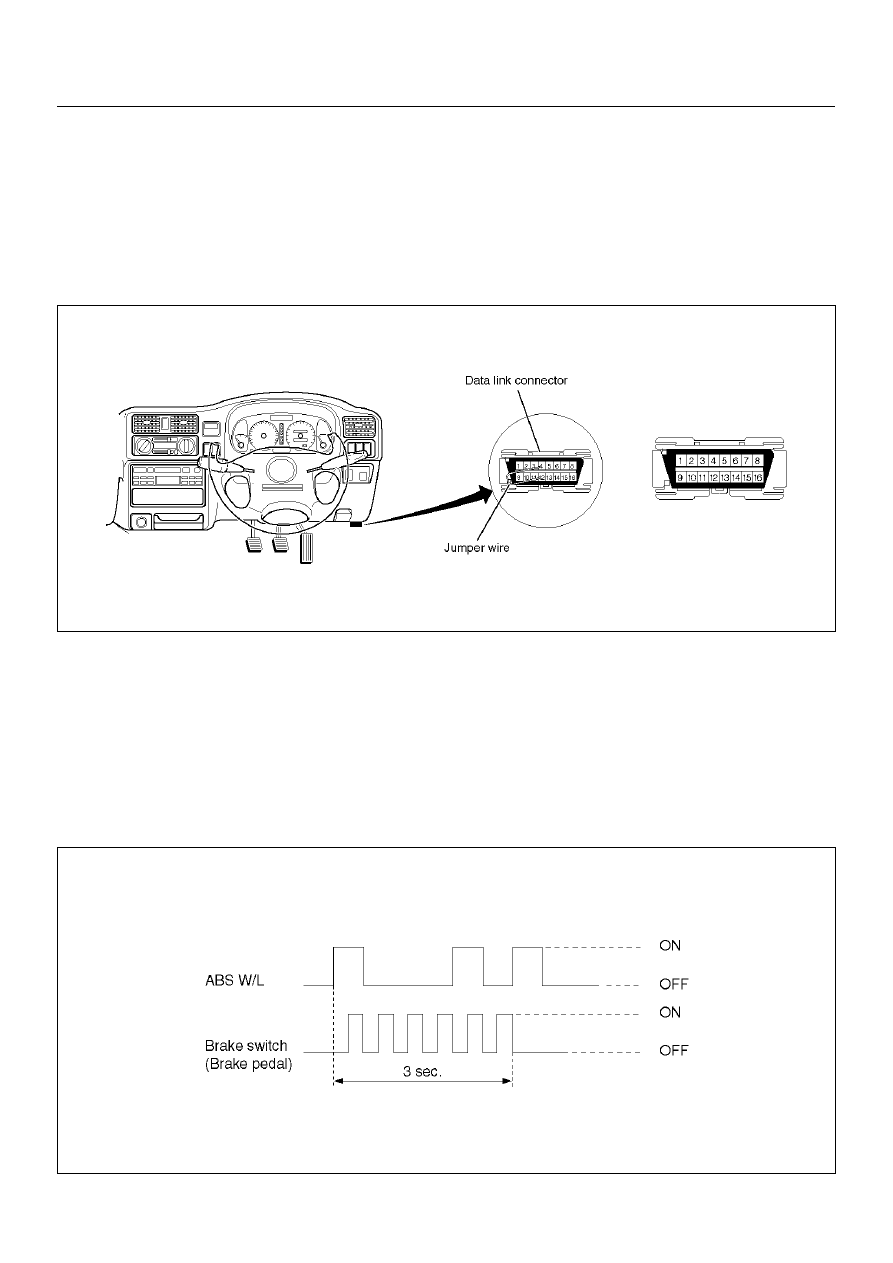

The DLC is located behind the driver side kick panel

350RX008

• Keep #12 terminal connected with #4 terminal or

# 5 terminal (GND) during DTC display.  (If #12
terminal is separated from #4 terminal or # 5
terminal (GND) during display, display will stop.)

2. DTC display:

• DTC is displayed by blinking warning light.

• Double-digit display.

• First, normal DTC 12 is displayed three times and

then any other DTCs are displayed three times.
(If no other DTCs have been stored, the display of

DTC 12 will be repeated.)

3. How to erase code:

• Conduct brake switch ON/OFF operation 6 or

more times within 3 seconds of  self-diagnosis
startup.

• The code cannot be erased if more than 3

seconds have passed since self-diagnosis
startup,  or if self-diagnosis has started with brake
switched on (brake pedaled).

B05RW005
