Opel Frontera UE. Manual - part 123





5A–38

BRAKE CONTROL SYSTEM

4. Notes

• If the following should occurs during Diagnostic

Trouble Code (DTC) display the display will be
discontinued.  After initial check, the status that is
under the control of ABS will be returned :

– The vehicle starts (The wheels turn) or the

brake pedal is depressed.

• Up to 3 different codes can be stored.

• If the ABS should turn OFF due to an intermittent

defect, the system will be restored at the next key
cycle,  if the initial check finds no abnormality
(when IGN is switched from OFF to ON).

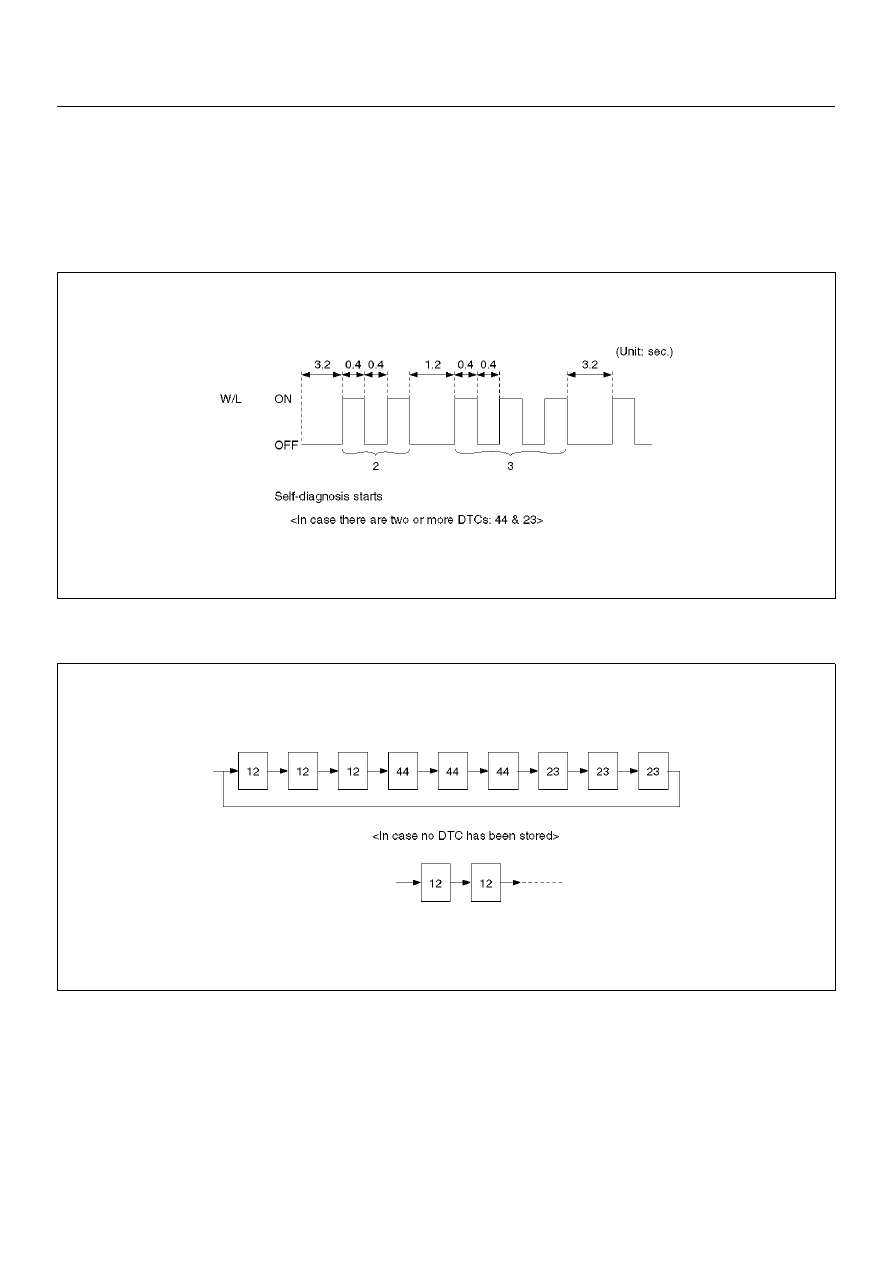

5. An example of DTC display

Display of DTC 23

B05RW006

After displaying DTC 12 three times, one DTC after
another is displayed, starting with the most recent
one.  (However, display is discontinued after about 5

minutes.)

B05RS005

The DTC 12 is displayed repeatedly. (display is
discontinued after about 5 minutes after)

BRAKE CONTROL SYSTEM

5A–39

Chart B-1 With the key in the ON position (Before starting the engine).   Warning light (W/L)
is not activated.

Chart B-2 CPU Error (DTC 14 (Flash out) / C0271, C0272, C0273, C0284 (Serial
communications))

Step

Action

Yes

No

Is W/L fuse disconnected?

Replace fuse.

Go to Step 5

Go to Step 2

Is W/L burnt out?

Replace W/L

bulb.

Go to Step 5

Go to Step 3

1. Turn the key off.

2. Disconnect coil integrated module connector (C-4).

3. Turn the key ON.

Is the check voltage between coil integrated module connector
(C-4) terminals 6 and 7 than battery voltage?

Go to Step 4

Repair harness

and connector.

Go to Step 5

Is the check continuity coil integrated module connector (C-4)
terminals, 1 and 7 and body ground.

Check harness

for suspected

disconnection

No fault found:

Replace EHCU.

Go to Step 5

Repair harness

and connector.

Go to Step 5

Reconnect all components, ensure all components are properly
mounted.
Was this step finished?

Repeat the “Basic

diagnostic flow

chart"

Go to Step 5

Step

Action

Yes

No

1. Turn the key off.

2. Disconnected coil integrated module connector.

3. Inspect coil integrated module ground.

Is the check resistance between the coil integrated module
connector terminals, 2 (C-5) and 7 (C-4) and body ground?

Go to Step 2

Repair the body

ground

harness.

Go to Step 3

1. Turn the key off, connect the coil integrated module

connector.

2. Erase the trouble code.

3. Turn Ignition off, then on, to perform system self-check.

4. If warning light remains on, display trouble codes once again.

Is the check trouble code 14 (Flash out) / C0271, C0272, C0273,
C0284 (Serial communications)?

Replace EHCU.

Go to Step 3

Inspect in

accordance with

the DTC displayed.

1. Reconnect all components, ensure all components are

properly mounted.

2. Clear diagnostic trouble code.

Was this step finished?

Repeat the “Basic

diagnostic flow

chart"

Go to Step 3

5A–40

BRAKE CONTROL SYSTEM

Chart B-3 Low or High Ignition Voltage (DTC 15 (Flash out) / C0277, 0278 (Serial
communications))

Chart B-4 Excessive Dump Time (DTC 17 (Flash out) / C0269 (Serial communications))

Chart B-5 Excessive Isolation Time (DTC 18 (Flash out) / C0274 (Serial communications))

Step

Action

Yes

No

Is the check battery voltage normal? (Battery capacity check)

Go to Step 2

Charge or

replace battery.

Go to Step 2

1. Turn the key off.

2. Disconnect coil integrated module connector.

3. Turn the key on.

Is the check voltage between coil integrated module connector
(C-4) terminals 1 and 7, higher than 10V?

Check harness

connector for

suspected

disconnection

Fault found:

Repair, and

perform system

self-check

No fault found:

replace EHCU.

Go to Step 3

Repair harness

or connector.

Go to Step 3

1. Reconnect all components, ensure all components are

properly mounted.

2. Clear diagnostic trouble code.

Was this step finished?

Repeat the “Basic

diagnostic flow

chart"

Go to Step 3

Step

Action

Yes

No

Check for anything causing extended ABS activation, such as
locked brakes or an erratic speed sensor signal.
Was a problem found?

Repair or Replace

Go to Step 2

1. The key turned off.

2. Replace EHCU.

3. Reconnect all components, ensure all components are

properly mounted.

Was this step finished?

Repeat the “Basic

diagnostic flow

chart"

Go to Step 2

Step

Action

Yes

No

Check for anything causing extended ABS activation, such as
locked brakes or an erratic speed sensor signal.
Was a problem found?

Repair or Replace

Go to Step 2

1. The key turned off.

2. Replace EHCU.

3. Reconnect all components, ensure all components are

properly mounted.

Was this step finished?

Repeat the “Basic

diagnostic flow

chart"

Go to Step 2

BRAKE CONTROL SYSTEM

5A–41

Chart B-6 G-Sensor Output Failure (DTC 21 (Flash out) / C0276 (Serial communications))

Chart B-7 Brake Switch Failure (DTC 22 (Flash out) / C0281 (Serial communications))

Step

Action

Yes

No

1. Turn the key off.

2. Replace EHCU.

3. Reconnect all components, ensure all components are

properly mounted.

Was this step finished?

Repeat the “Basic

diagnostic flow

chart"

Go to Step 1

Step

Action

Yes

No

Is the stop light actuated when the brake pedal is depressed?

Go to Step 2

Go to Step 4

1. Turn the key off.

2. Disconnected coil integrated module connector.

Is the check voltage coil integrated module connector (C-4)
terminals 13 to 7 when brake pedal is depressed than battery
voltage?

Go to Step 3

Harness

between brake

SW and coil

integrated

module is faulty.

Go to Step 6

Is the check that pins C-5 connector 2, and C-4 connector 7 have
good ground?

Check harness

/ connector for

disconnection

Fault found:

Repair, and

perform system

self-check.

No fault found:

replace EHCU.

Go to Step 6

Repair.

Go to Step 6

Is stop light fuse normal?

Go to Step 5

Replace.

Go to Step 6

Is brake SW normal?

Abnormal

harness in stop

light circuit.

Repair the

harness.

Go to Step 6

Replace.

Go to Step 6

1. Reconnect all components, ensure all components are

properly mounted.

2. Clear diagnostic trouble code.

Was this step finished?

Repeat the “Basic

diagnostic flow

chart"

Go to Step 6
