5A–26

BRAKE CONTROL SYSTEM

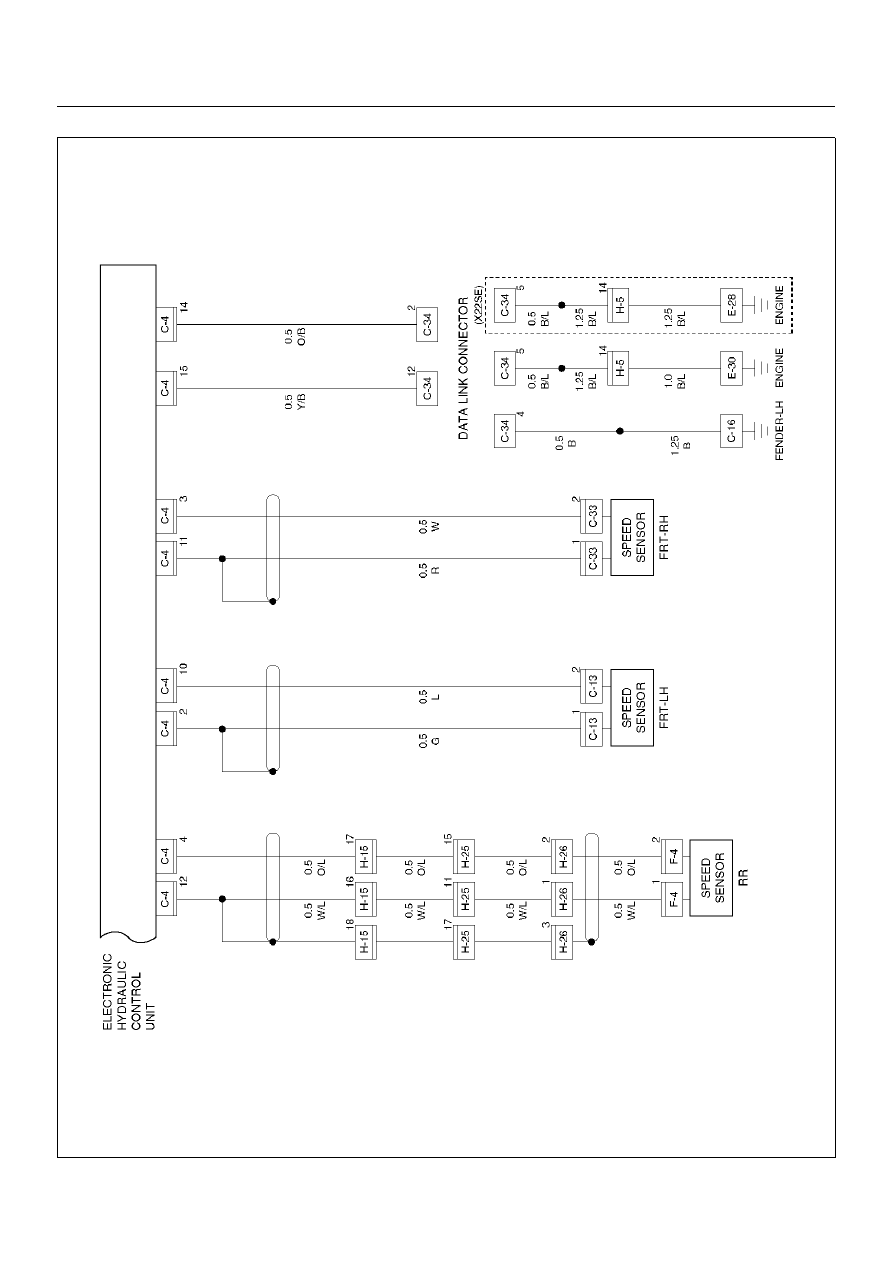

D08RX215

BRAKE CONTROL SYSTEM

5A–27

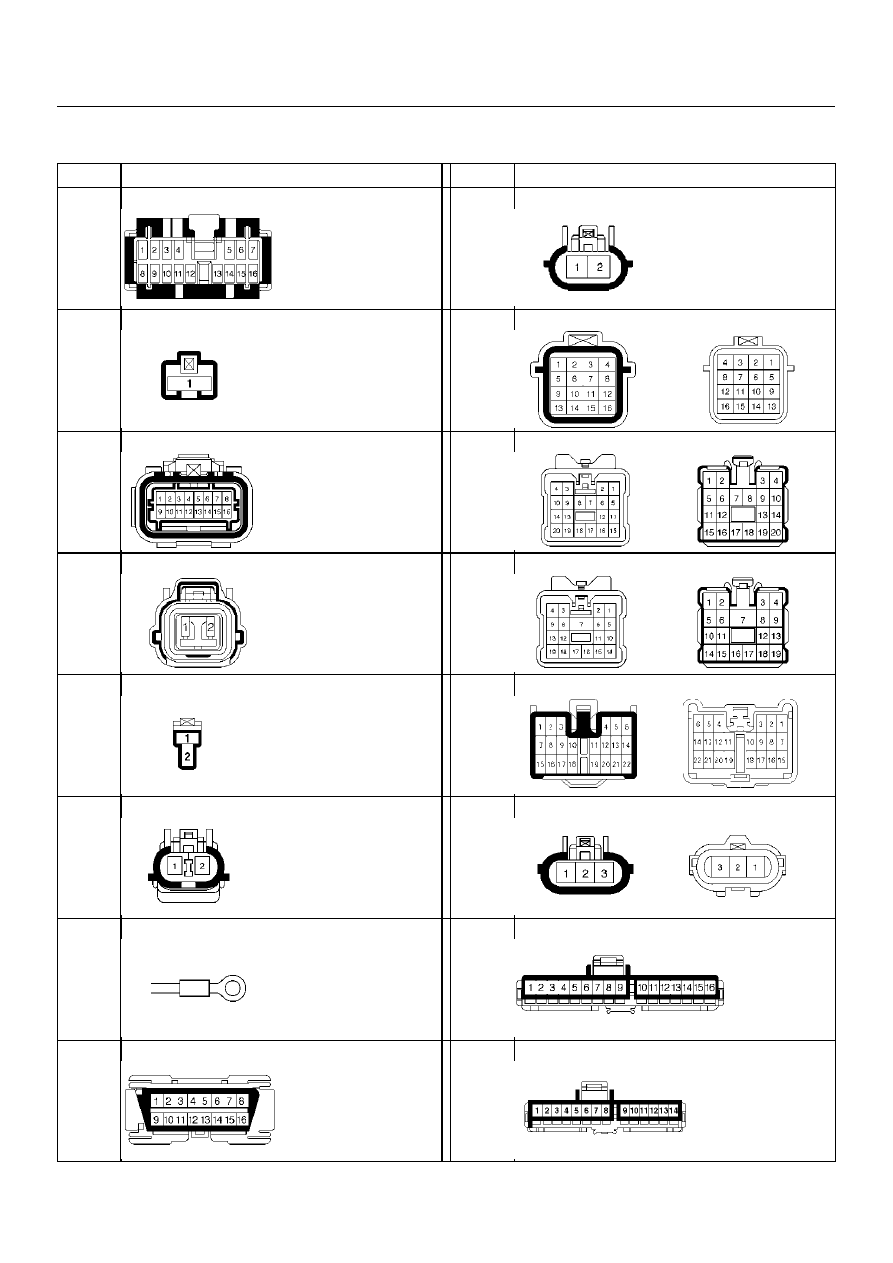

Connector List

No.

Connector face

No.

Connector face

B-19

F-4

B-23

H-5

C-4

H-15
H-25

C-5

H-14

C-6

H-19

C-13
C-33

H-26

C-16
C-36

E-28
E-30

I-1

C-34

I-2

5A–28

BRAKE CONTROL SYSTEM

I-18

No.

Connector face

No.

Connector face

BRAKE CONTROL SYSTEM

5A–29

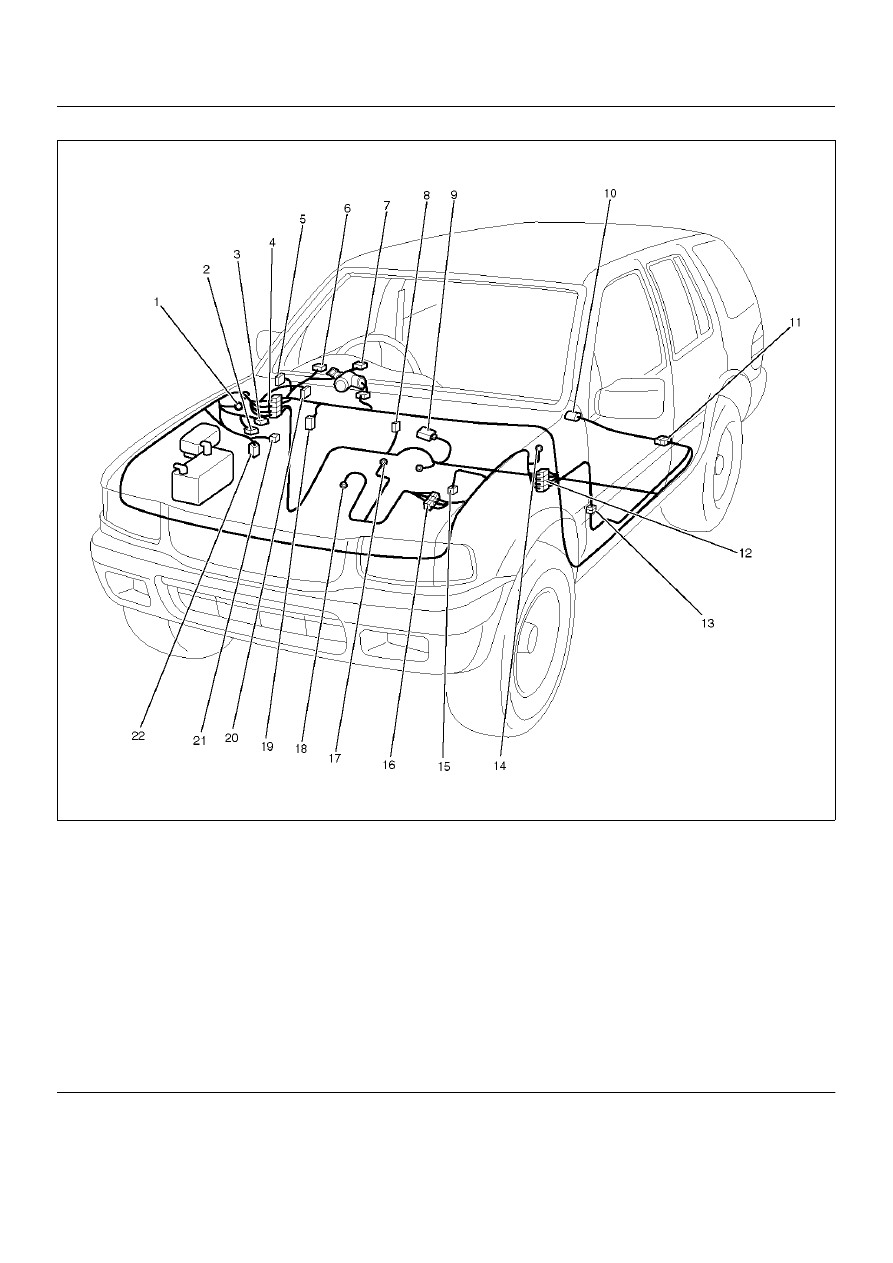

Part Location

D08RX217

Legend

EndOFCallout

(1) C–36
(2) C–5
(3) C–4
(4) H–14, H–19
(5) Relay & Fuse Box
(6) I–1
(7) I–2
(8) B–23
(9) B–19

(10) F–4
(11) H–26
(12) H–15

(13) H–25
(14) C–16
(15) C–13
(16) H–5
(17) E–30 (6VD1)
(18) E–28 (X22SE)
(19) I–18
(20) C–34
(21) C–6
(22) C–33
