Opel Frontera UE. Manual - part 1174





EXTERIOR/INTERIOR TRIM

8J–3

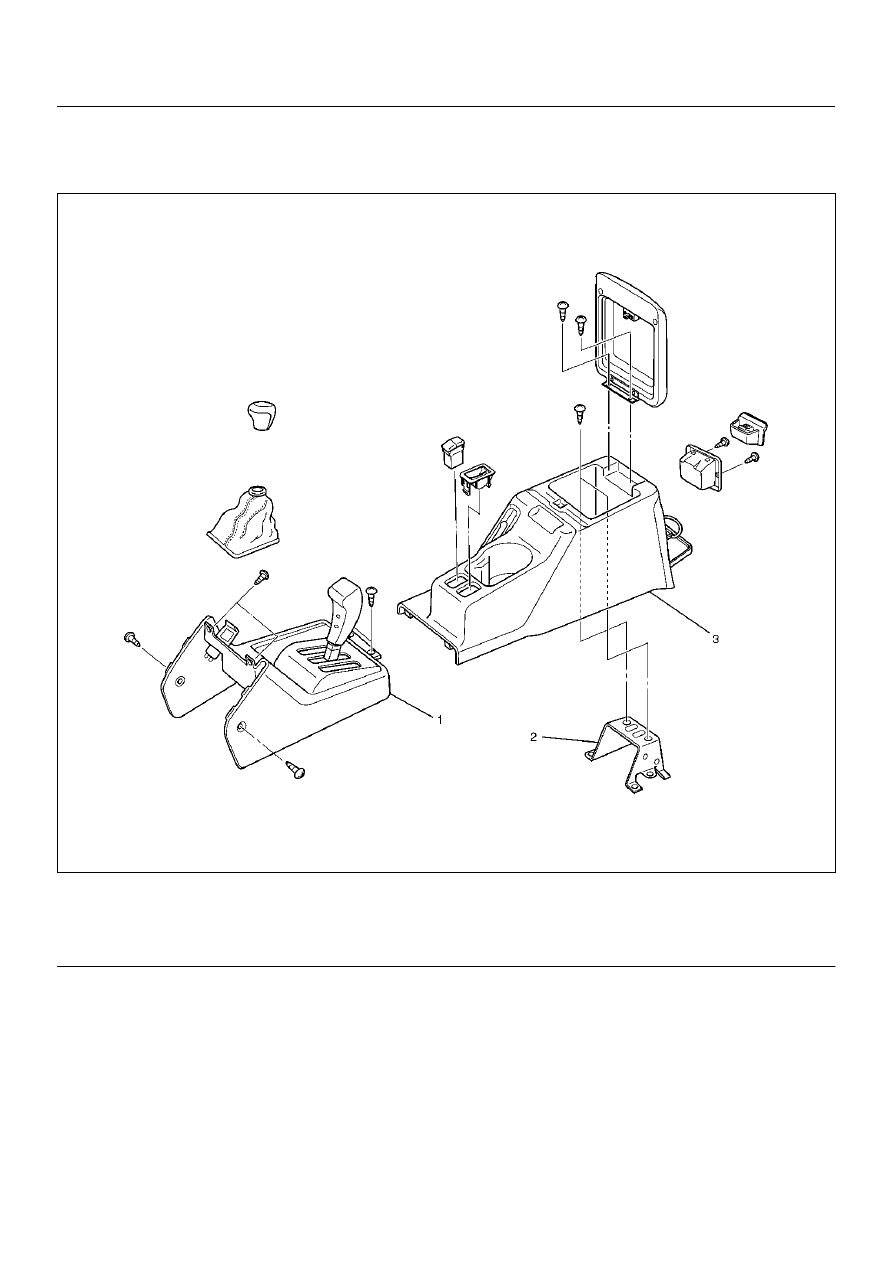

Consoles

Consoles and Associated Parts

745RX004

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the shift knob (M/T) / transfer knob (4

×

4).

3. Remove the rear console assembly.

• Open the rear console lid and remove two

screws.

• Disconnect the switch connector.

4. Remove the front console assembly.

• Remove six fixing screws and disconnect the

accessory socket  connector.

Installation

To install, follow the removal steps in the reverse order.

(1) Front Console
(2) Console Brackets

(3) Rear Console Assembly

8J–4

EXTERIOR/INTERIOR TRIM

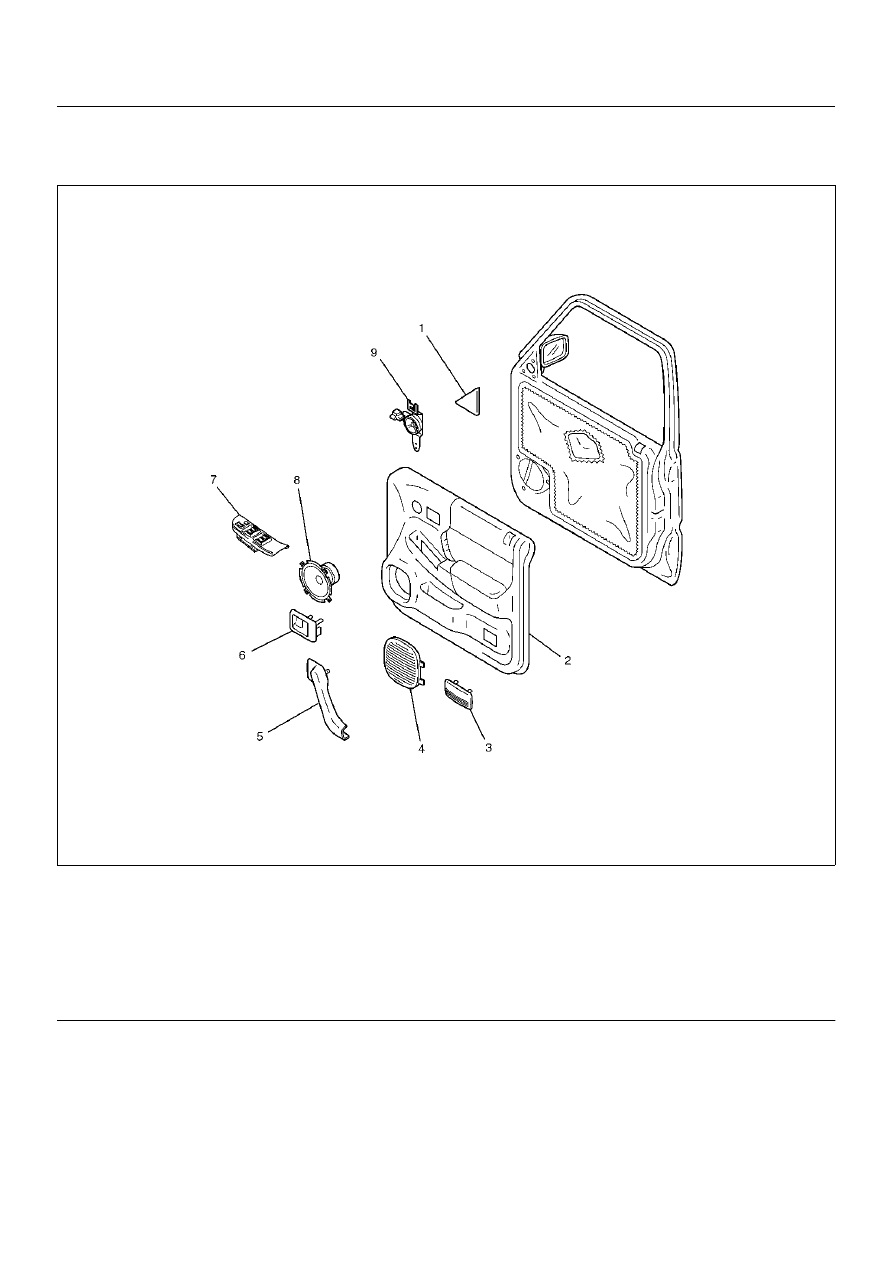

Front Door Trim Panel

Front Door Trim Panel and Associated Parts

635RY00012

Legend

EndOFCallout

(1) Door Mirror Cover
(2) Door Trim Panel
(3) Courtesy Light Lens
(4) Speaker Grill
(5) Grip Cover

(6) Inside Handle
(7) Power Window Switch
(8) Speaker Assembly
(9) Tweeter

EXTERIOR/INTERIOR TRIM

8J–5

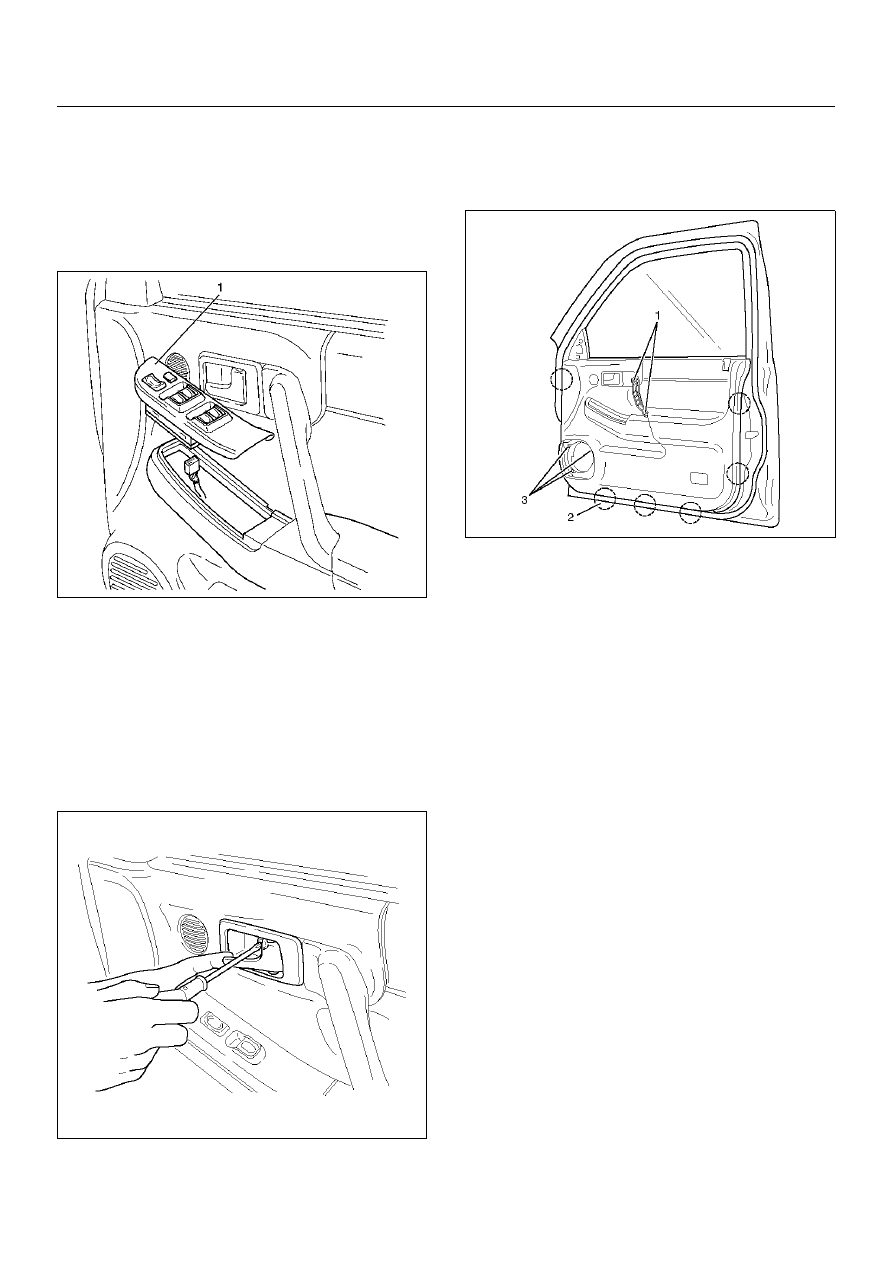

Removal

1. Disconnect the battery ground cable.

2. Remove the door mirror cover (2).

3. Remove the power window switch (1).

• Pry the power window switch out and disconnect

the switch connector.

635RW016

4. Remove the speaker cover.

5. Remove the front speaker.

• Remove the front speaker fixing screws in order

to disconnect the speaker connector.

6. Remove the inside handle fixing screw.

CAUTION:  Take care not to apply excessive force
on the inside handle link, lest this link is elongated,
which could make it impossible to operate the door
with the inside handle.

632RW003

7. Remove the door trim panel.

• Remove the five fixing screws (1), (3) in order to

pull out the six clip positions (2) from the door
panel.

635RW007

• Disconnect the tweeter and courtesy light

connectors to lift the door trim panel and unlock
the engagement of the waist seal section.  Then,
pass the inside handle through the mounting hole
of the trim panel, and detach the trim panel.

8. Remove the inside handle.

9. Remove the tweeter.

Installation

To install, follow the removal steps in the reverse order.

8J–6

EXTERIOR/INTERIOR TRIM

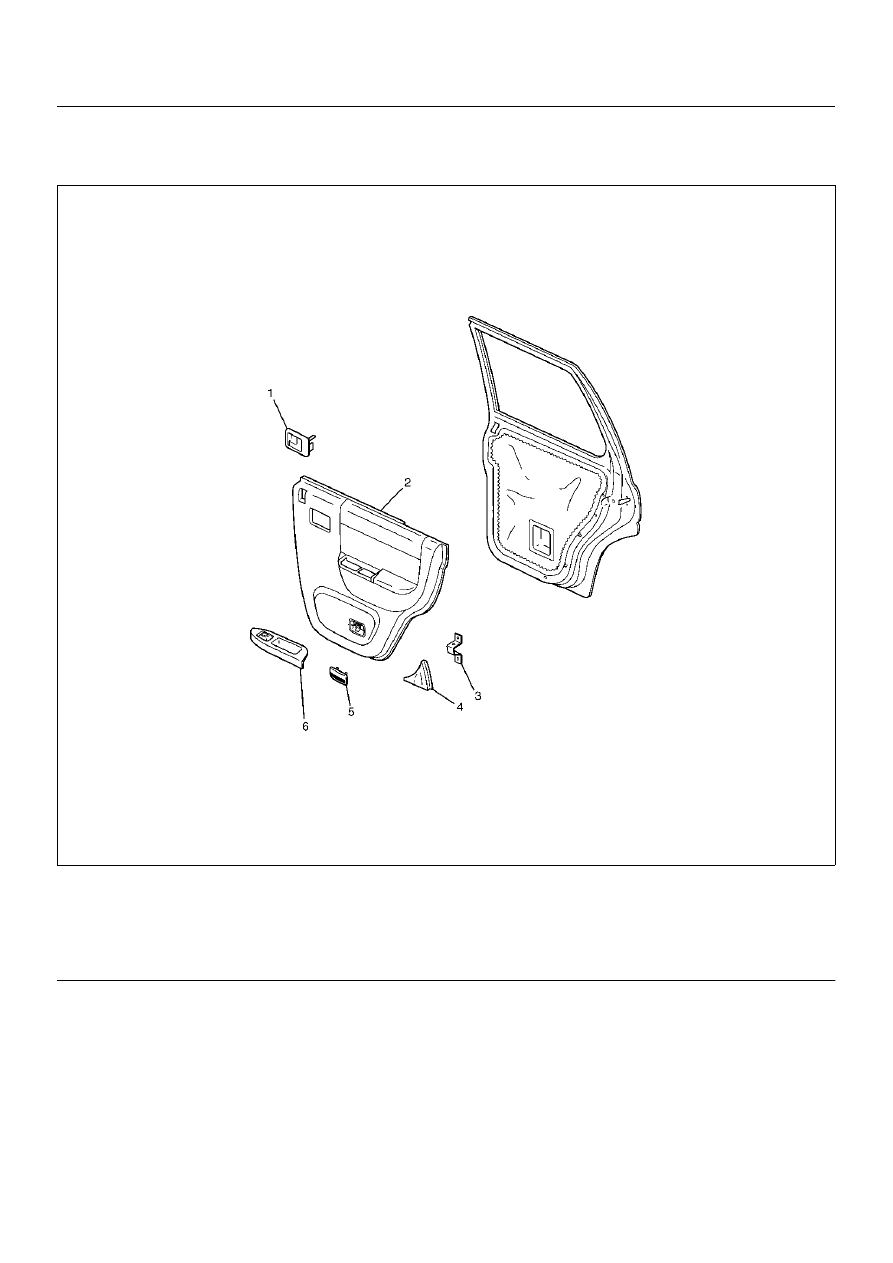

Rear Door Trim Panel

Rear Door Trim Panel and Associated Parts

655RX002

Legend

EndOFCallout

(1) Inside Handle
(2) Door Trim Panel
(3) Bracket

(4) Rear Door Corner Garnish
(5) Courtesy Light Lens
(6) Power Window Switch
