8I–16

SUNROOF/CONVERTIBLE TOP

7. Remove the weather strip.

8. Remove the rear end floor trim cover.

• Remove the five fixing screws.

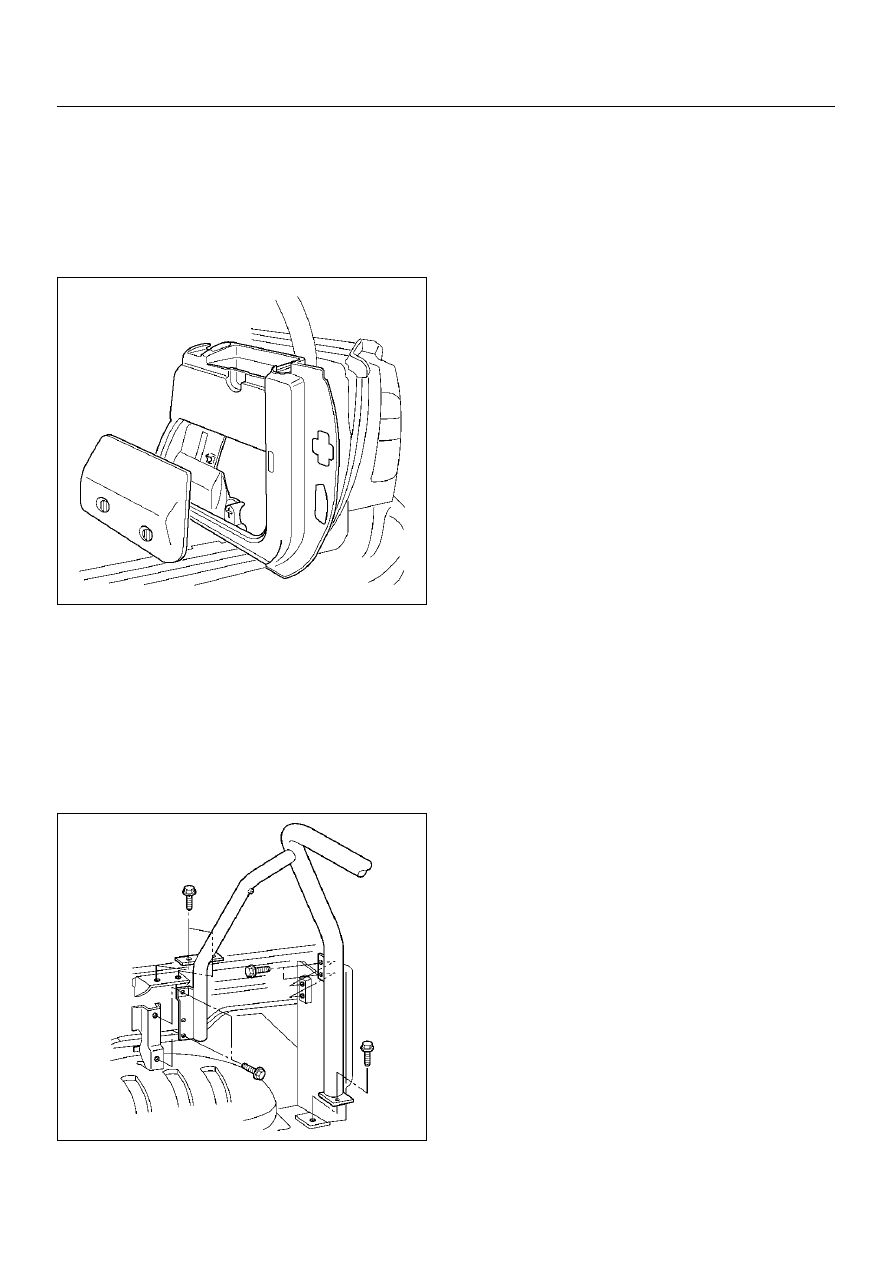

9. Remove the right luggage side trim cover.

• Remove the jack & tool lid and take out the tools.

Then remove the fixing screw and pull the clips
out from the body panel.

687RW005

• To remove the left luggage side trim cover,

disconnect the accessory socket connector.

10. Remove the rear seat belt assembly.

• Refer to Rear Seat Belt (SWB) in Restraints

section.

11. Remove the seat belt cross bar assembly.

• Remove the two sets of seven fixing bolts on the

left and right sides. One set of the fixing bolts are
also used to secure the resin top in place.

688RW009

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Tighten the rear seat belt anchor bolts to the

specified torque.

Torque: 39 N·m (4.0 kg·m/29 Ib ft)

2. Tighten the seat belt cross bar assembly fixing bolts

to the specified torque.

Torque: 19 N·m (1.9 kg·m/14 Ib ft)

SUNROOF/CONVERTIBLE TOP

8I–17

Main Data and Specifications

Torque Specification

Application

N·m

kg·m

lb ft

lb in

Sunroof Glass Fixing Screws (LWB)

4

0.4

—

35

Sunroof Handle Plate Fixing Nuts (SWB)

8

0.8

—

69

Resin Top Assembly Fixing Bolts and Nuts

15

1.5

11

—

Rear Seat Belt Anchor Bolts

39

4.0

29

—

Seat Belt Cross Bar Assembly Fixing Bolts

19

1.9

14

—

EXTERIOR/INTERIOR TRIM

8J–1

BODY AND ACCESSORIES

EXTERIOR / INTERIOR TRIM

CONTENTS

Service Precaution......................................... 8J - 2

Consoles ....................................................... 8J - 3

Consoles and Associated Parts.................. 8J - 3
Removal ..................................................... 8J - 3
Installation .................................................. 8J - 3

Front Door Trim Panel................................... 8J - 4

Front Door Trim Panel and

Associated Parts ....................................... 8J - 4

Removal ..................................................... 8J - 5
Installation .................................................. 8J - 5

Rear Door Trim Panel ................................... 8J - 6

Rear Door Trim Panel and

Associated Parts ....................................... 8J - 6

Removal ..................................................... 8J - 7
Installation .................................................. 8J - 7

Door Mirror Assembly ................................... 8J - 8

Removal ..................................................... 8J - 8
Installation .................................................. 8J - 8
Mirror Replacement .................................... 8J - 8

Interior Trim Panels (LWB)............................ 8J - 10

Interior Trim Panels and

Associated Parts ....................................... 8J - 10

Removal ..................................................... 8J - 10
Installation .................................................. 8J - 12

Interior Trim Panels (SWB) ........................... 8J - 13

Interior Trim Panels and

Associated Parts ....................................... 8J - 13

Removal ..................................................... 8J - 13
Installation .................................................. 8J - 14

Overhead Console ........................................ 8J - 15

Parts Location............................................. 8J - 15
Removal ..................................................... 8J - 15
Installation .................................................. 8J - 15

Headlining (LWB) .......................................... 8J - 16

Parts Location............................................. 8J - 16
Removal ..................................................... 8J - 16

Installation................................................... 8J - 17

Headlining (SWB).......................................... 8J - 18

Parts Location............................................. 8J - 18
Removal...................................................... 8J - 19
Installation................................................... 8J - 19

Wheel Arch Protector (LWB) ......................... 8J - 20

Wheel Arch Protector and

Associated Parts ....................................... 8J - 20

Removal...................................................... 8J - 20
Installation................................................... 8J - 20

Wheel Arch Moulding (SWB)......................... 8J - 21

Wheel Arch Moulding and

Associated Parts ....................................... 8J - 21

Removal...................................................... 8J - 21
Installation................................................... 8J - 22

Wheel Arch Moulding (LWB) ......................... 8J - 23

Wheel Arch Moulding and

Associated Parts ....................................... 8J - 23

Removal...................................................... 8J - 23
Installation................................................... 8J - 24

Fuel Filler Door.............................................. 8J - 25

Parts Location............................................. 8J - 25
Removal...................................................... 8J - 25
Installation................................................... 8J - 25

Roof Rail ....................................................... 8J - 26

Parts Location............................................. 8J - 26
Removal...................................................... 8J - 26
Installation................................................... 8J - 26

Power Door Mirror System ............................ 8J - 27

General Description .................................... 8J - 27
Door Mirror Switch ...................................... 8J - 27

Power Window System ................................. 8J - 28

General Description .................................... 8J - 28
Power Window Switch Driver Seat Side ..... 8J - 28
Power Window Motor.................................. 8J - 29

Main Data and Specifications ........................ 8J - 31

SECTION

8J–2

EXTERIOR/INTERIOR TRIM

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT  AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE  SRS WIRING, REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR  BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after  removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE  SPECIFIED, do not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded fasteners  or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force,  and may damage the fastener.
When you install fasteners, use the correct
tightening sequence and specifications.  Following
these instructions can help you avoid damage to
parts and systems.
