8I–12

SUNROOF/CONVERTIBLE TOP

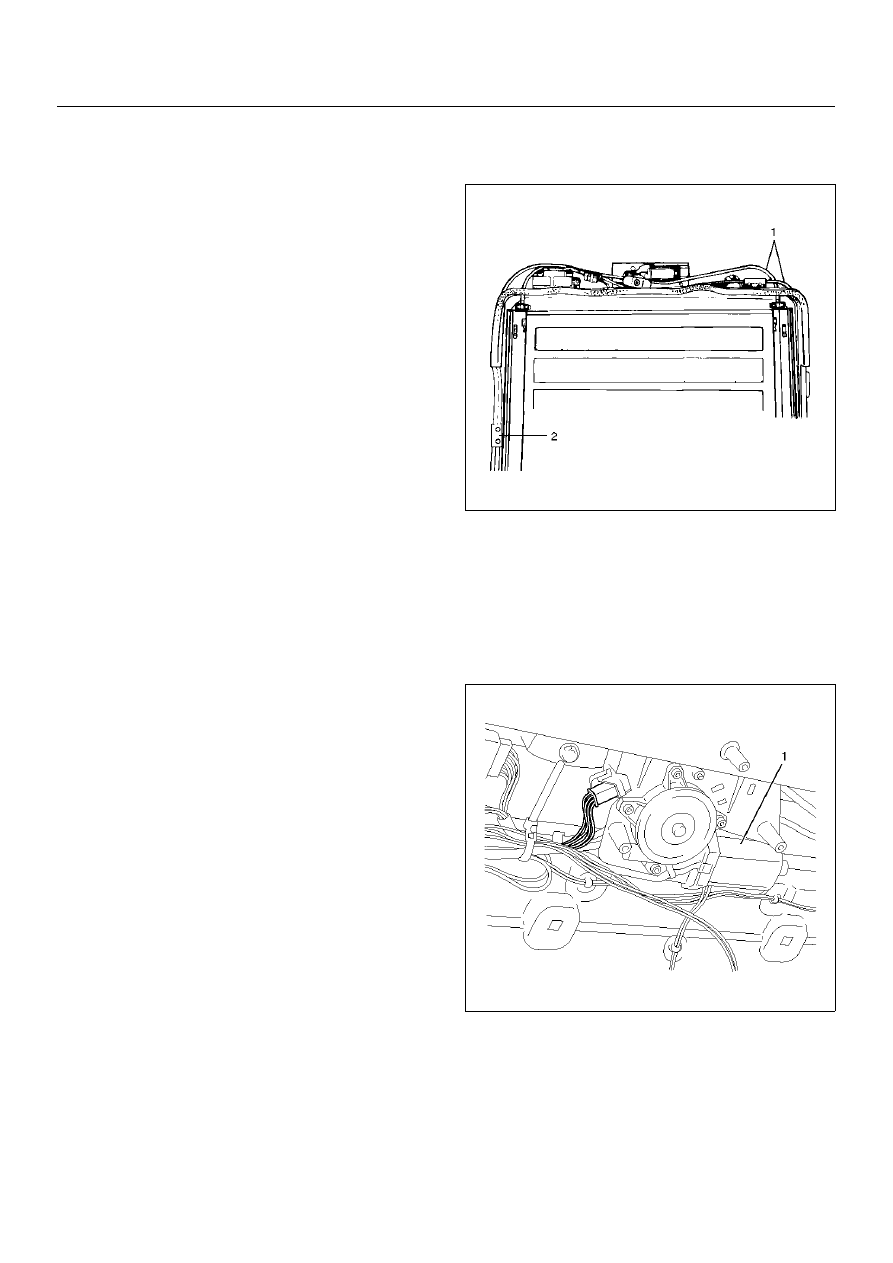

Limit Switch

Removal

1. Disconnect the battery ground cable.

2. Remove the sunroof frame complete assembly.

• Refer to Sunroof Frame Complete Assembly

(LWB) in this section.

3. Remove the sunroof drive unit assembly (1) to

remove the limit switch (2).

665RS025

Installation

To install, follow the removal steps in the reverse order.

Sunroof Motor

Removal

1. Disconnect the battery ground cable.

2. Remove the headlining (2).

• Refer to Headlining (LWB) in Exterior/Interior Trim

section.

3. Remove the sunroof motor (1).

• Disconnect the connector.

• Remove three nuts and two screws.

665RW014

Installation

To install, follow the removal steps in the reverse order.

SUNROOF/CONVERTIBLE TOP

8I–13

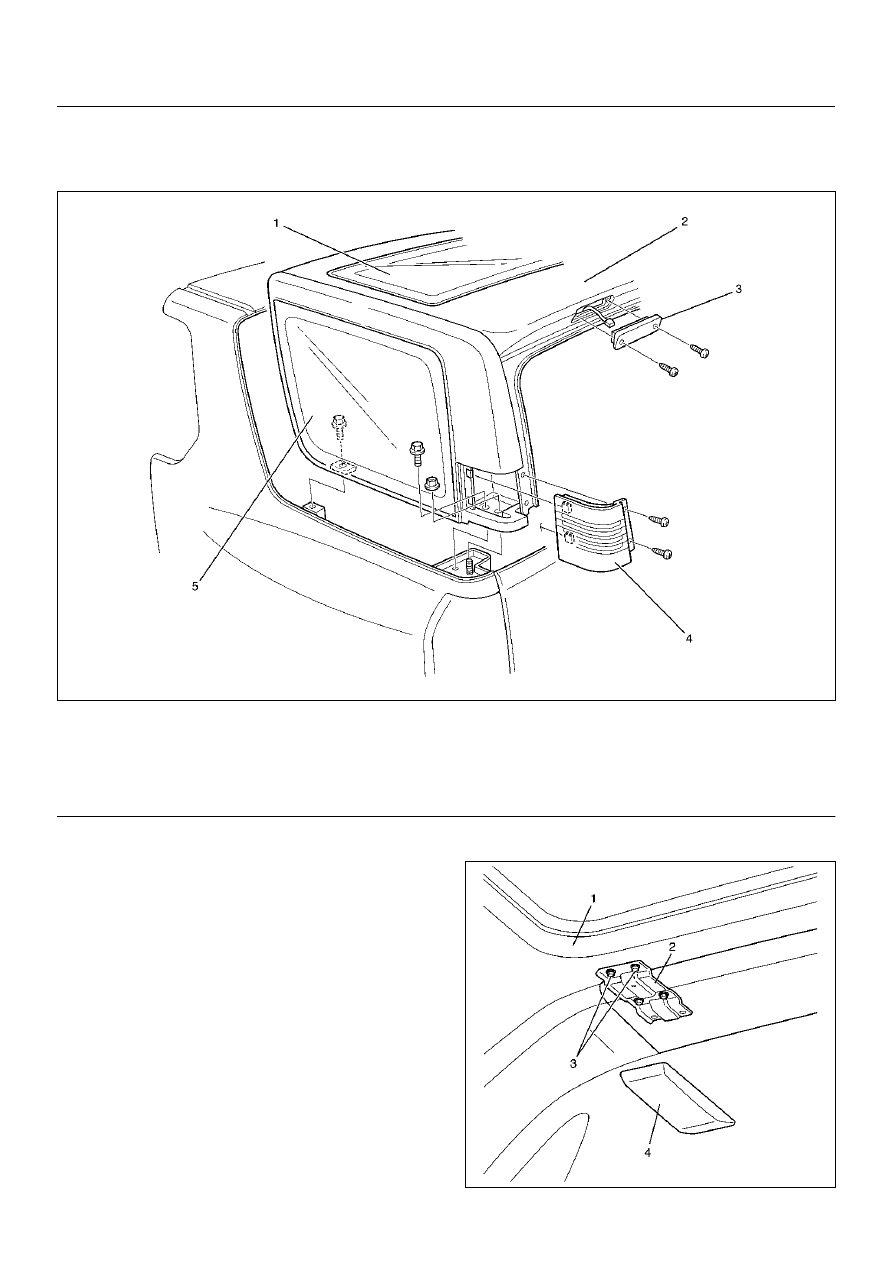

Resin Top Assembly

Resin Top Assembly and Associated Parts

688RW006

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the rear sunroof glass.

• Refer to Sunroof Glass (SWB) in this section.

3. Remove the sunroof deflector.

• Remove the four fixing screws.

4. Remove the rear roof bracket covers (4) and remove

the both sets of two bolts (3) on the resin top sides
of the rear roof brackets (2).

666RW010

(1) Rear Sunroof Assembly
(2) Resin Top Assembly
(3) High Mount Stoplight

(4) Air Outlet Grille Assembly
(5) Rear Quarter Glass

8I–14

SUNROOF/CONVERTIBLE TOP

5. Remove the air outlet grille assembly (LH & RH).

• Remove the two screws and pull the grille

assemblies off toward the rear.

6. Remove the luggage light assembly and disconnect

the connector.

7. Remove the high mount stoplight assembly and

disconnect the connector.

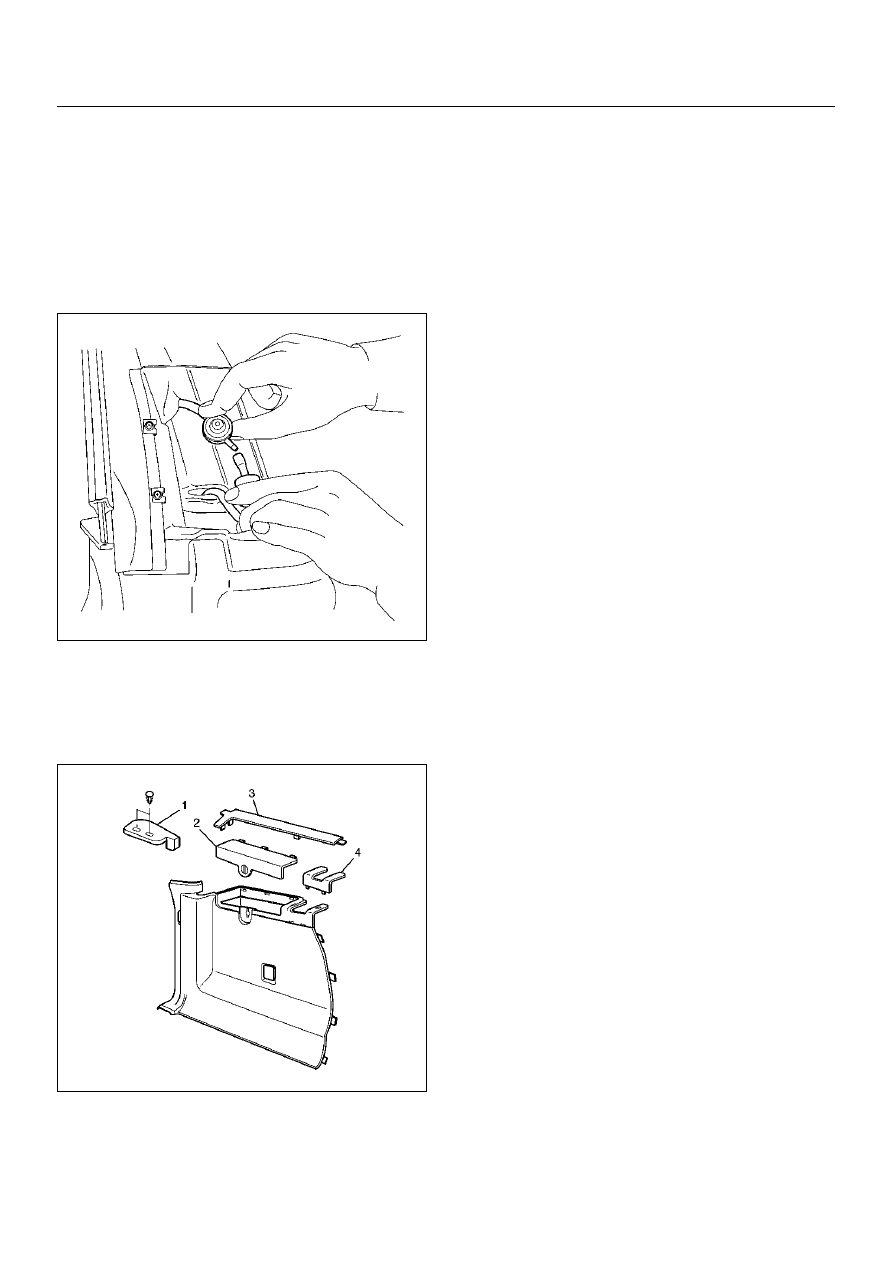

8. Disconnect the rear washer hose (Right side, inside

air outlet grille assembly).

688RW007

9. Disconnect the harness connector for the resin top

(Left side, behind the luggage side trim).

• Remove the canopy cover (1), the luggage side

lid (2) and luggage side upper cover (3). Then pull
out the harness and disconnect the connector.

686RX001

10. Remove the resin top assembly.

• Remove the two fixing bolts each and nut each

from the left and right sides, then lift the resin top
up and off.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Removing and mounting the resin top should always

be performed by two persons.

2. Tighten the resin top fixing bolts and nuts to the

specified torque.

Torque: 15 N·m (1.5 kg·m/11 Ib ft)

SUNROOF/CONVERTIBLE TOP

8I–15

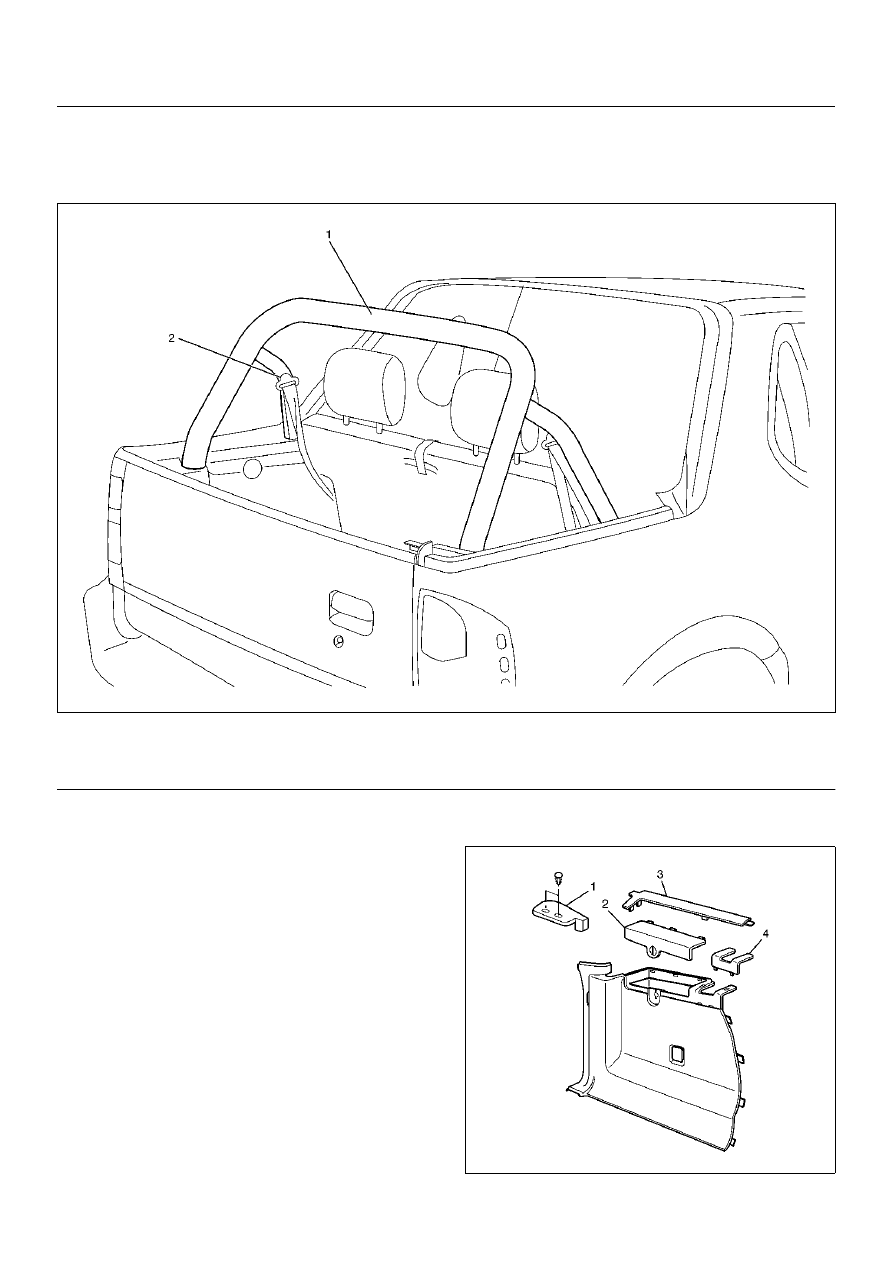

Seat Belt Cross Bar Assembly

Seat Belt Cross Bar Assembly and Associated Parts

688RY00001

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the resin top Assembly.

• Refer to Resin Top Assembly in this section.

3. Remove the canopy cover (1).

• Remove the two fixing clips.

4. Remove the luggage side lid (2).

5. Remove the luggage side upper cover (3).

6. Remove the luggage side front cover (4).

686RX001

(1) Seat Belt Cross Bar Assembly
(2) Rear Seat Belt Assembly
